Projects Project 29 Phaeton

Welded on the switch pod...
Cut holes / welded bolts for gauges...

Sent from my SM-G930T using The H.A.M.B. mobile app



...that looks real spiffy @340HilbornDuster...



Hoping to Make Some Noise tomorrow.........

Sent from my SM-G930V using The H.A.M.B. mobile app



No noise..yet!

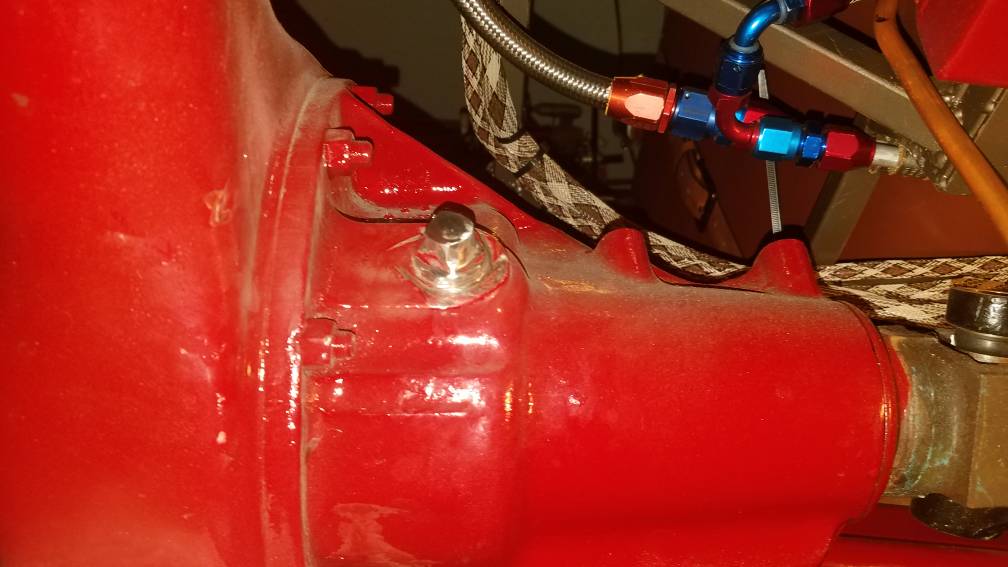

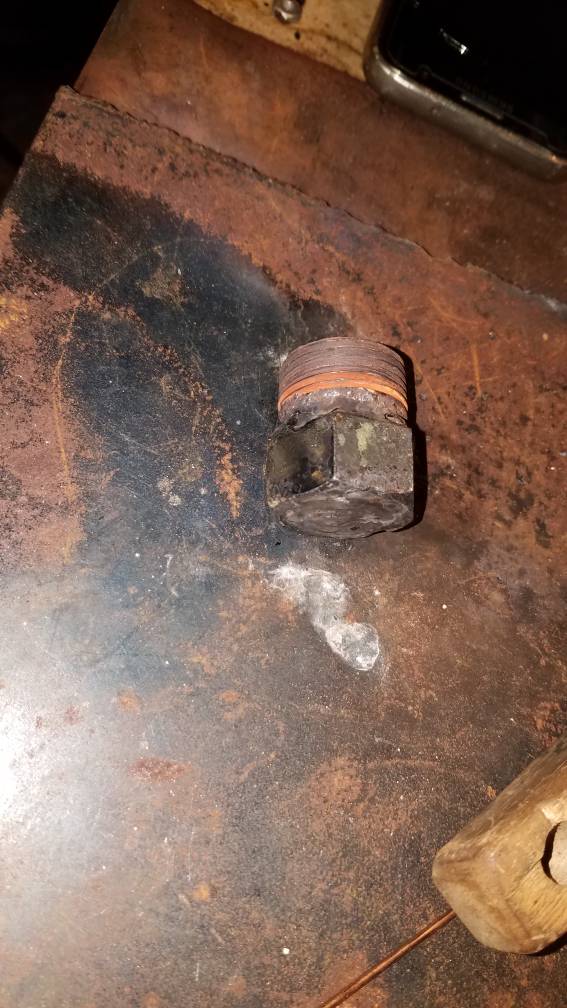

Rear axle plug stuck / rounded.

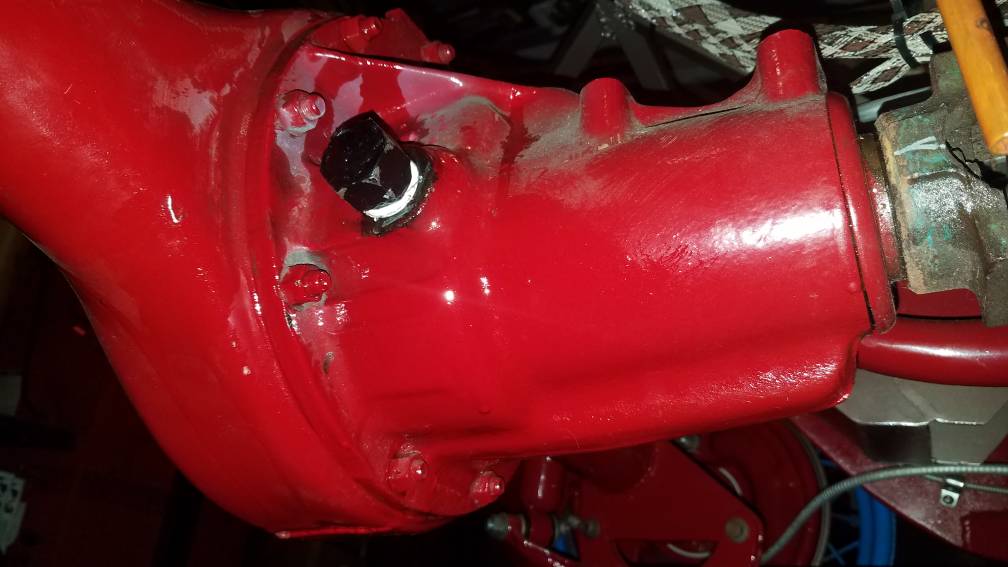

Welded a nut to it...

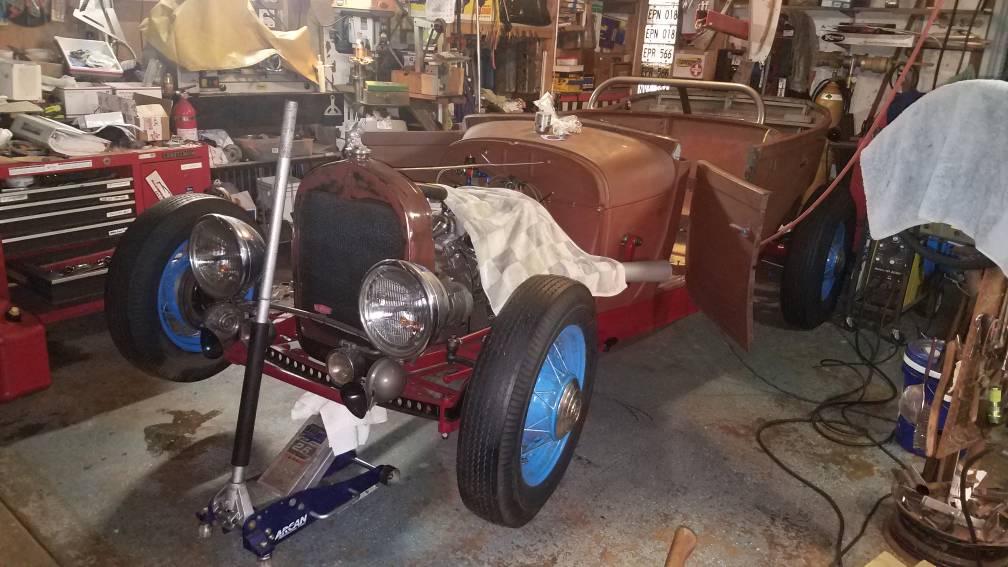

Cause o stance...had lift up the front to get 2 quarts in there

Sent from my SM-G930V using The H.A.M.B. mobile app



340 there's a thread for that cool shot...​



Paint it red and call it done...



Organized / labeled relays
Shoulduv dunn this before i put the back dash in...!

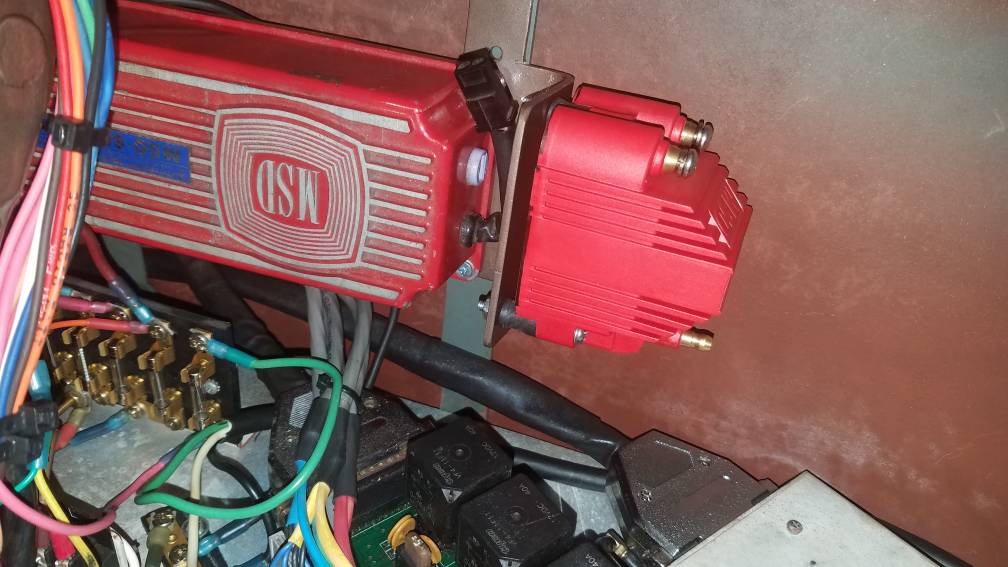

Next wire the dash switches...power to EFI & MSD Box...

Sent from my SM-G930V using The H.A.M.B. mobile app



Starting to make sense again...
Back board ~ year ago...
Drawings 20 + changes later...


Sent from my SM-G930V using The H.A.M.B. mobile app



Ugh......I'll take drilling holes and installing rivets...but if that's your forte...good on you...



It's past 2am...There's the f****** problem.
E-bay site listed the colors wrong...!!
Black 85 and white 86 was right...

Sent from my SM-G930V using The H.A.M.B. mobile app



Should have taken that sucker out long time ago... relay Fu fixed - back to finish wiring.
Pic Behind that mess....

Sent from my SM-G930V using The H.A.M.B. mobile app



Thought I had it...then this...two batches...none them standard...
....F#&#^^ C#&$%
If i'd just checked from the begining!!!
Start all over again!

Sent from my SM-G930V using The H.A.M.B. mobile app



Every time you do something ...
hopefully you learned something...?

Sent from my SM-G930V using The H.A.M.B. mobile app



That's why I don't do wiring. Life's too short.



Smart Man You!
No car show today either....and here comes the rain...
Maybe a short shake down tomorrow...never know?
F...ing Relays finally works!
Everythings got power except the Starter...!?....tired!

Sent from my SM-G930V using The H.A.M.B. mobile app



Good Job @340HilbornDuster



Gettin there...

Sent from my SM-G930V using The H.A.M.B. mobile app



Everything works!
Now i just have to find my "Old-School" DB9 to DB9 cable!


Sent from my SM-G930V using The H.A.M.B. mobile app



Having an evening drive I see how fast are you going......glad to see your getting through the ups and downs.



Always said I'll report both when I'm doing good and when I Mess things Up!
I'm Learning!....Sometimes the Hard way!..but it's still FUN!



Hilborn injector hoses to bench bleed the Master Cylinder....looks like the rear circuit is bad!!!...swap meet find...guy said it was re - built...

Sent from my SM-G930V using The H.A.M.B. mobile app



...I can think of several responses to this outcome...none are very pleasant to hear but I'm sure you have vented your frustration already...hopefully you can repair it...is that feasible?



E-Bay.....



My Missus does a fair bit of E thing. She Paypals it and many times has issues and generally comes out protected...I am sure this may be time related and I know we tend to get stuff and it could be a while before we set it up...so this may complicate the situation albeit it is all legit you just want a functioning item. Did you send the seller a message as they have a rating to protect...

and defective product with no recourse doesn't help them as bad reviews add up.



I've had a 99% success rate with E-bay / PayPal!!...the 1% bad i always got my $$ Back...

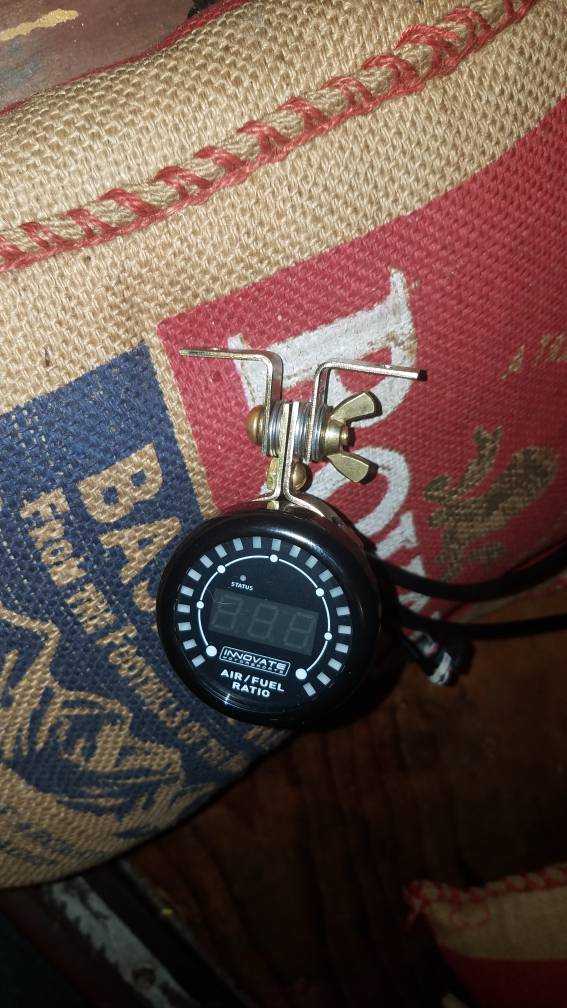

Foldable O2 sensor bracket...doesn't match the dash look....

Sent from my SM-G930V using The H.A.M.B. mobile app



Up
Down


Sent from my SM-G930V using The H.A.M.B. mobile app



Mopar plugs...not much more $ than Oh' Realy's.
Slightly longer than Bosch & not that annoying screw on top...solid...
Clean up wires a bit...

Sent from my SM-G930V using The H.A.M.B. mobile app



Been a while since I checked in here. Car looks great - you’re almost there! Looking forward to updates.



Troubleshooting...
Unilite's good!... tested in the Duster.
Same model number different height?
