Show Me.... 1932 Ford Dashes... Picture Thread

Here is mine from an old Volvo PV



A couple of mine



Going in a 5 window.



Wow
I like that a lot. Went to your web page and read how you did it. Very very nice.



Here's some of my 5W.



A few from over the years ... that I like ...









And here is one that fellow HAMB member 3 Deuces had cast and made for his 32 sedan. I really LIKE IT !!



Wood crafted ran for first 225,000 miles with SW gauges.

Engine turned SS simple layout flat dash since 1996 with 77,775 miles showing, ignition & lights under dash. 2 piece steering holder by me. All new FORD black faced gauges, running at present.



32 roadster pickup, thought to be 30's Dodge firetruck gauge panel but may be early Studebaker.

32 coupe has SW Hollywood panel and early SW gauges,

Mick



Here's mine. Kinda plain.



I'd like to see how a 32 dash looks with a 49-50 chev guage cluster in it.

One round guage with speedo surrounded by 4 other guages / fuel, temp, oil pressure and amps - all you need



40 dash in my 32.



My '32 5 window, a work in progress.



How about a truck dash? Not customized too much but I really like them close to original. The bottom one is the light switch. Alas I sold it. I'm not sure if the trucks had the stainless football trim but I added it anyway.



I painted the flying V8 on my old Sport Coup original speedo.



Not a very good shot, but being old and scary, I need them where I can read them. Temperature, fuel, speedometer,clock, volts, tach, oil pressure, fuel pressure, manifold pressure...all Stuart Warner. The NOS SW clock was a lucky score...



Here is a shot of the interior I'm working on. Nothing special, but I was looking for simple and classic.



here you go, no car though ...



One I just got.



My unrestored European (Danish) build 32 Tudor with suicide doors



And this is our roadster. We did the engine turning with Craytex on scrap aluminum.
Wings gauges and a HD "Police" speedo.


Didn't want it too busy so we hung a tab under the bottom edge and stuck two toggles (one for the fan, the other not hooked up yet) and a choke knob.



My Victoria, red 3-window, and sedan delivery dashes



Here's the one we made for my roadster



hey Larry, that's still the coolest column drop I've seen!

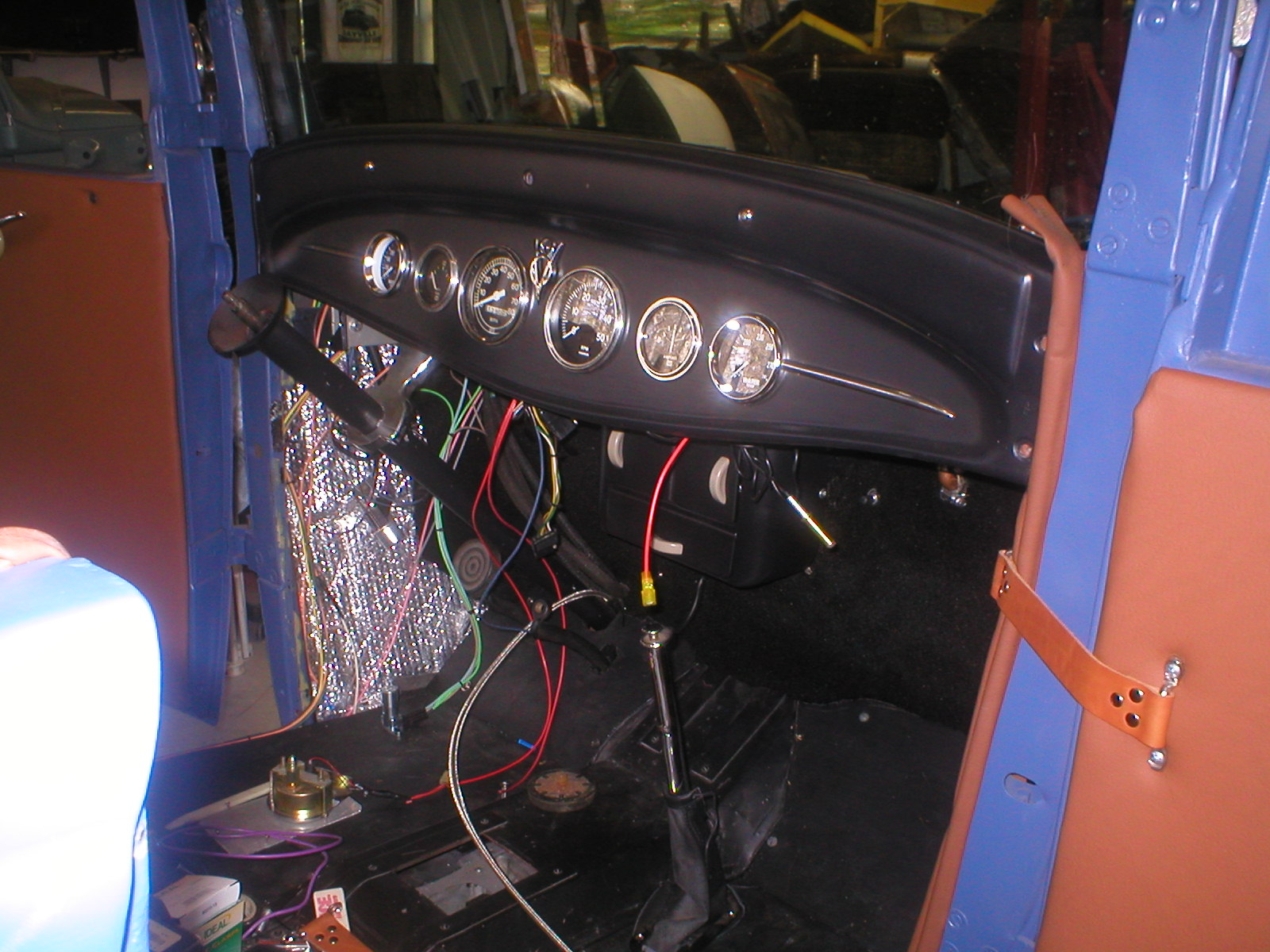

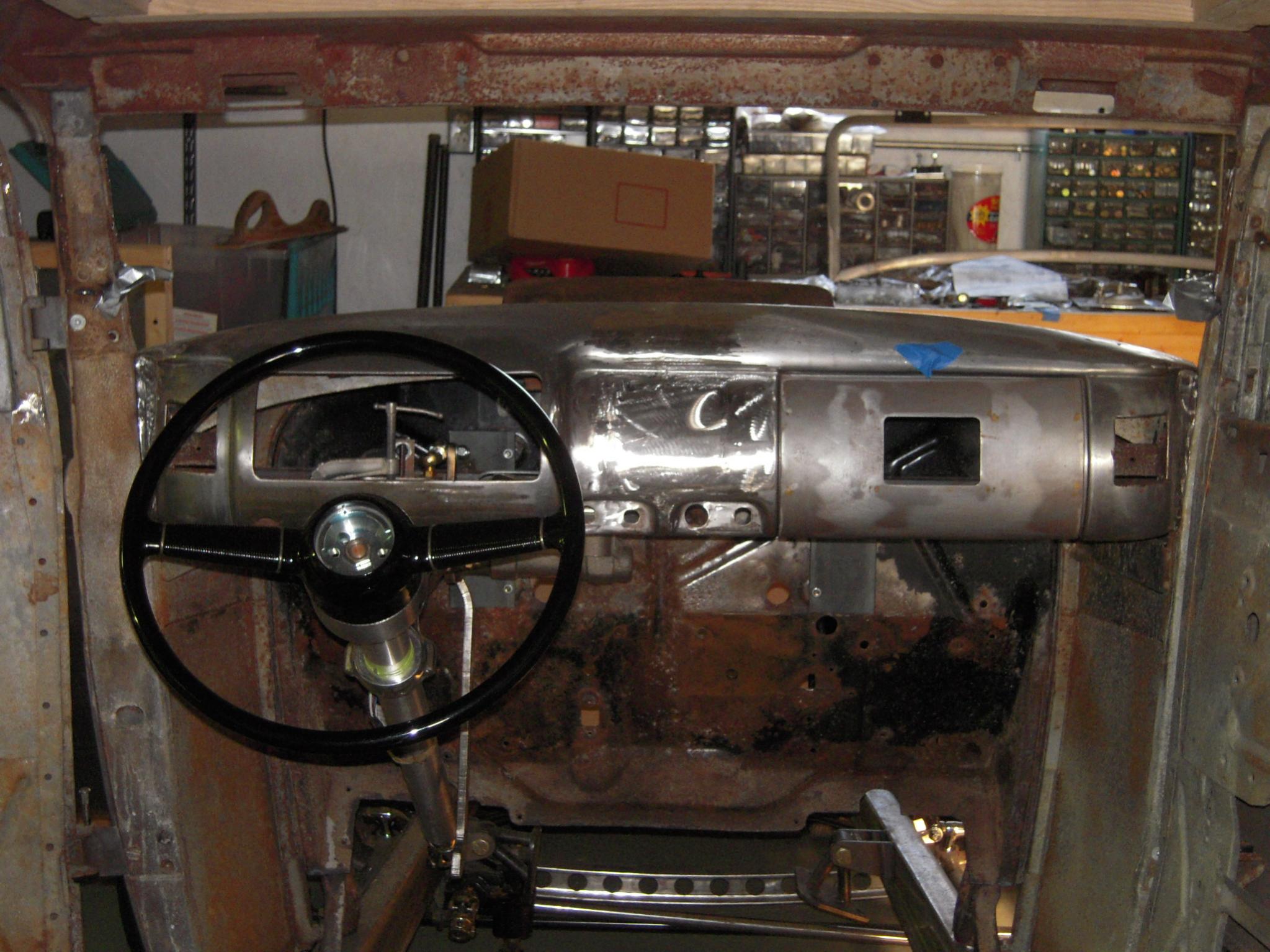

Here is an under construction shot



The one in my avatar ....

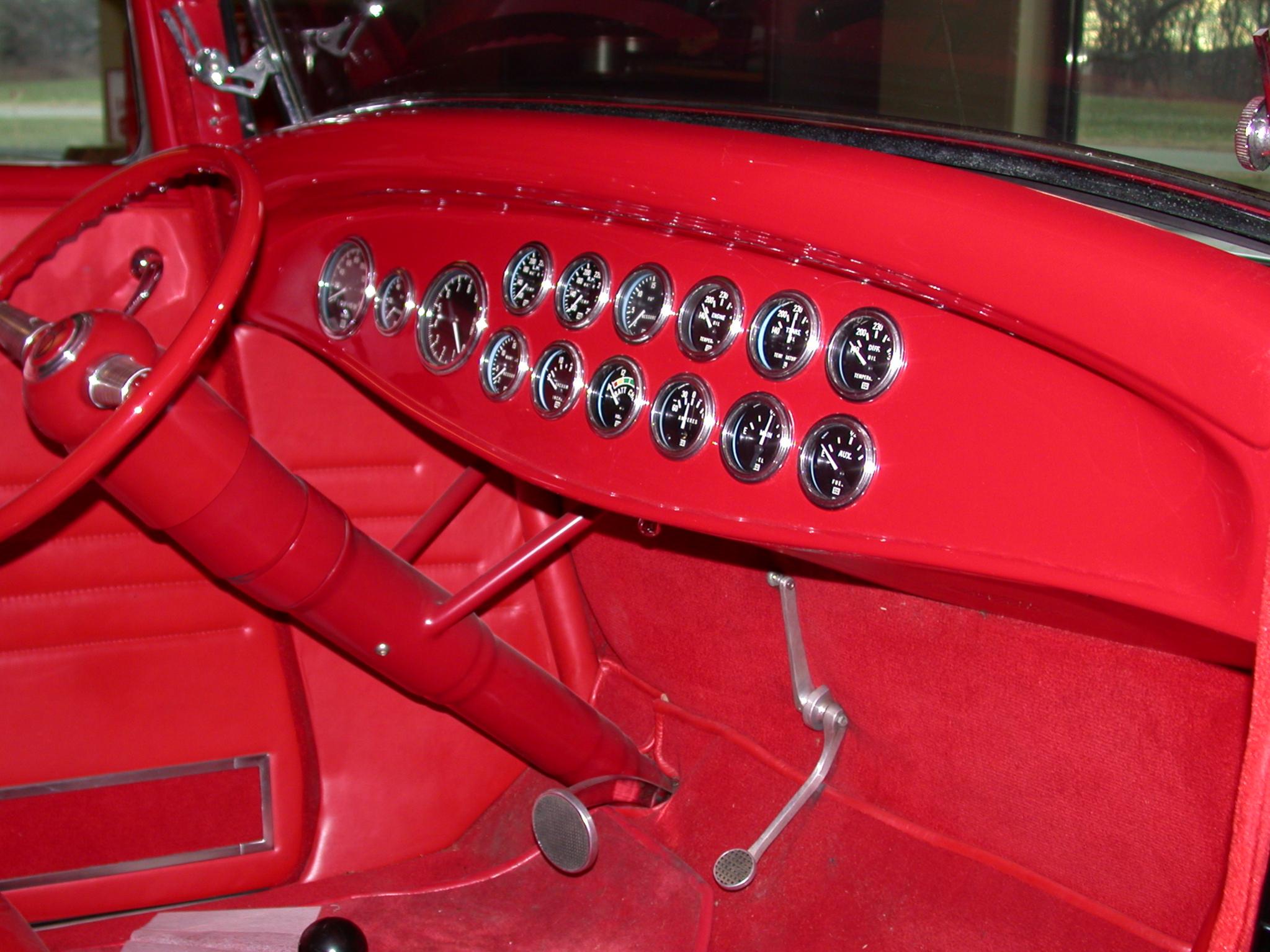

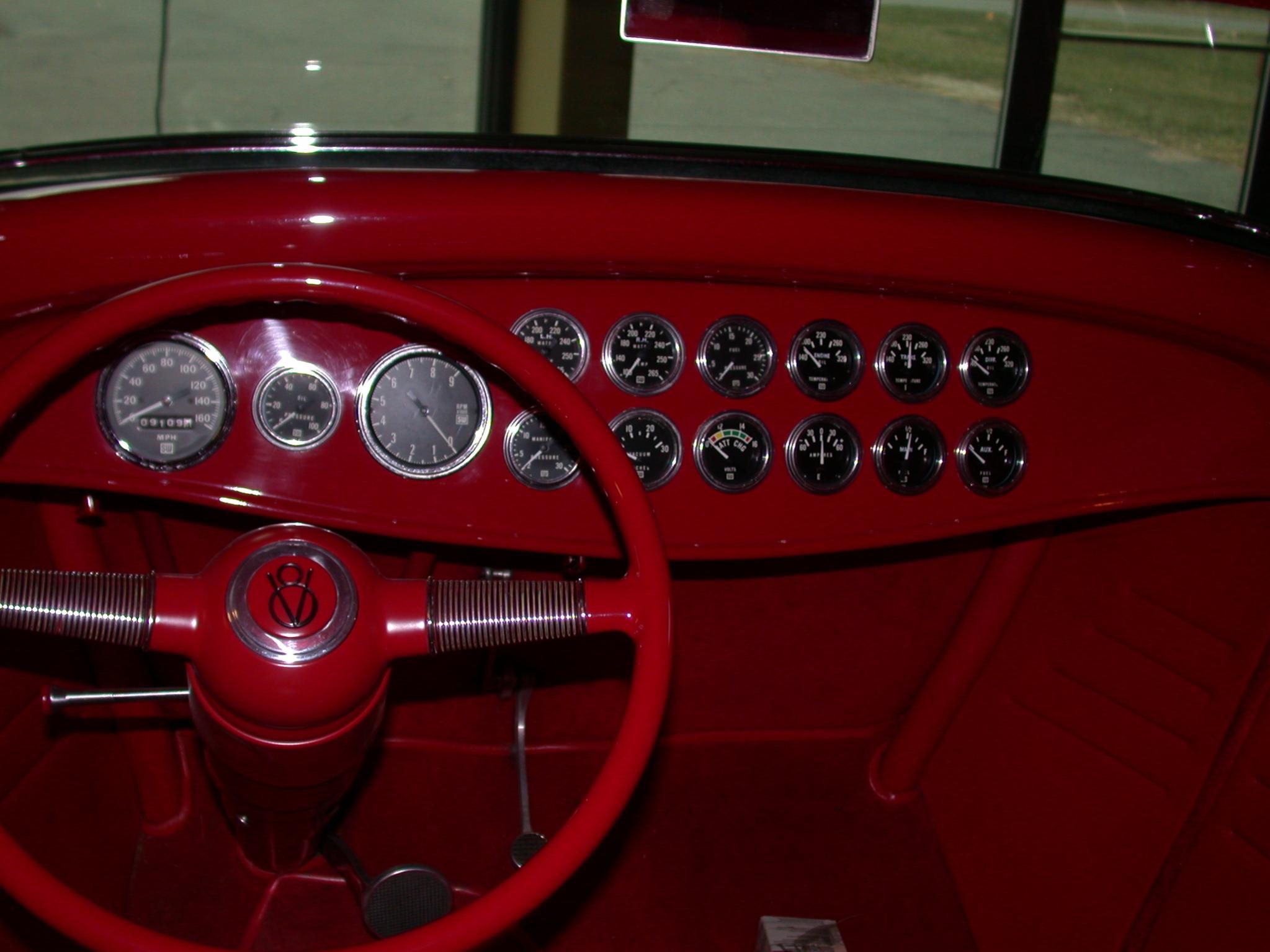

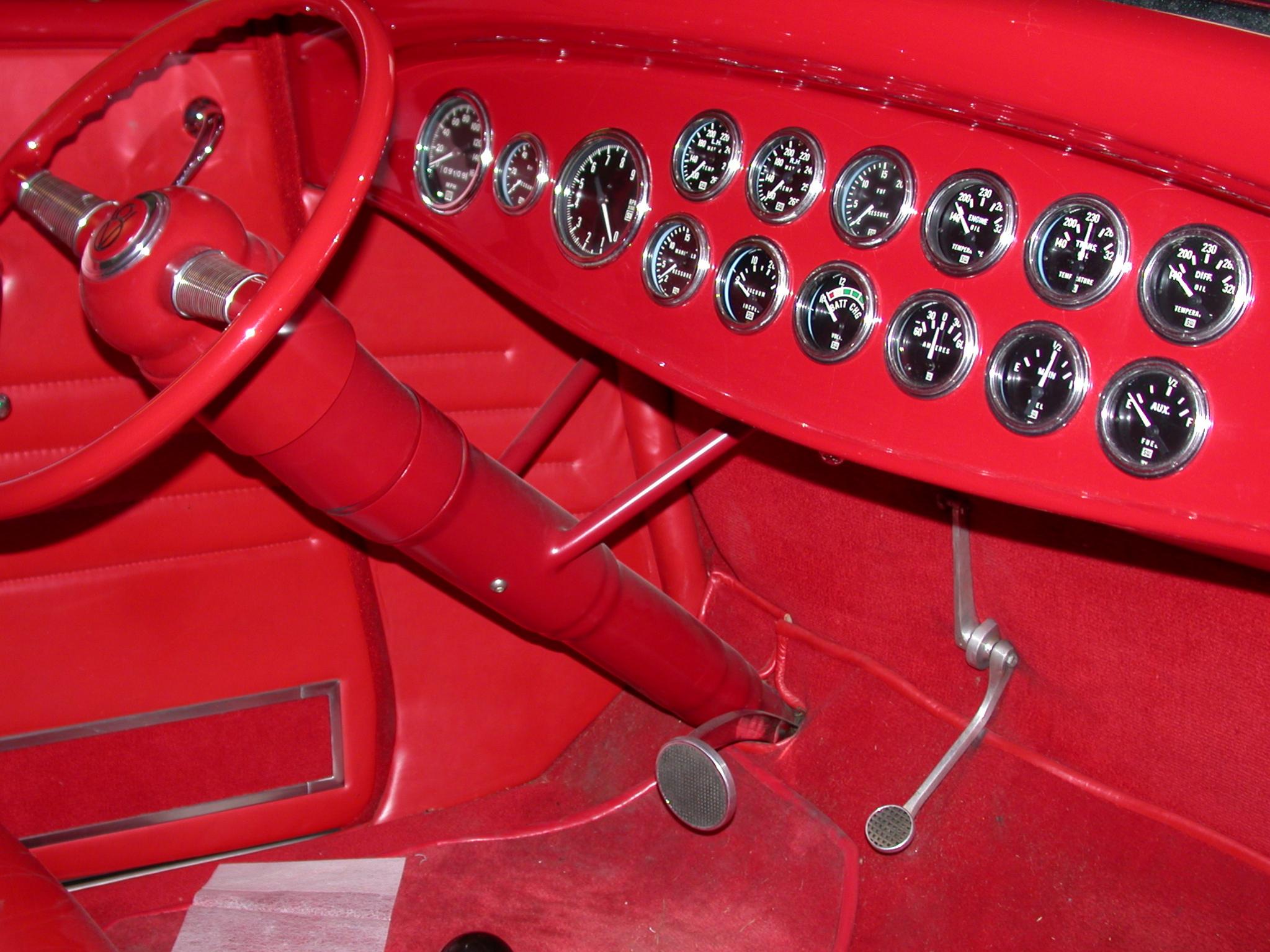

My 32 3 window dash.

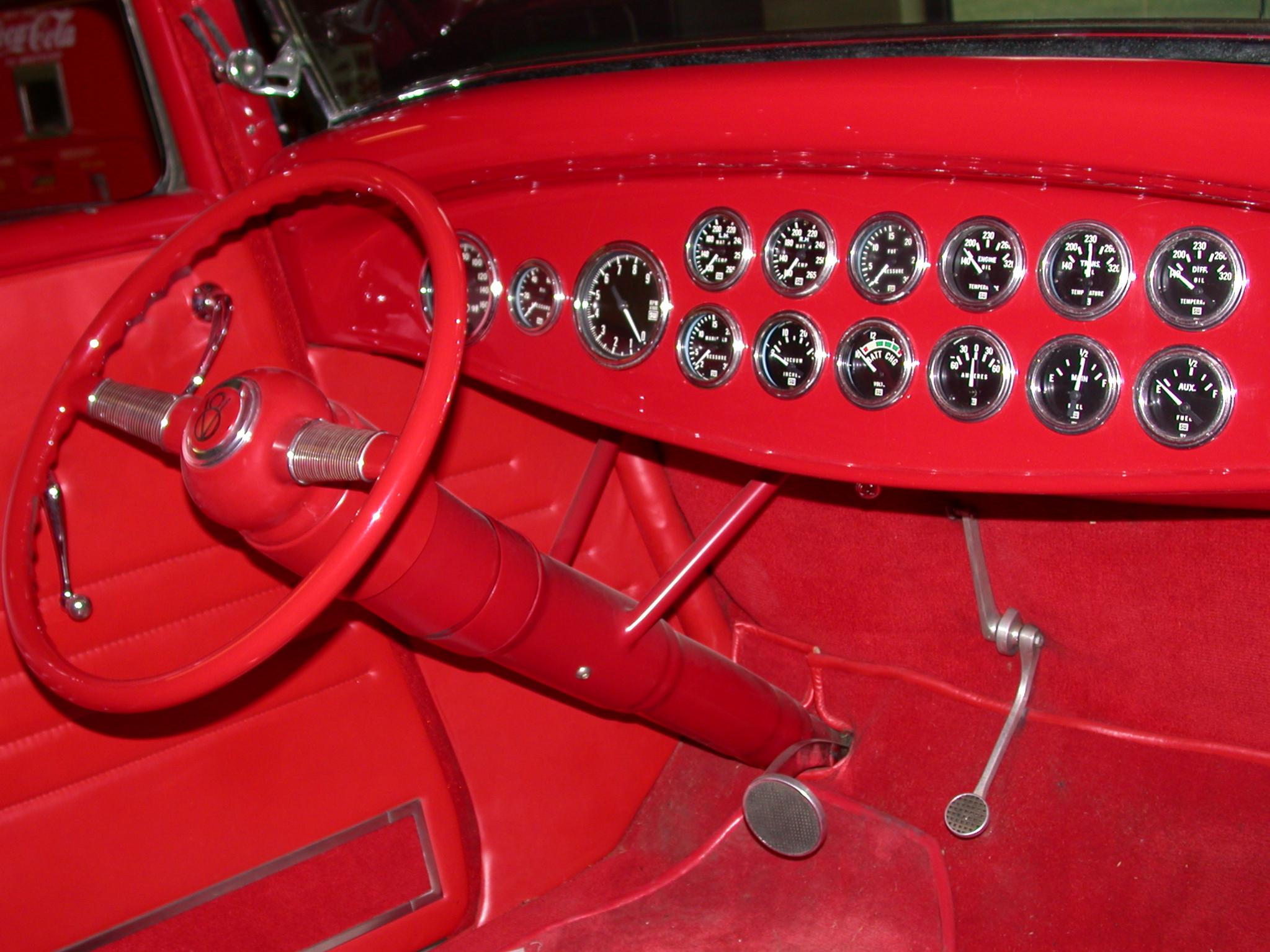

3 window coupe dash.



yet another flipped pic !



1932 ford coupe



The dash in my pickup,,



My old roadster,,,HRP



Don't let all that fool you,... Only the top row is for monitoring the car,... The bottom row was actually prescribed by Bob's Doctor,.. Blood Pressure,.. Pulse,.. temperature,.. heart rate,...... all that kind of stuff,...
