    Chaz's post from the tank site today:
    http://kaparich.homestead.com/bellyapril09.html

    Today was origami day at the shop. We need to build a water tank to keep our engine cool during its runs, and space is getting to be hard to come by on this project. We brought along a bunch of tape and cardboard to make a cardboard dummy of the tank to be sure everything would fit alright before making one out of steel. The steering shaft is right in the way, so we decided to make a tube pass through the tank to allow room for the shaft.

    [​IMG]

    We used foamcore and mat board for the mockup cause its a lot stiffer than posterboard. Its a LOT easier to work with

    [​IMG]

    Here's a picture of the shape the tank will take. It lops over the tranny in order to get 20 gallons of volume

    [​IMG]

    It took several trial fits and revisions before it would clear everything, but finally we got it!

    [​IMG]

  2. 69fury
    Joined: Feb 24, 2009
    Posts: 1,693

    69fury
    Member

    looks nice!! remote pump for space sake?

  3. publicenemy1925
    Joined: Feb 4, 2007
    Posts: 3,187

    publicenemy1925
    Member
    from OKC, OK

    What kinda fuel system are you using? Everything looks great. I miss the weekly posts.

  4. Toymont
    Joined: Jan 4, 2005
    Posts: 1,381

    Toymont
    Member
    from Montana

    Yeah we are thinking remote electric pump

    Carberated, with an electric fuel pump

  5. Cool guys! 10 pounds of shit in a 5 pound bag?

  6. hotrodladycrusr
    Joined: Sep 20, 2002
    Posts: 20,765

    hotrodladycrusr
    Member

    You guys are so clever. :cool:

  7. 1950ChevySuburban
    Joined: Dec 20, 2006
    Posts: 6,185

    1950ChevySuburban
    Member Emeritus
    from Tucson AZ

    Pretty slick setup there. Y'all never fail to impress

  8. stealthcruiser
    Joined: Dec 24, 2002
    Posts: 3,750

    stealthcruiser
    Member

    Looks like about 160-170 pounds of ballast where it will do some good!

  9. Chaz
    Joined: Feb 24, 2004
    Posts: 5,016

    Chaz
    Member Emeritus

    I remember telling another landspeed racer that we actually had plenty of room for everything in our bellytank. "Just wait " he said "You'll be looking for every extra spare inch before you're done." He couldn't have been more correct!

  10. Doc.
    Joined: Jul 16, 2005
    Posts: 3,558

    Doc.
    Member Emeritus

    Chaz, I really want to be there for the maiden voyage. I just need some lead time to get off work.

    Doc.

  11. 8flat
    Joined: Apr 2, 2006
    Posts: 1,392

    8flat
    Member

    Looking good! Just curios, is there a formula for calculating water tank size, like gallons per HP?

  12. username
    Joined: May 8, 2001
    Posts: 149

    username
    Member

    Awesome project!

    Can you take/post some wide shots?

    Sorry if you have already chatted about it, but, are you sitting in front of the engine that is pointing backwards? Is this front wheel drive also?

    I finally made it out to Bonneville a few years ago and the Bellytanks were definitely my favorite.

    Again, awesome project.

  13. Toymont
    Joined: Jan 4, 2005
    Posts: 1,381

    Toymont
    Member
    from Montana

    Doc, we will be sure to give you plenty of time, but as of now it does not look like we will be there this year, So plan on next yr for sure.

    Click on the link at the top of the first post to see the whole build, there are plenty of photos. Yes it is front wheel drive, and we are sitting behind the engine, but it is pointing backwards.

  14. Chaz
    Joined: Feb 24, 2004
    Posts: 5,016

    Chaz
    Member Emeritus

    Here's a pic of how all the drivetrain parts and driver are arranged. Yep, front wheel drive.


    Attached Files:

  15. hotrodladycrusr
    Joined: Sep 20, 2002
    Posts: 20,765

    hotrodladycrusr
    Member

    That bums me out as I was looking forward to seeing it run this year.:(

  16. Toymont
    Joined: Jan 4, 2005
    Posts: 1,381

    Toymont
    Member
    from Montana

    Yeah, it kinda bums us out too, But we gotta get it right and it just does'nt look like we are gonna get there in time for this year.

    We do look forward to you coming thru on your way back home and you can sit in it and make engine sounds. "VROOM, VROOM"

  17. jonzcustomshop
    Joined: Jun 25, 2007
    Posts: 1,928

    jonzcustomshop
    Member

    I lovethe headers! it looks like the steering shaft runs through where the carb will be? are you going fuel injection?or do you have a custom sbc intake that will clear the shaft?

  18. Toymont
    Joined: Jan 4, 2005
    Posts: 1,381

    Toymont
    Member
    from Montana

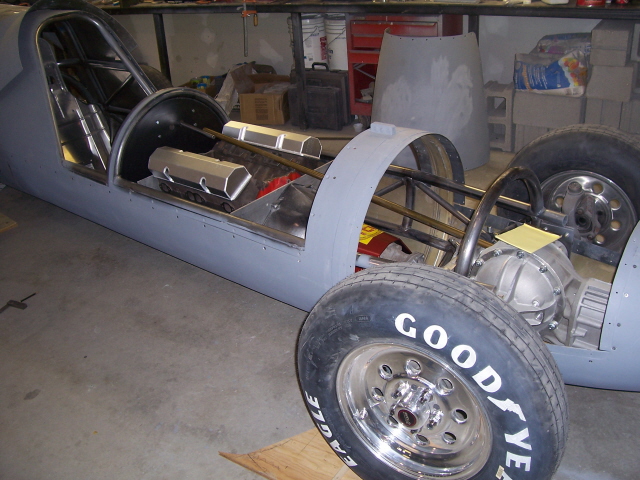

    Hey Jon, Stop out sometime. The shaft actually runs right between the valve cover and the intake. You can see it a little better from this angle.

    [​IMG]

    Last edited: Apr 28, 2009
  19. jonzcustomshop
    Joined: Jun 25, 2007
    Posts: 1,928

    jonzcustomshop
    Member

    I see! that first pic, the shaft looks like it is running right down the center of the motor.
    what day are you guys out there?
    winters over, so I am overdue for a visit.

  20. RAY With
    Joined: Mar 15, 2009
    Posts: 3,132

    RAY With
    Member

    Well you have a good start but I imagine there will be a few snags along the way. Good luck and please keep us posted on your progress.

  21. Toymont
    Joined: Jan 4, 2005
    Posts: 1,381

    Toymont
    Member
    from Montana

    Every Sunday after 11:00 till around 3:00
