Projects The Geoffrey Skene 1932 Roadster - Full Build by Early V8 Garage

PART 19

With all of those extra holes filled it was time to start making the inner frame channels that will make the legs of the 33/34 X-member continuous to the front and rear cross members. Doing this doesn’t just look neat. It doubles the thickness of the frame channels where they need it the most, ahead of the firewall and through the S-bend up and over the rear axle tubes, the latter being a very common place for fatigue cracks to occur.

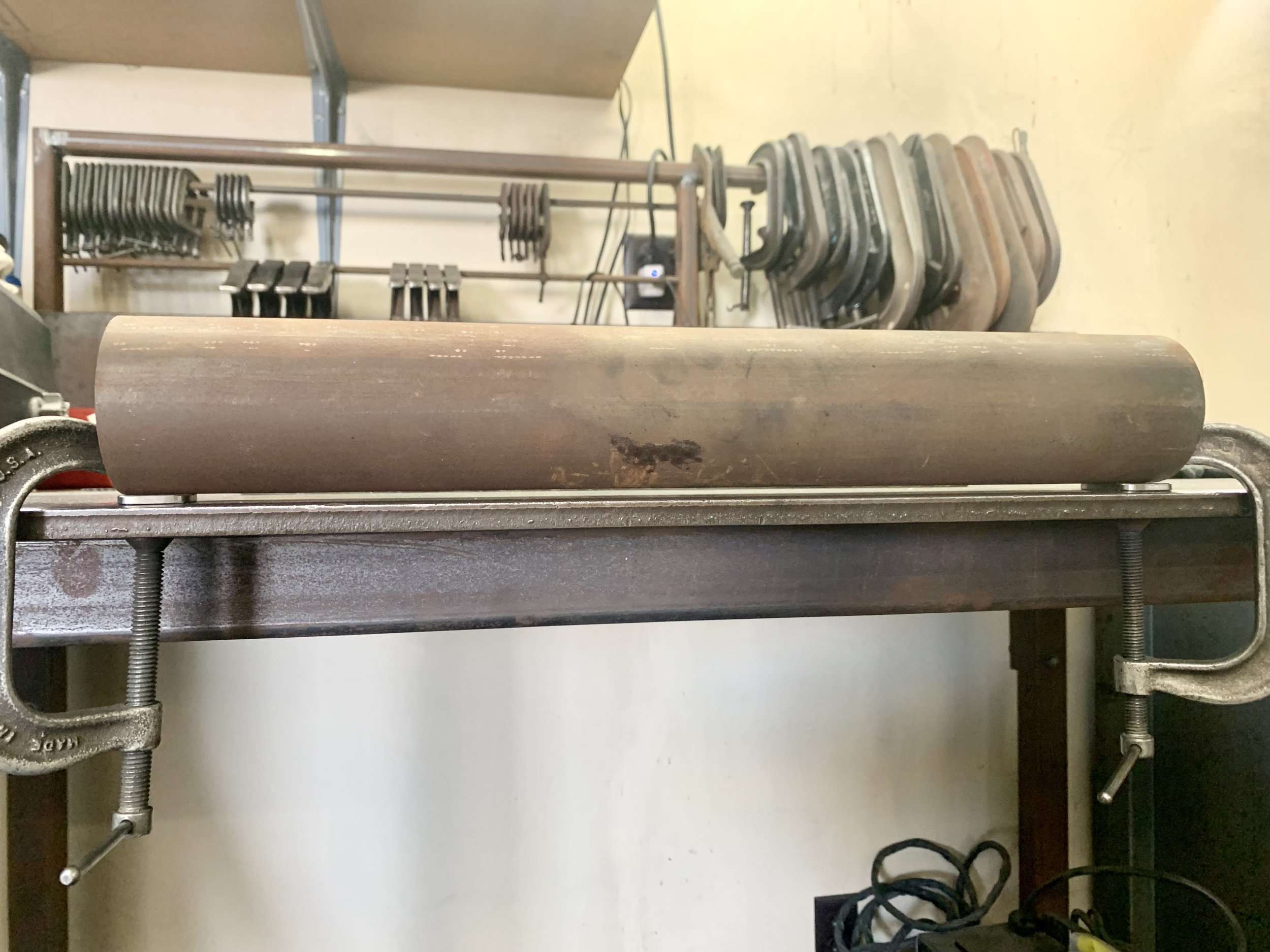

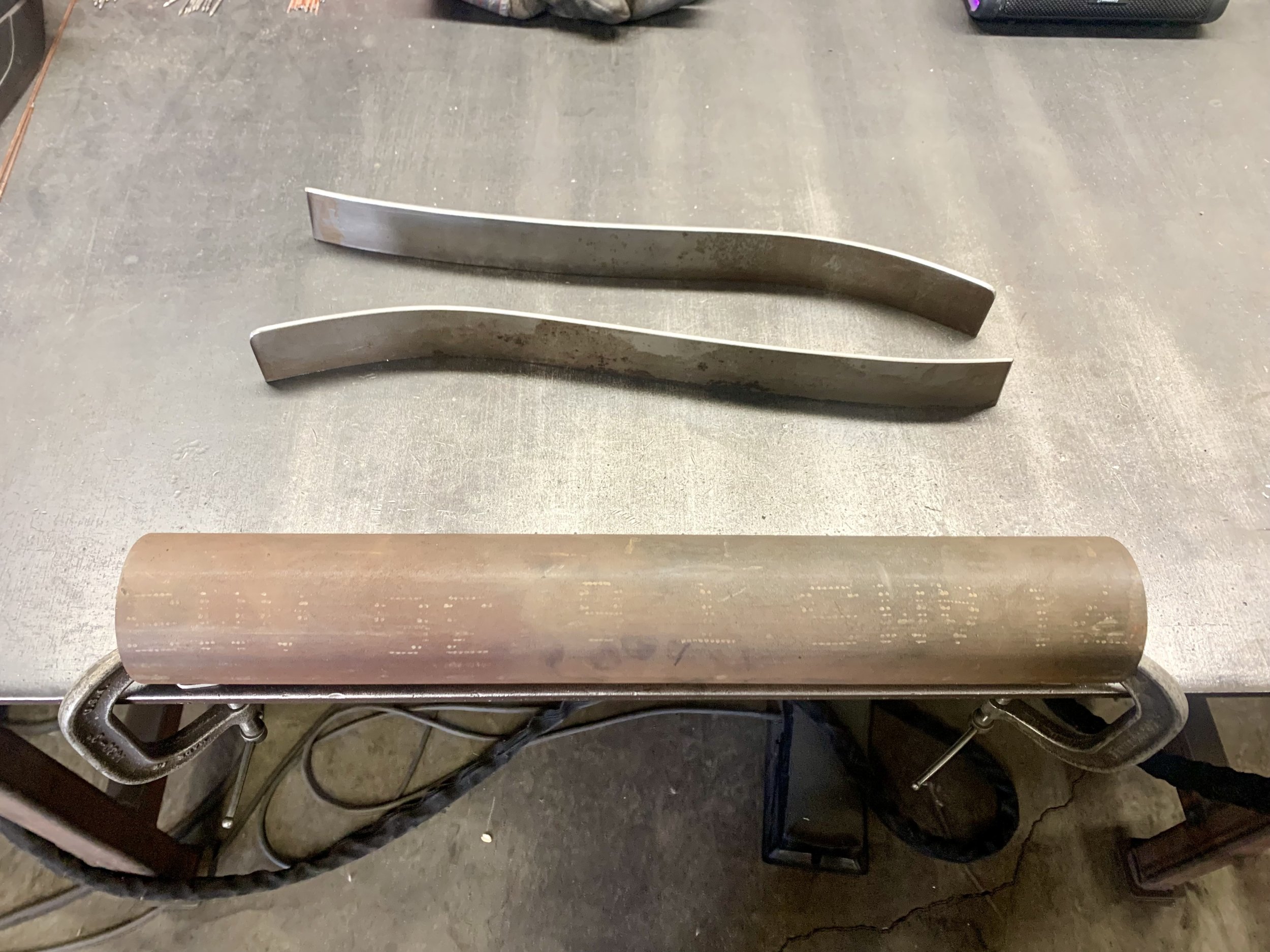

I started with the rear extension channels since, because of the S-curve, they will be more involved to make. I laid out, cut out and dressed two pairs of 11 gauge X 1-5/8” wide flanges. To shape them I pulled out my highly sophisticated 4” tube clamped to the edge of my welding table with some 1/8” spacers under it (you can see this first used earlier in the project when I modified the center saddle.) Works like a charm.

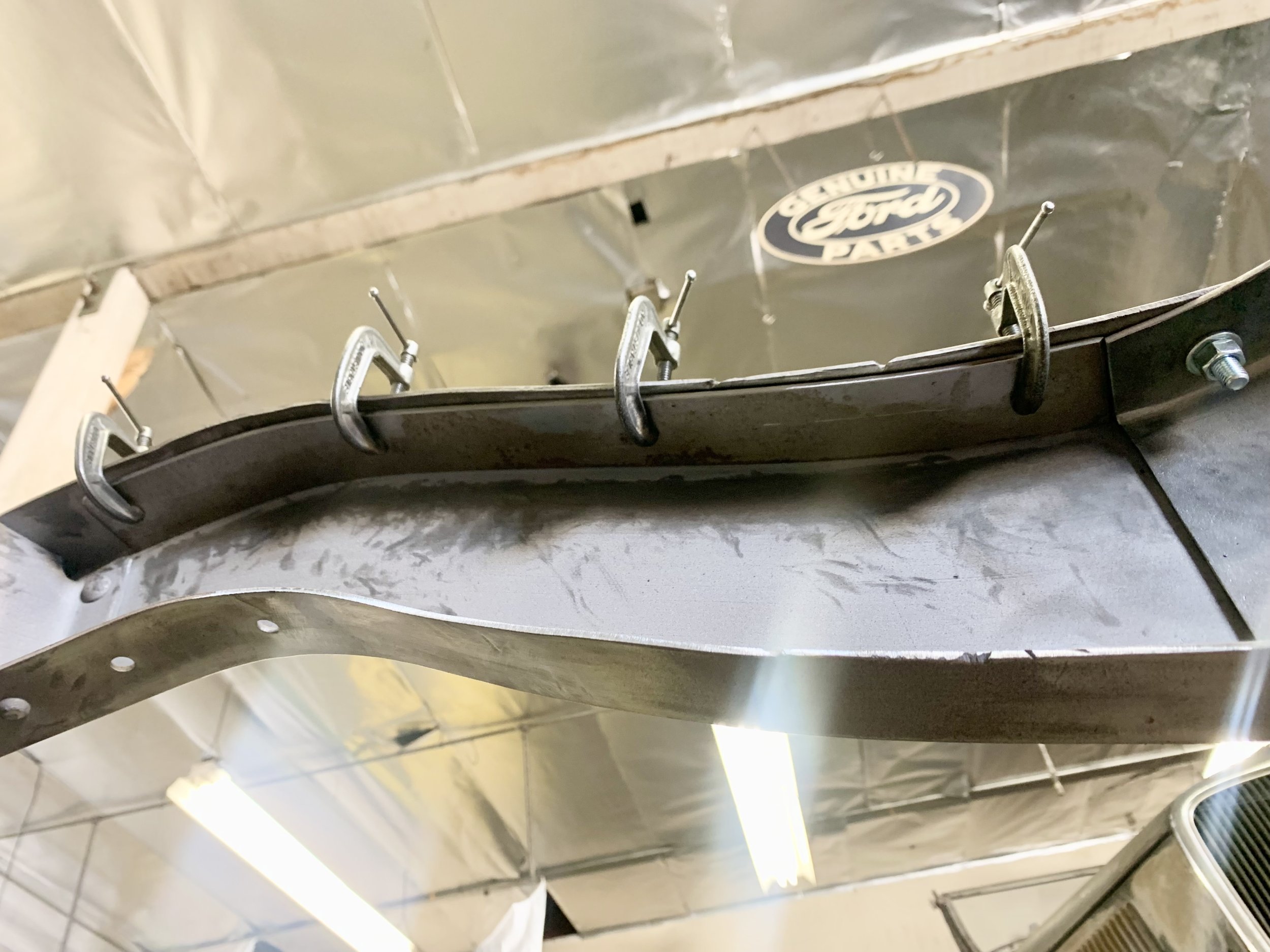

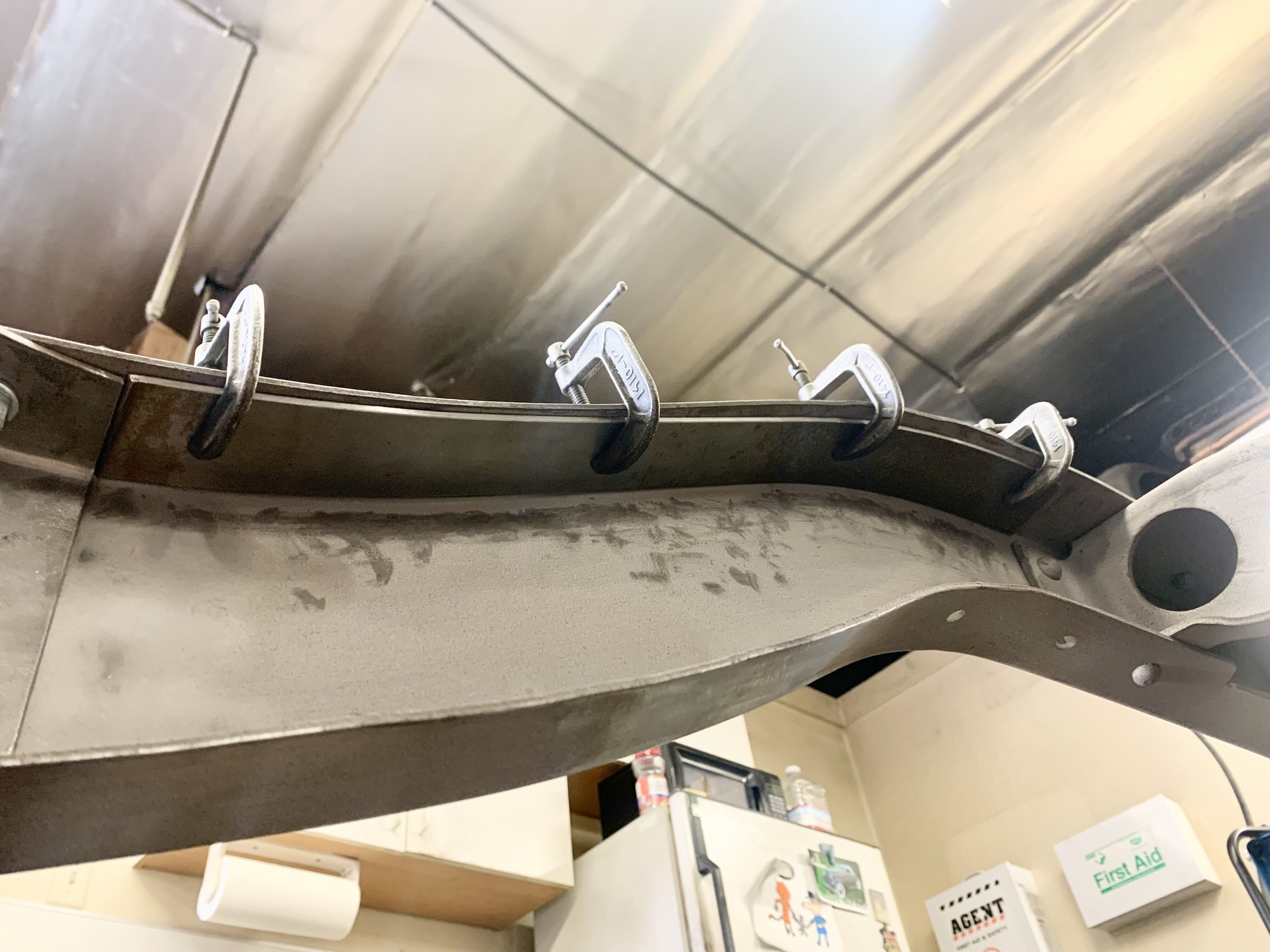

There’s nothing special about this process. Just keep tweaking the pieces until they are a good fit. Once I was happy with all 4 flanges they were clamped in place.

Note: I made each piece 1/2” longer than need to started and did a final trim after they were fit. Always leave a margin. Nothing worse than forming a part perfectly but having it come up short!









With the upper and lower flanges fit it’s time to move onto the side pieces. There’s different ways to go about making a fitted pattern and I considered them all but landed on using blue masking tape. I cleaned the inner frame rail thoroughly with lacquer thinner than applied tape 4 layers thick, making sure to overlap the seams of each lower layer so that the tape would be sturdy when removed.

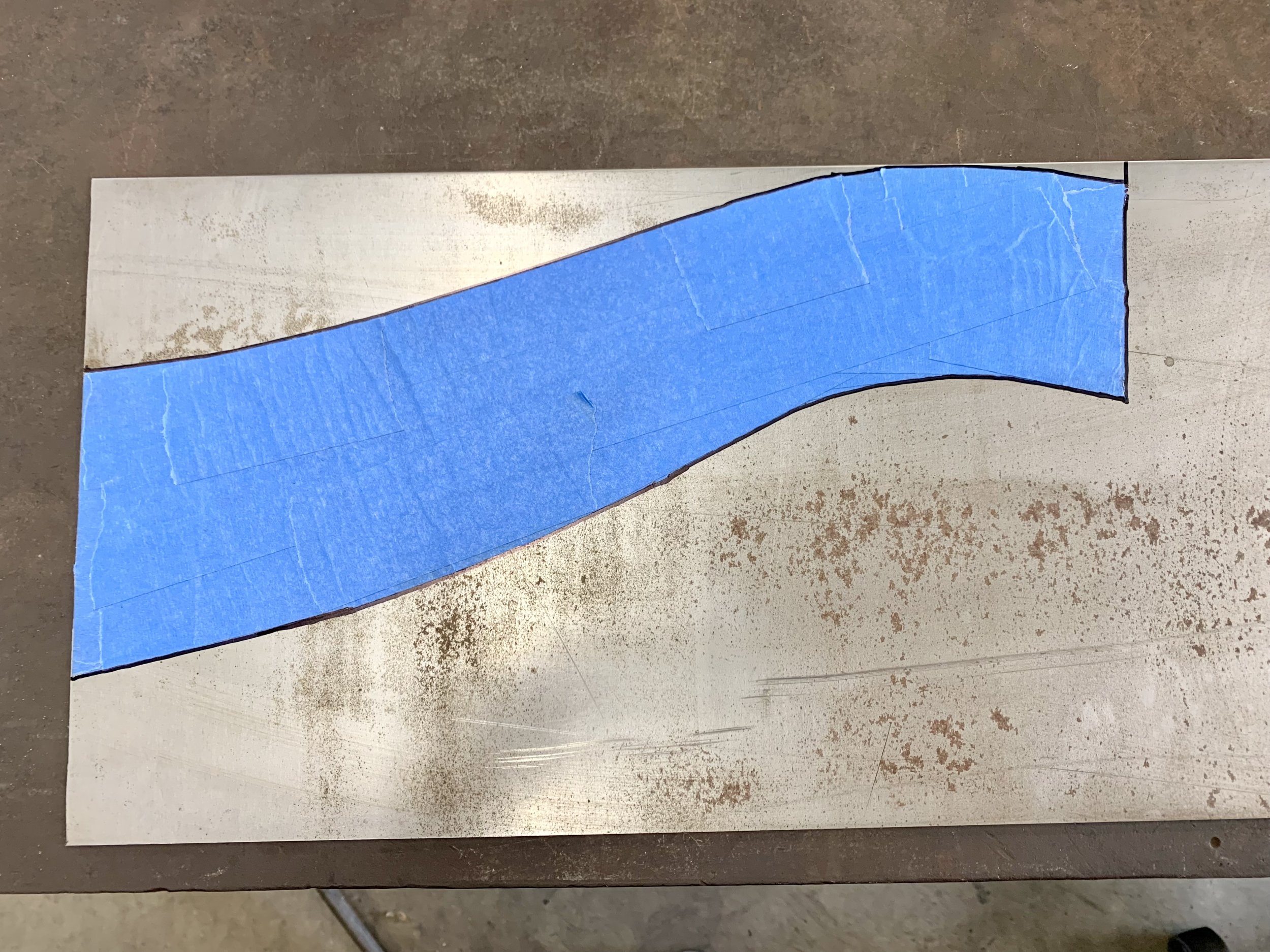

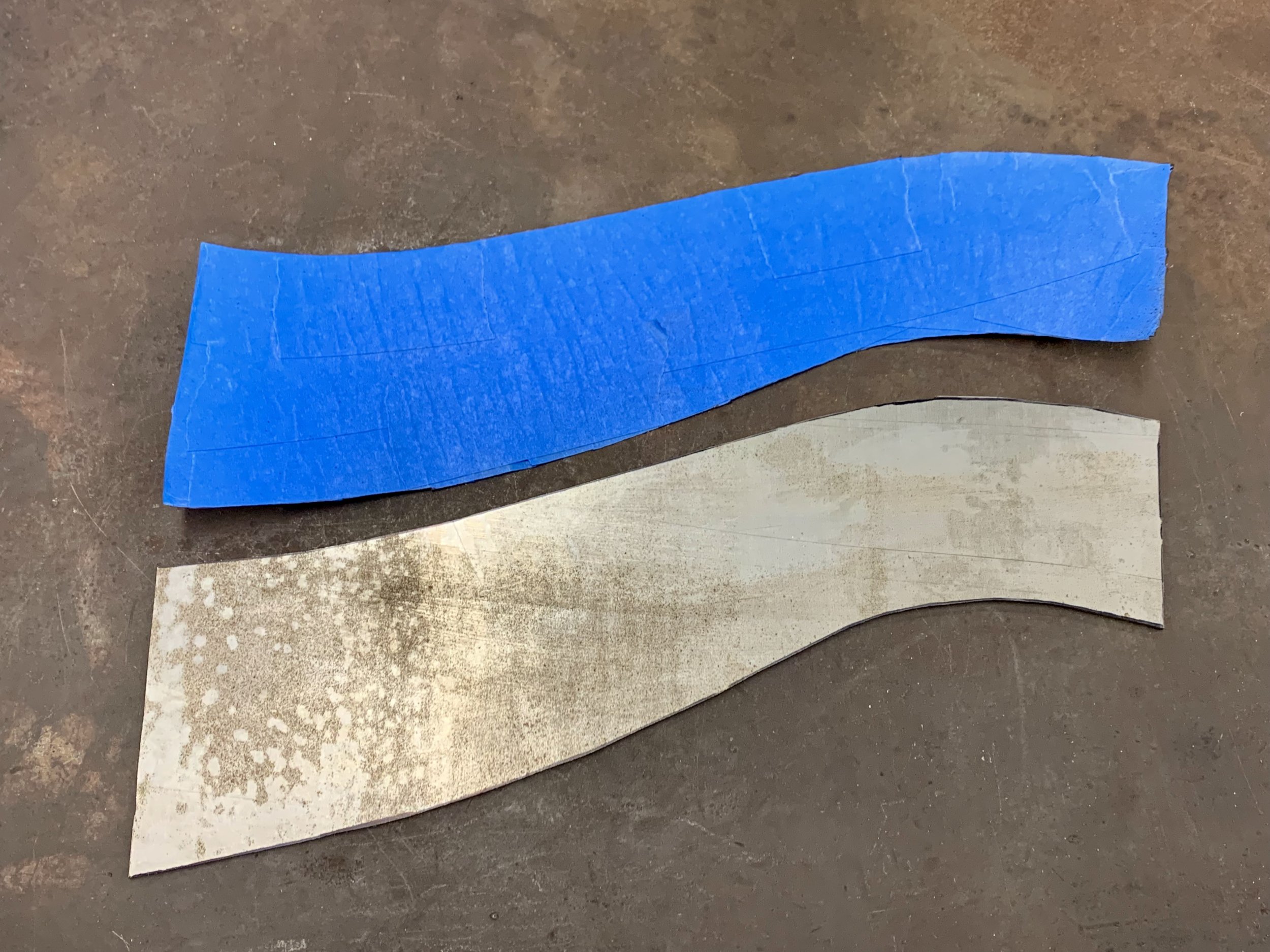

The tape template was then stuck onto a piece of 11 gauge steel and traced with black Sharpie. The tape was removed and the piece cut out leaving just a hint of black line showing so I could sneak up on the fit. Simply repeat for the other side.

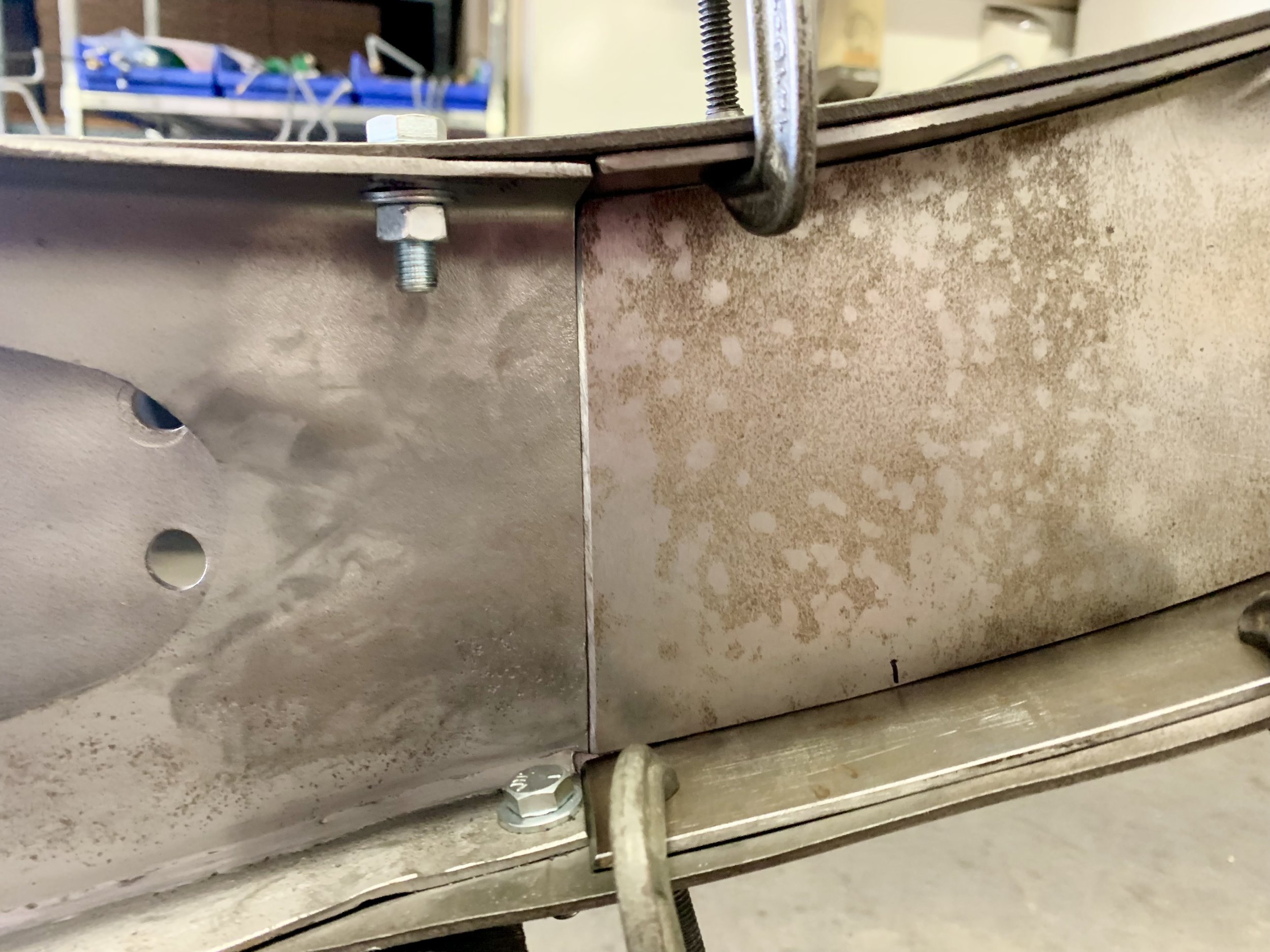

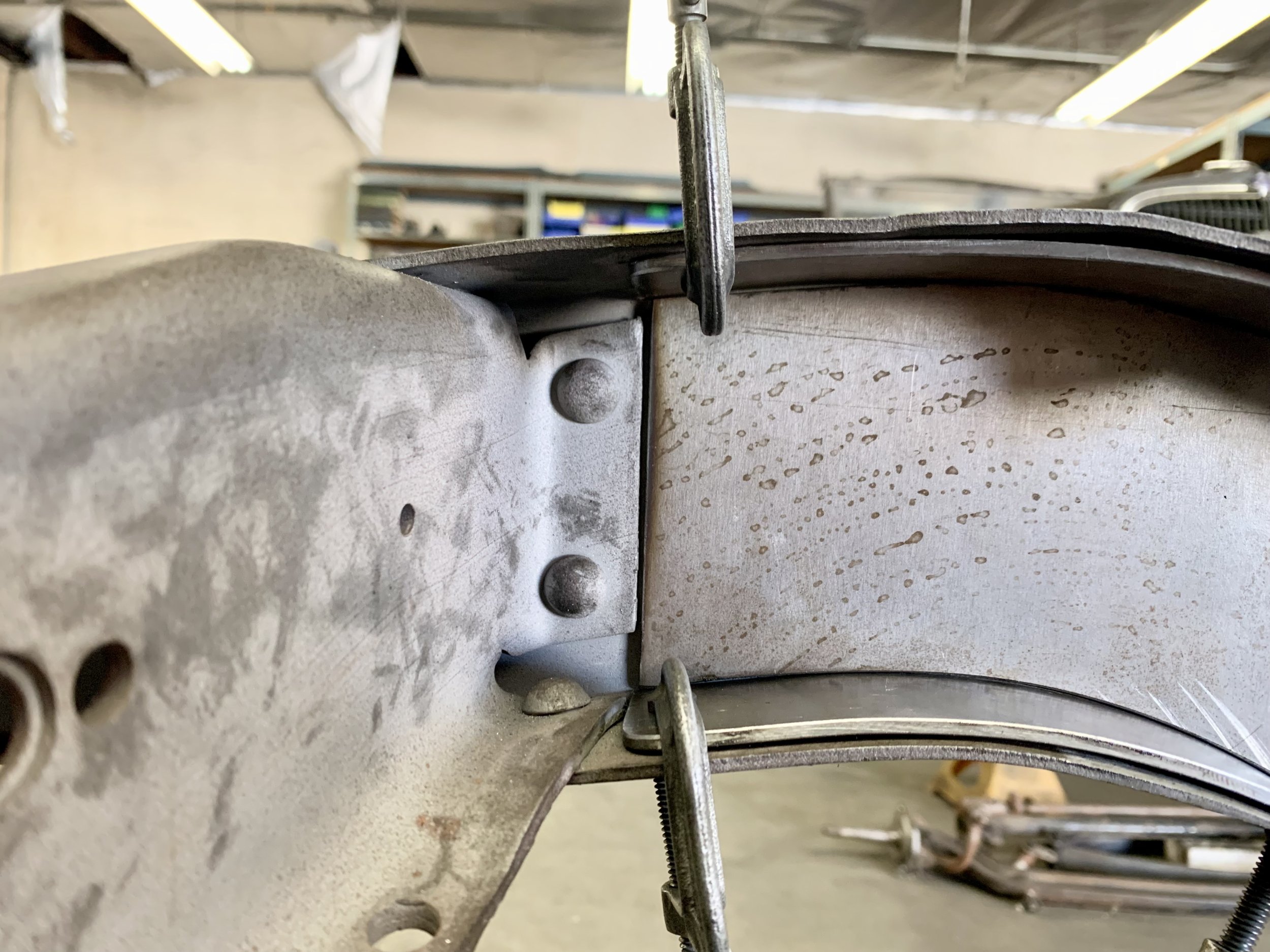

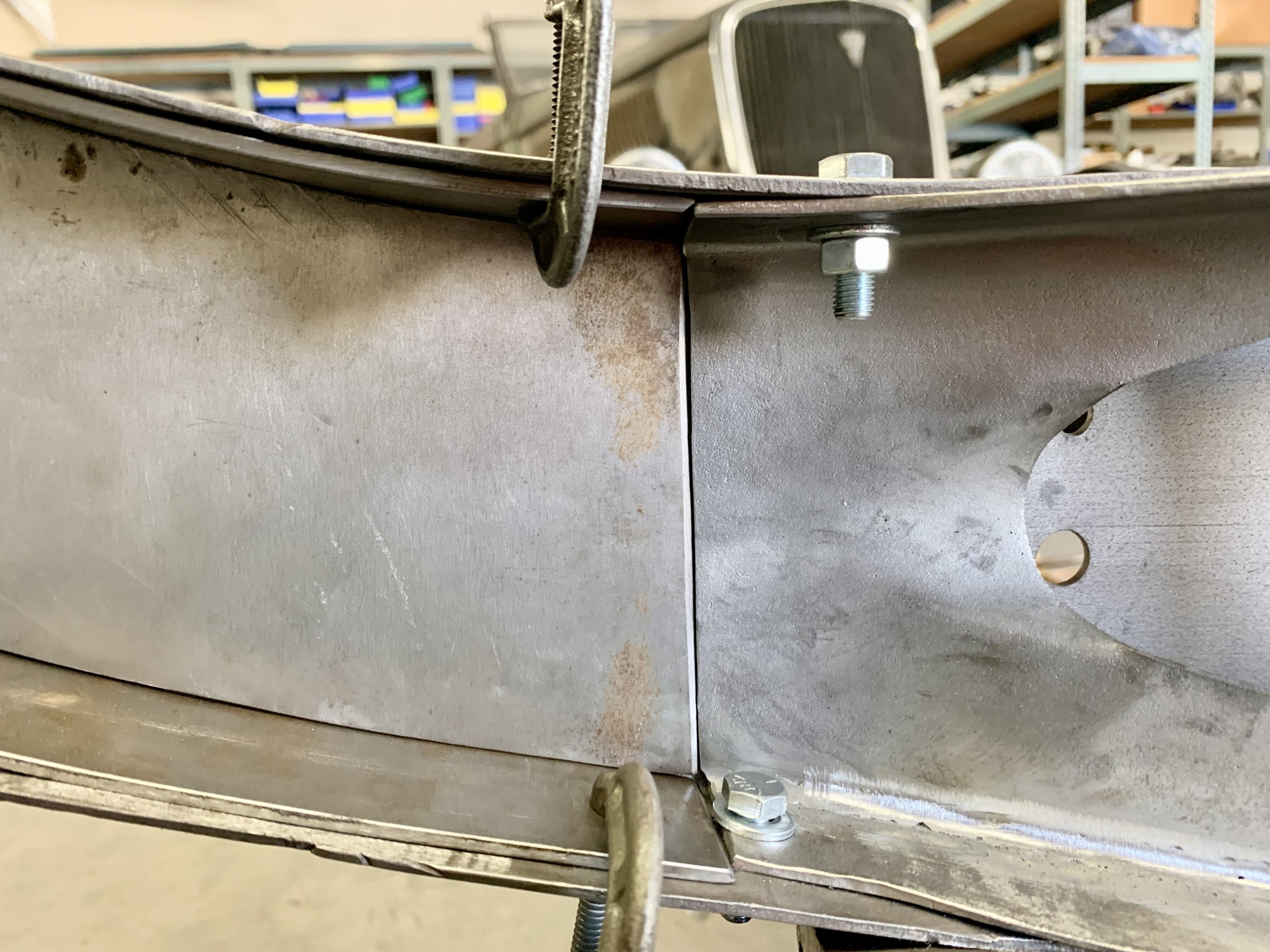

The side pieces were slowly fit by repeatedly sanding and checking. Ultimately I ended up with a pretty exact fit on both sides.













Happy with the fit I pulled everything apart and sand blasted the new inner channel pieces.

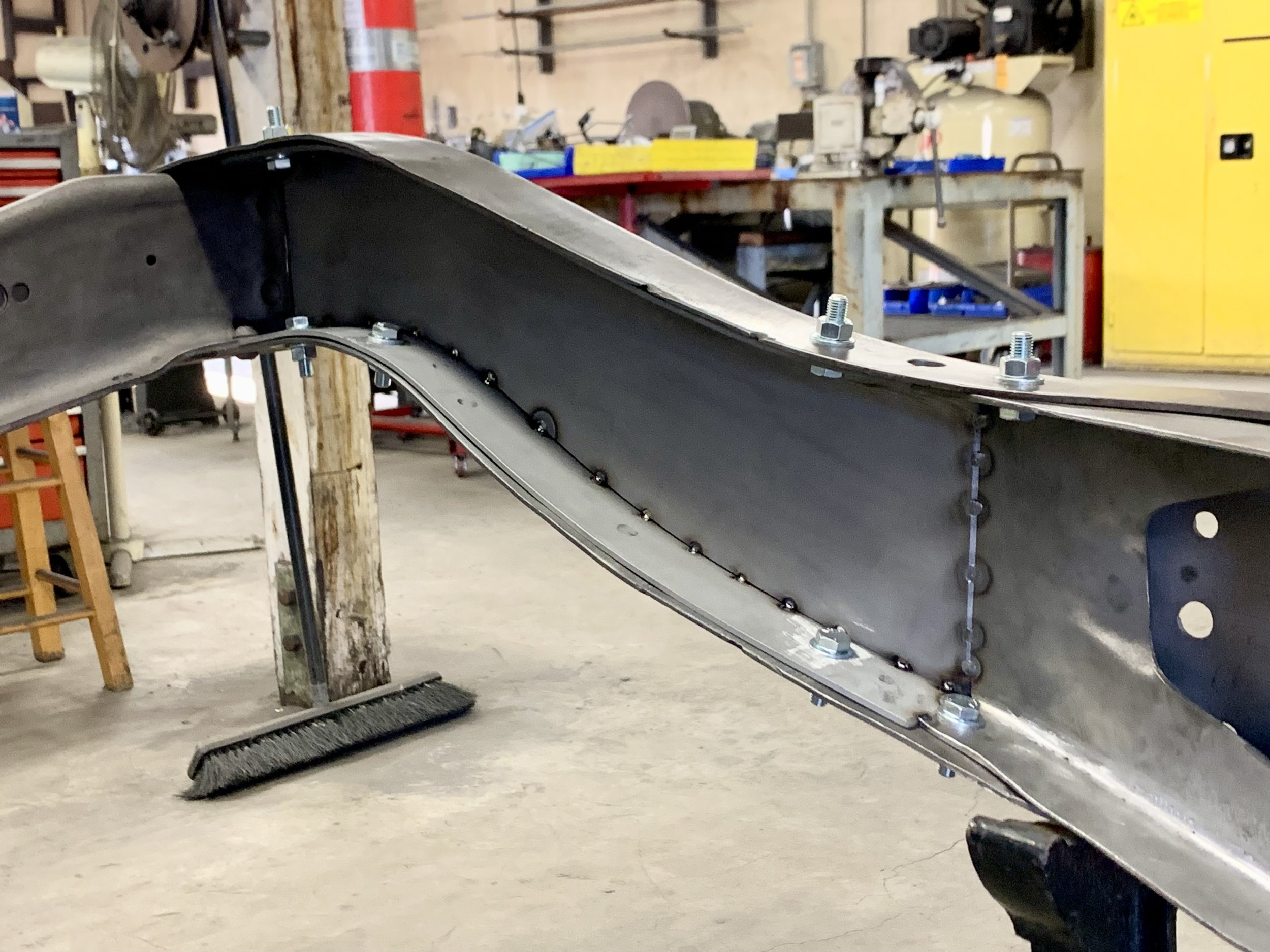

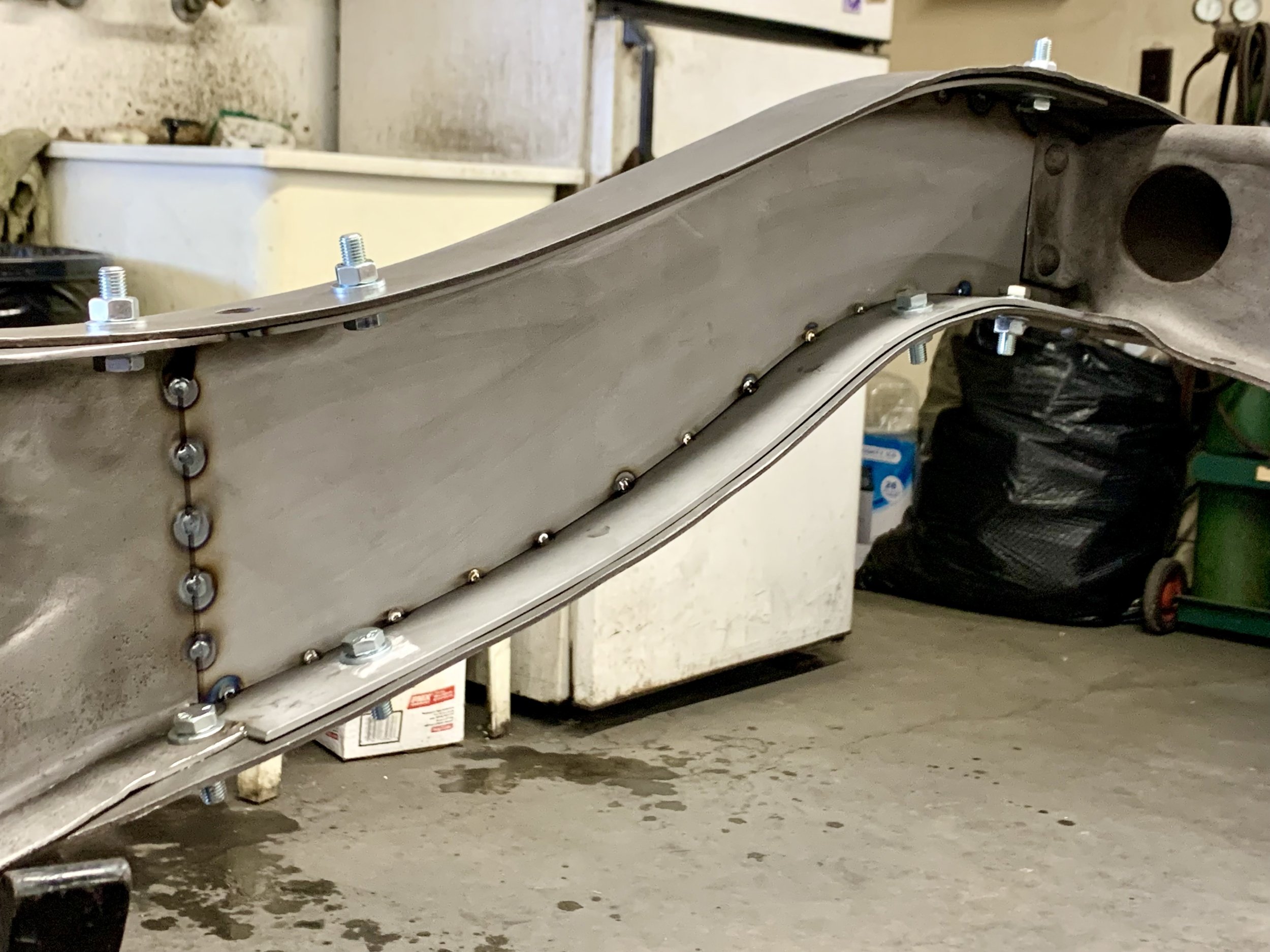

Then the insides of the frame rails were cleaned thoroughly to bright steel and everything wiped down with lacquer thinner to prep for welding. I then went about fully spot welding the channels. This included more fun of turning the frame on its sides and upside down by myself again! I also added what will eventually be rivet holes and put temporary bolts to hold everything tight.









The next step will be to fully weld and metal finish to make both sides look like one continuous part of the X legs.



Fantastic work Dennis! Great thread!



PART 20

It’s been a while since my last update as I lost momentum with this project until recently. These last few weeks, though, I’ve been hitting this project hard and a lot has happened.

The next step was to fully weld the rear inner channels that I had previously made and tacked in place. Each long run has two p***es. The first using 1/16” filler rod to join all of the pieces followed by a wider fill p*** using larger 3/32” rod to ensure there is enough material to sand into an inside radius.









Then came hours and hours of sanding the inside corners and blending the end joints into the legs of the X so that the X and channels look like continuous stampings back to the rear cross member. I’m about 97% satisfied and will do a little fine tuning later to get that last 3% but overall I’m very pleased with the results.





















The lower flanges of the X are narrower than the flanges on the channels so there was a mismatch that needed to be addressed. A couple of filler wedges were made, welded and blended. Much better.



VERY NICE WORK!



Needs a pair of Smithy’s. Hehe.



Great work and welds



PART 21

With the rear inner channels essentially finished it was time to move onto the front. The process is the same as the rear except that there are no curves to deal with. First, I made upper and lower flanges, clamped them into place, made masking tape templates for the side plates, transferred the templates to steel, cut out and fine trimmed to fit. For some reason I only took pictures of the p***enger side after fitting the side plates but the drivers side is a mirror image.

The lower flanges end at the back flange of the front cross member while the upper flanges and side plates extend further forward to the back edge of the spring channel section.



PART 22

Before permanently installing the front inner channels I needed to cut a window in the drivers side inner plate for the steering gear. The gear box being used is from Neal Jennings and we also have a beautifully restored deep column drop to potentially use, also by Neal, and it’s modified to fit up to a 32 dashboard.





The gear box was built before this project began and it’s made for a stock frame, not one that’s double the thickness. It’s only 1/8” difference but I don’t want to take any chances that are going to cause problems down the line.

I made a card stock template of the steering flange with a 1/4” pilot hole.



Earlier in the thread I repaired the steering gear area of the frame rail because it was all butchered so measuring off of another 32 frame I located the center of the gear shaft and drilled a 1/4” pilot hole. I then used that hole to punch mark and drill a 1/4” pilot hole in the inner channel plate.





I mounted the template to the inner channel plate and traced the template in the stock position and tilted back 20 degrees.





I connected all of the peaks to create one solid shape.



I then found a hole saw that matched the corner radius’, held it in place and used a transfer punch to mark the pilot holes, cut the holes and then cut the straight areas between with a die grinder and cutoff wheel.







Here, the inner channel plate is in place with the gear flange template showing the stock position and rotated back 20 degrees. Now, later on I will have the ability to mount the steering column in the stock location, with the deep drop shown above or anywhere in between.





Satisfied, the hole in the outer frame rail was cut with a hole saw to 1-1/4” for the gear shaft to p*** through. I’m not going to drill the 3 gear mounting holes until later on, once the column position is finalized so I made a piece of tubing to sandwich between the frame and the pitman arm nut so I could hold the gear box in the frame in the meantime.



PART 23

With the window added for the steering gear box I sand blasted all of the front inner channel pieces to ready them for welding.



Before I installed the channels permanently I had one more thing to finish which was the backside of the repaired steering gear area on the frame rail. All of the voids were welded and sanded smooth.







The insides of the frame rails were cleaned thoroughly, the inner channels installed and fully tacked in place.





I had one area of misalignment where the inner channel meets the upper left corner of the left X leg. The was quickly solved by cutting a slit in the corner, clamping side of the X down flat, tacking and then welding the slit.





At this point I settled in and fully welded the channels. Same as the rear, an initial p*** with 1/16” rod to join the pieces and then a fill p*** with 3/32” rod.



Nice work.
The fillet welds in the inner boxing plates was a LOT of work. Wow.



PART 24

After welding the front inner channels it was time to match-drill a bunch of holes.

On each side there is an upper 5/16” hole for the front fenders and two 1/4” holes that are original rivets from the removed K-member which I will utilize for rivets again.









On the tops of the front rails there are holes for the front hood latches and center hood side bumpers.









The previous builder had also drilled holes on top of the original hood latch holes so the extra holes were welded and sanded smooth.









The frame was flipped over and I match-drilled the 4 holes on each side that were originally to hold the engine filler pans. I also increased them to 5/16” from 1/4”. These will also get rivets.









Right side up again, fully welded and bolted. By this time the front of the frame feels significantly less flexible when picking it up by the horns and trying to twist it.



PART 25

I need to stock up on sanding supplies before I attack the front channel welds so in the meantime I moved on to the next project. Earlier in the thread when I was carving out the center saddle I was asked if I was going to make a plate or strap across the top to keep the center of the X from flexing inward now that the cross section of the saddle is so much thinner. My answer was no and that I had a different plan.

This fancy French transmission is already bulky on top and I don’t want to add any more bulk that’s going to be intrusive to the future floor so the alternative is to build braces from the center of the X out to the frame rails. An idea gleaned from friend John Swander’s ‘33 Roadster.

At the center of the X I’m able to use 2 existing rivet holes and drilled a 3rd hole in-line. Then, using my trusty pipe clamped to my welding table I made a curved flange out of 1/8 X 1” flat bar and drilled it to match.





I then spent some time coming up with a card stock designs for the main top plate (didn’t take pictures, sorry) and transferred my favorite to steel and made the first piece.



From there I added a 3/4” step-up at the frame rail, side flanges and gussets under the step-up. It was then test fit.













Satisfied with the fit and appearance I made a mirroring brace for the right side, fully welded both and sanded the outsides smooth.













The finished braces installed. The other neat thing is that where they attach at the side rails they make use of the 3 original K-member holes on each side. I had this in mind way back when I was still fitting the X, which is why I never filled these holes when I was going around filling dozens of others. With these installed the frame feels yet another level of stiffer. Now, it’s downright STOUT.



Yes it was! From the moment of the first tack to the end of the final bead was about 4 hours. That includes having to prop the frame up on both sides and flip it over all by myself. I’ve gotten pretty proficient at man handling this thing around at this point, LOL!



The midpoint struts are along the same line as Henry’s in the 1940 frames. Except yours are vertical and his were horizontal. And his always get in the way of exhaust pipes.



Such an excellent thread. Keep the updates coming.



Thanks, man! We’re all caught up now but as I press on I’ll be posting.



Great work as usual! I can only dream about doing that level.



What's your process for smoothing out the welds on your boxing plates? Nice work as always!
