Hot Rods THE INDUCTION THREAD

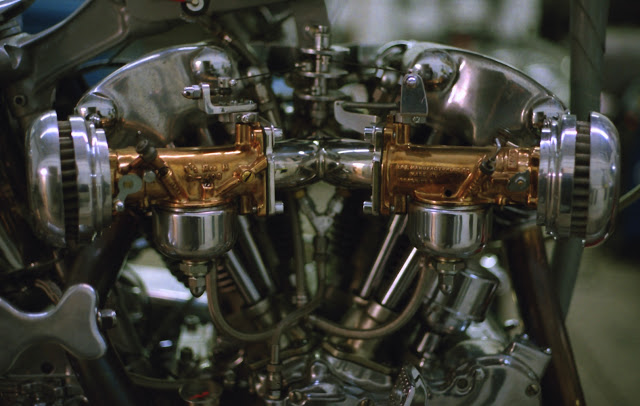

Although these two photos are vintage motorcyle, I see vintage bikes in photos here and thought these two custom intakes are cool. The first is a 39 Harley ULH with custom overhead valve conversion and carburetors and the second is an early Harley Knucklehead with a custom manifold and dual linkert's.



Was at Petes shop last Sunday, He fired up his Big assV12 Hydroplane engine ..Pretty F ing cool



Here is the induction system on my 59 Lark. It draws cold air from the little vents next to the headlights.



This is the induction on my 37.



Here is the induction on my 57. Carbs probably not hamb friendly

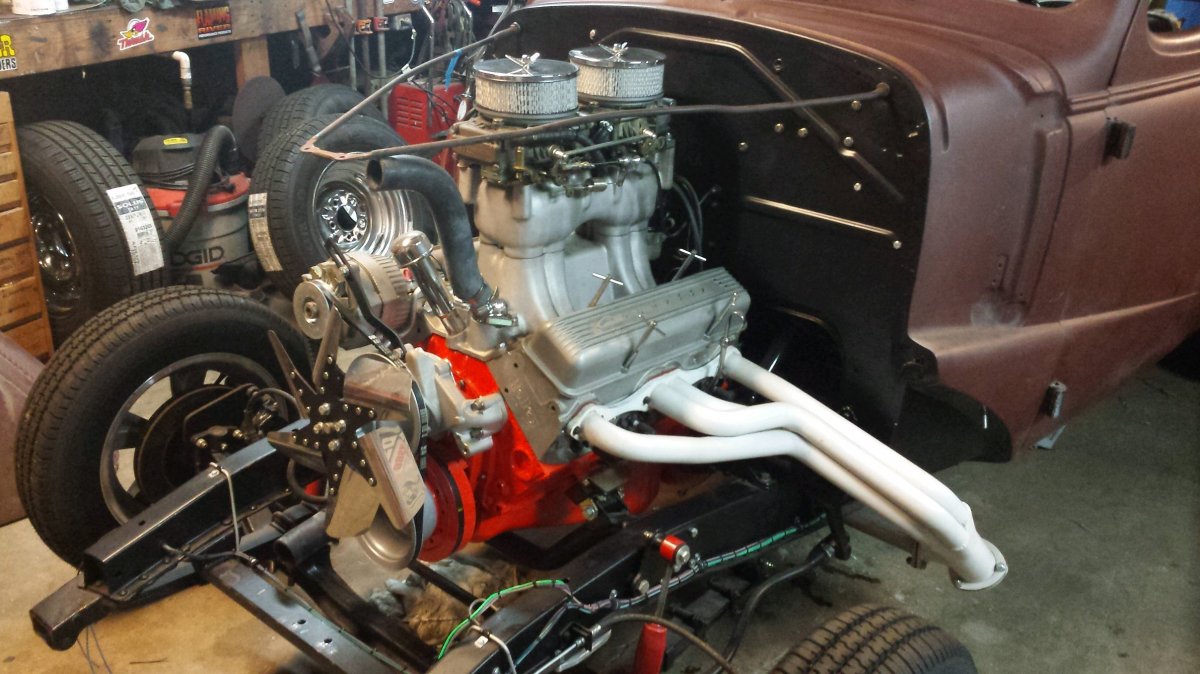

Here is the induction I am working on now. For me and my buddy Butch's 55. Had a broken bolt in one of the holes.



AWESOME



DAM knuck you find the best stuff.



Nice tach drive on the generator.



from Tom Hardy D.T.



^^^ Love it,



^^^^^



My Big Block



The sheet metal is an NHRA requirement to keep fuel from being siphoned from the carbs at speed. A fire safety thing.



Thanks. Of course, scoops would do the same, providing positive pressure into the carbs.
