Hot Rods THE INDUCTION THREAD

A couple to start the day.

BB mopar STR14



Chrysler 300 quads

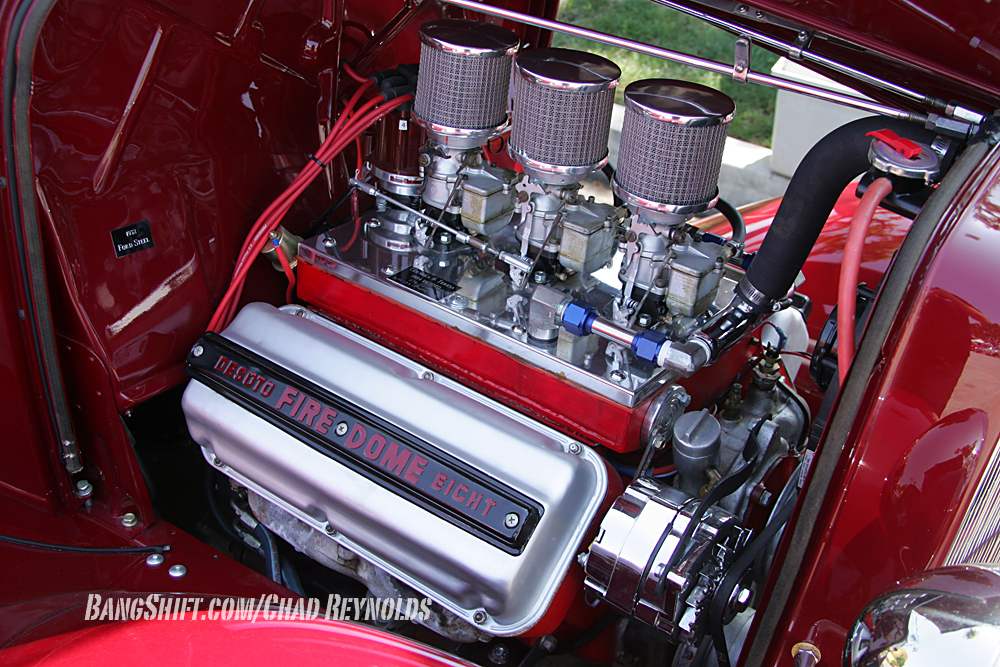

Desoto hemi




Dick Landy ( check the AWB thread later it's DICK LANDY day)

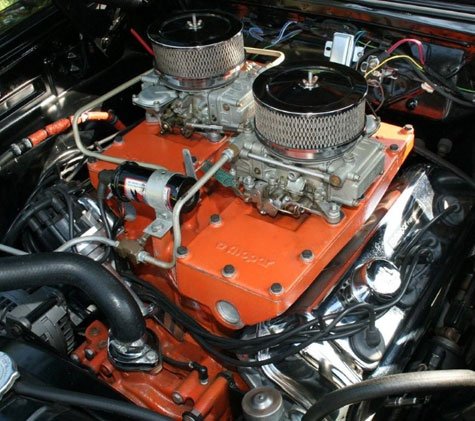

Another landy hemi





Gurney Westlake heads




Again




Hemi "Bathtub"

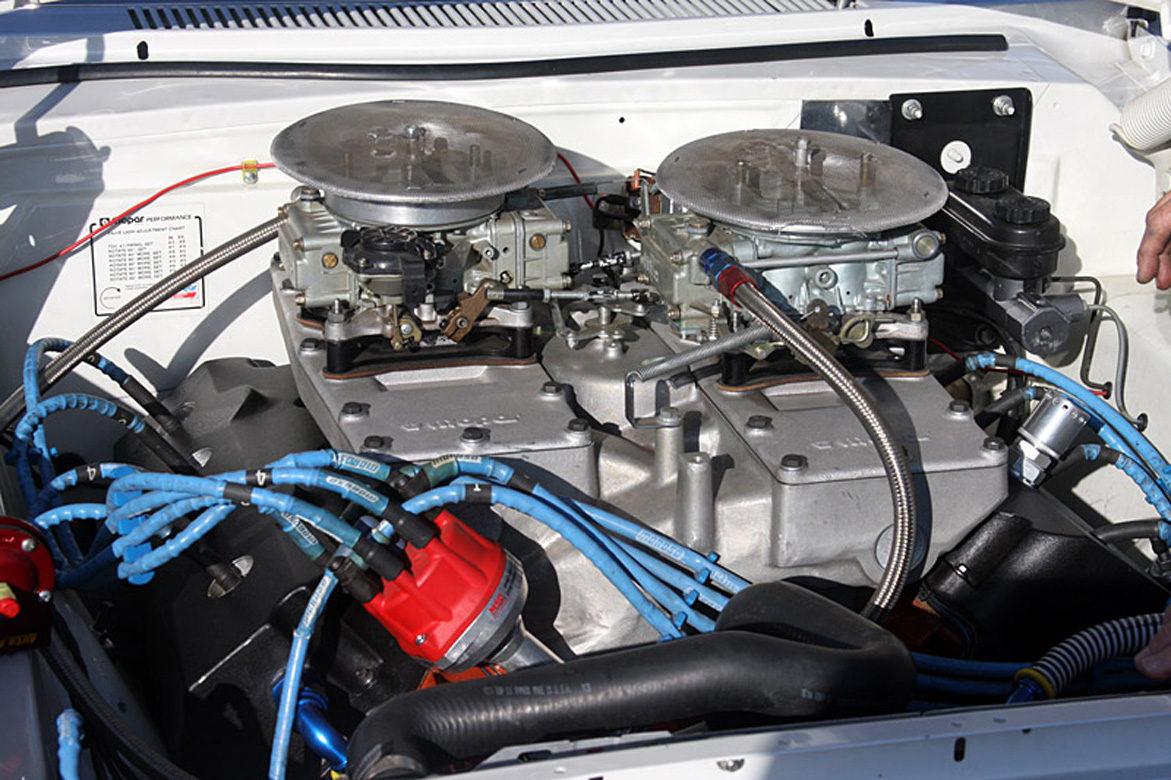

Hemi Cross Ram




Without removable tops



Let's finish off the mopars in my collection. I know everybody is waiting for the Chevy stuff

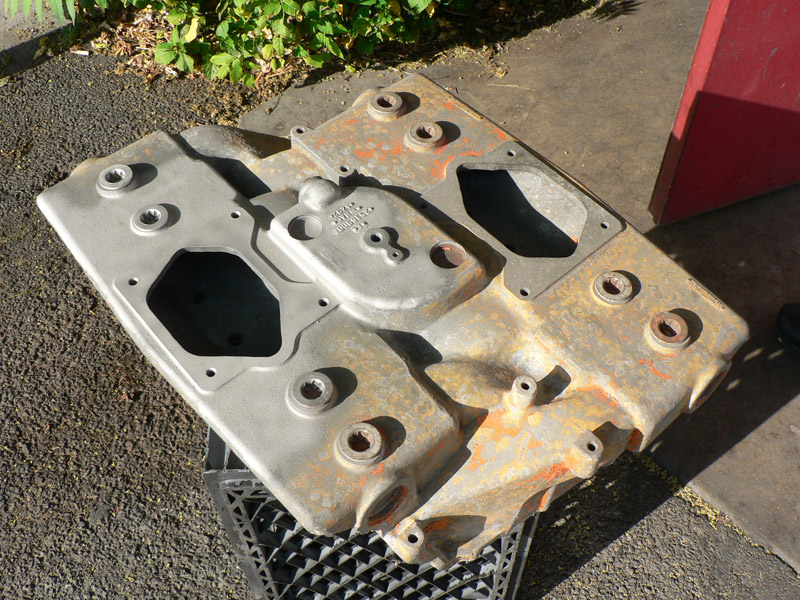

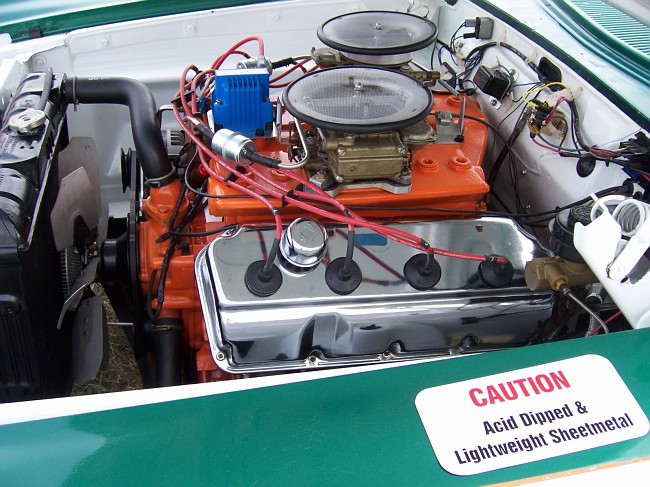

Hemi cross ram





Injected 440


Injected hemi with mag



Injected Hemi





Keith Black hemi



Dick Landy

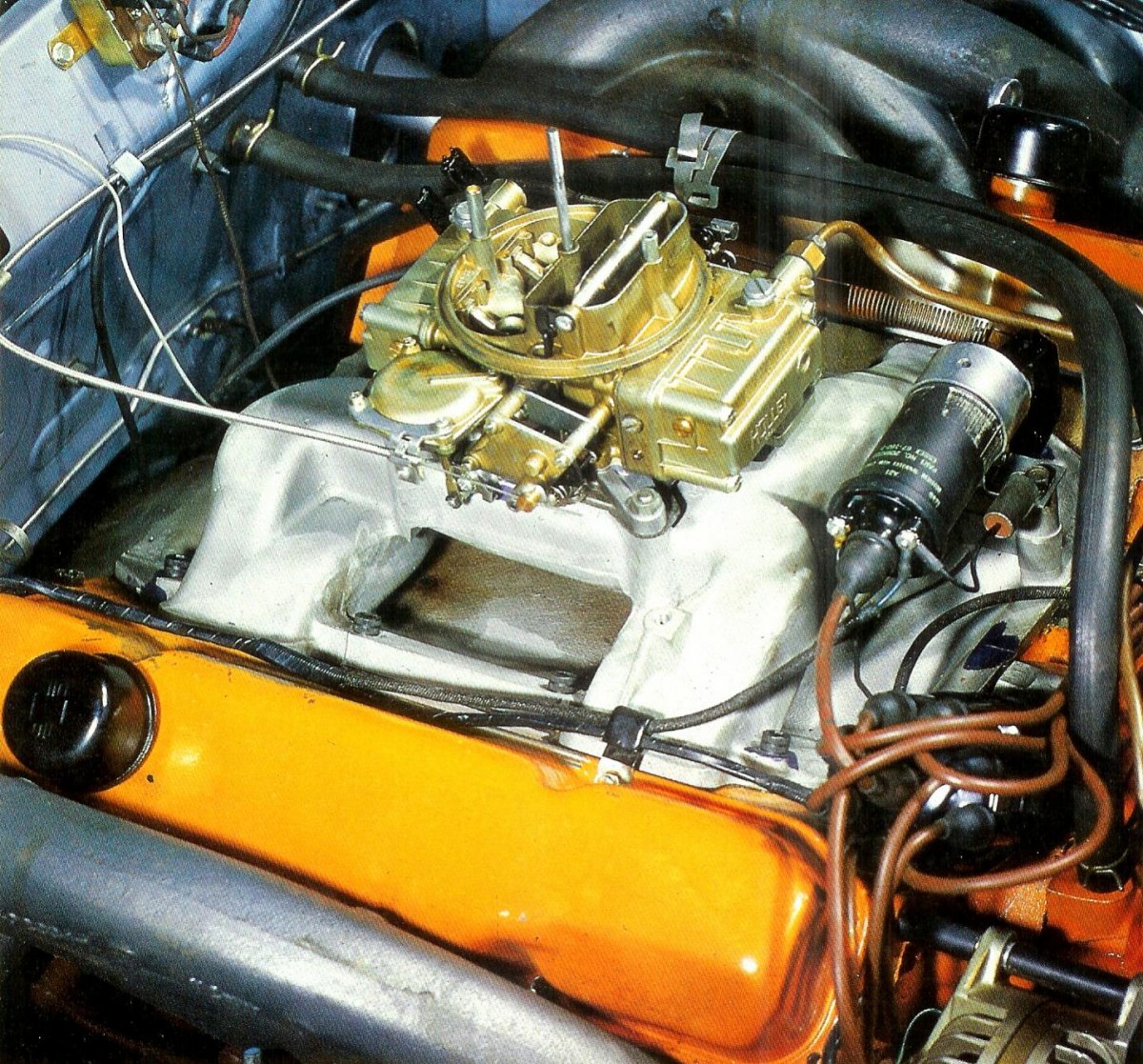

Max wedge NASCAR intake



Max Wedge II

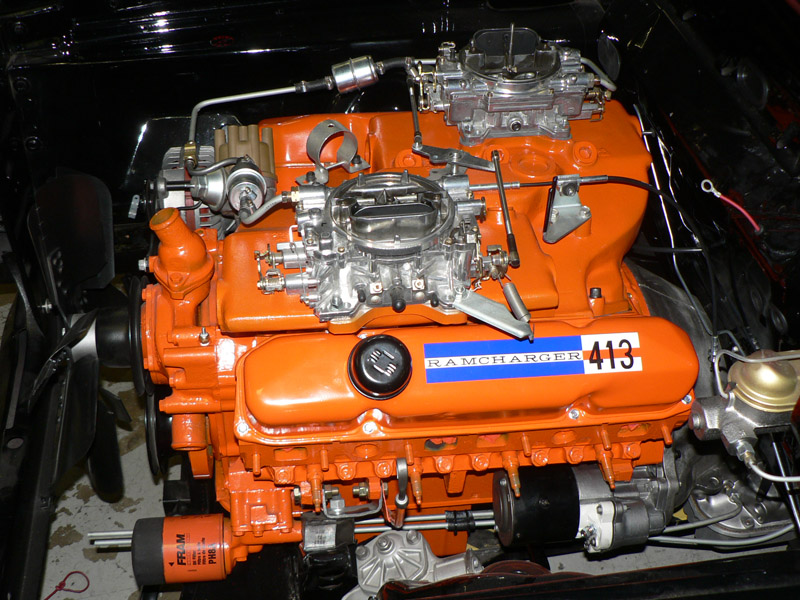

ramcharger 413




Ramcharger 426











Twin turbo Hemi




Webberized Hemi



OK it's CHEVY time LOL

Probably the more unusual things I found to start it off.

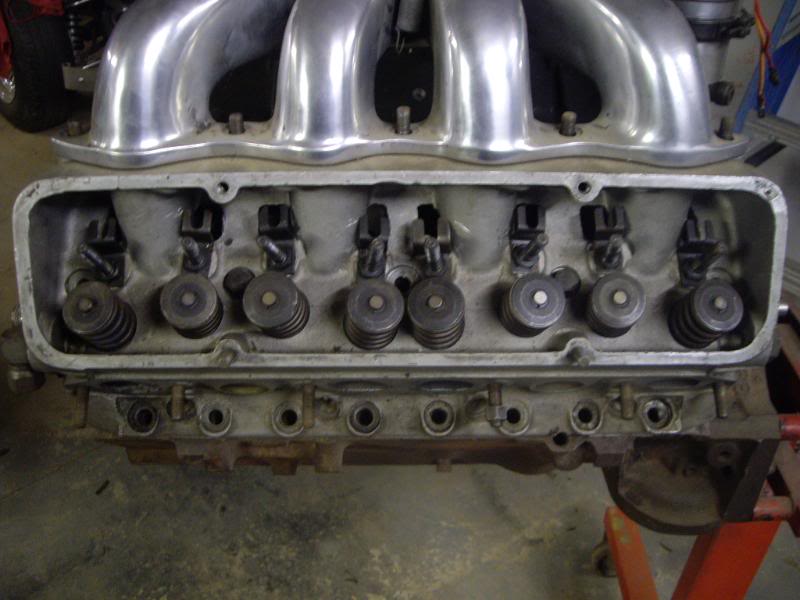

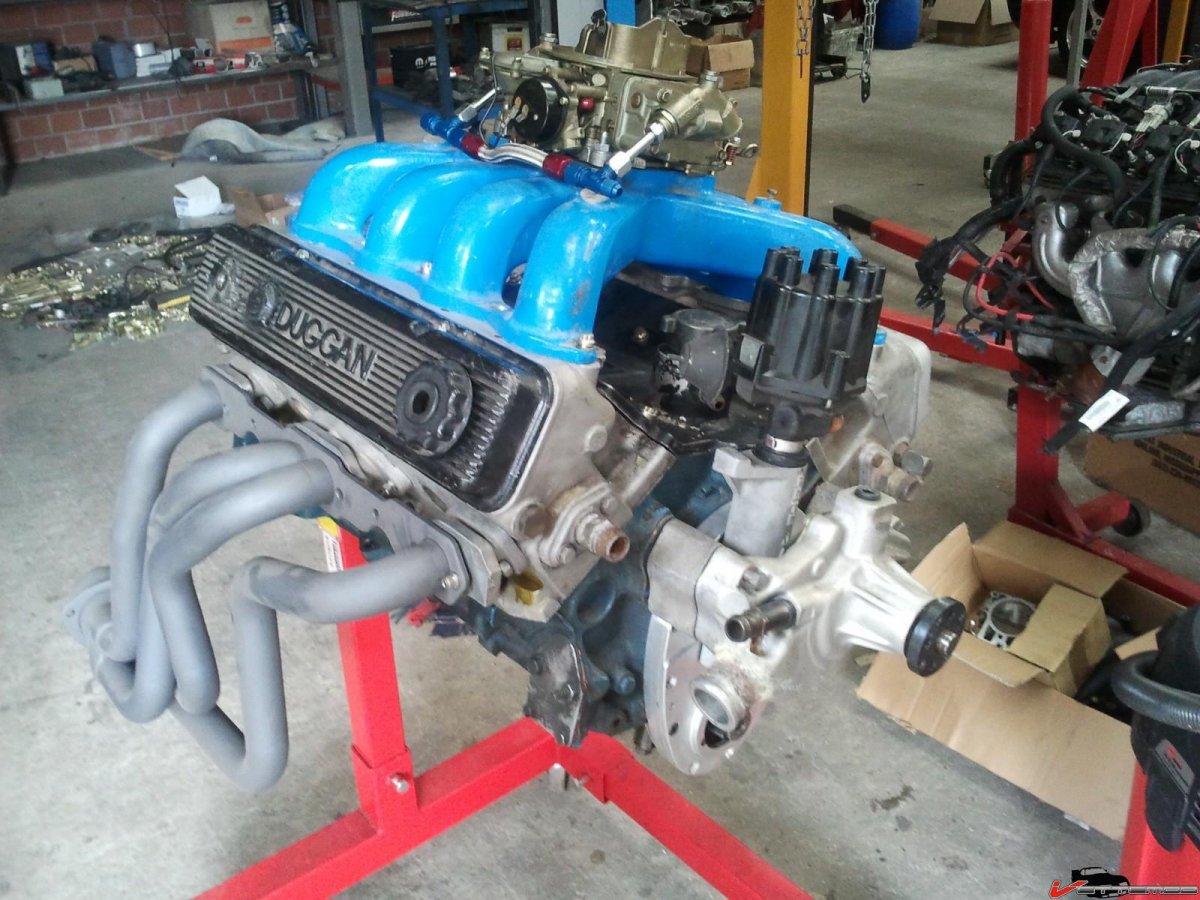

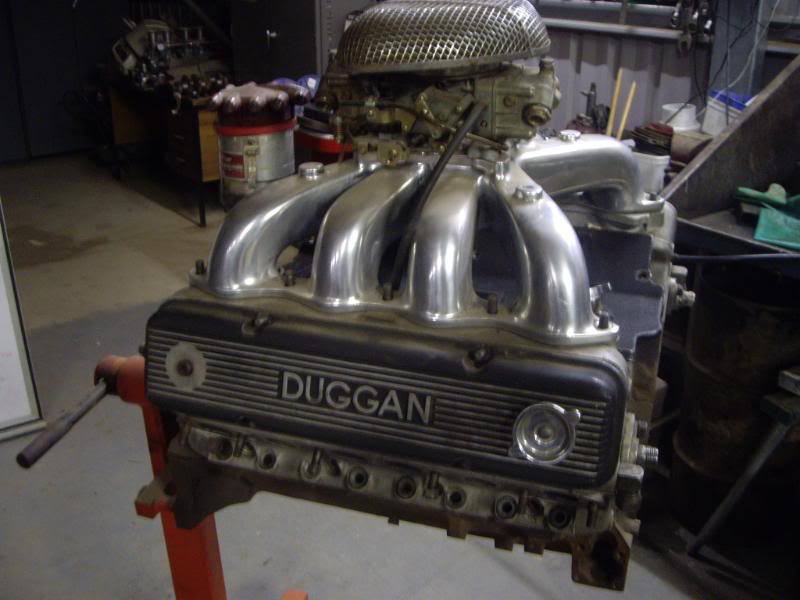

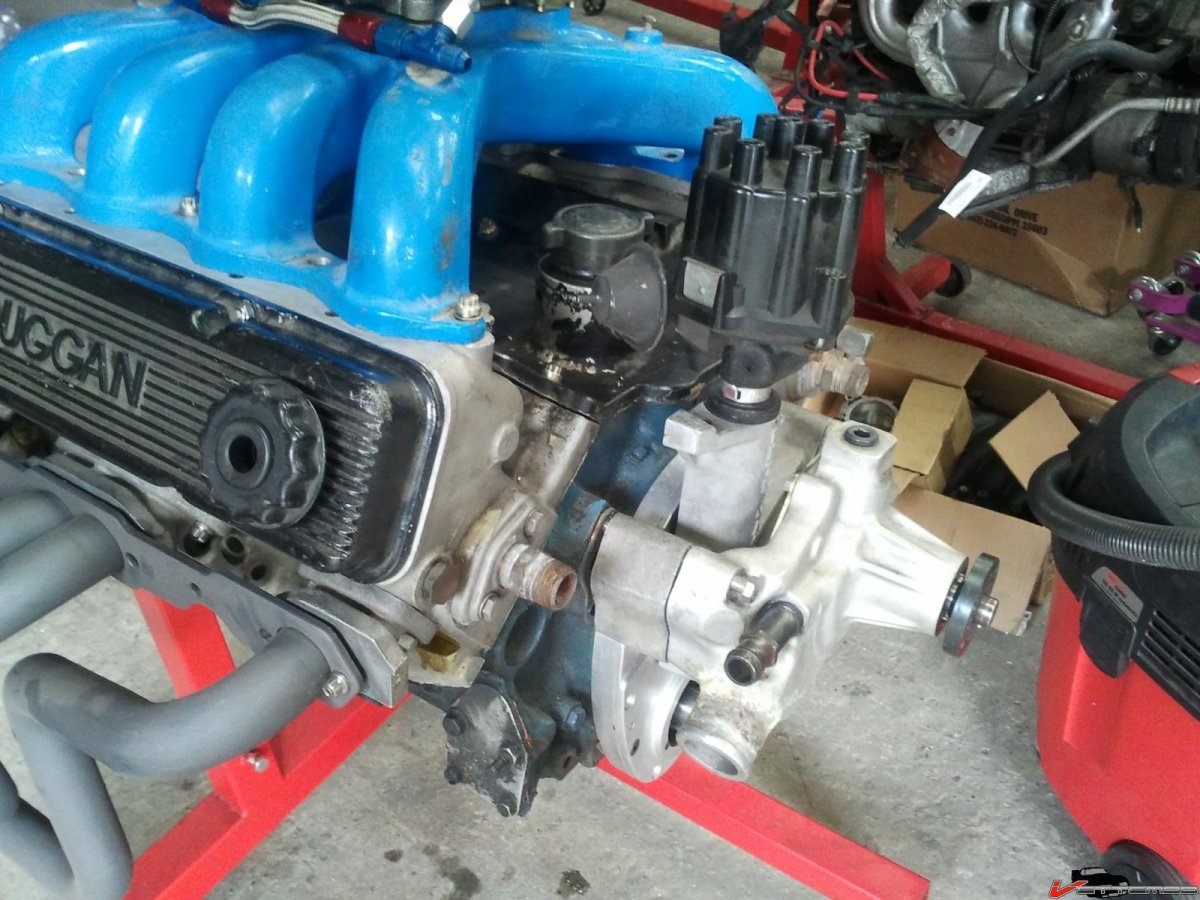

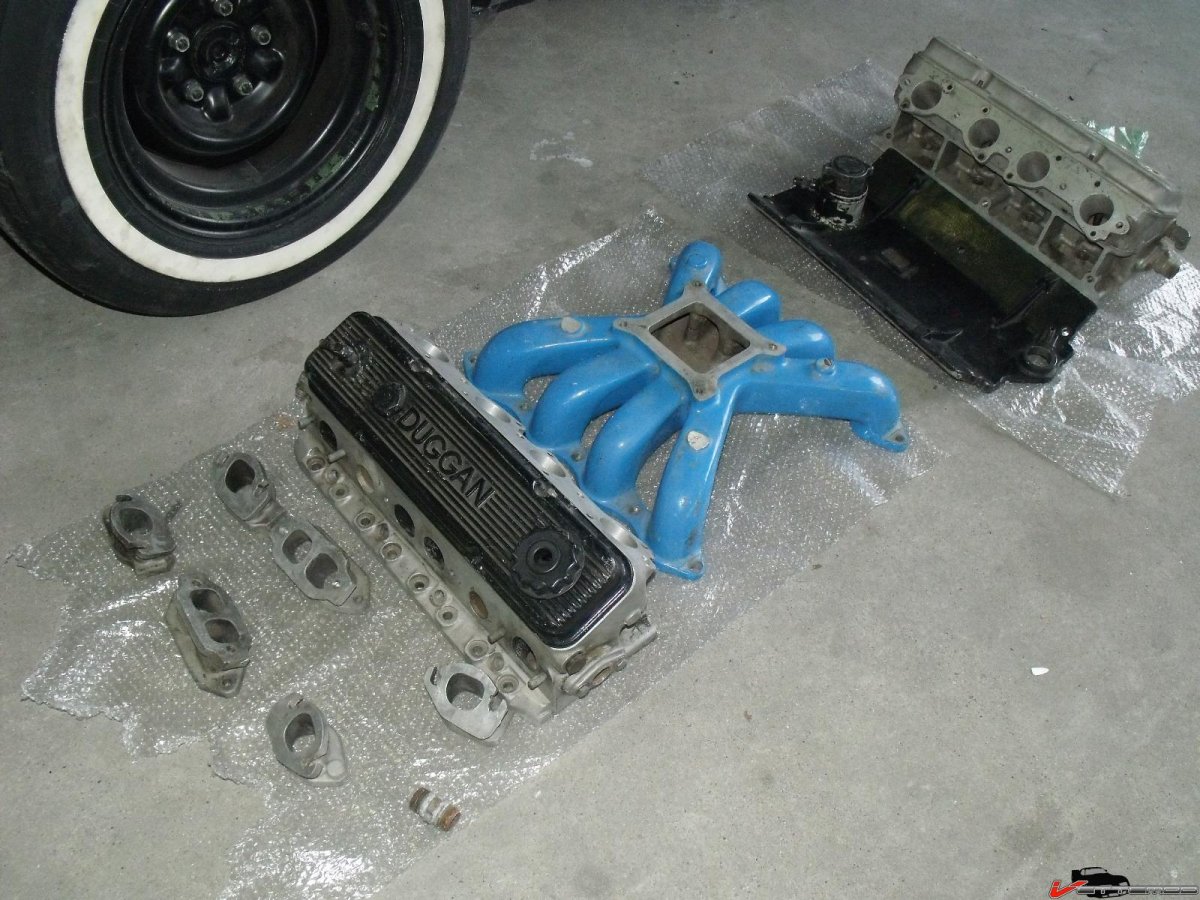

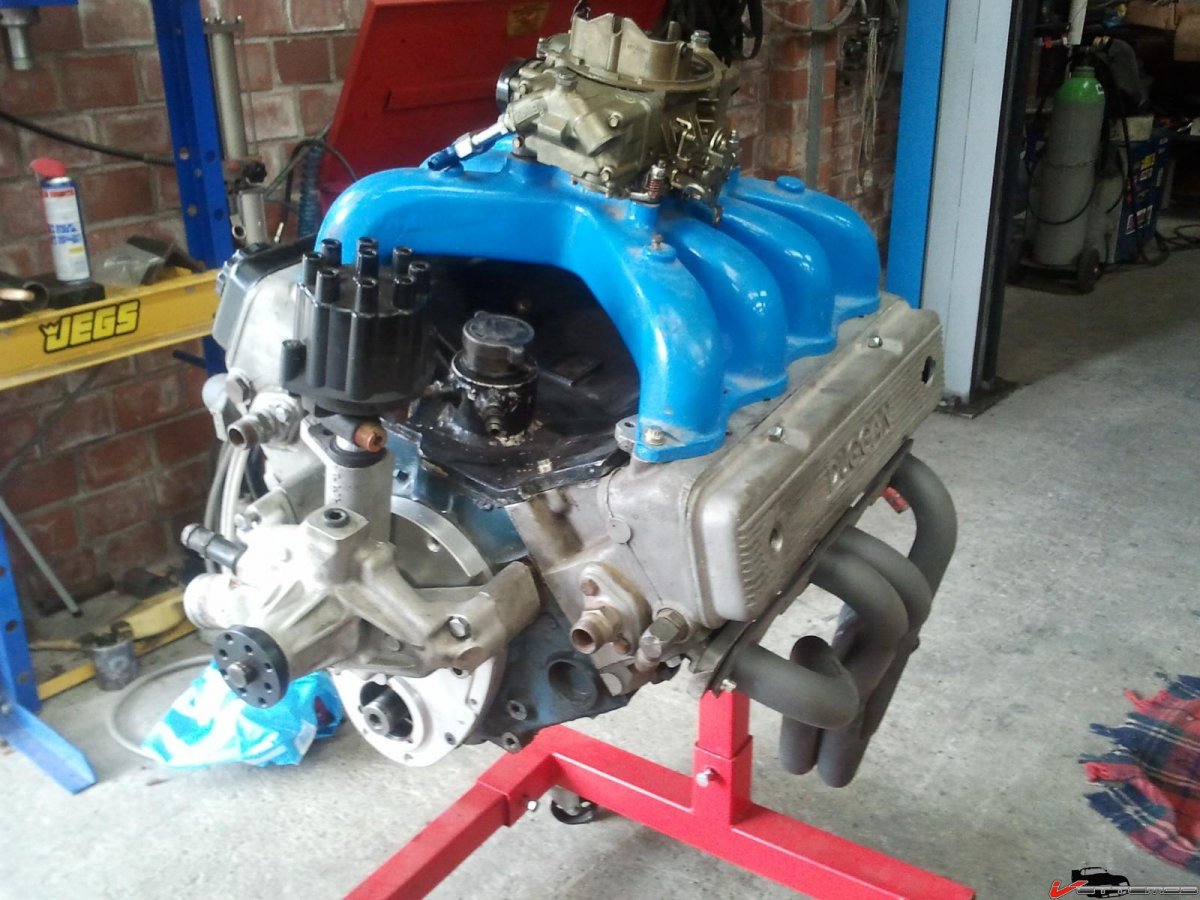

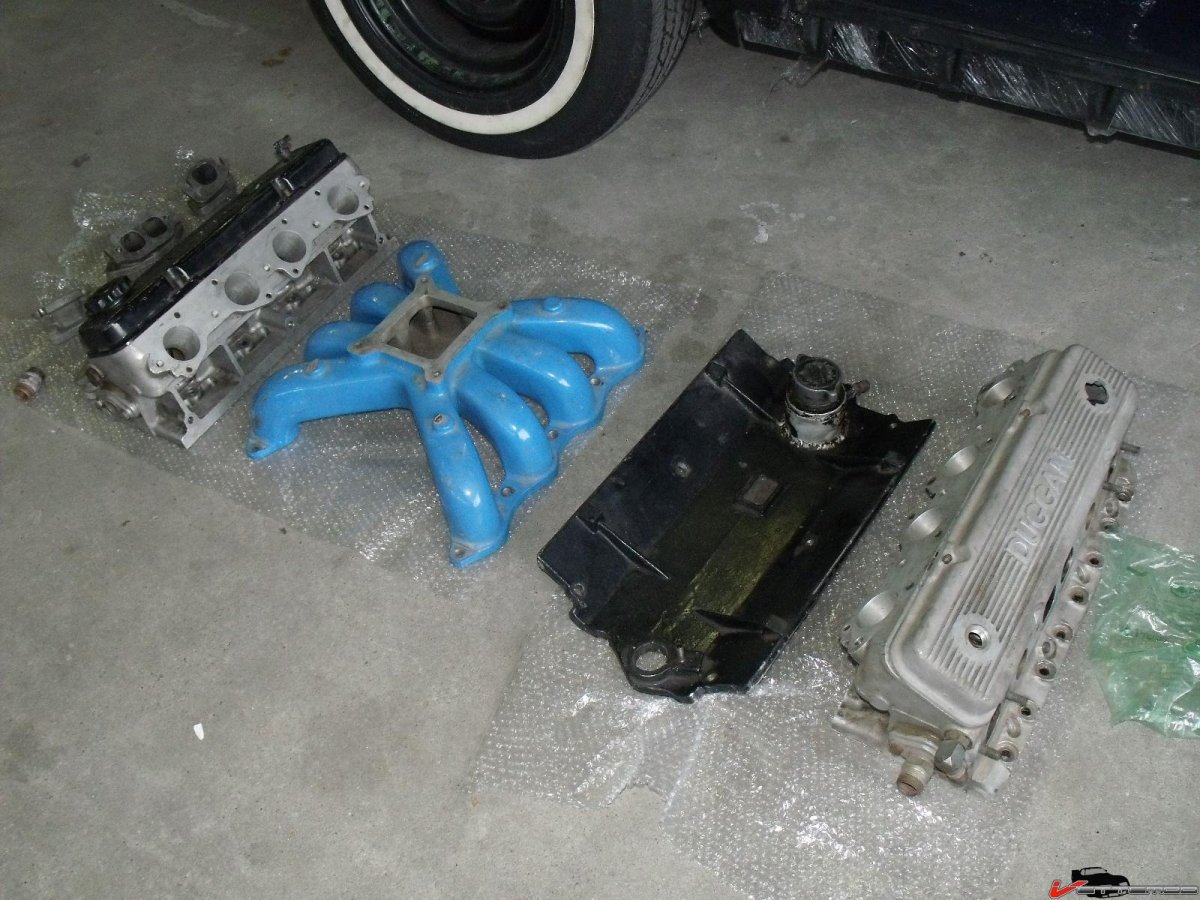

DUGAN HEADS. Sorry but some head shots too. Don't know anything more about them just found them on the web somewhere years ago.

EDIT: found I have had these photos since Jan 2012

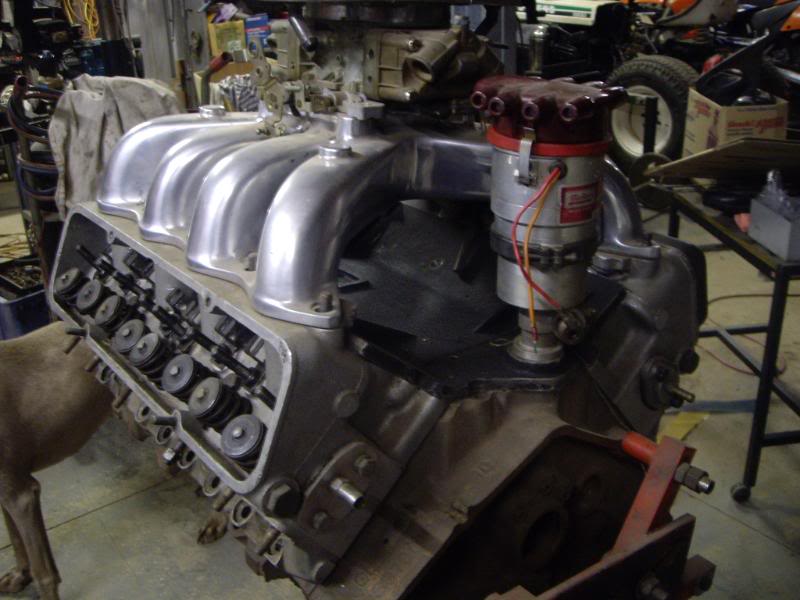

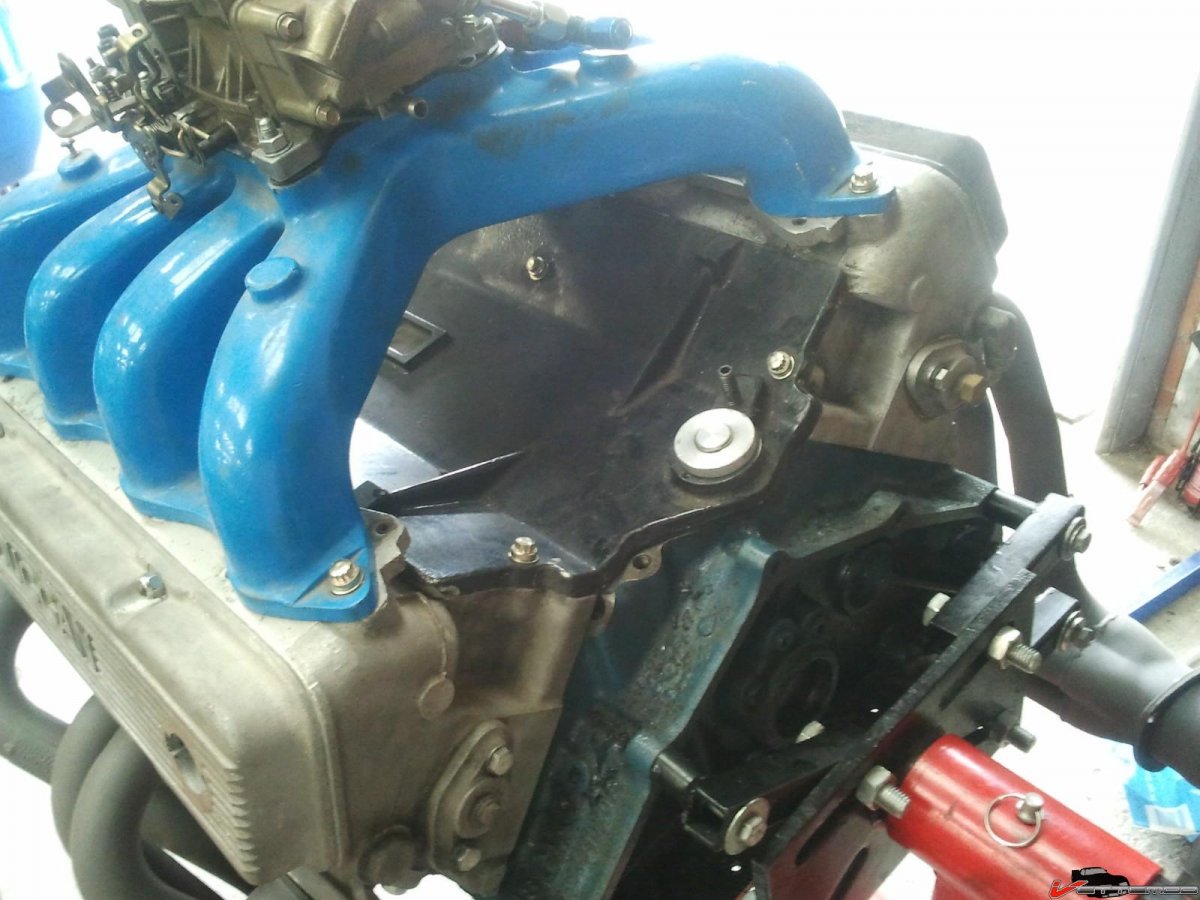

But look at the SPIDER of an intake manifold. Bet it runs nice and cool with all that room for airflow under it.



One of my old friends has one of these hyperpack set ups in a 4 speed 64 Dart... These set ups are really awesome looking!

So far he hasn't been able to out run my Valiant, but I haven't ran him in years. Perhaps if we ever meet again, he may have made his run stronger.... Who knows? I would love to run him again! Muhahahaha!

Sent from my XT1585 using The H.A.M.B. mobile app

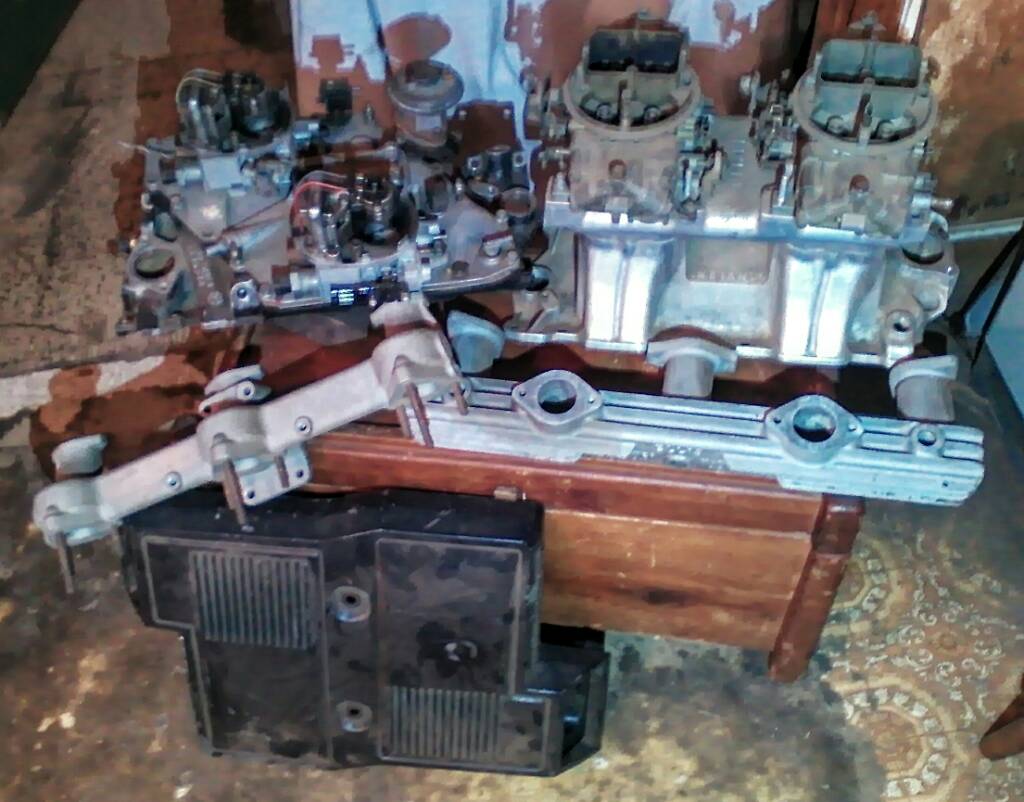

Was doing some cleaning around my desk today and run across some misplaced paper weights.......

Sent from my QTAQZ3 using The H.A.M.B. mobile app

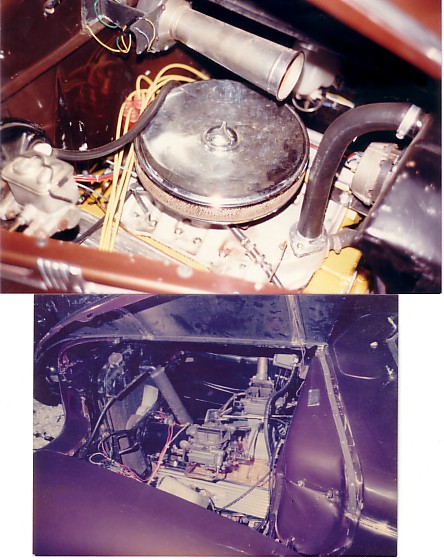

Great thread........those Duggan heads were made here in Australia, think there were supposed to be versions for the Oz Holden V8 as well as the small block Ford and Chev V8s............however my personal interest is 318 Polys of which I see there have been a couple pictured on this thread.........heres my 1962 318 Poly.....the 1st pic is the only one I have from 1975 when I put a factory 1957/58 cast iron twin 4 intake on the poly with a pair of Offy Cross Ram adaptors and 600 Holleys also shows the single 4 weiand intake............2nd pic is how its been since the late 70's with a Weiand single four intake & Holley and pic # 3 is another 1957/58 Factory cast iron intake with Edelbrocks that it will get soon..............many thanks for this thread........Andy Douglas.



Great stuff everybody! The DUGGAN setups are wild looking, I have never seen a close up pic of those before, very different.

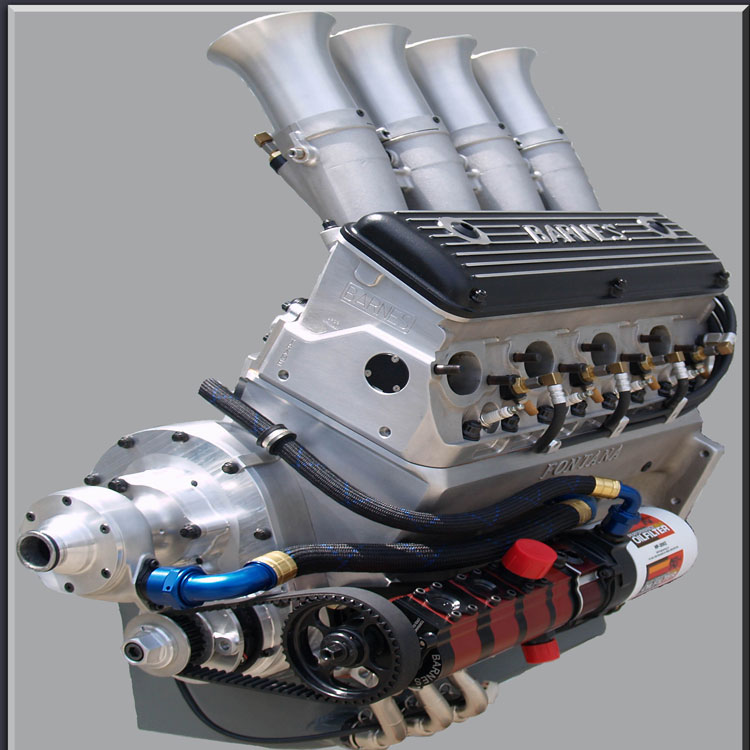

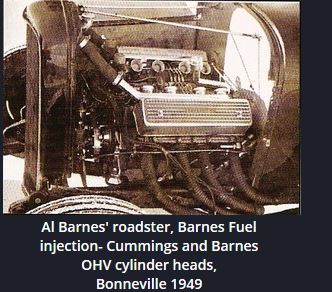

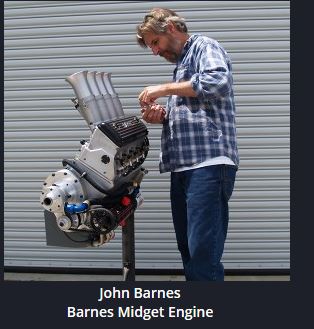

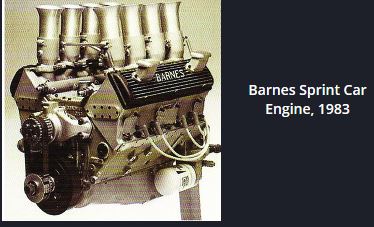

The Duggan heads looked familiar to me and I just realized that they look a lot like Barnes Sprint Car heads developed by Al Barnes in the early '80's. I never saw them on a sprint car but Al Hall ran them on his Alcohol Dragster using a one-off blower manifold and the longest blower belt ever seen on a drag strip. I'd post a picture but don't know how to copy one from the 'net and get it into this thread. Maybe somebody can do that, the heads are pictured on Google, I searched Barnes cylinder heads.
Which came first, the chicken or the egg?



Barnes is still around making oil pumps. http://barnessystems.com/home/2730100

found just a few photos



Man-A-Fre with afterburner



Remember back when the NHRA motto was "Ingenuity in Action"? Lots of that here^^^ Old dad gave up his belt to hold the fuel tank in place, they wanted a Potvin drive but couldn't afford it so they fabricated one and how about the 1 1/2" water pipe caps (pre Hot Heads) for the water in the block cooling system?



Yea and I wonder how long the heater vents lasted containing the boost.



Poly engines are so overlooked and under rated. There is a race version out there that looked super cool and made huge HP....

Thanks Andy Dodge! Your engine looks superb!

I am a six cylinder guy myself. I own several flatheads, both the 23.5" & the 25.25" versions, and a few slant sixes, and a couple of 5.9 Cummins. I have a running poly 318, either a 1965 or 1966 I believe. I just never found a use for it. LOL

Sent from my XT1585 using The H.A.M.B. mobile app



OK lets start off the Chevies with the few 6 cylinders I have.

And this one is a doozy.

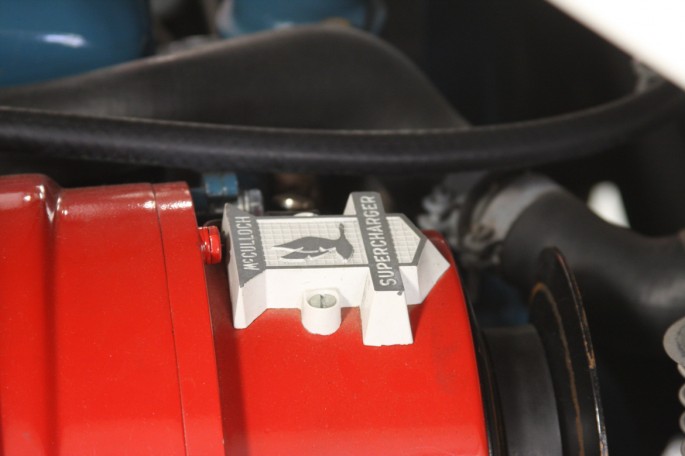

McCulloch Supercharged Blue flame vette if I remember the story right it was a trial run by Chevy and McCulloch.








Trips


another angle




Duals



Another one from the internet

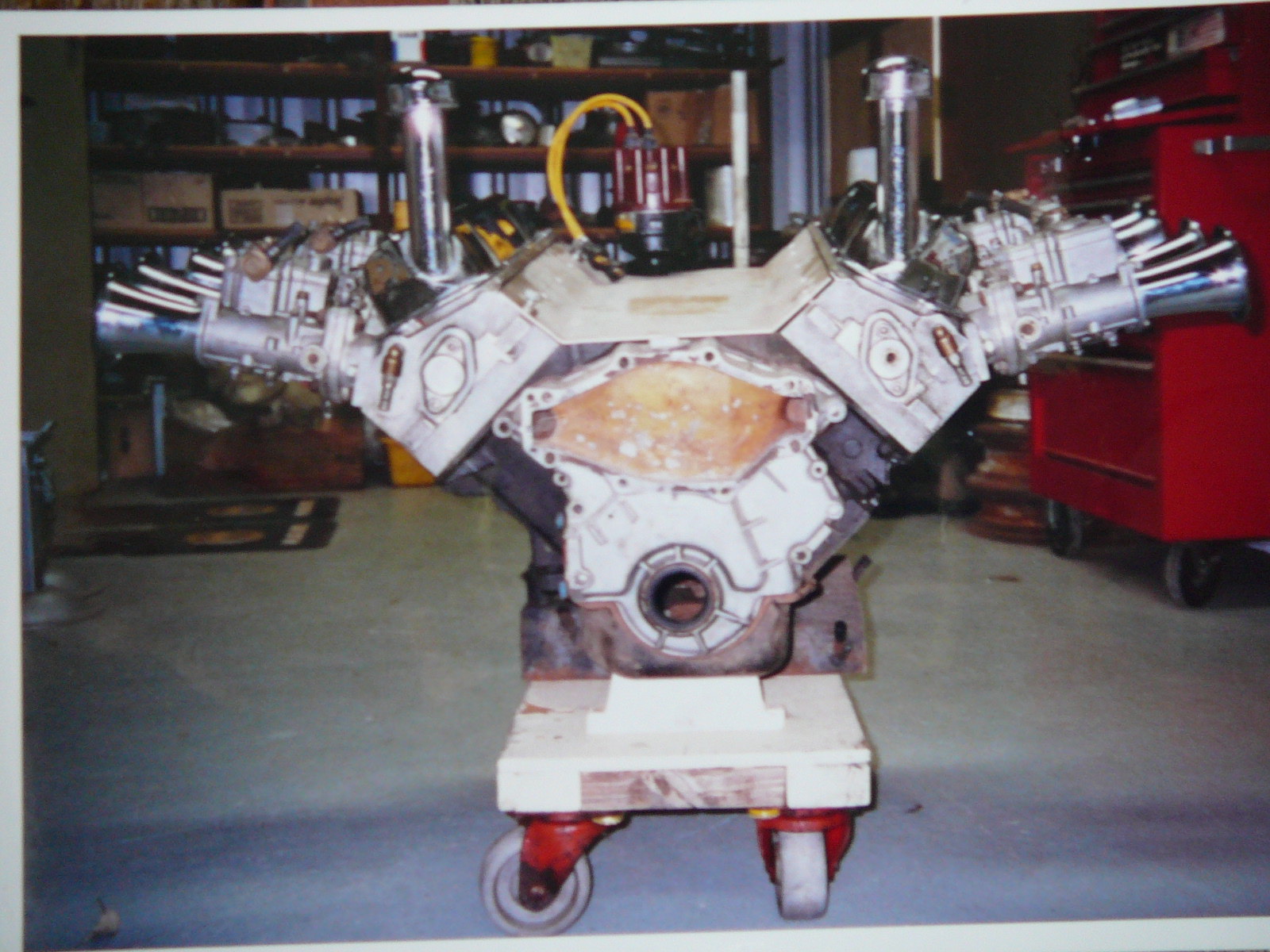

That DUGGAN setup (#575) is Australian. This is another rare Duggan setup for the local GM (Holden) V8



Just a favorite. 63' Ford indy engine..
