Hot Rods THE INDUCTION THREAD

Yep; like minds think alike...Wholly shit I did gasp too!

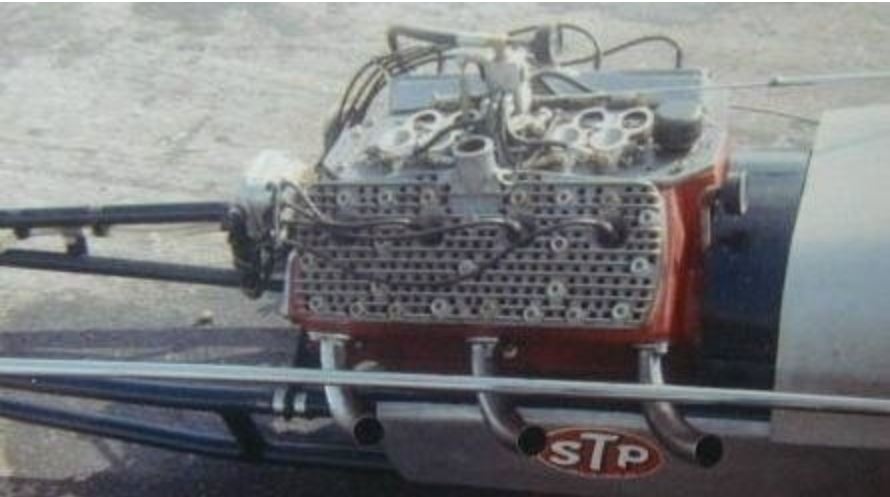

That's a nitro flathead. I imagine the holes were an attempt at more cooling with air circulation.



Floatless Webers.



Thank you mad man!!!!!

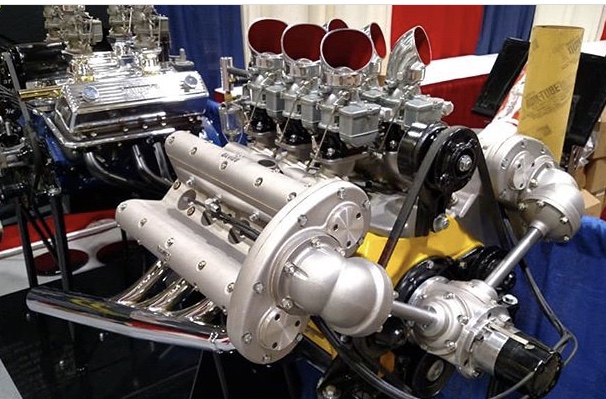

Flatty with Davies cammer conversion



Any more info on this treasure?



Wow!



Wow. Someone sure one-upped Ardun!

- EM



Museum of American Speed - Lincoln, NE. That's all I know about it.



No fake injectors this time!



I would love to see more photos of that Davies DOHC setup!! I've been trying to find more info about it for years, so I could 3D model and 3D print a scale-model version, but online searches turn up the same 3 or 4 small photographs, so I'd have to do a lot of guesswork. This is the first time I've had a clear look at it!



posted by Flatred53 here:https://www.jalopyjournal.com/forum...r-photographers.1054623/page-44#post-12434216




Posted by Bud Crane here:https://www.jalopyjournal.com/forum...ditional-engines.252296/page-36#post-12434672



interesting split flatty intake

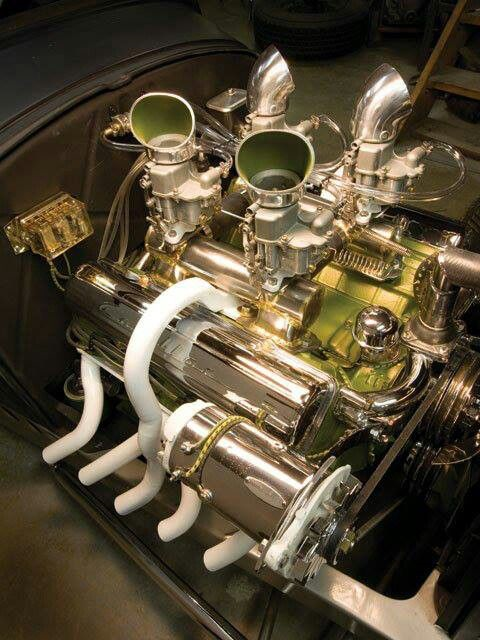

Caddy.



Caddy 390.



VooDoo Larrys.



can someone explain that extra white pipe from the intake area down towards the exhaust pipes?



Road draft tube for crankcase venting.



Looks to me like they are pulling exhaust out up there to me.
Not sure why.



The four carb log manifold has no exhaust heat crossover passage. Instead of just capping the passage in the heads he added pipes to his headers probably just for the shock value.



Thanx. If it is a road draft tube it's a new one on me. Every one I've ever seen ran out the back of the engine.



I agree. That is what I thought , looking at the pic.



Arias hemi heads , blown with injection.



Just had to size them up.



^^^^ Looks great, and the valve covers are perfect.^^^^



I am real proud of the mag.
That's another story in itself.
