Features The Official [Ed] Winfield Speed Equipment Thread!

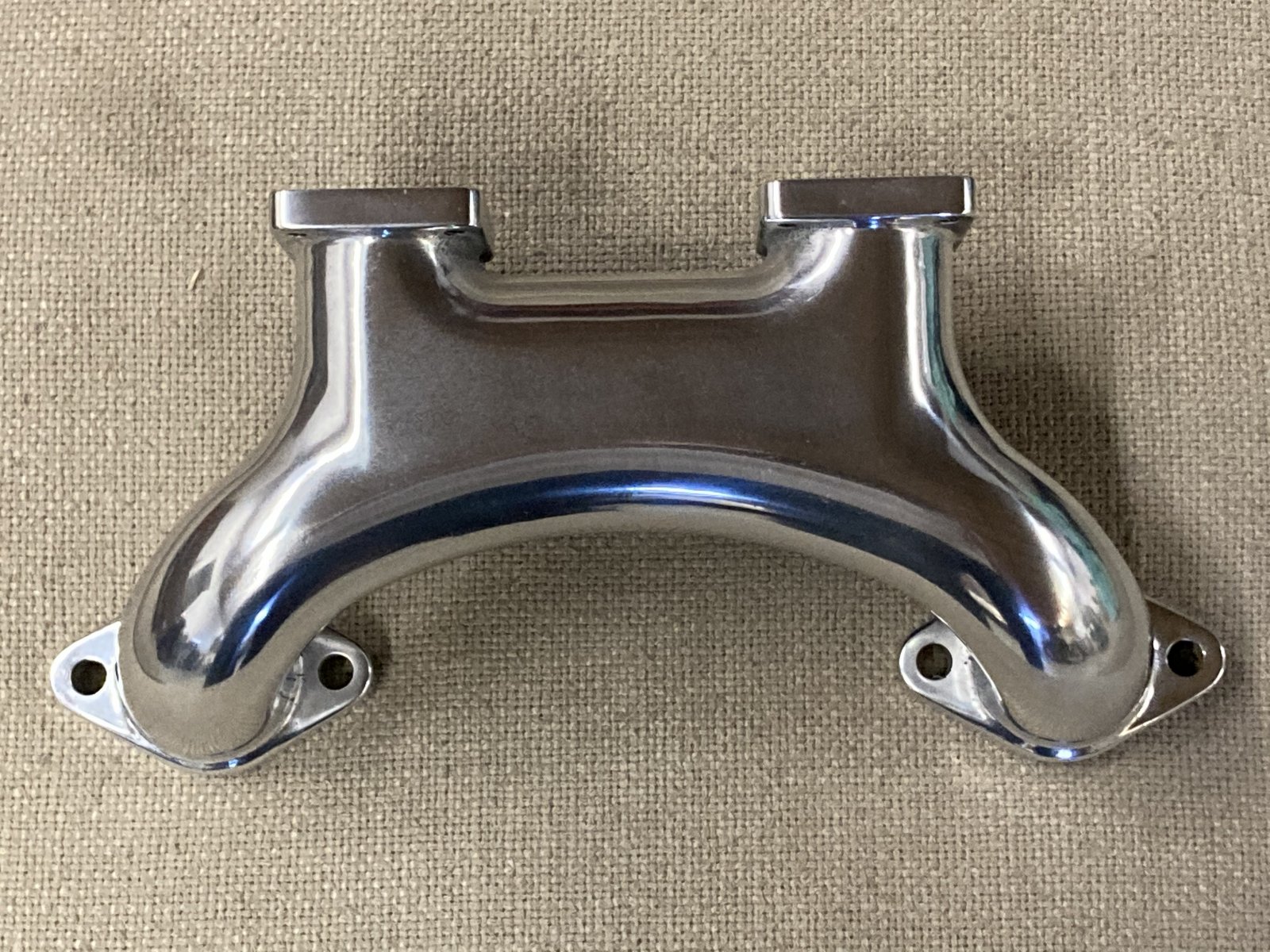

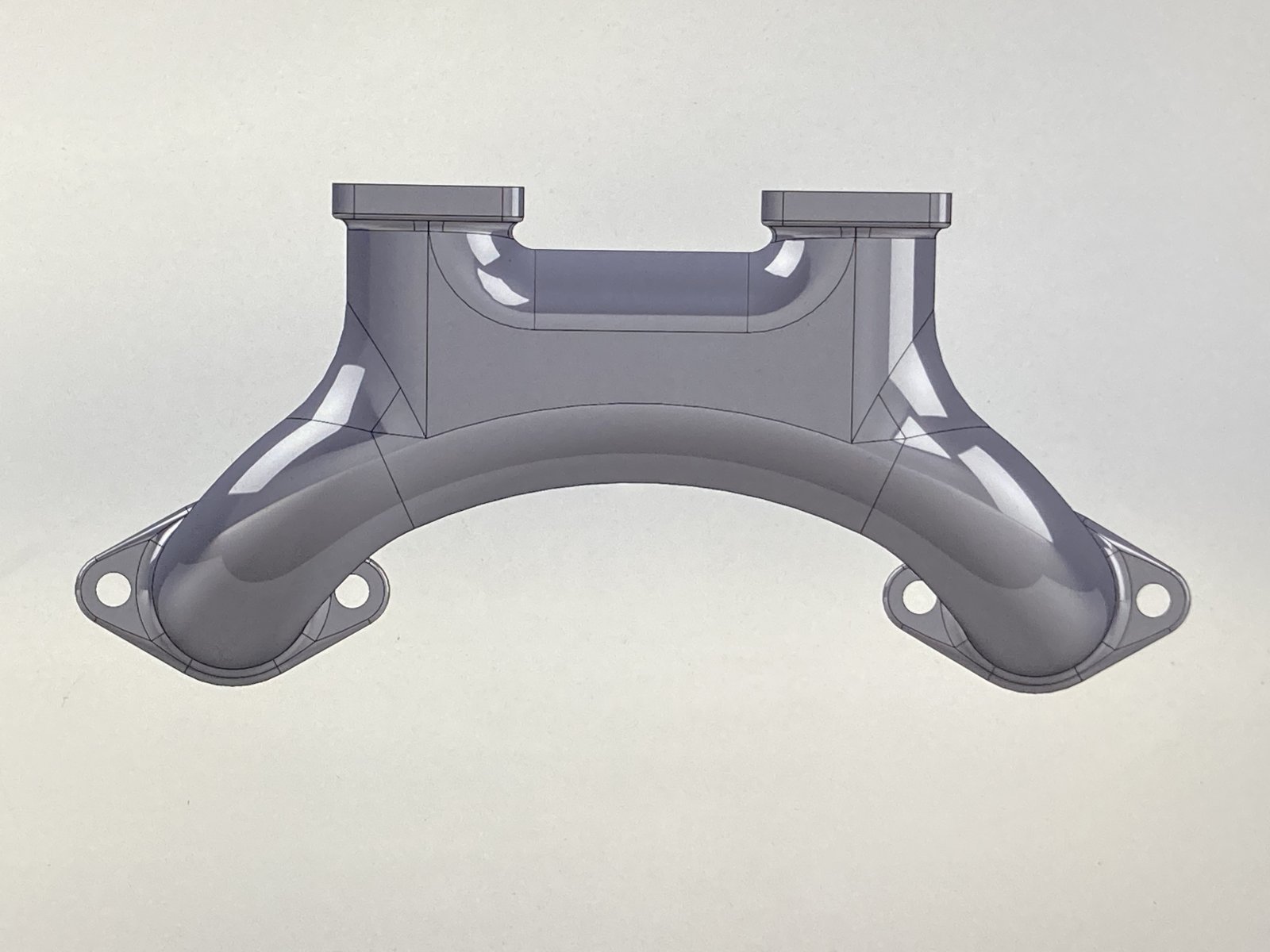

There are alternatives to the lifelong pursuit of mythological creatures... we can make them now!



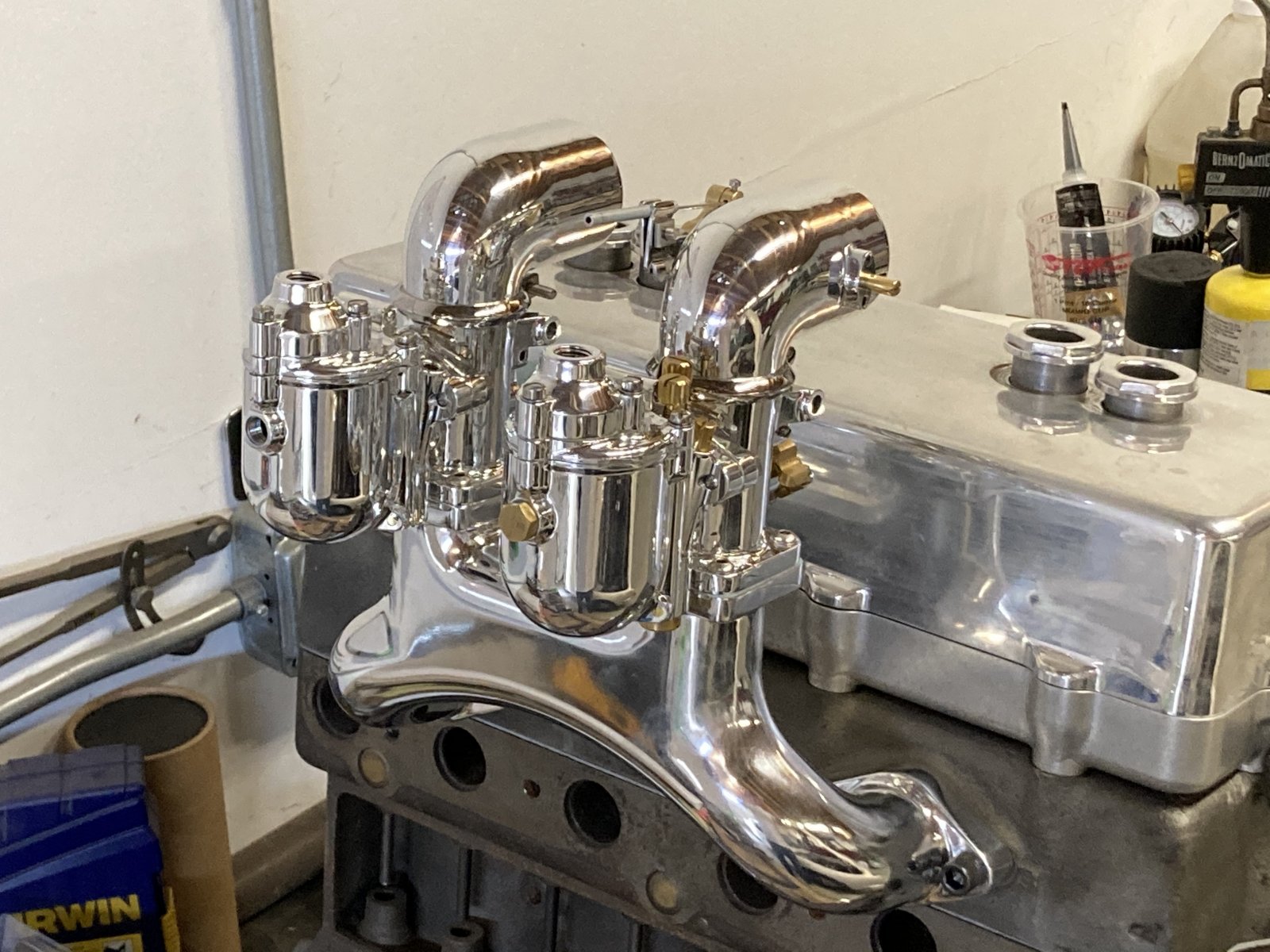

That certainly is a great use of technology...I'm sure you're pretty happy with the outcome there...looks awesome and surely it performs just as well...and x2 means Hotrod...oh yeah...

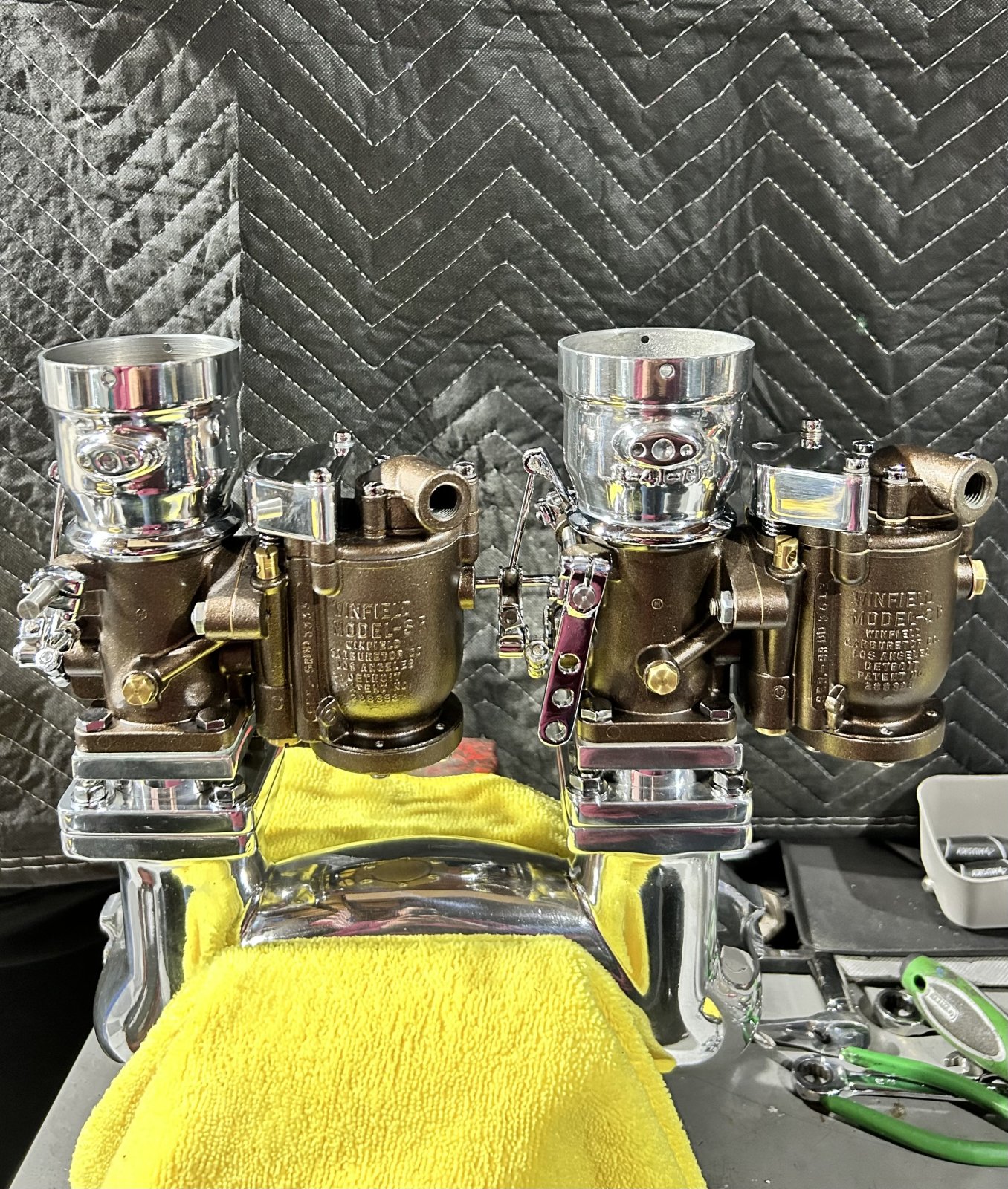

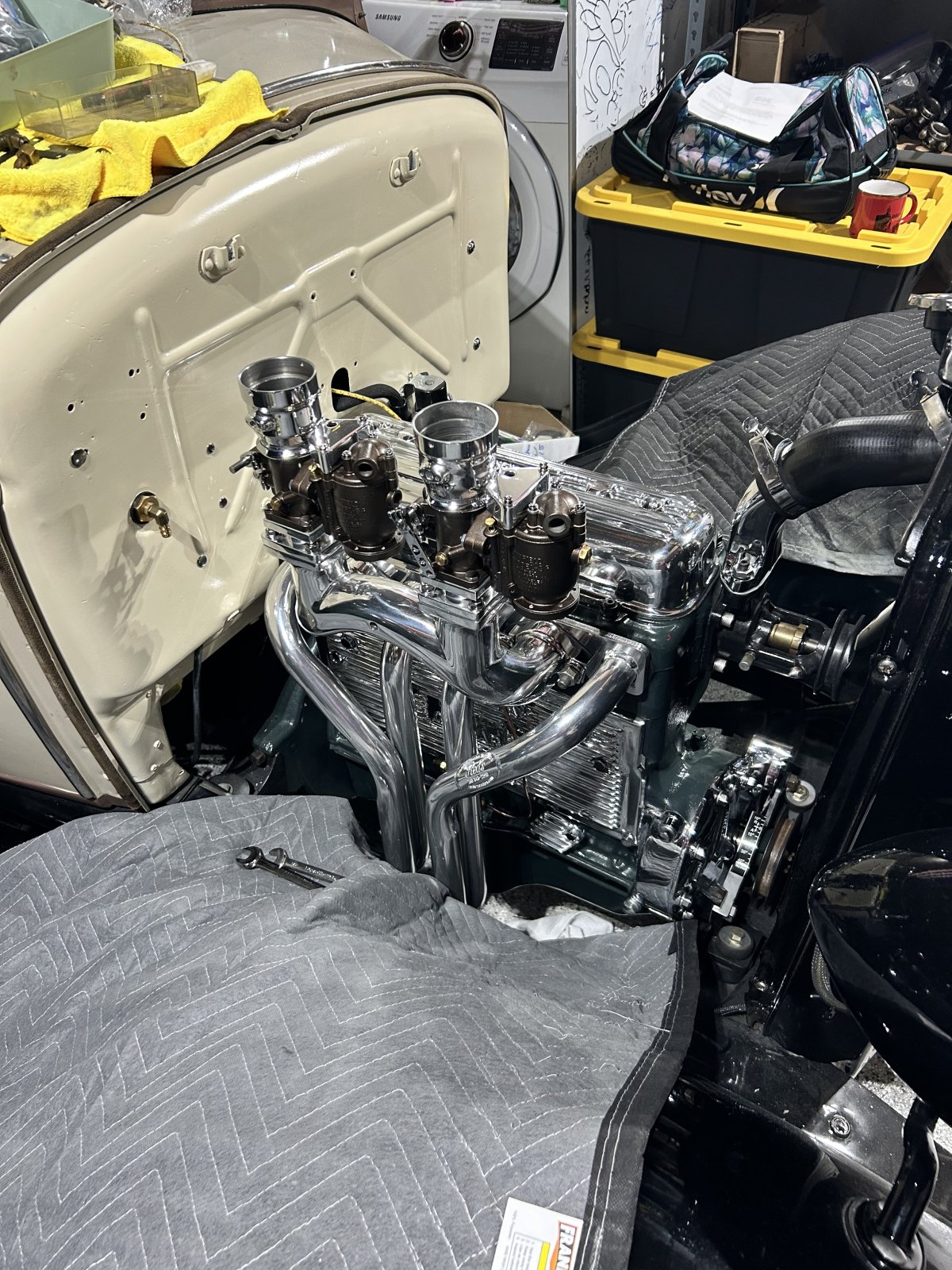

Thanks Stogy! I still have my fingers crossed in hopes of smooth running and reliability. But this is part of a much bigger project that is still waiting its turn. I keep telling myself it’ll happen “this winter”...



Art that goes...that sure is something to be proud of...



Here’s a Model M-B that popped up on the Model T classifieds;

https://www.mtfca.com/phpBB3/viewtopic.php?f=5&t=30742

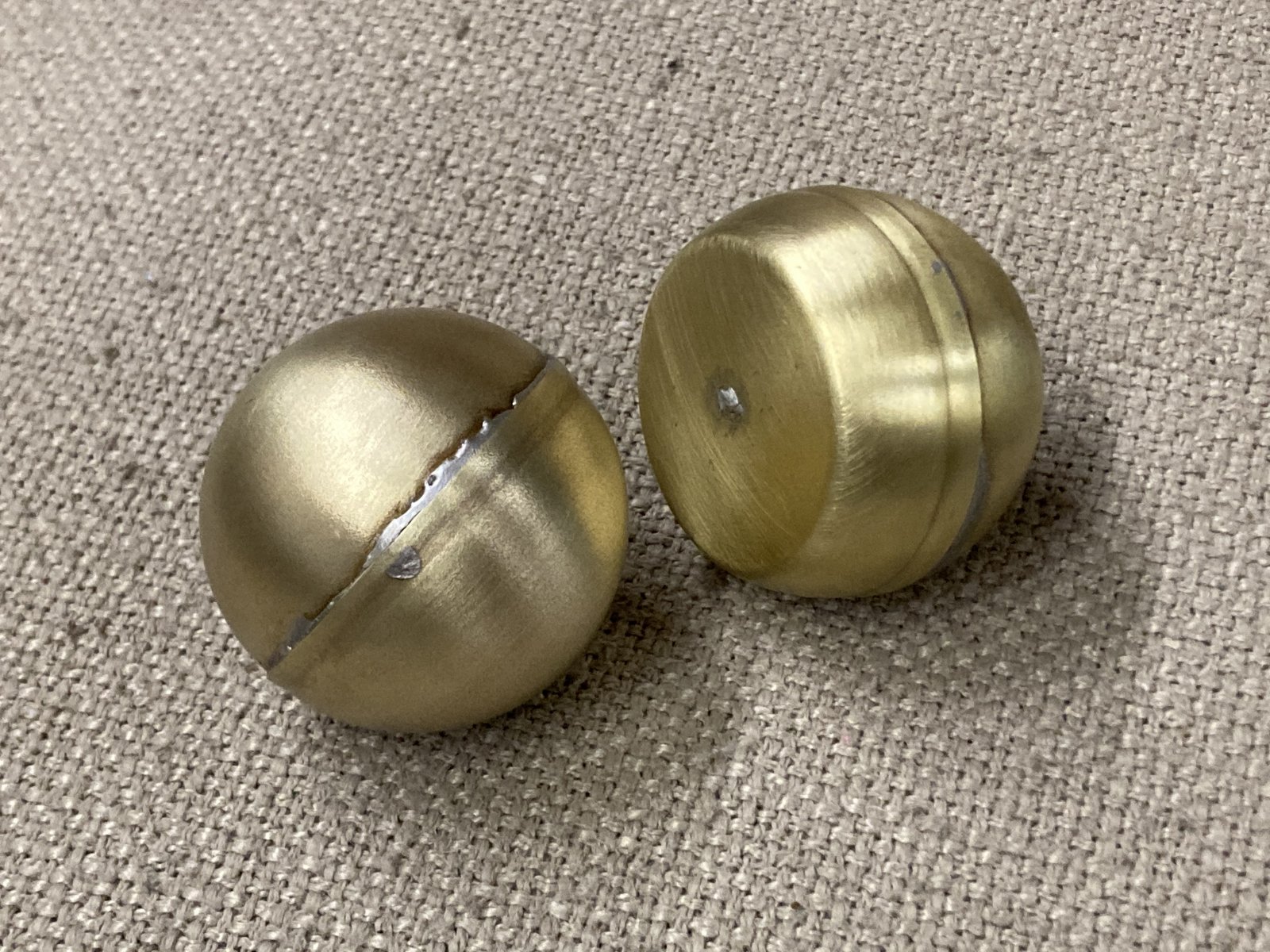

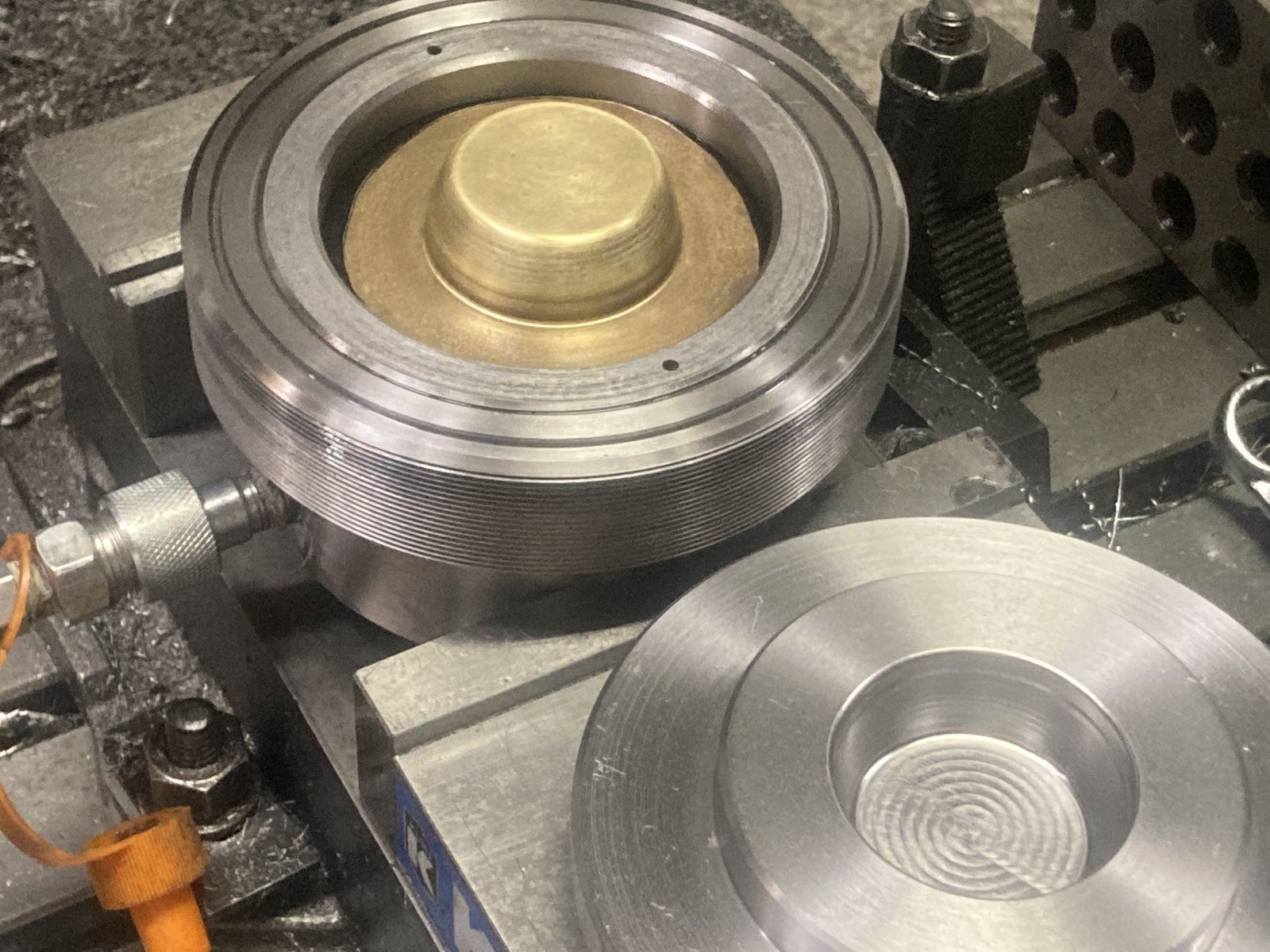

A bit spendy for just a float... but making one from scratch will cost a bunch more! Don’t ask how I know

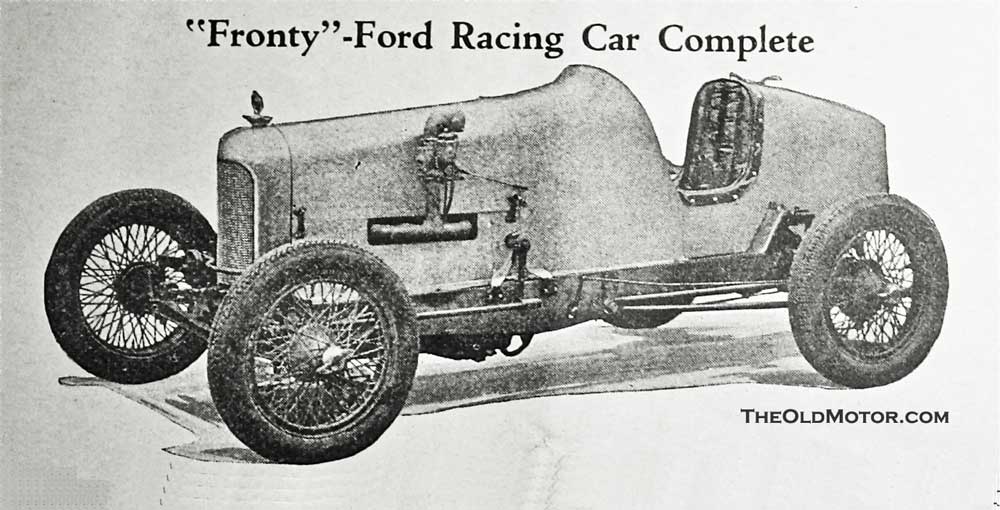

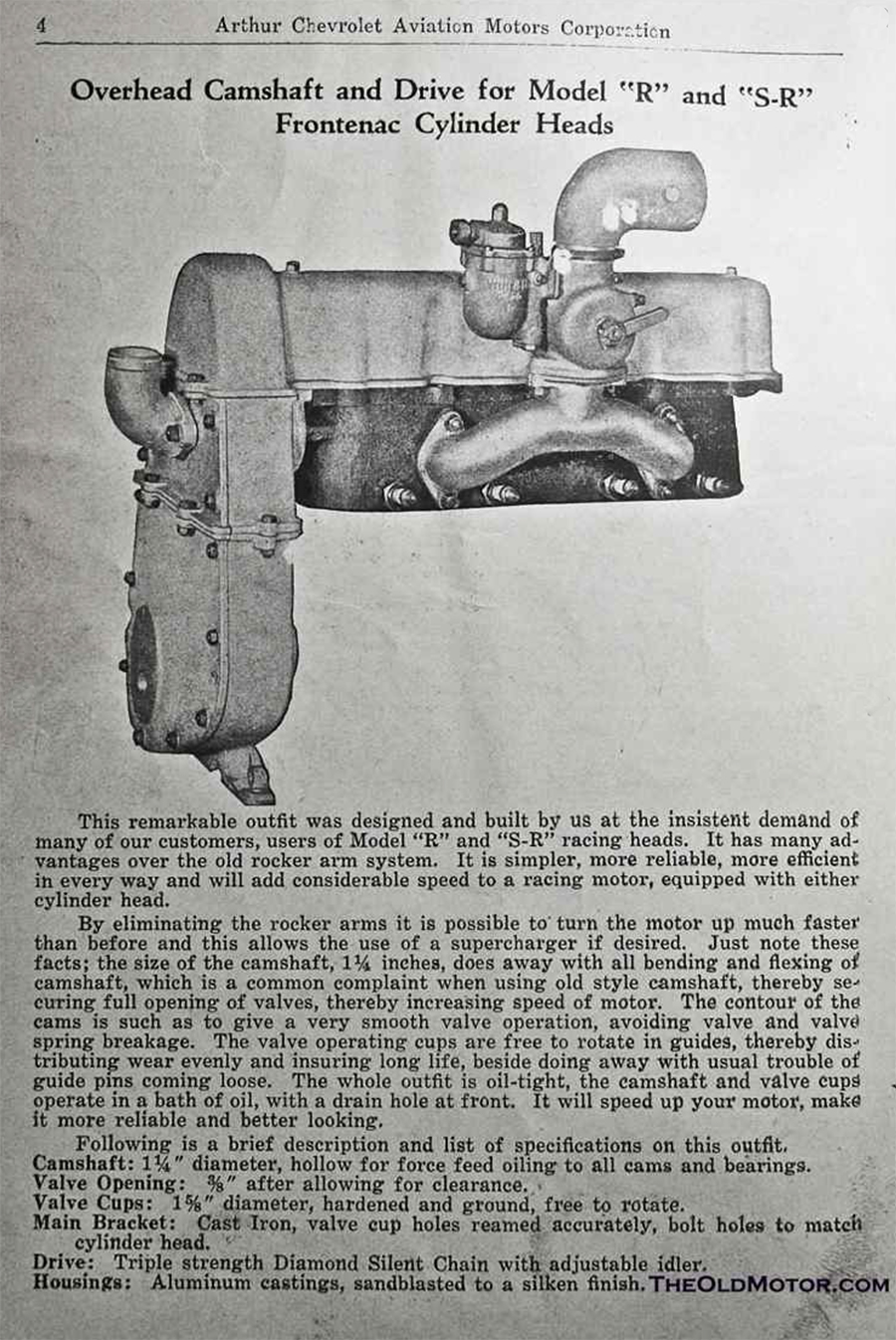

These are photos are from the pages of an original Fronty Ford May 15, 1929 catalog that show Winfield barrel-valve carbs and manifolds that Fronty may have made for their cylinder heads. Above and below is the induction system with a tall ram tube they offered for their 16-valve DOHC Model T based engines. These engines would rev up to 6,ooo rpm.



Above is a Winfield barrel-valve carb and manifold (I'm looking for this manifold) offered for use on a Fronty SR SOHC conversion and the standard SR head with rocker-arm heads. The rocker-arm heads would spin up to 4,000 rpm and the SOHC head at 5,000 plus.

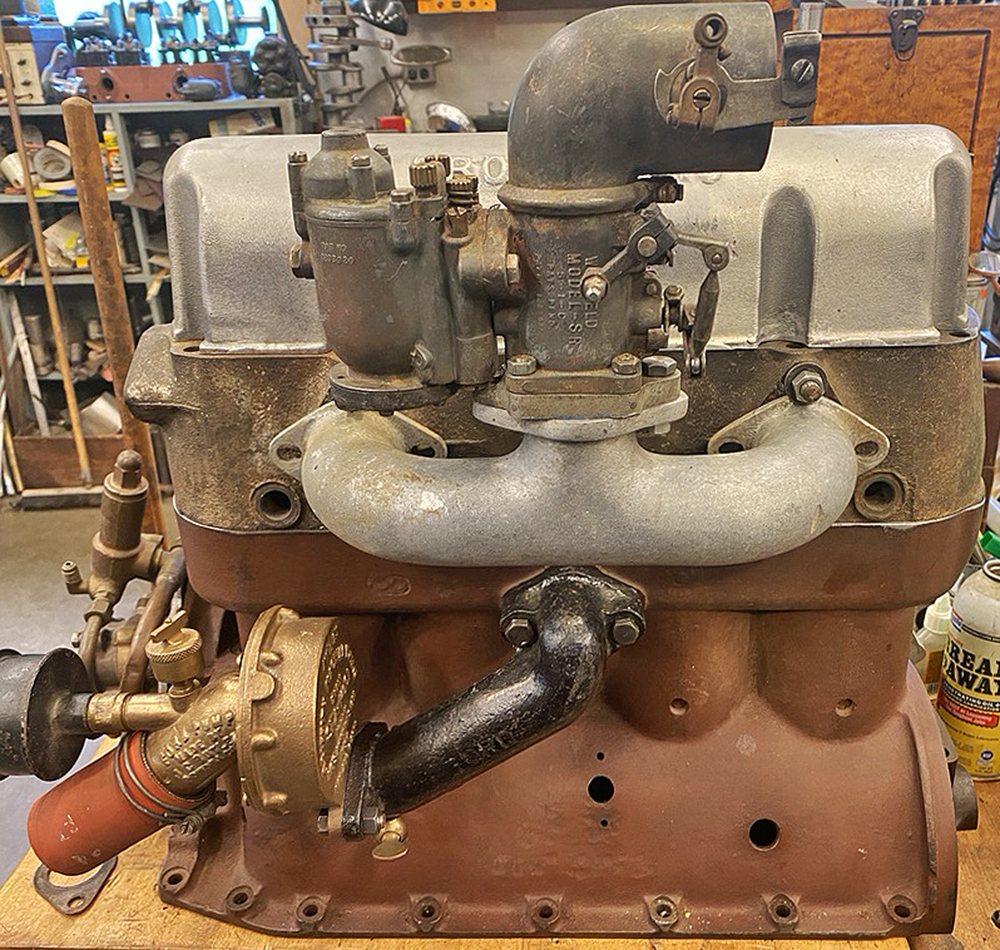

Below is a nice original untouched SR C carb that we will use on this Fronty racing engine with an SR head engine fitted to our original unrestored early Model T Ford racing car in 1926 or '27. This is the head I was thinking of adapting a S 66 manifold to but the 1-3/8" port runners are to small. The aftermarket 1-5/8" ID intake manifold in the photo is a spare for our Rajo BB head modified for racing use. The Fronty head below has the same size 1-5/8" ports and 9.5" c to c distance as the Rajo. The thin flanges need work so it may get a set of new vertical flanges so it to bolt onto this head unless something better comes along.



Just read this entire thread
must admit I don’t know much about Ed Winfield
I have learned a lot in this thread
but
I searched for him on Wikipedia, unbelievable that he doesn’t come up
I wish I knew more about his life in detail



Take a look at this article...

https://www.nwvs.org/Technical/2104EdWinfield.pdf



Thank you
a very interesting read
I’m a novice to the old school hotroding
have been reading many of the posts and builds of old school roadsters and speedsters
this forum is a great source for me
the past is the future



After discussion over at the Banger meet I was directed here, a great read & worth a bump!



There’s some great information here, a really good read.
Can anyone answer a question on Winfield carburettors….
I have two Model S A’s that I’m planning to run with a twin updraft manifold.
The motor has a ‘touring’ cam, Scat crank, lightened flywheel, FSI, full pressure oiling, aluminium Winfield head.
It runs really well with twin 81’s at the moment.
Will the two Winfields be comparable to the 81’s?
I’m transferring the engine from my roadster to my Sedan for street/touring use so I’d be happy with a bit less performance….
Any thoughts.
Thanks for looking.

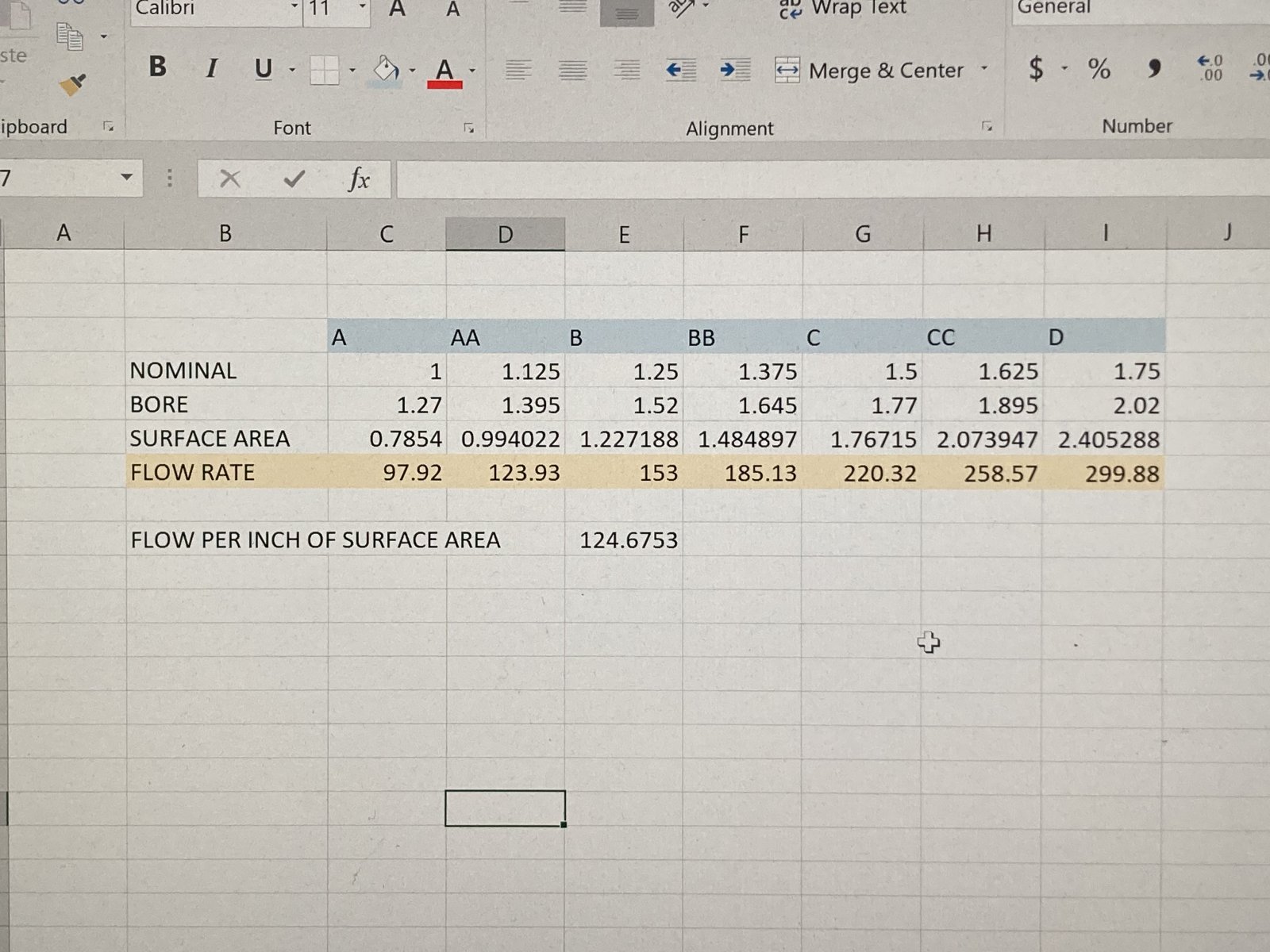

Here are my calculations for the flow rates of Winfield S/SR series carbs. These numbers are based upon the actual flow rate of a S-B with the 90 degree choke horn installed. As I recall the 81’s are somewhere in the 110-120 cfm range…



Question here for the group...Did Winfield make size specific right angle Choke horns for the S/SR "AA" and BB" carburetors, or were the next larger size used? I have a couple of "AA" carbs, both with "B" choke horns, and a "BB" carburetor with a "C" choke horn. FWIW, I also have an "A" Winfield carburetor with an "A" choke horn.

Admittedly I have not seen a lot of Winfield equipment, but I don't remember ever seeing a "AA" or "BB" right angle choke horn.

Trying to figure out if what I have on my Winfield carbs is correct or if I need to keep an eye out for different choke horns.



My twin AA has S-41-B right angle choke horns on them. You may be right.



Choke horn sizes are as follows:
A throttle body = A choke horn
AA or B throttle body = B choke horn
BB or C throttle body = C choke horn
CC or D throttle body = D choke horn



^^^^^^^^^Absolutely correct! Note that Model S and SR both use the same S-41-“X” choke horns



Thank you everyone for answers on my choke horn question...good to know I have things matched up correctly. Now to break down the couple I need to rebuild to see if my internals are correct...I'll post some photos as I do so so other newbies can learn from my journey...



Question: Did Winfield make also "Green Head" for trucks with rather low 5 to 1 compression ratio? I have had my head for maybe 15 years. Was going to put it on my Model B engine, but used Model A "police head" instead. Problem with my Winfield head was that fly cut above piston was so low that I was afraid that pistons would hit the head. Engine is now sold, but I still have this head. I think that head has been milled and someone has put a new marking (6) on it to represent a current compression ratio, at least it does not have serial number after the first digit.



My current project. Model B block running a original cragar over head and dual Winfield carbs.



^^^^^^^^^
WOWZA!!! Lookin great!



A short update on these Winfields.

I purchased them as they had some manifolds to suit a historic Australian inline-6 cylinder head. My plan at the time was to buy one of those heads, and drag race it. Over the last few years I finally found a head (the Repco Crossflow Head), and am now close to having it in an operable state. The heads are hard to come by… Repco only made 200 of them in the 60’s, and most were lost during racing. My plan is to run the head on a Holden 138ci engine, blown, in a front engine dragster. The dragster is nearing completion, and most things are coming together.

The reality is starting to sink in that I will never have an engine that would suit the use of the Winfield carbs. Drag racing is hard on gear, and there is more likelihood that I would do damage to them. It seems a shame to have them sitting on a shelf, when perhaps others will get more use out of them.

After some checking, I've made a contact at the Museum of American Speed in Lincoln Nebraska. They are interested in displaying them, so the carbs are on their way to their new home to Nebraska.

Cheers,
Harv

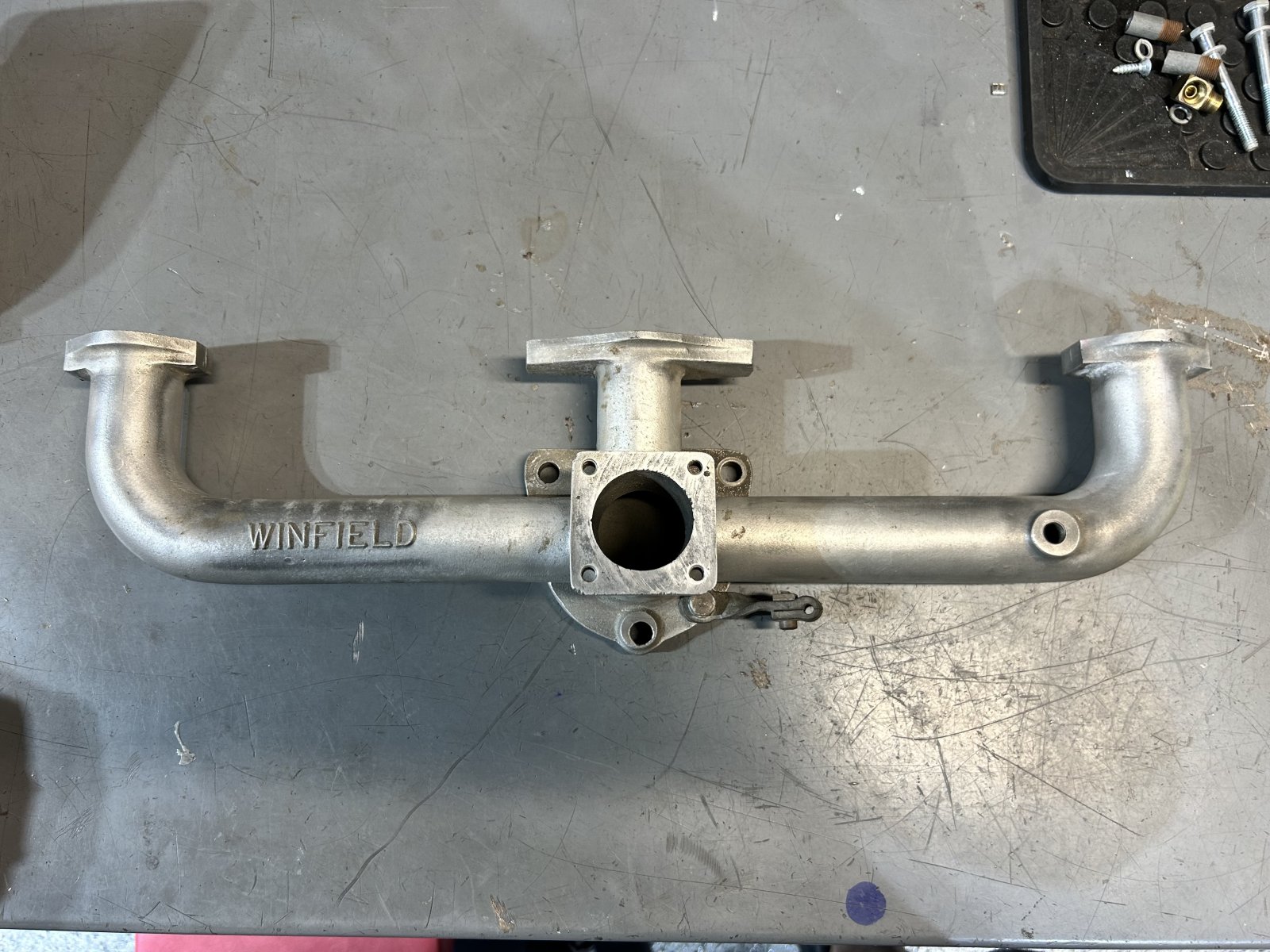

I Recently picked up this rare 1929-36 Chevy inline 6 Winfield intake manifold



Good on you for considering the provenance of the carbs, I am looking forward to seeing your rail sometime, I was chatting with a chap this weekend who has a recently fitted repco head in a 16ft skiff. Beautiful boat/setup!



Cheers mate. My guess is that the skiff is Craig Allardyce's? The only other Repco headed floaty boat that I know is Dave Pagano's Bernadette.

Cheers,
Harv



^^^^^^^^^^^

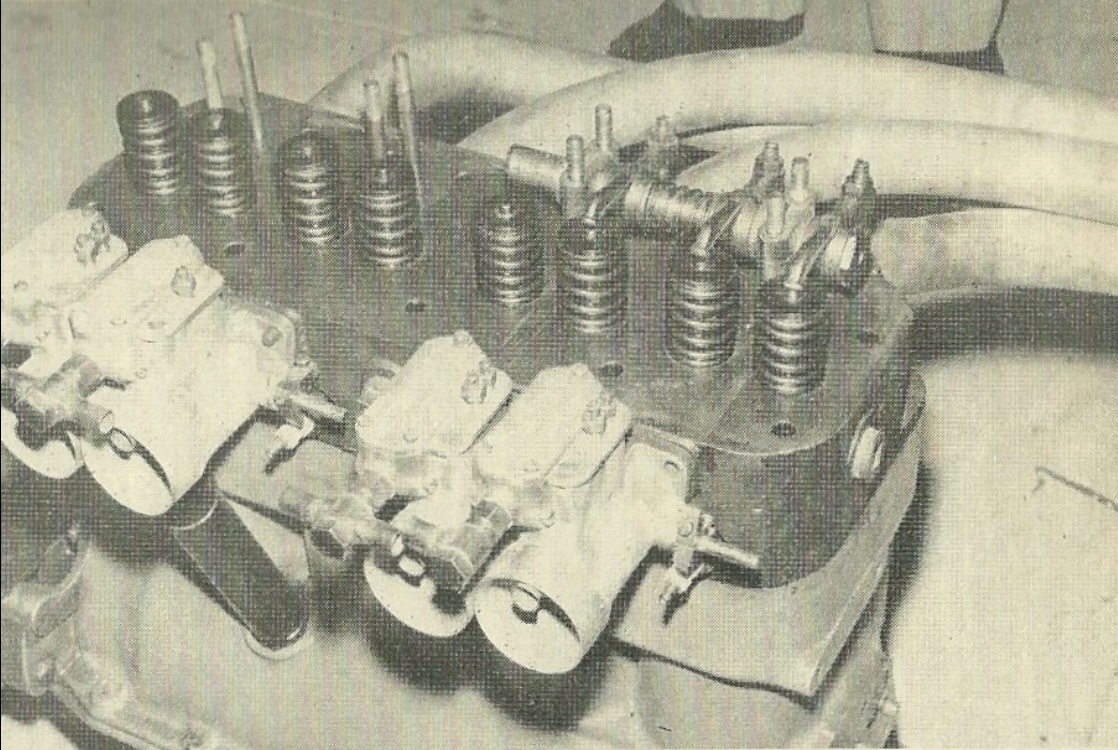

@Harv, not sure how I missed your previous posts about the side draft Winfield carbs…?! It’s amazing that you came across 2! As I understand the story, there were only 3 sets of 4 ever made. These were to go along with 3 O/H valve Winfield head castings of which only 2 were finished. The heads and carbs were for a champ sprint car (don’t recall the driver). The Lincoln museum has 2 of these heads, one on display and the other in the resto room behind glass on the bottom floor. Either have the correct carbs, and none of the docents had any idea they existed. I was allowed to dig thru several stashes of carbs while I was there a couple summers ago, but didn’t find anything. Glad yur sending these for display!

I was involved a while back with a fella that reproduced 12 of these. He found an original, had the patterns and castings made, and I finished the machine work. Surprisingly, there is mostly Stromberg 97 parts in there. I was hoping to talk a set out of the fella to send to the museum… but apparently the box of carbs has gone missing…?!



I noticed the same when I reverse-engineered them (Technical - School me please - carb ID (suspect Stromberg) | The H.A.M.B. (jalopyjournal.com))- lots of parts that are identical to the Stromberg 97, which in turn shares parts with the BXOV-1. The BXOV-1 was the GM Holden bread-and-butter carb from 1948-63, so lots of parts here to compare to.

Glad they went to a good home. Kem and the museum team were great to work with. Still no idea how they ended up here in western Sydney.

Cheers,
Harv



Yep that's him, the only one I have seen in the flesh was in North Qld in an FC or the like,

There were/are lots of very rare cars & parts that came to Australia, if not when new but after their first life,



Question from a new guy, what’s a reasonable price for a Winfield sr66 bb down draft intake for a model A?



I usually get 400 ish +/- 50 bucks depending on condition
