Art & Inspiration The Photoshop thread to end all Photoshop Threads!

Discussion in 'The Hokey Ass Message Board' started by Pair O' Dice, Oct 10, 2008.

  1. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member

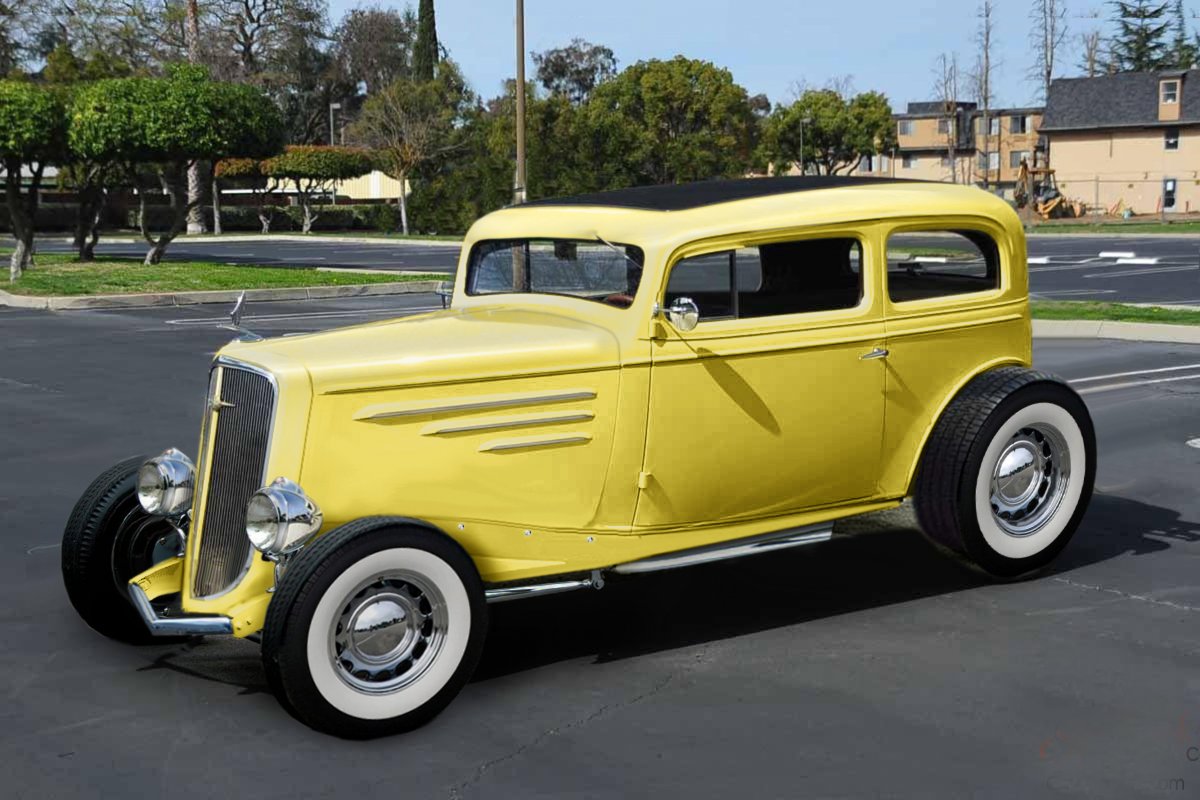

    Hey @GasserTodd ...As you can see by my avatar I'm a Chevy guy and always have been so I couldn't pass up a chance to play around with your concept. I went with a mild chop along with the other mods. Could make a sweet ride.


    kiwijeff, atch, Peanut 1959 and 5 others like this.
  2. GasserTodd
    Joined: May 15, 2009
    Posts: 582

    GasserTodd
    Member

    Many thanks, The Moose and Madfish.

    Looking at the work you have done, it would seem to me that the key to getting the stance right is getting the chassis sitting fairly low. I will need to think about a chop (I have a long back and short legs so may be the worlds tallest dwarf) and that Chrome Yellow on Madfish's one has me thinking that maybe thats the future.

    [​IMG]

    This (and a cheap 34 Chev sedan) are what inspired me. Its just a really cool hot rod. I could do mine without the hood if I fitted up the blown big block from my bucket, (gotta fill the engine bay) but with a hood I could just downgrade to maybe 550 hp and have a high mileage cruiser. Hot rods need great stance and heaps of horsepower aye. :)

    kiwijeff and pcbart like this.
  3. silent rick
    Joined: Nov 7, 2002
    Posts: 5,628

    silent rick
    Member

    [​IMG]

    can we turn john's intake into a dual quad? center the carbs over the intake runners. maybe leave the mummert logo between the two carb bases? if anything, extend the thermostat housing an inch so we can leave the threaded hole.

  4. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member

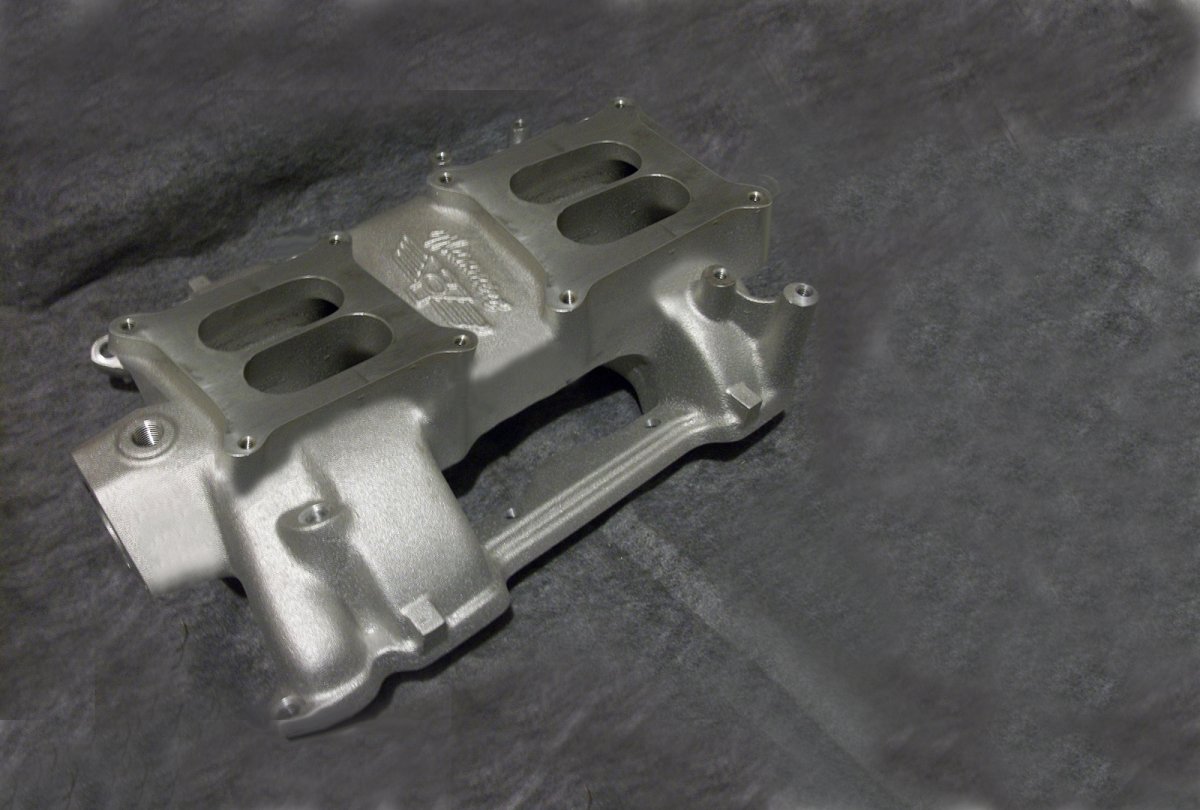

    OK ..all set to bolt on..;)

    duel quads.jpg

    kiwijeff, 509garyd, jimmy six and 6 others like this.
  5. silent rick
    Joined: Nov 7, 2002
    Posts: 5,628

    silent rick
    Member

    you do great work.

    now what are my chances at getting john to produce it? @themoose

  6. silent rick
    Joined: Nov 7, 2002
    Posts: 5,628

    silent rick
    Member

    @Mummert

  7. 34Phil
    Joined: Sep 12, 2016
    Posts: 706

    34Phil
    Member

    You would need some tall spacers for that rear carb to clear the distributor or mount them sideways

  8. madfish
    Joined: Dec 9, 2006
    Posts: 1,366

    madfish
    Member

    @GasserTodd

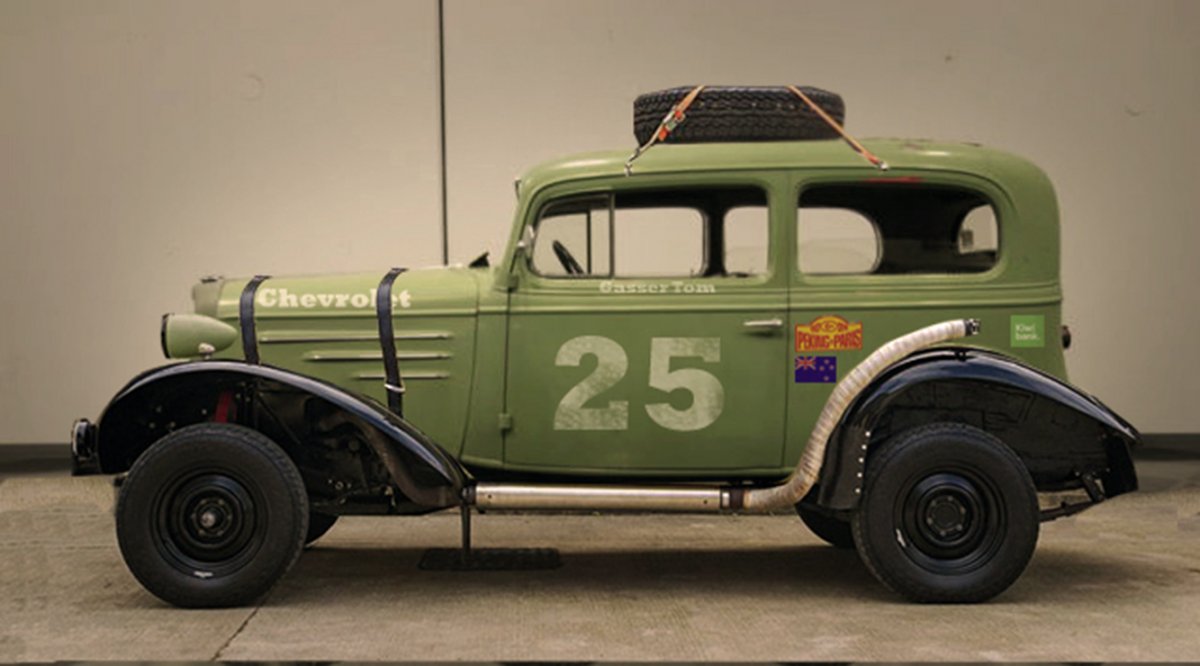

    Instead of hot rodding, maybe you do a little rallying? Look up Fangio Coupes.

    34 Fangio Sedan.jpg

    slv63, gonmad, Ned Ludd and 3 others like this.
  9. verde742
    Joined: Aug 11, 2010
    Posts: 6,586

    verde742
    Member

    GET A ROPE !!!!!

  10. madfish
    Joined: Dec 9, 2006
    Posts: 1,366

    madfish
    Member

    Before I screwed it up.


    kiwijeff, themoose and Peanut 1959 like this.
  11. tb33anda3rd
    Joined: Oct 8, 2010
    Posts: 17,566

    tb33anda3rd
    Member

    that is cool, when did rally racing start?

  12. jimmy six
    Joined: Mar 21, 2006
    Posts: 16,937

    jimmy six
    ALLIANCE MEMBER

    I'd buy that.....and yes the back carb needs to move forward. Even the earliest one were not back that far. 2 Carter AFB 400 cfm's be perfect.

    509garyd likes this.
  13. GasserTodd
    Joined: May 15, 2009
    Posts: 582

    GasserTodd
    Member

    TheMoose, is there any chance that you could change it from yella to purple and lower the front an inch or so. Apart from that, we might have a plan to lock in.

    Many thanks
    Todd

  14. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member



  15. silent rick
    Joined: Nov 7, 2002
    Posts: 5,628

    silent rick
    Member

    i have two 400cfm AFB's on an edelbrock FM255 and a grant flamethrower distributor. now you guys are scaring me. i have to put the heads back on so i can check clearances.

  16. GasserTodd
    Joined: May 15, 2009
    Posts: 582

    GasserTodd
    Member

    Thanks TheMoose.
    I think the darker colour works better. so that just might be the blueprint of the look we are after

  17. tb33anda3rd
    Joined: Oct 8, 2010
    Posts: 17,566

    tb33anda3rd
    Member

    what i started with, the photoshop by @themoose, and the final paint job. thanks again moose! DSCF0002 2.JPG bed trim.jpg IMG_1877.JPG

    kiwijeff, 55Deso, Squablow and 8 others like this.
  18. justabeater37
    Joined: Jan 1, 2009
    Posts: 1,809

    justabeater37
    Member

    Getting closer to reality. Had a problem with too much clear on the turtle deck so need to repaint. I hope it matches. Trans dipstick is holding the hood up in this pic but that will be remedied tomorrow.
    [​IMG]

    kiwijeff, 55Deso, themoose and 2 others like this.
  19. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member


    Wow...Your more than welcome!!! What an eye catcher!

    Peanut 1959 likes this.
  20. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member

    @justabeater37 ...Making good progress for sure. There are always a few glitches along the way but I'm sure you'l get everything worked out. Keep the updates coming!!

  21. madfish
    Joined: Dec 9, 2006
    Posts: 1,366

    madfish
    Member

    It's raining and I'm bored. So...I found this traditional style Model A Sedan and decided to futz with it. I was never into Sedans but this is giving me second thoughts.

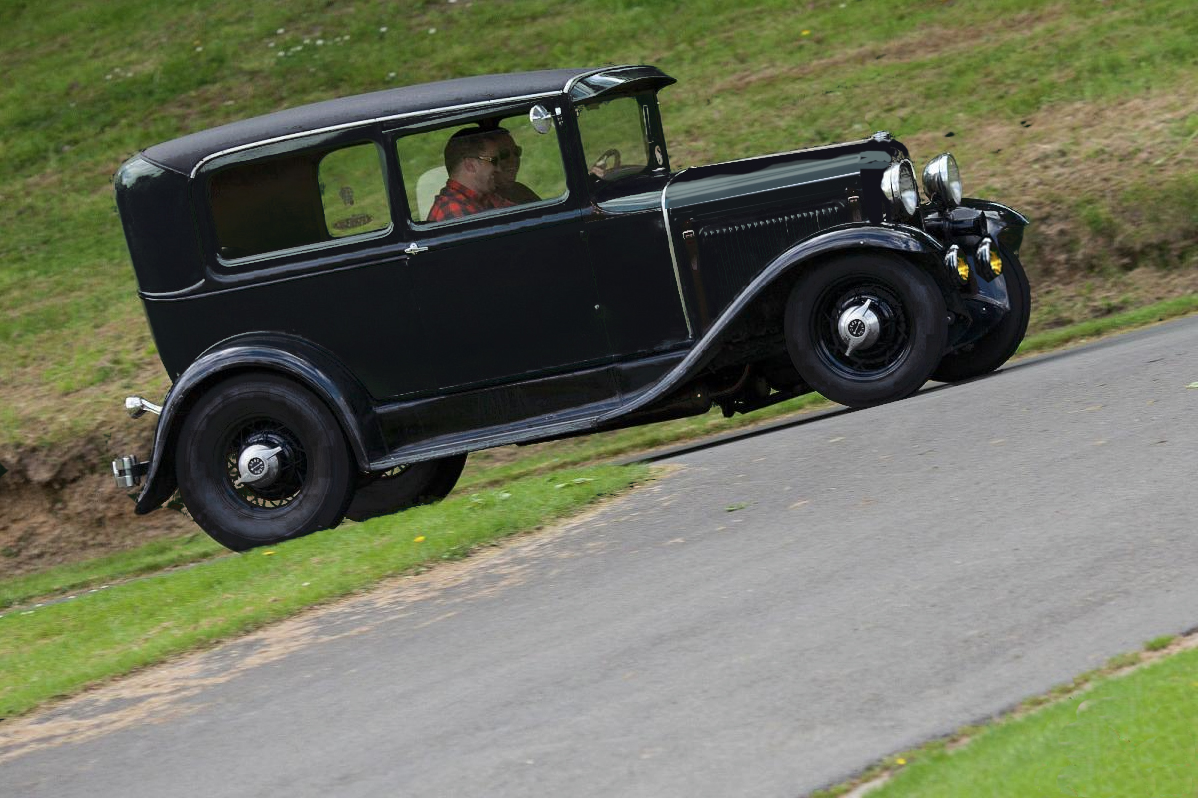

    ebay941586.jpg Model a Two door.jpg surf wagon. model a .jpg

    kiwijeff, Stogy, James D and 6 others like this.
  22. seb fontana
    Joined: Sep 1, 2005
    Posts: 9,166

    seb fontana
    Member
    from ct

    More better.."B" post needs to come out a hair at top,above doors and quarter windows..

    509garyd likes this.
  23. madfish
    Joined: Dec 9, 2006
    Posts: 1,366

    madfish
    Member

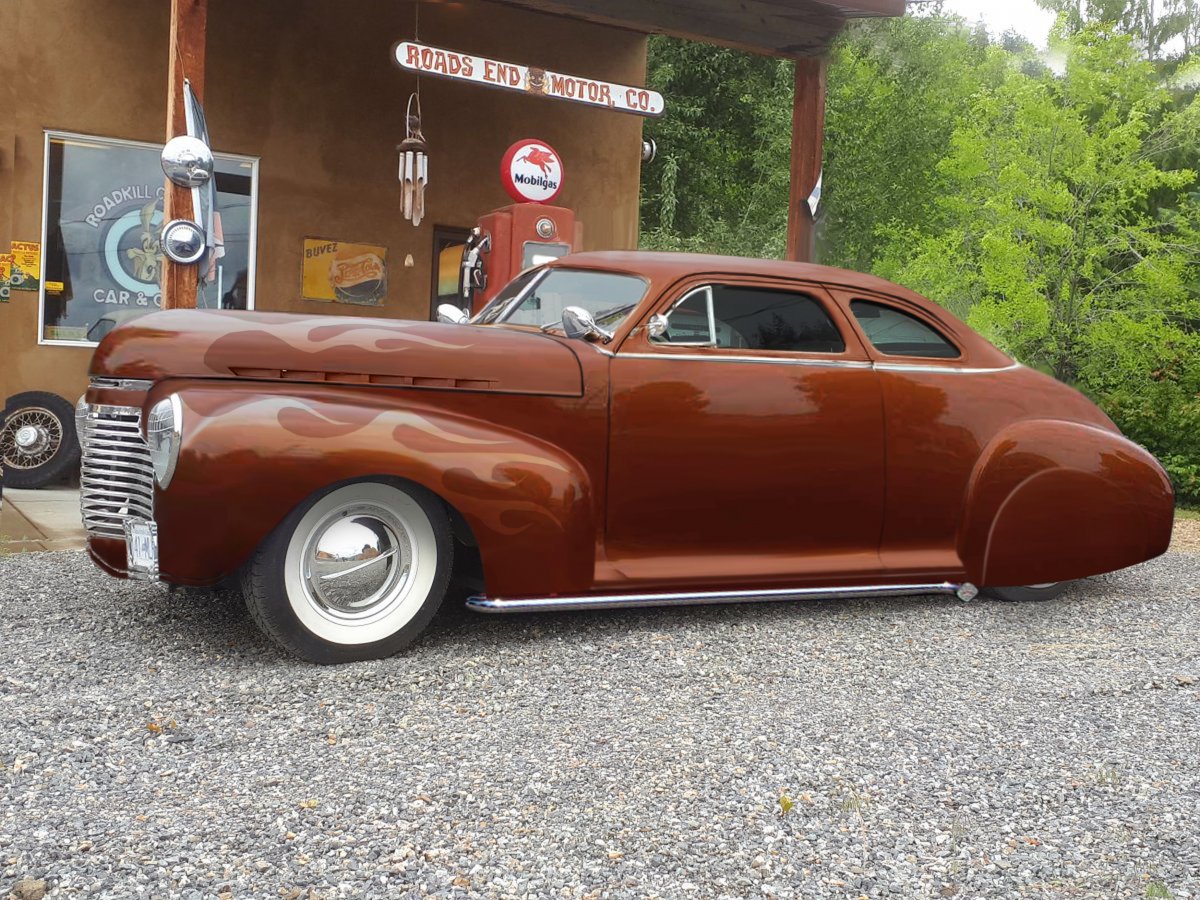

    I took a few liberties with the Photoshop that Moose did.

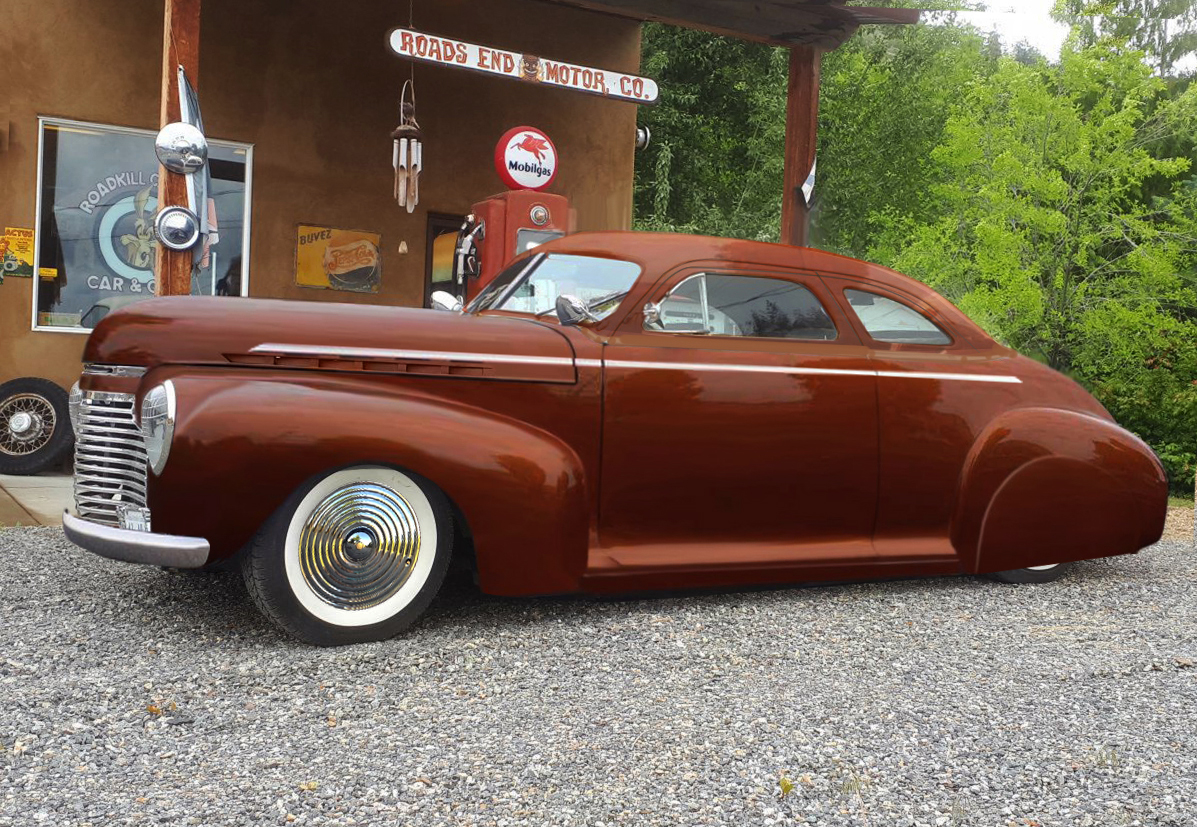

    1941 custom.jpg

    Last edited: Jun 24, 2018
  24. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member

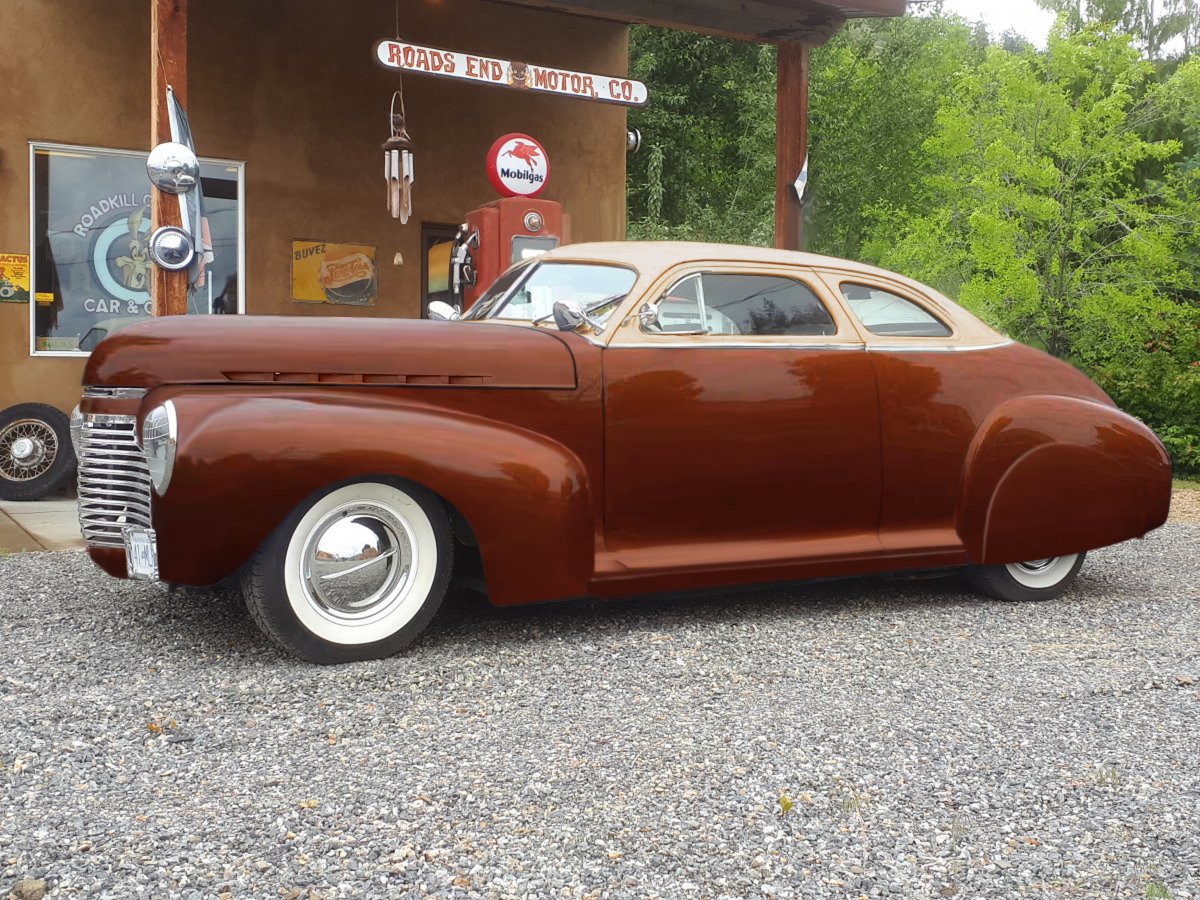

    OK...A few more custom touches.


    Last edited: Jun 24, 2018
  25. hd1084
    Joined: Nov 15, 2011
    Posts: 1,067

    hd1084
    Member

    Looking to have the grille shell gray/silver with gray/silver flames on the hood. Also would like to see in Orange...


  26. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member


  27. insomniacshotrods
    Joined: Jan 27, 2009
    Posts: 194

    insomniacshotrods
    Member

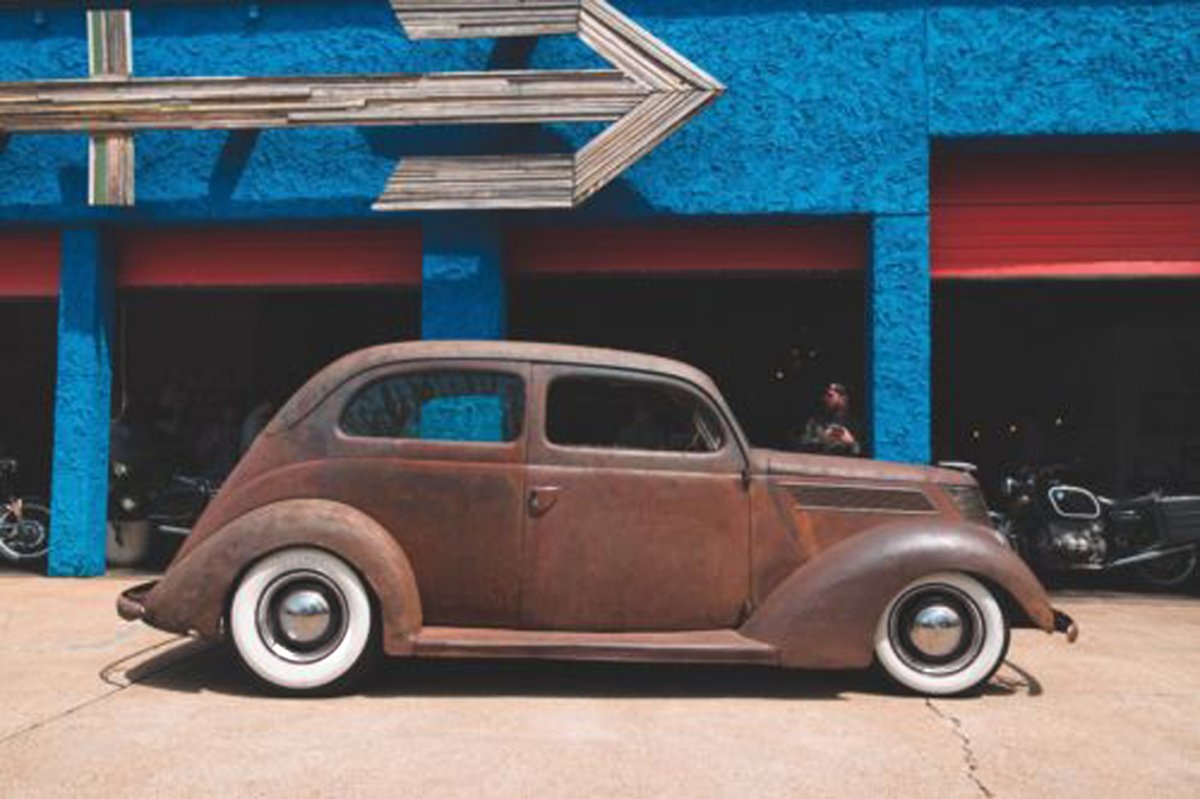

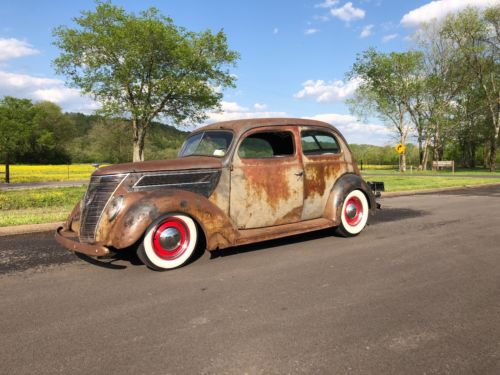

    Could I see this 37 with black rims please when you get time. Thanks so much for sacrificing your time, to help us see the dream just might be a nightmare, before we waste our time and money. A1553B75-7D95-4B36-AD62-7F585D9EE0BD.jpeg 14C16E3B-FE7B-424C-B281-AA39B36546C0.jpeg

  28. themoose
    Joined: Dec 7, 2008
    Posts: 9,695

    themoose
    Member

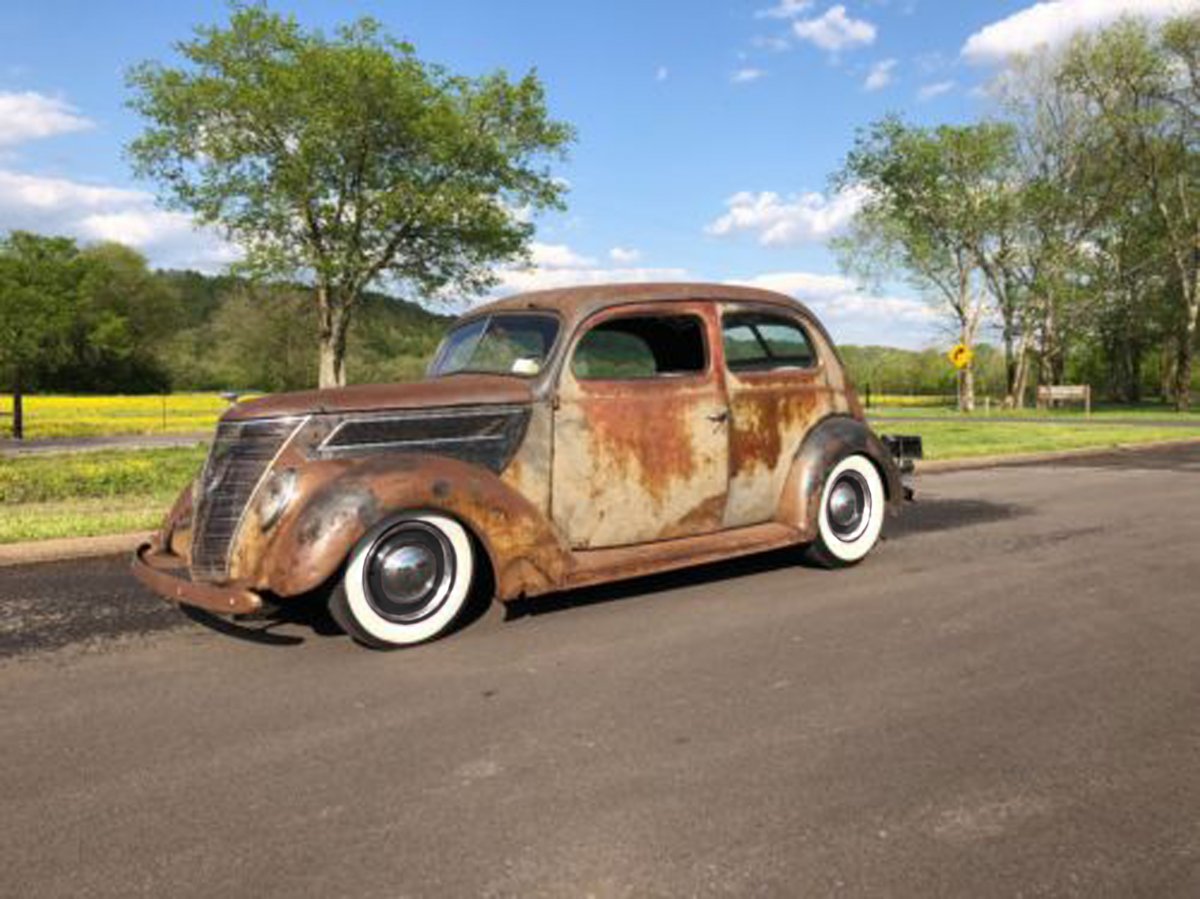

    1.jpg 2.jpg

    slv63, kiwijeff and ct1932ford like this.
  29. ct1932ford
    Joined: Dec 3, 2010
    Posts: 13,220

    ct1932ford
    ALLIANCE MEMBER

    I think the red looks better! JMTC

  30. insomniacshotrods
    Joined: Jan 27, 2009
    Posts: 194

    insomniacshotrods
    Member

    Thanks. Not really feeling either lol. Maybe maroon. Green ? Has white interior.

    Last edited: Jun 28, 2018
