    I have been waiting to finally fix this drivers door. This was another patch on top of original metal all covered in Bondo, like an old roof with too many shingles.


    All better.



    The other side was way better, but still holey enough for a panel.


    The passengers side has definitely been the easy side of this little car so far.


    Alright, so that's it. The last of the structural metal work. Still some Bondo to uncover, but this is everything that makes the body solid and structurally sound.



    Next up is most likely front suspension. See ya.

    -Abone.

    bchctybob, Apenaut, ffr1222k and 45 others like this.
  2. marfen
    Joined: Aug 14, 2009
    Posts: 467

    marfen
    Member
    from sask

    Looks great. Gives me hope!

    Stogy, Algoma56 and ***Area-51*** like this.
  3. Just went through the thread, great metal work and skill. This poor car deserves it after the PO abused it so very badly. Following along .

  4. Robdski
    Joined: Jun 28, 2024
    Posts: 126

    Robdski
    Member

    Great metal work!
    I look forward to watching the chassis come together.
    Thanks for the updates.

    Stogy and Algoma56 like this.
  5. panhead_pete
    Joined: Feb 22, 2006
    Posts: 3,680

    panhead_pete
    ALLIANCE MEMBER

    Losing the 4 Bar?

  6. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,703

    flamedabone
    ALLIANCE MEMBER

    Yep, front and rear suspension is going in the give it away free pile.

    -Abone.

    bchctybob, ffr1222k, Stogy and 6 others like this.
  7. panhead_pete
    Joined: Feb 22, 2006
    Posts: 3,680

    panhead_pete
    ALLIANCE MEMBER

    Sweet. Same thing I need to do with my coupe. Will be watching along to see how you do yours.

    Stogy likes this.
  8. wheeldog57
    Joined: Dec 6, 2013
    Posts: 3,762

    wheeldog57
    ALLIANCE MEMBER

    Been following along intently. My project is very similar to yours, thank you for the insight and inspiration

  9. great work!

    Stogy likes this.
  10. Nice work on fixing all of the poor quality old repairs. Looking forward to watching the chassis improvements and also the drivetrain choice. For obvious reason I predict a Pontiac, or second bet on an older OHV V8 like Olds or Cadillac.

    Stogy and Tow Truck Tom like this.
  11. Happydaze
    Joined: Aug 21, 2009
    Posts: 2,277

    Happydaze
    ALLIANCE MEMBER

    You're making it look easy!

    Chris

    Stogy and -Brent- like this.
  12. -Brent-
    Joined: Nov 20, 2006
    Posts: 7,714

    -Brent-
    Member

    [​IMG]

    Wow! What a save! You replaced all that metal and the body probably lost weight... hahaha.

    Nice work, as always!

    Stogy, Just Gary and 427 sleeper like this.
  13. Are my eyes deceiving me or does that car have a '33 door on one side?

    Stogy, Johnboy34 and lurker mick like this.
  14. Stock Racer
    Joined: Feb 28, 2010
    Posts: 1,303

    Stock Racer
    Member

    Nice work!

    Stogy likes this.
  15. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,703

    flamedabone
    ALLIANCE MEMBER

    Good eye on the door deal. Yes, one door is '33, but it won't be when it is done. I have always liked the smokers window web in the door top.

    -Abone.

    Stogy, loudbang and catdad49 like this.
  16. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,703

    flamedabone
    ALLIANCE MEMBER

    I have been hoarding these straight spokes for a while just waiting for this little car to come along.


    But, they weren't gonna go on this ugly axle.


    Better do the 'ol FlamedAbone Angry Inch Crossmember Modification (tm)


    Yea, I beam! Way better. By the way, this is the Tiawan forged axle that you might see from various vendors on the internet. This is the second one I have had and they are a very good quality forging and a very good axle overall and, if you look around, you can grab them for under 300 bucks. Not as good as Henry, but not horrible either.


    This thing had an 8 inch on leaf springs when I got it and the rear end is way in the wrong spot, but fear not, it is not permanent.


    Yea, a roller. Finally done with the structural metal work, so now it is all fun stuff until it gets to bodywork season.


    See you next time, -Abone.

  17. looking good!

    Stogy and Tow Truck Tom like this.
  18. That is an inspiring transformation. Do you have a pattern for the subrails, or do you just do one side till it looks right, and then mirror it on the other side?

    Stogy, Tow Truck Tom and 427 sleeper like this.
  19. You're doing a bang up job there man

    Stogy, Tow Truck Tom and 427 sleeper like this.
  20. wheeldog57
    Joined: Dec 6, 2013
    Posts: 3,762

    wheeldog57
    ALLIANCE MEMBER

  21. motoandy
    Joined: Sep 19, 2007
    Posts: 3,360

    motoandy
    ALLIANCE MEMBER
    from MB, SC

    How much Chop are we going with?

    Stogy and jim snow like this.
  22. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,703

    flamedabone
    ALLIANCE MEMBER

    Don't know. It needs a bunch, probably 4, maybe 4 and a half just in case.

    -Abone.

    ffr1222k, Stogy and Tim like this.
  23. Happydaze
    Joined: Aug 21, 2009
    Posts: 2,277

    Happydaze
    ALLIANCE MEMBER

    Looking good. What's the size of the rear tire?

    Chris

    Stogy likes this.
  24. Straight Axle Guy
    Joined: Oct 21, 2018
    Posts: 88

    Straight Axle Guy
    Member

    Lookin real good, keep up the great workmanship. 4 1/2 chop is sweet with the A posts on a slight angle!

    Stogy likes this.
  25. alchemy
    Joined: Sep 27, 2002
    Posts: 22,279

    alchemy
    Member

    Are you doing a straight down chop again, or trying a slanted post on this one?

    Stogy likes this.
  26. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,703

    flamedabone
    ALLIANCE MEMBER

    Gotta figure out where the radiator goes, 'cause next up, is stuffin an engine in this pile.


    Some of you have seen this lump on the stand and have speculated on what it could be....

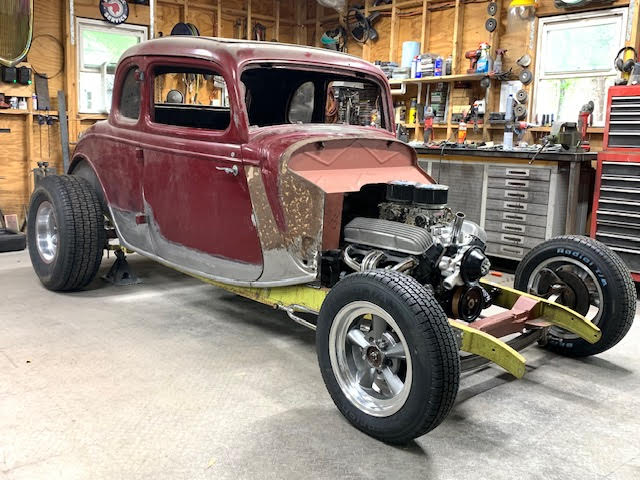

    Might as well pull the Band-Aid all in one shot. Yep, its a godamm small block Chevvie. The last one of these with the Cad engine with the chrome carburetors kind of got out of hand, so this heap is going to be a bit more budged friendly.


    And a T5 transmission. "dun been rebuilt some years back".

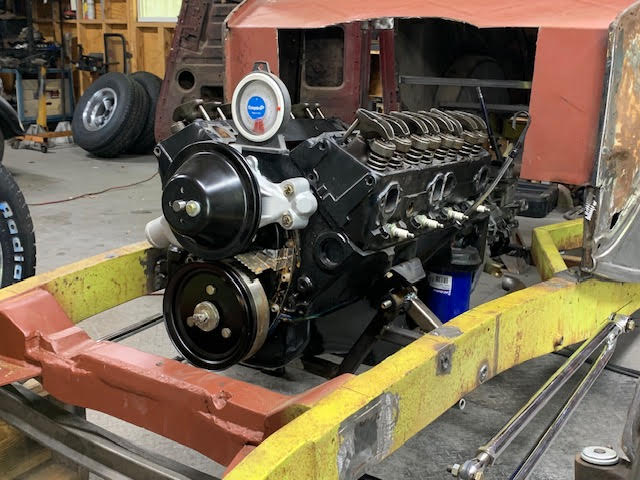

    I forgot how tiny these things are, pretty much fell right in there.

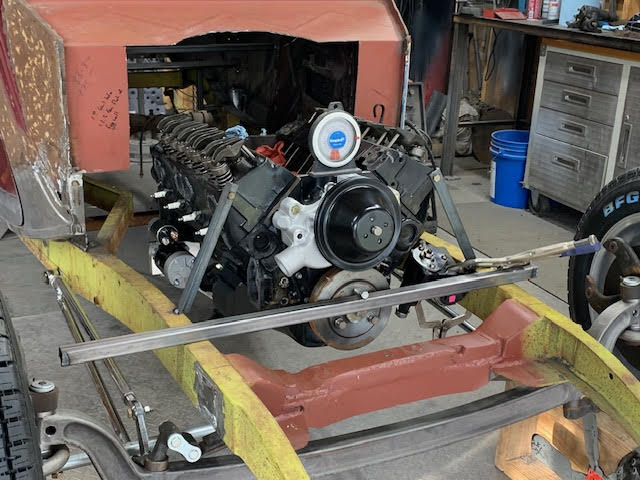

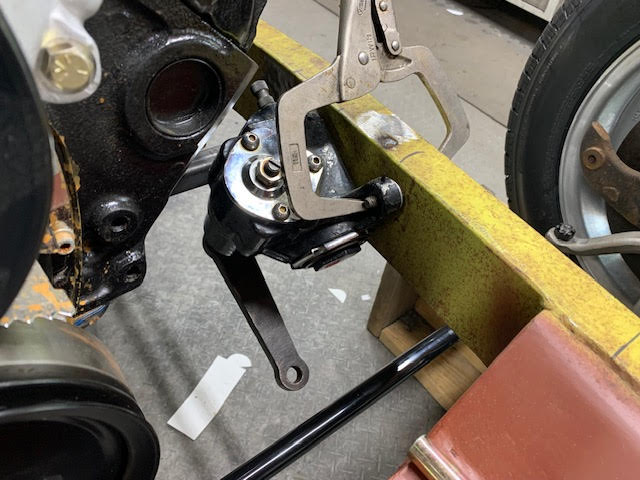

    Gotta get the steering box in the right spot.


    And there it is, she fits right in there.


    Stock rubber mounts on caveman bracketry.


    And now, my journey to the Dark Side is complete...


    The rear end is still sitting way too high, but I am not getting rid of the 8 inch until all my quick change stuff shows up.



    Not sure what is next, maybe ladder bars, maybe pedals? Tune in next time to find out.

    See ya, -Abone.

    bchctybob, Apenaut, ffr1222k and 33 others like this.
  27. Stu
    Joined: Mar 5, 2001
    Posts: 1,109

    Stu
    Member

    What type of throwout bearing?mech or hyd?

  28. Fantastic build, very inspiring to me as I have a lot of those same body repairs in my future. Great thread,

    Stogy, 427 sleeper and panhead_pete like this.
  29. flamedabone
    Joined: Aug 3, 2001
    Posts: 5,703

    flamedabone
    ALLIANCE MEMBER

    Just a quick update, not much exciting except for something cool at the end.....

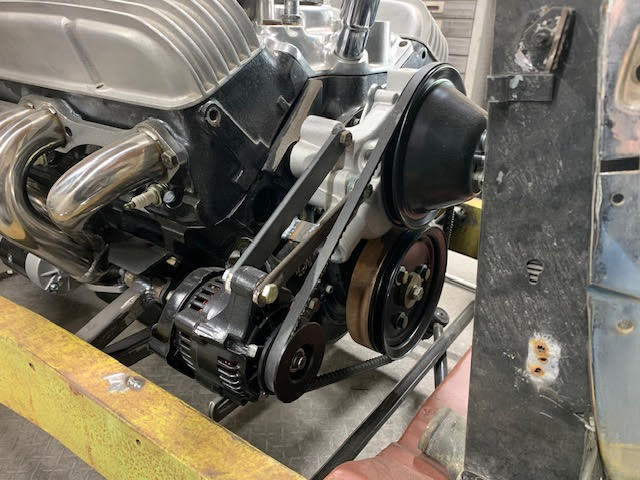

    This? Not exciting. Just a US Military strength alternator mount to hide this sucker under the inner fender.


    Super nice Boling Brothers pedal box.


    Of course, I desecrated it right away, cut the master cyl ear off. Van Goghed that sucker.


    Not to fear, that sucker still fits right in there.


    Wilwood master and slave cylinder. Easy to mount, but I have no idea if it actually works yet. I'll let you know.

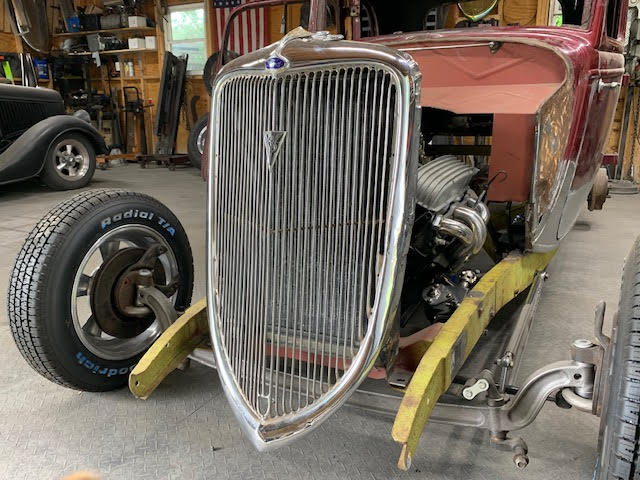

    And now, the cool part. Matt at Iron Trap turned loose of one of his '34 grills. This side is and 8 out of 10.


    And, this side is a 6.5 maybe 7 out of 10. Perfect for a decent driver. Not too nice, but not too shitty either. Thanks, Matt!!


    Next week is...not sure. Probably something.

    -Abone.

    bchctybob, Apenaut, ffr1222k and 34 others like this.
  30. panhead_pete
    Joined: Feb 22, 2006
    Posts: 3,680

    panhead_pete
    ALLIANCE MEMBER

    Did you have any issues with fuel pump interference, mounting the alternator there?
