The stack injection picture thread

I will take the one on the right !!!!!!!!!!



1-3/4" Hilborn.



2-1/16 Hilborn, just freshened up.



Marty, it's just a pile of parts sitting there! But I do have everything but pistons to put it together.



Enderle for my 327. 2 3/16 throttle plates.



Sometimes they are sideways!



Mid 70s, 350 with angle plug heads, methanol, special Reed roller cam. Hilborns are 1967 vintage, 2-1/16.

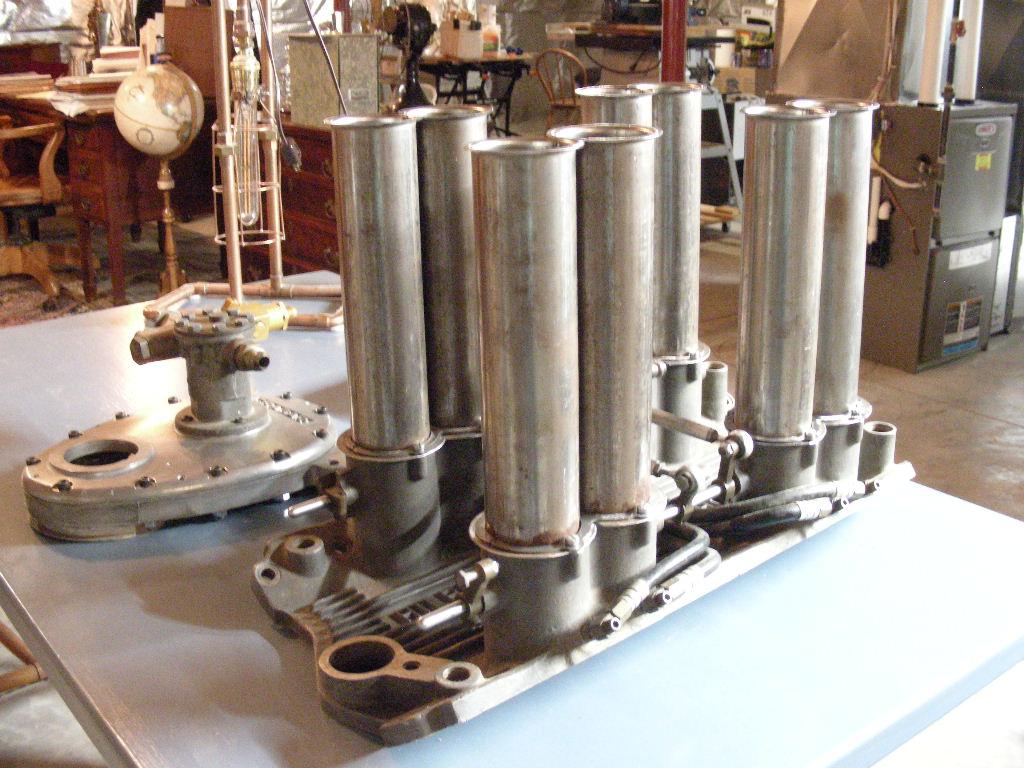

Here they are today with my hand made ram tubes.

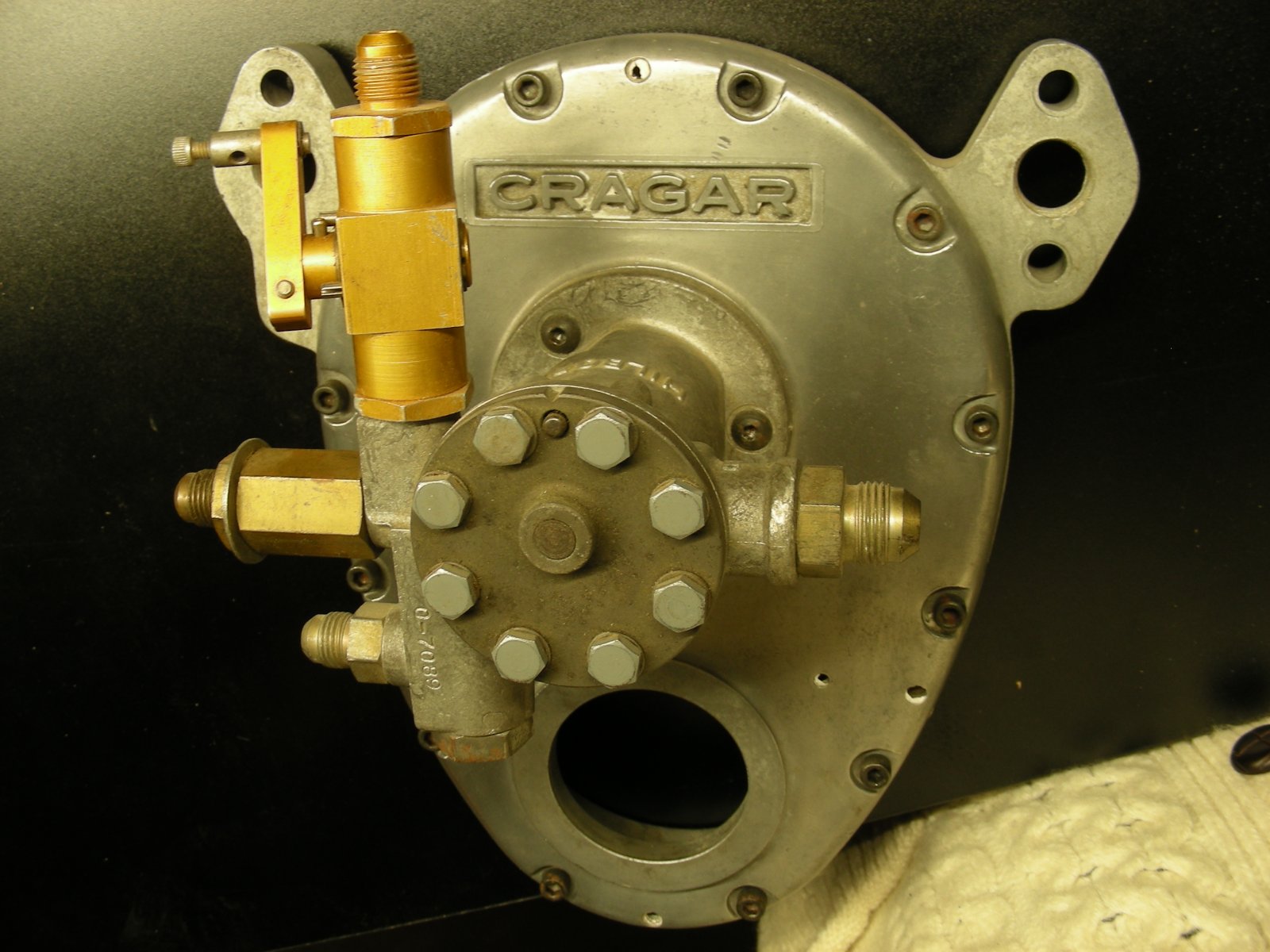

Cragar front drive front cover.

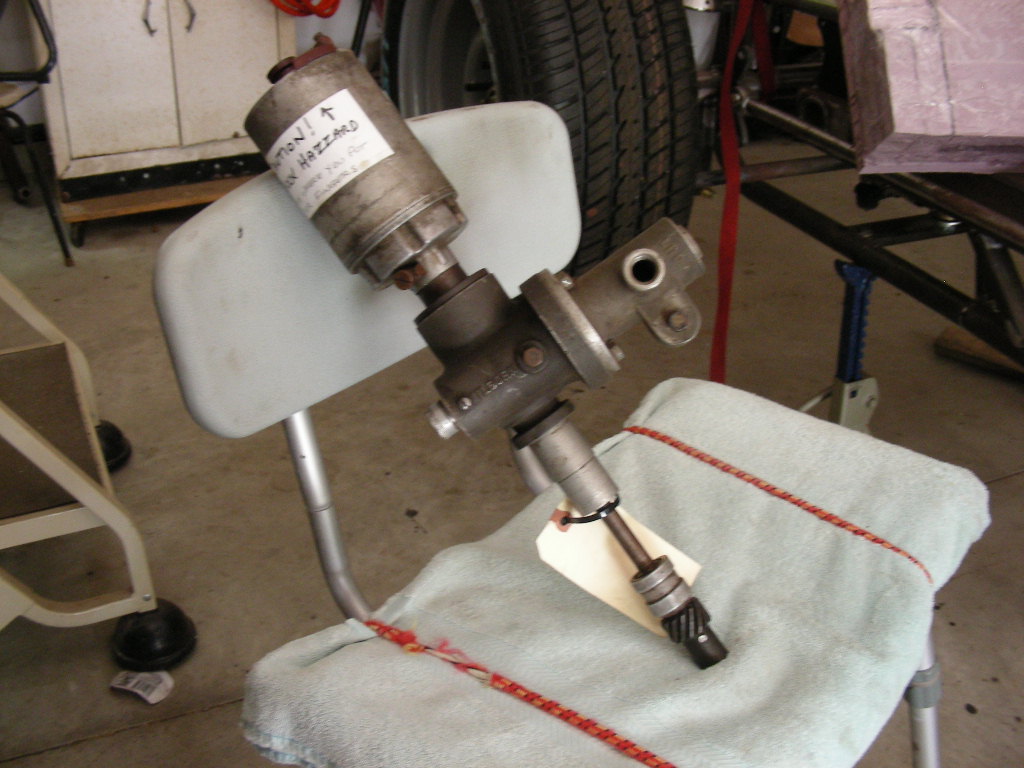

Older cam drive magneto, and fuel pump drive. It also has a mechanical tach drive.



Great job on those stacks, Dave !



hilborn on a pontiac

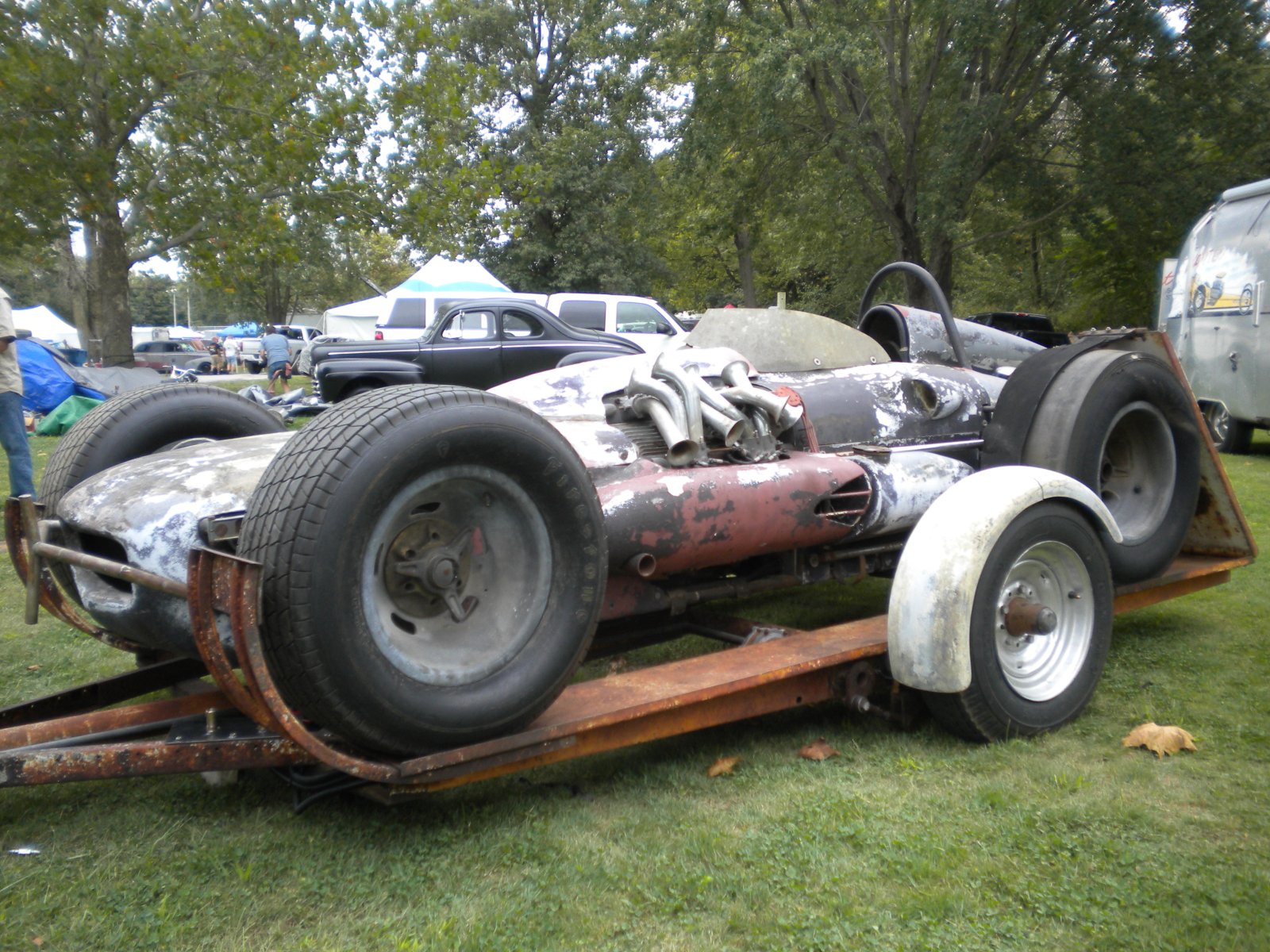

Was that an Indy roadster converted, or built purposely as a super?

Cool either way

Thanks Marty. Still have some fettling to do with the tubes. Been sidetracked lately. Things are moving at a snail's pace. We all know how that goes



Very cool, though a bit snaggletoothed!
I bet Marty would love to get his hands on that one.



I have a plan for it! Been collecting odds and ends for Sonny, son of the Whatever project...



The story is that dad raced this coupe in a full fender class then took the engine and built the rail. The coupe sat in a barn until I got it after he passed in the late eighties. Notice the Fenton covers on both motors



Dave
The "snaggletooth" comment was about the Pontiac engine.



Ahh! I see, said the blind man to his deaf wife... Mixed metamoles or some such thing!

I'm so confused...



Kinsler manifold with Holley EFI



I think I'm gonna like this thread.



C/AIR Effort with Gene Adams and myself. Nozzles placed in the stacks above the blades.



Boss 302



Early Olds purchased by Moon



BBC



Early Hemi



Good stuff Nick



This one seems to be suffering from identaty crissis. Whats the story with it? Is it just a display?



Nick, that is a lot of fine looking injection set ups!! Still wouldn't mine having an Olds set up.
