Projects The Warbaby sport coupe build

Thanks bud

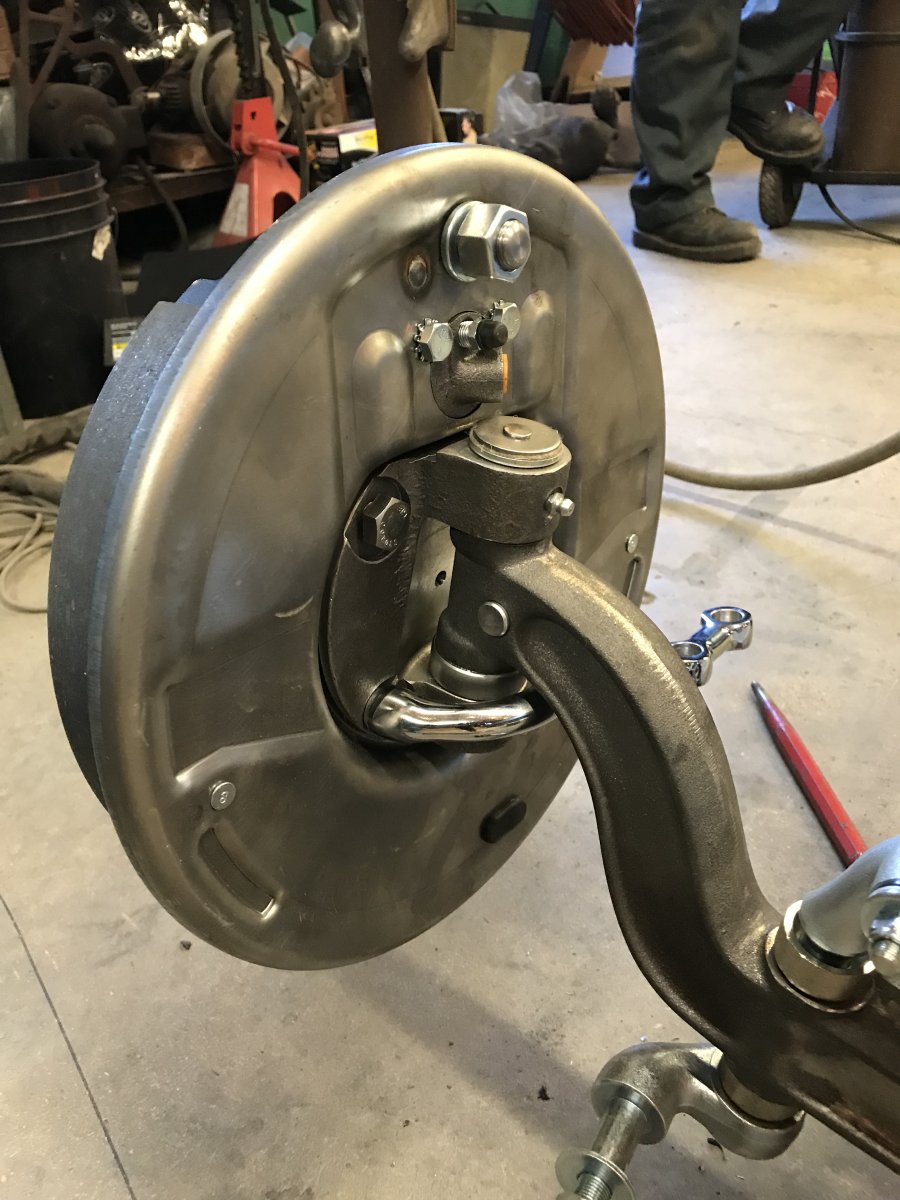

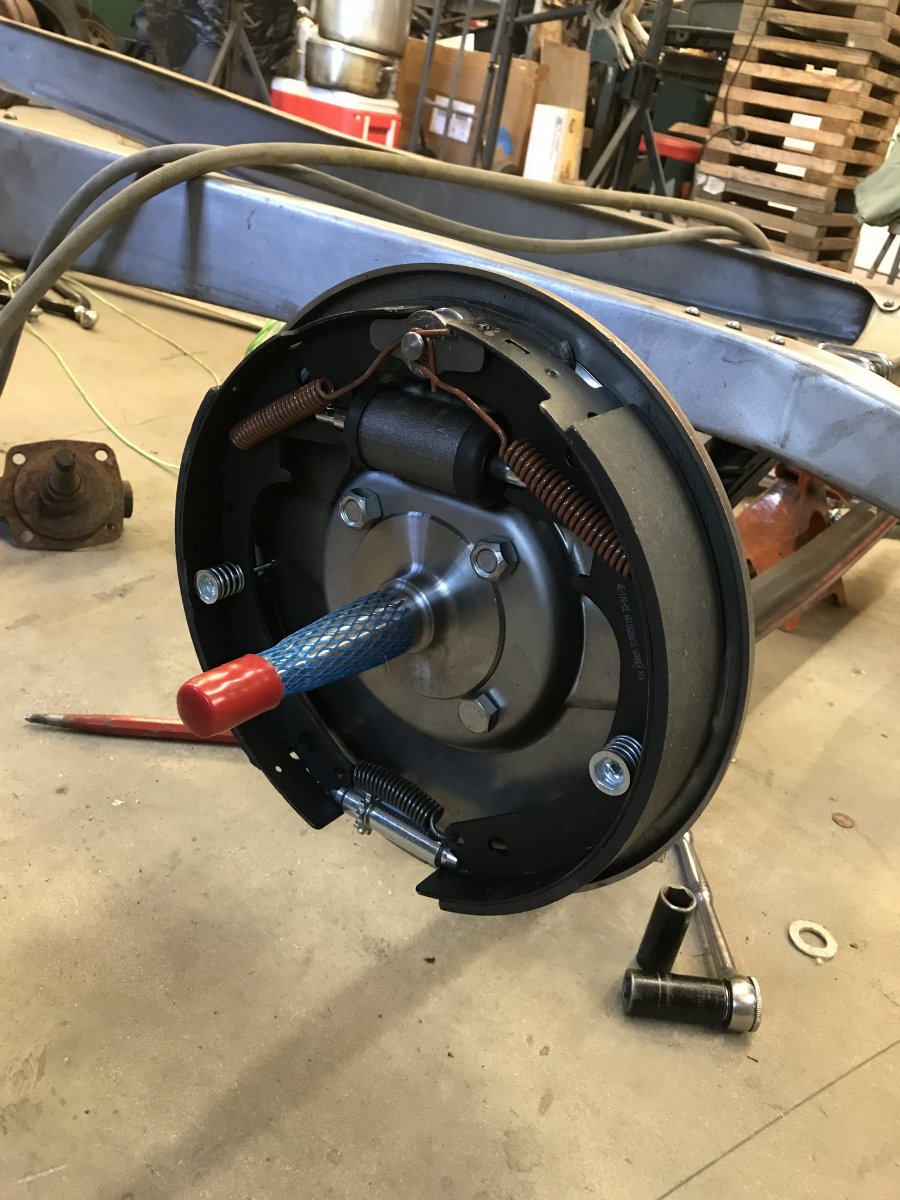

Beautiful and thoughtful work. In one of the first photos posted is one showing the front brakes. It looks like to me that the shoes are installed backwards. That is, the primary shoe with the shorter lining should be on the front. Maybe I am looking at the photo wrong, but just in case... JWL



Rad build!!



Yes, we didn’t notice until after I posted the pictures. Problem fixed. Thank you



Well done so far man, fab skills are unreal! keep up the great work!



The devil is in the (incredible) details. Unreal!

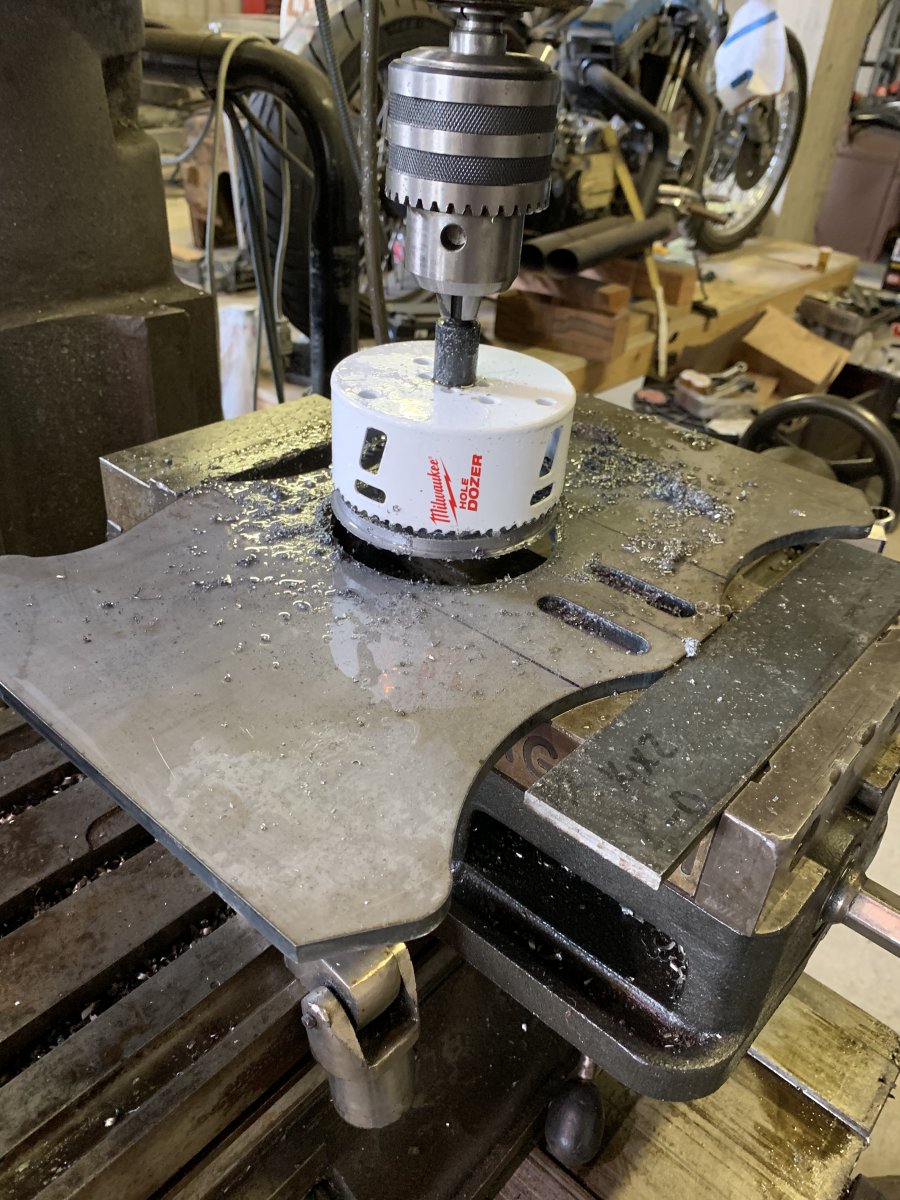

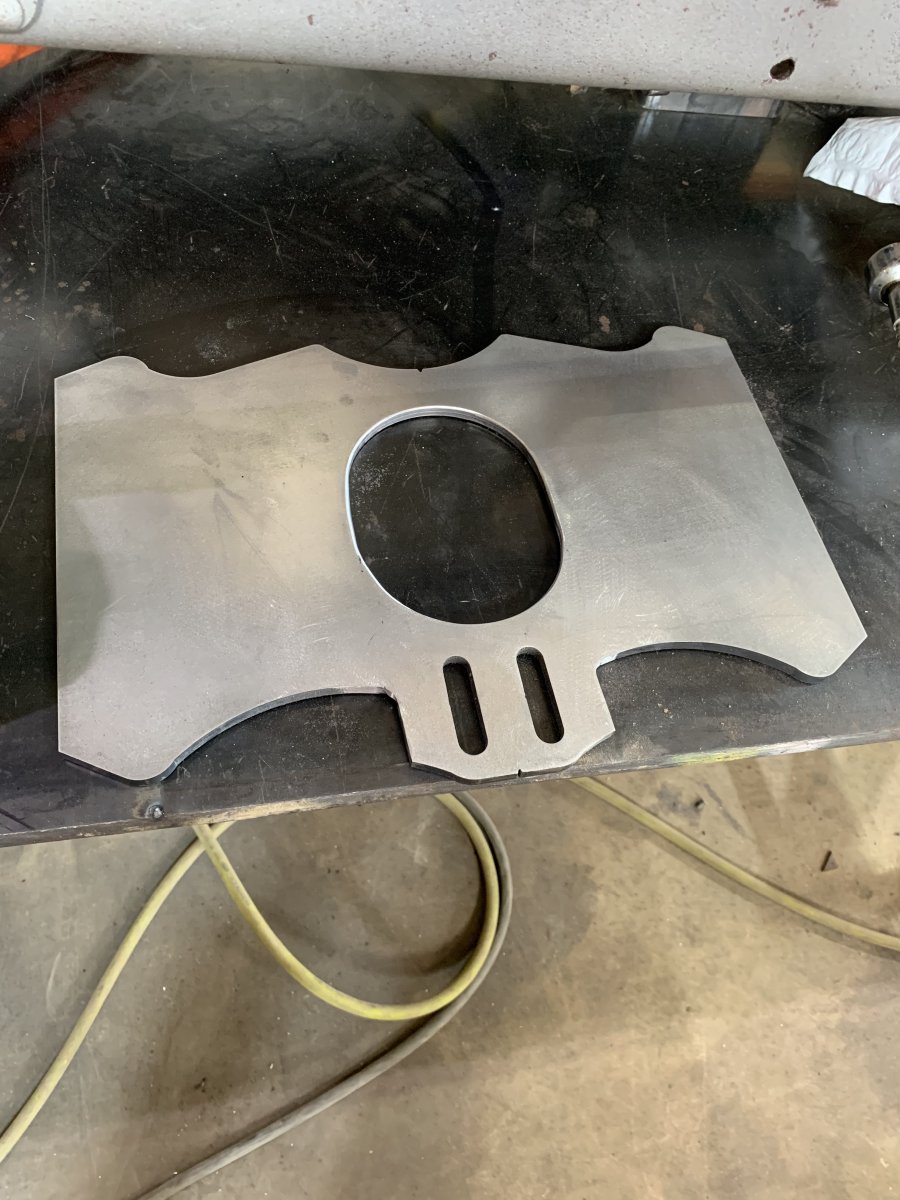

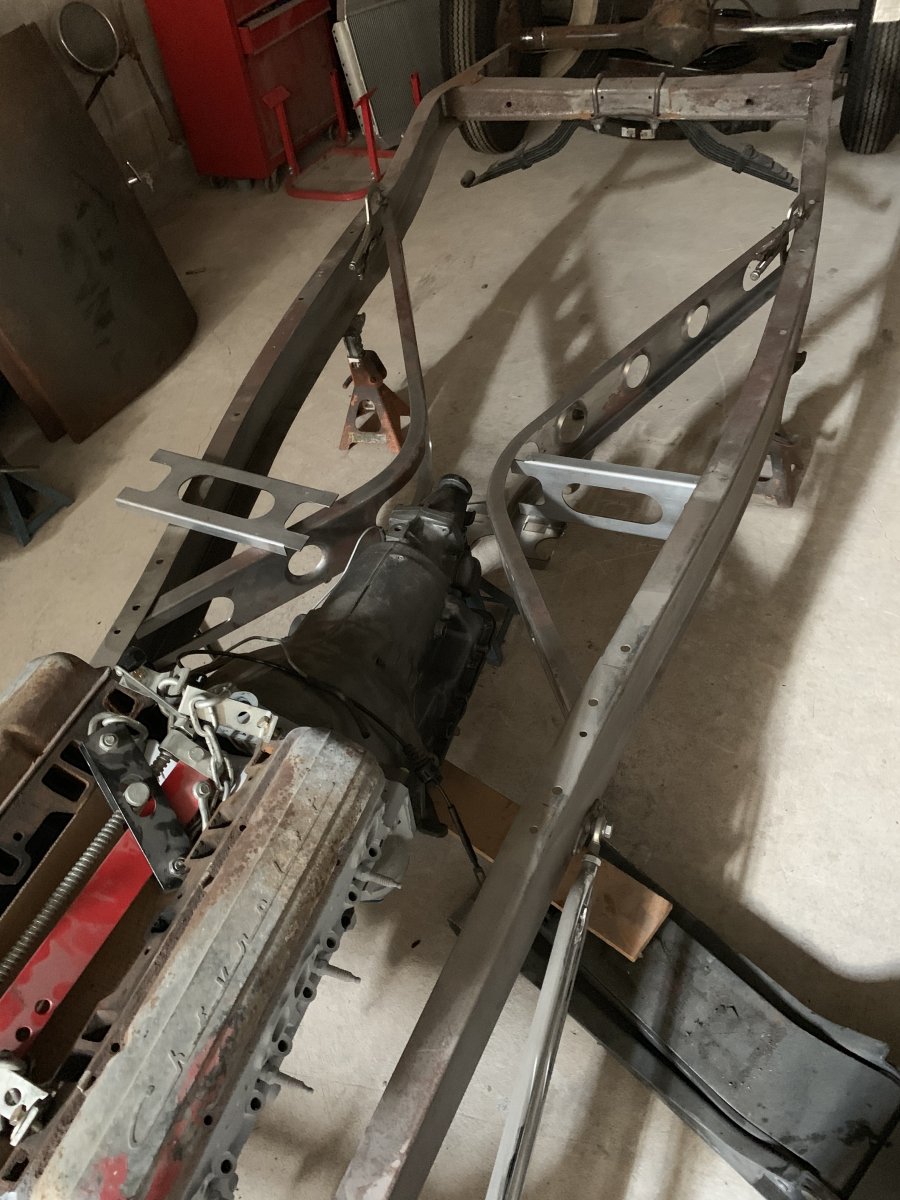

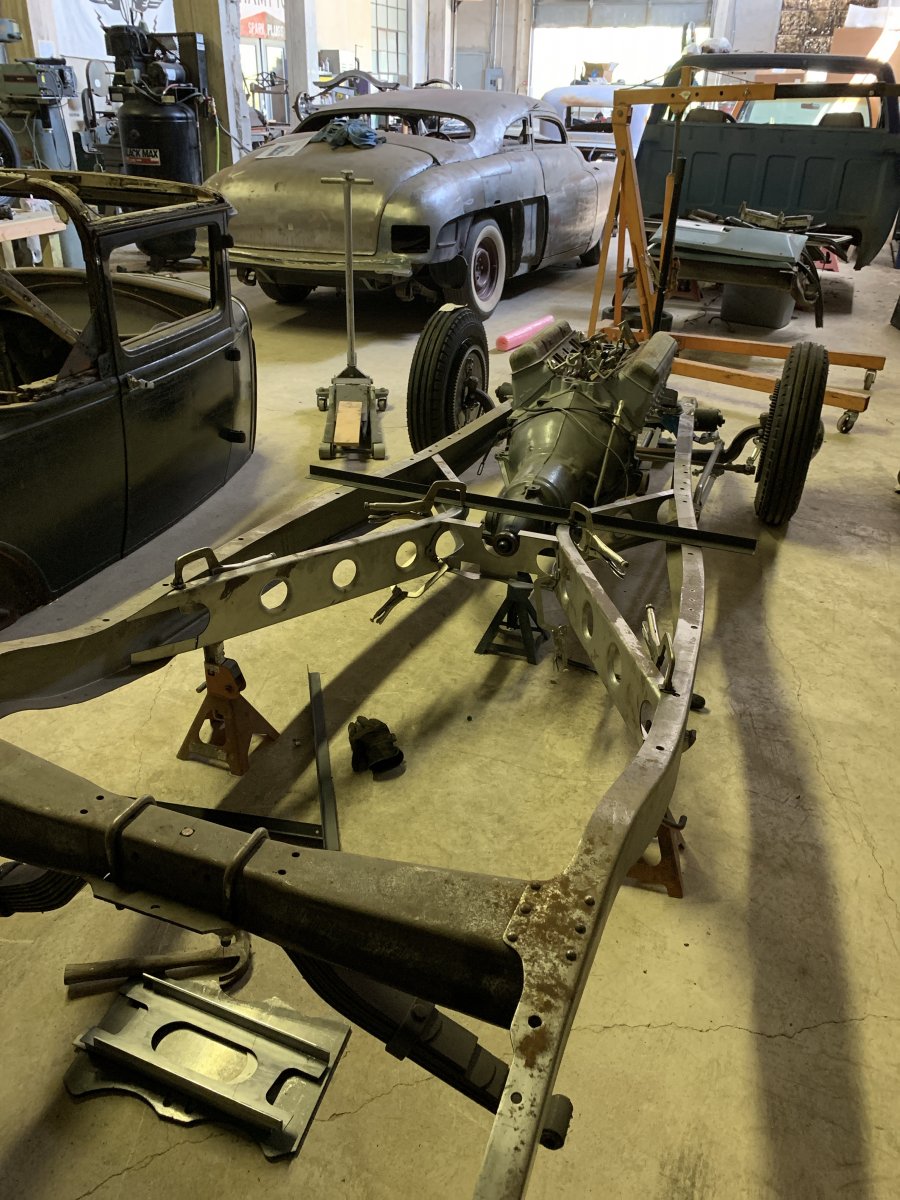

Build is going good had to do a few modifications to the transmission plate that goes to the new xmember. Cut out and moved up about 2 inches, Slowly but surely.

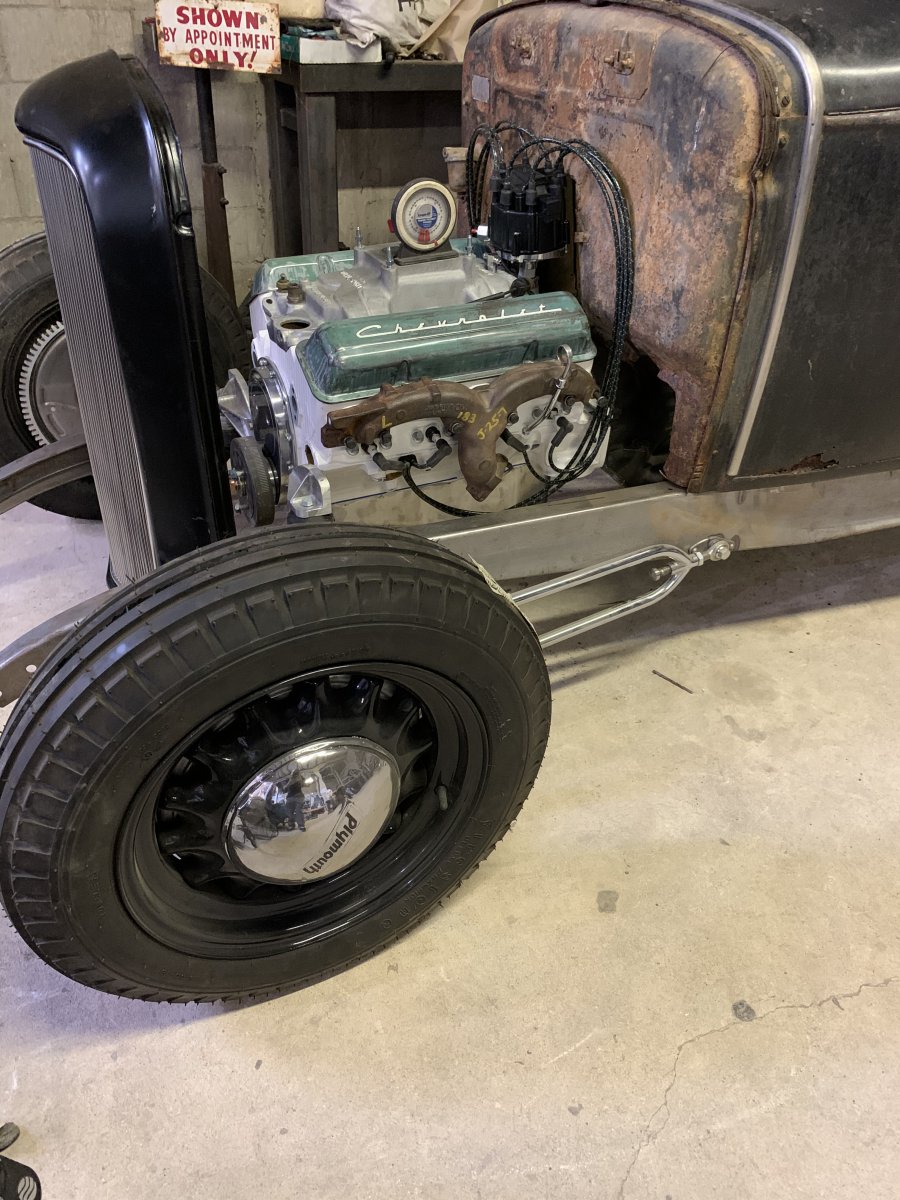

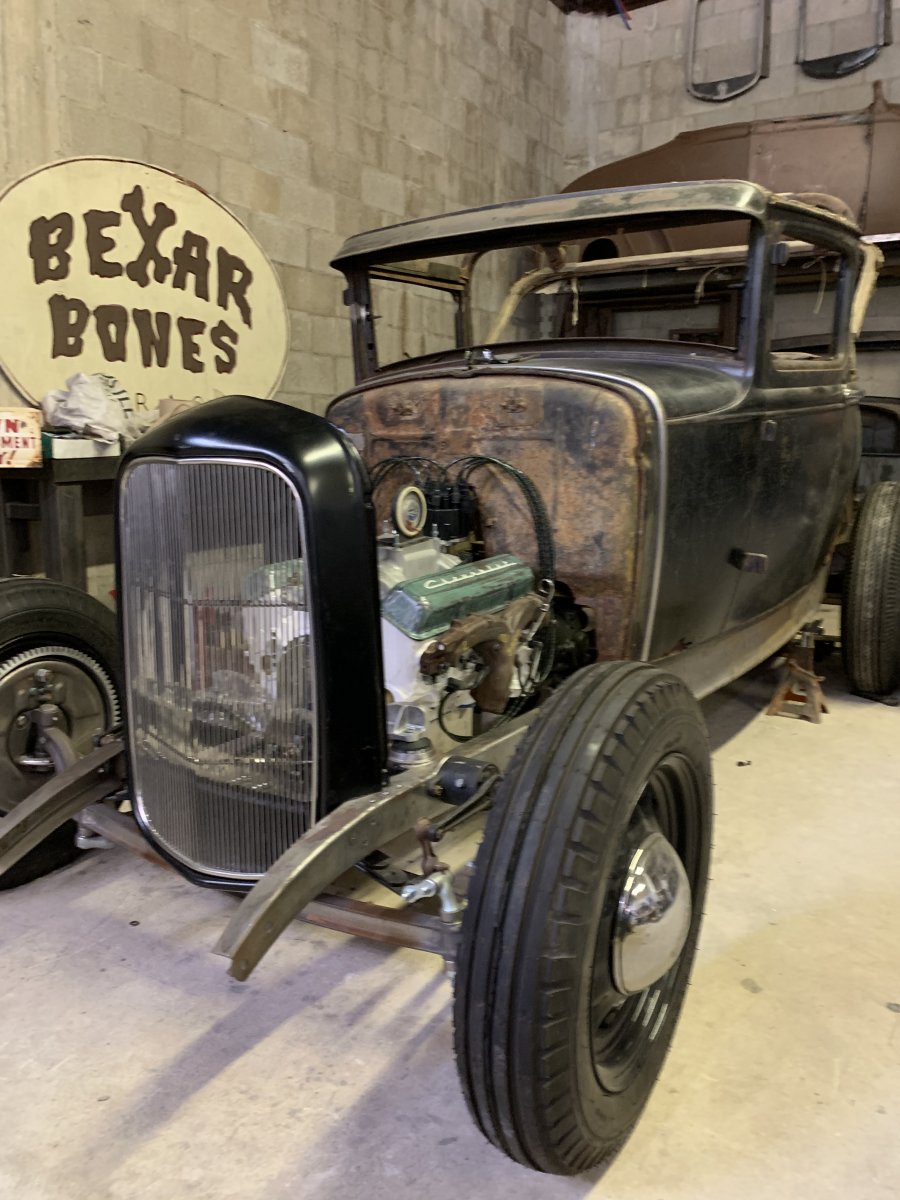

327 motor fit like a glove, Still have some more work to do to the rear end, but car is coming along nicely.

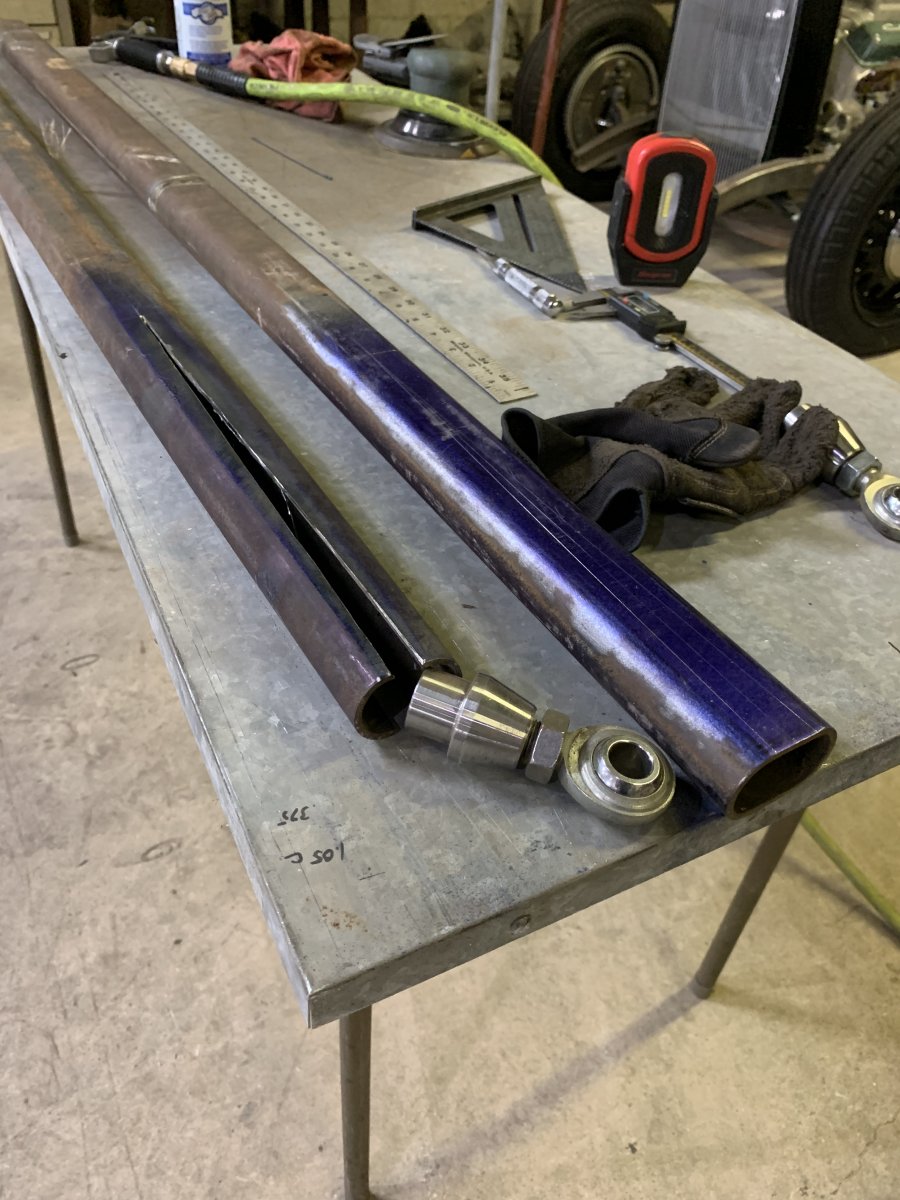

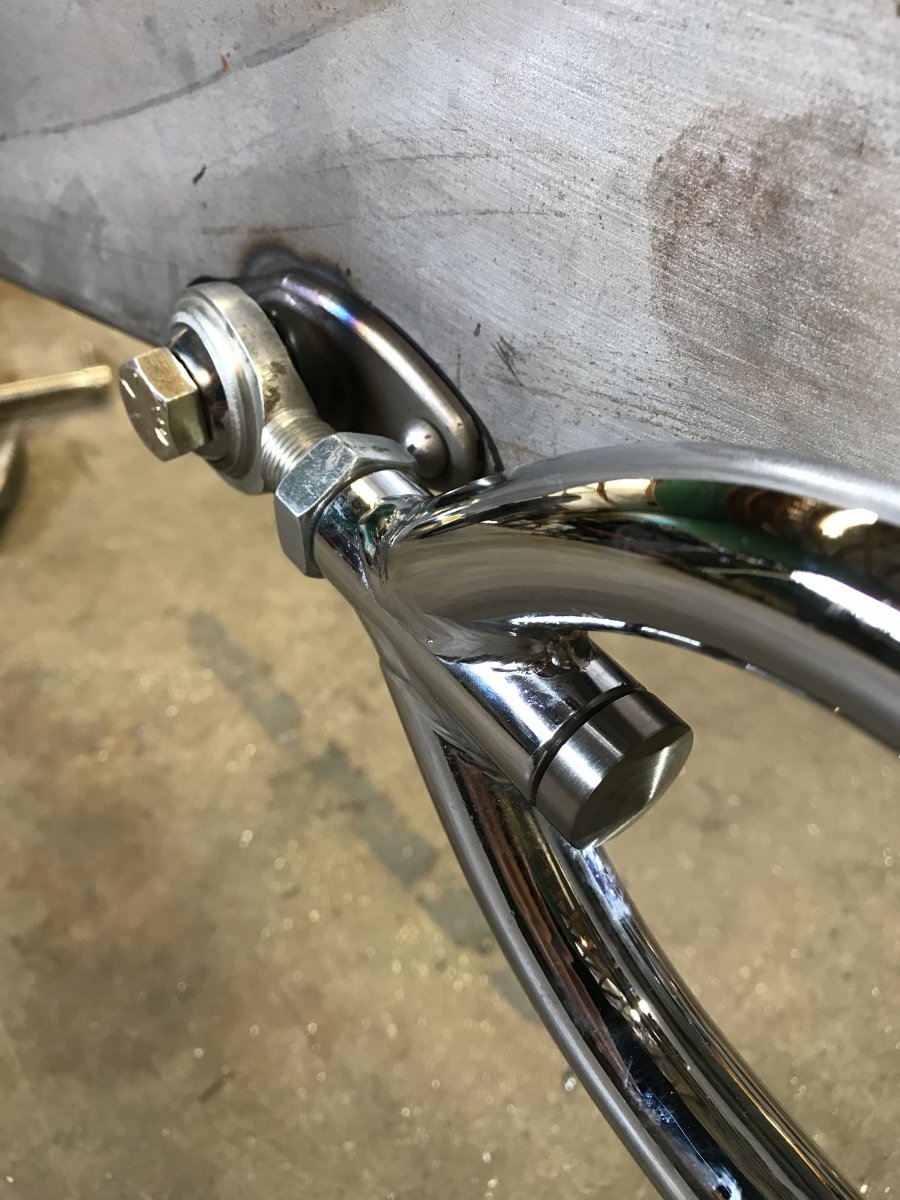

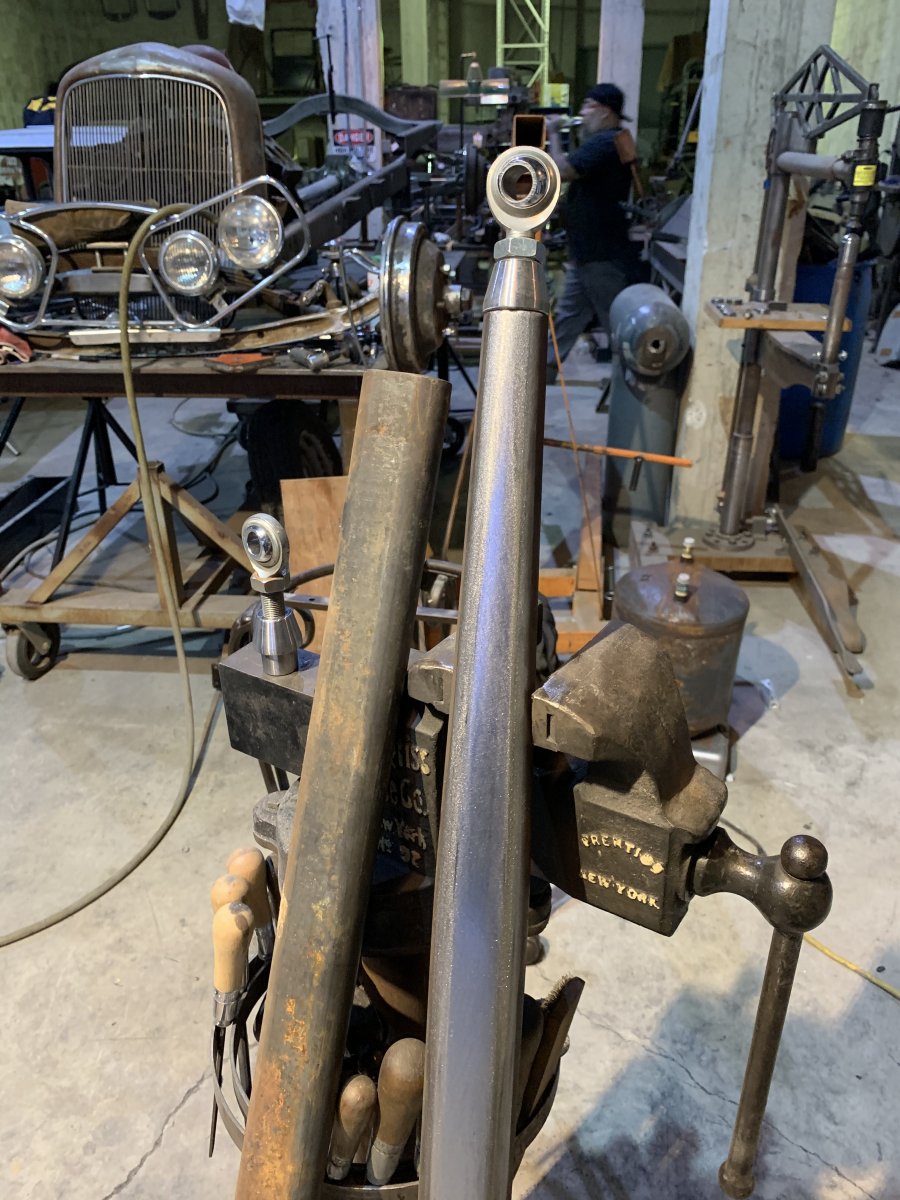

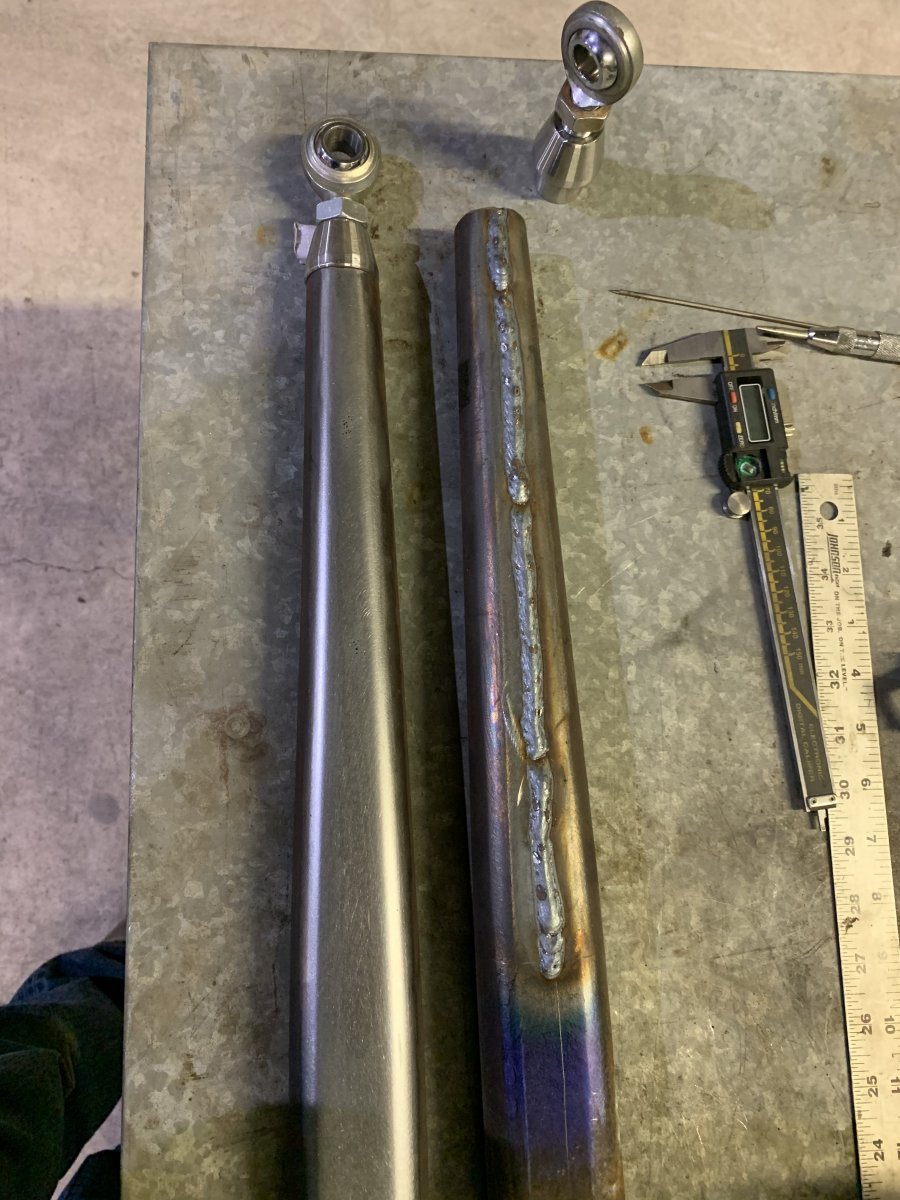

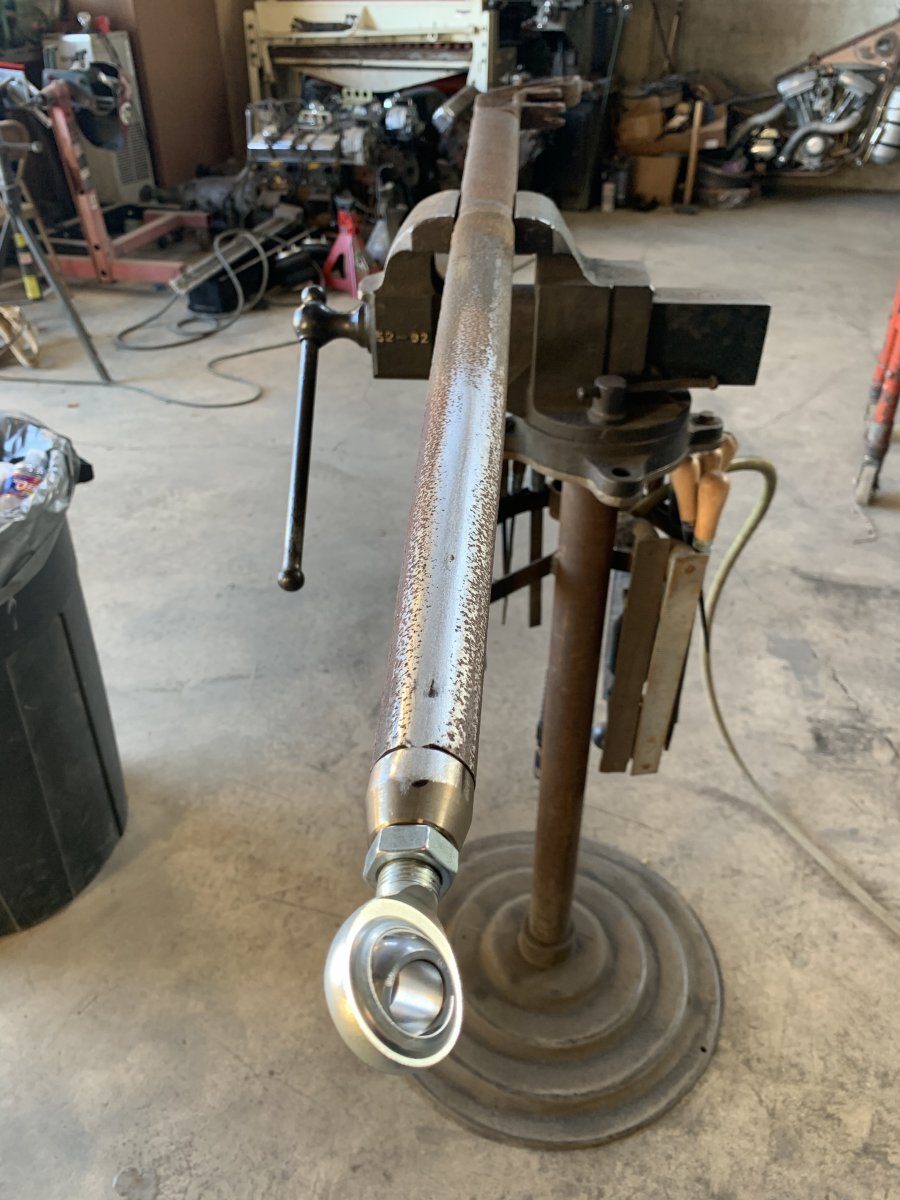

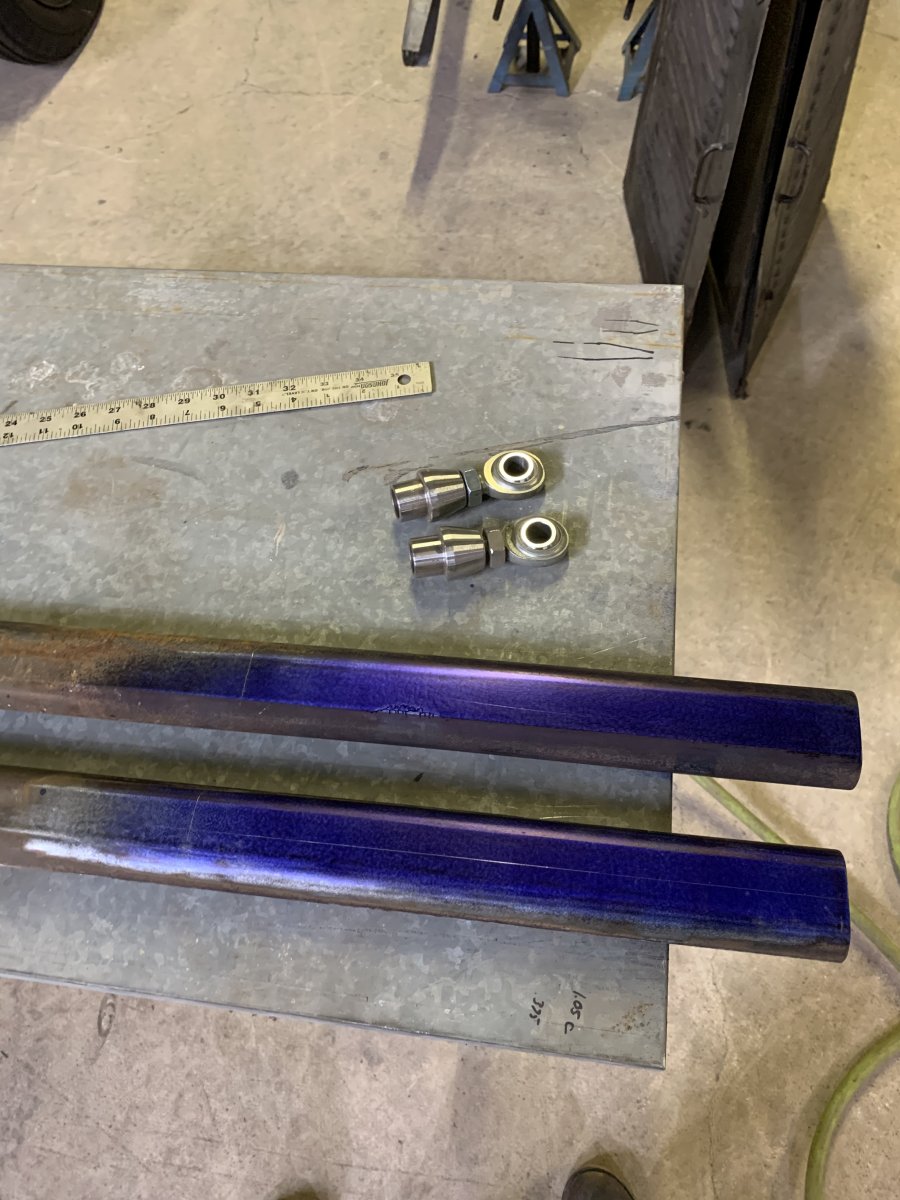

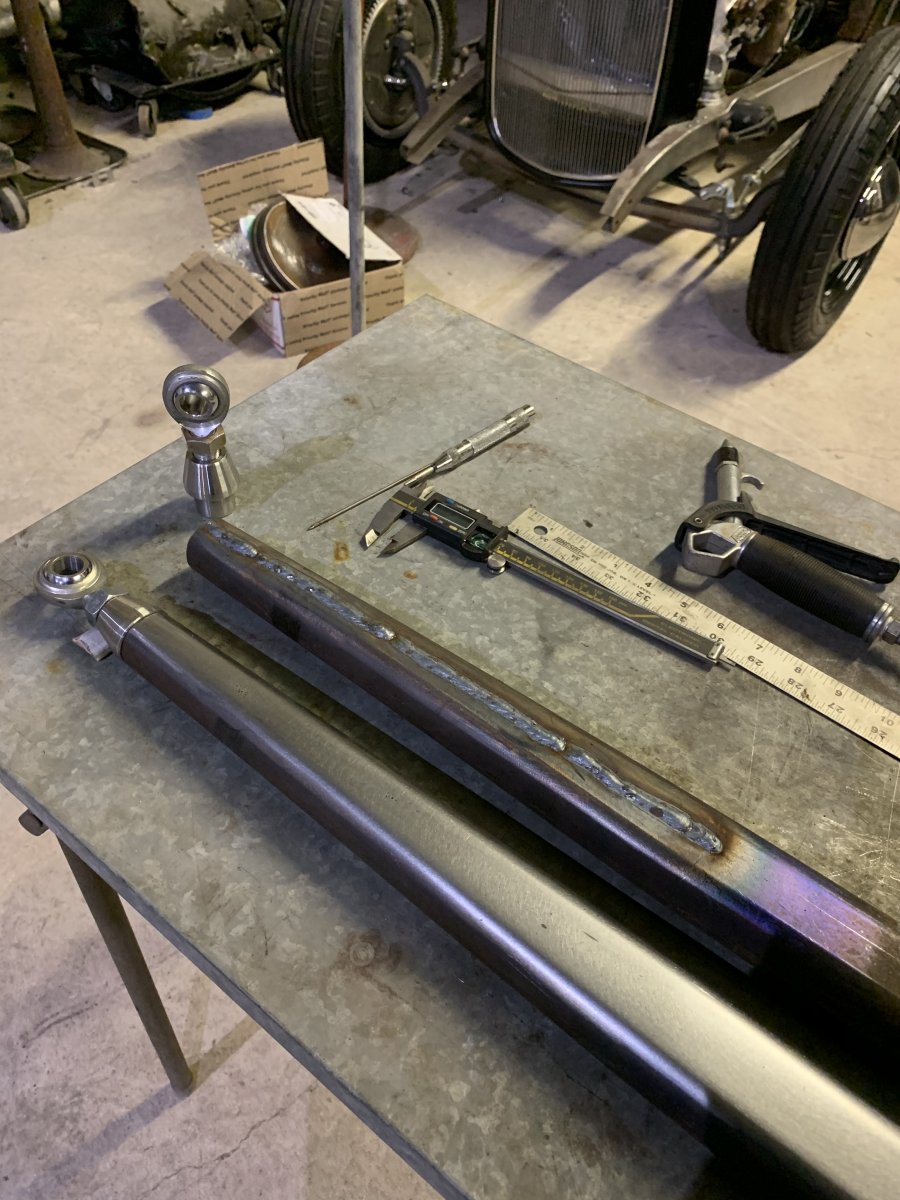

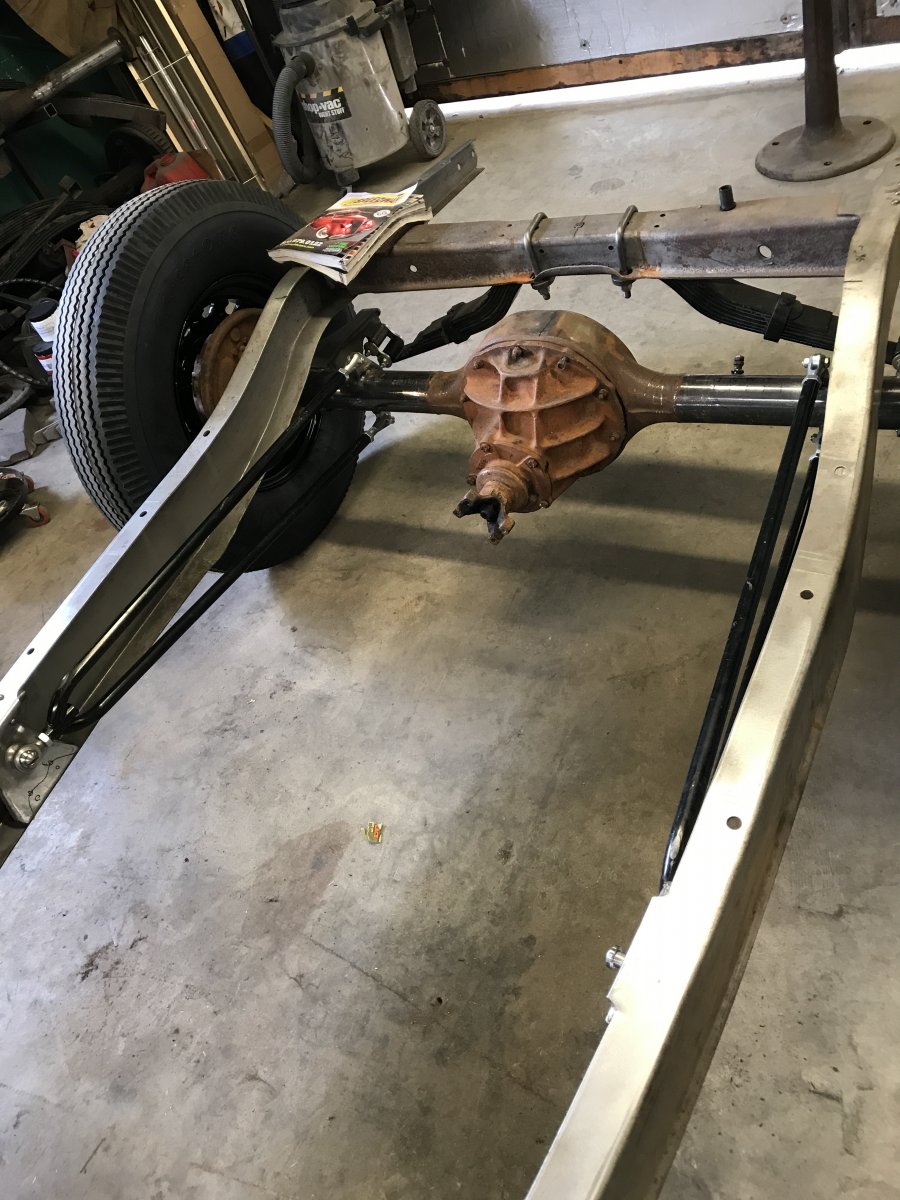

Some before and after of the rear radius rods that were cut to fit the heim joints.



More metallic Art...thank for sharing @Joe Rosales



Thanks



I spy with My Stogy Eye....Quads...Oh Yeah...is that another up and coming Period treat for us Joe...by the way your Camerawork is fantastic...

You may have answered that already and apologies, I may have missed it...​



Definitely more surprises Mr. Stogy



You're a Great Torch Carrier Joe...the Younger Generation...It's Inspiring and I appreciate it...

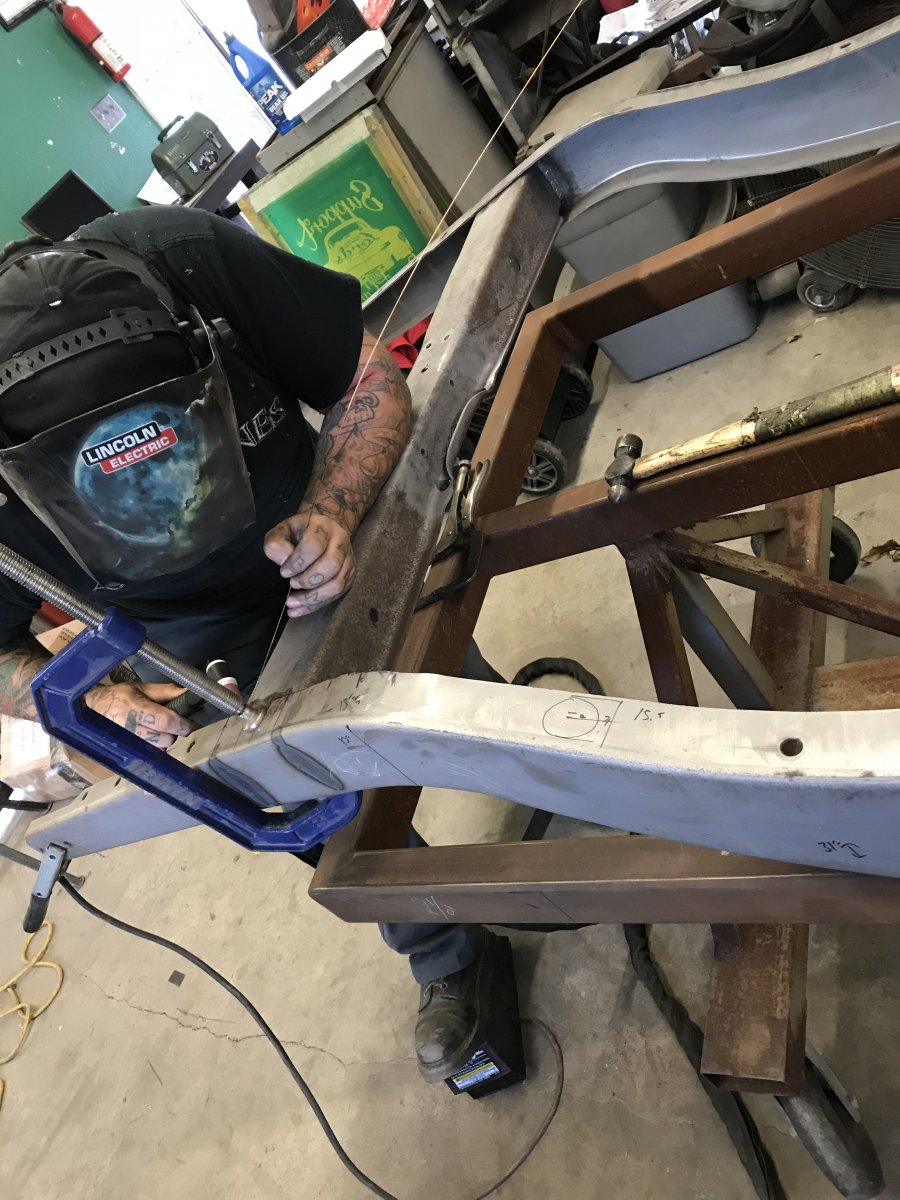

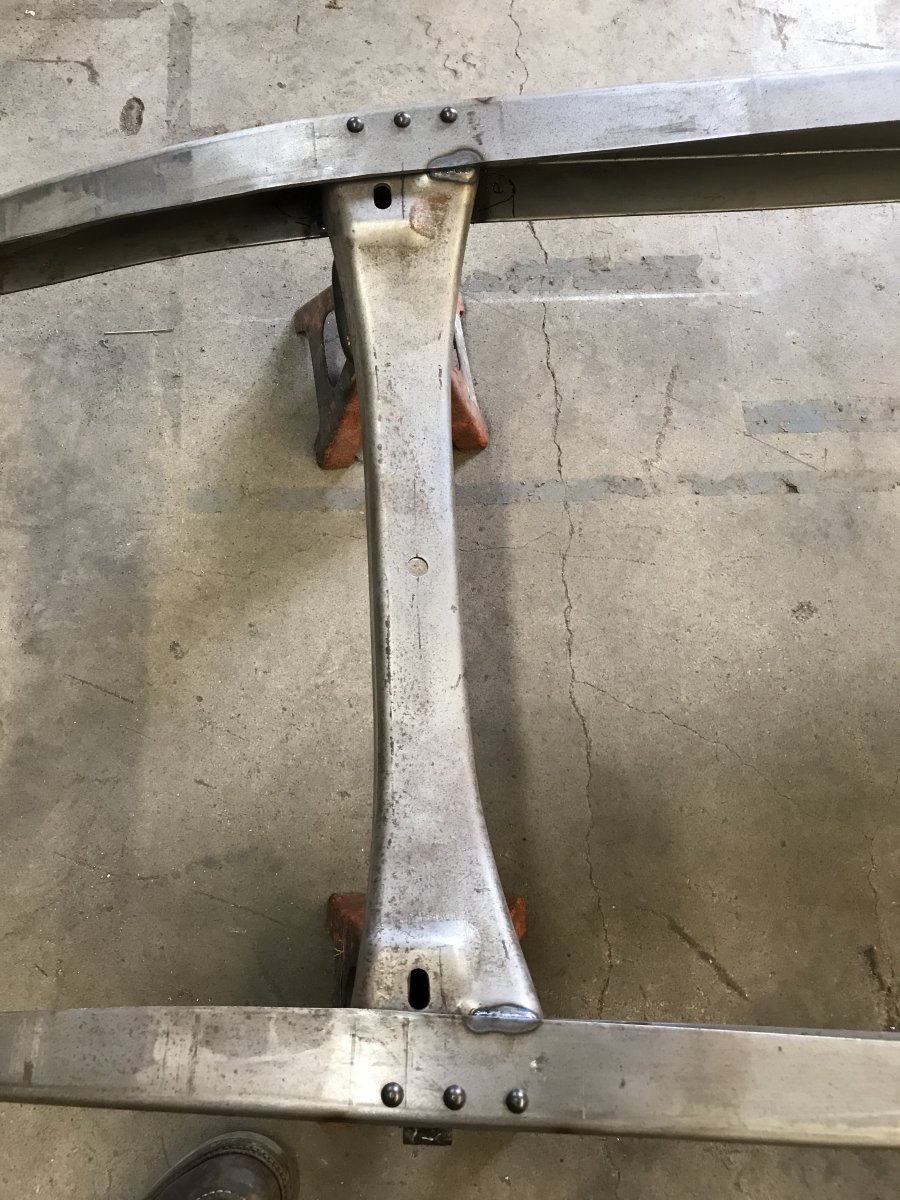

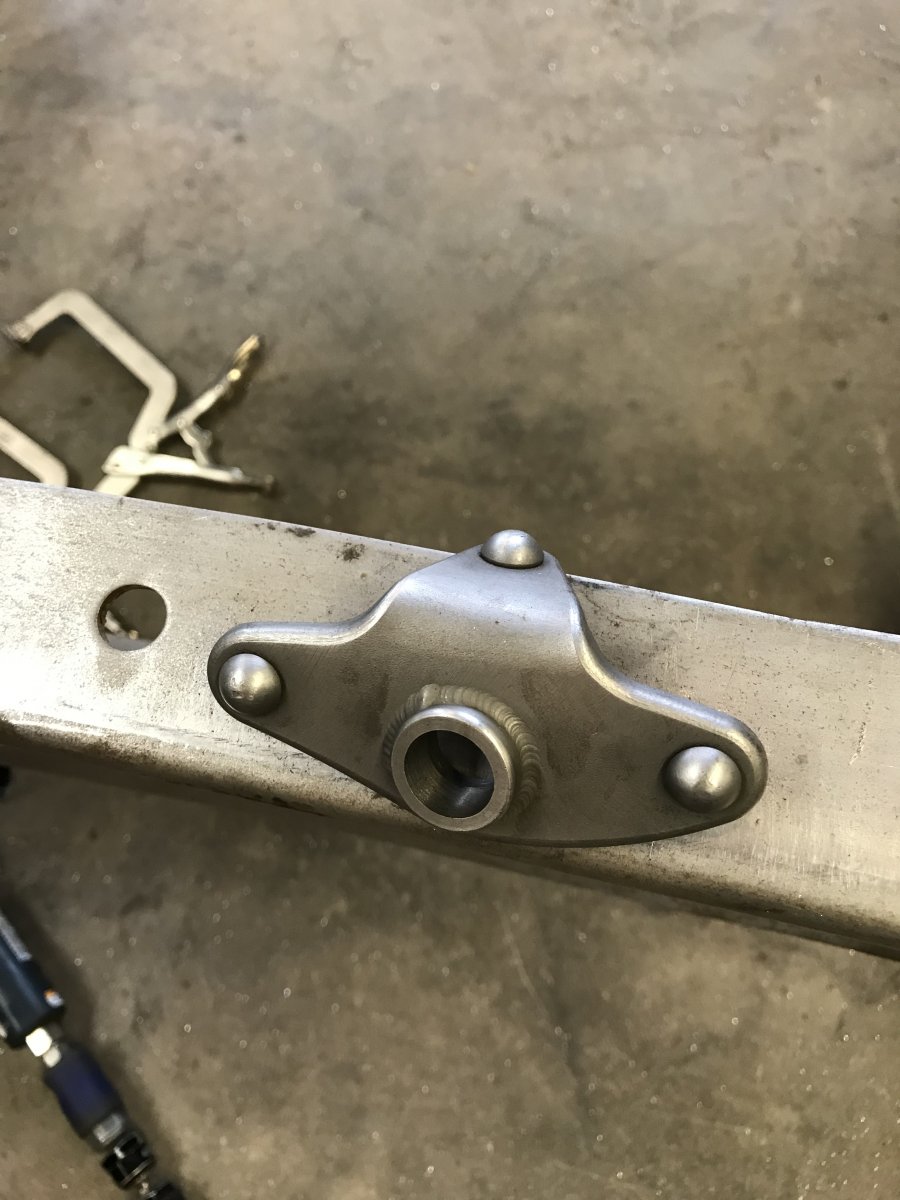

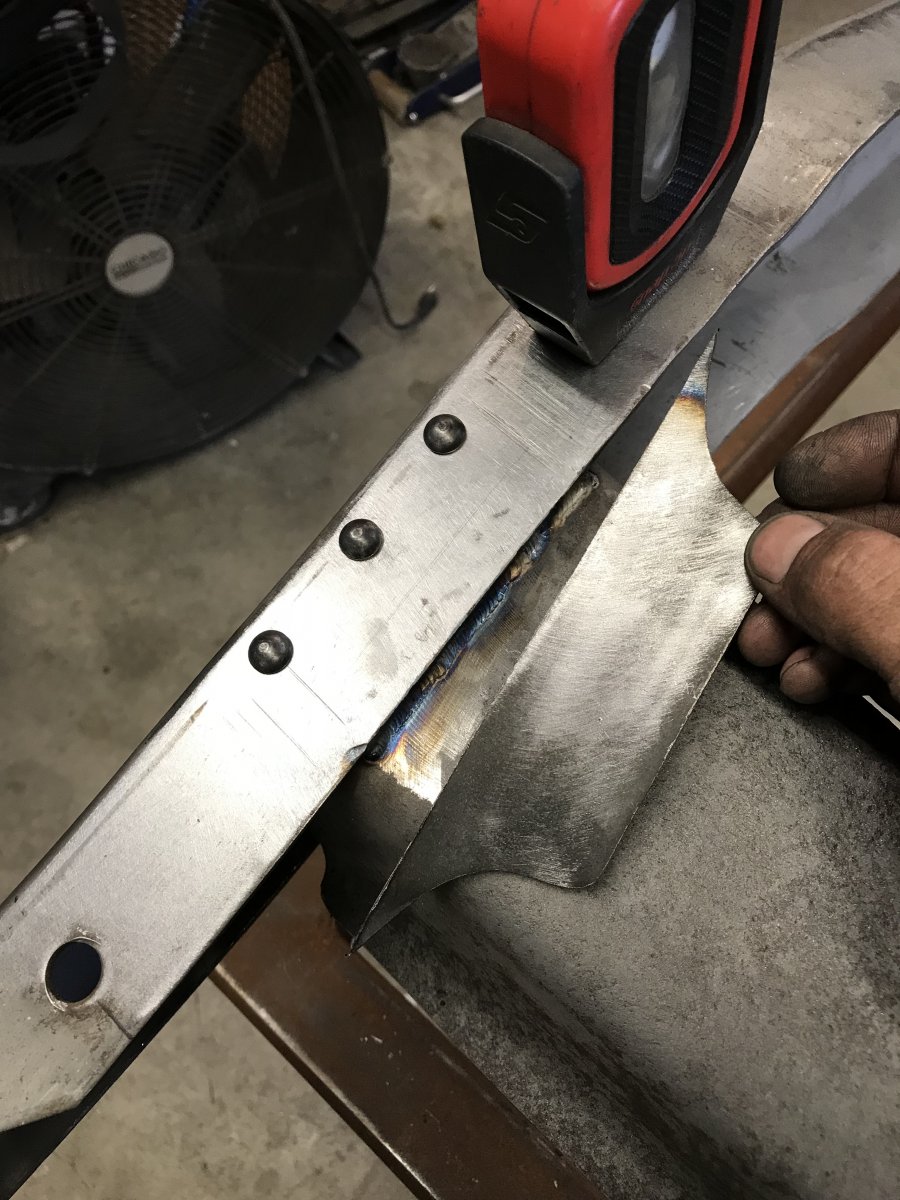

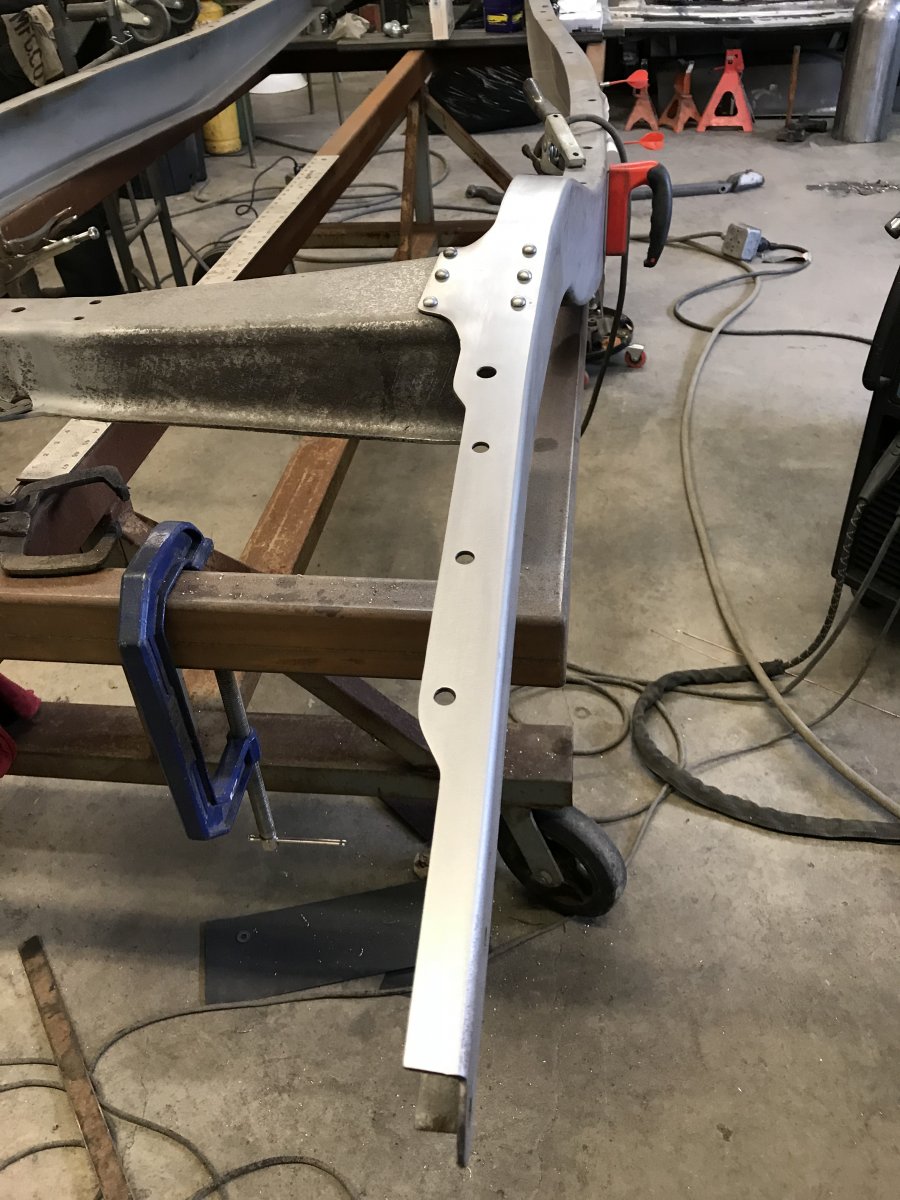

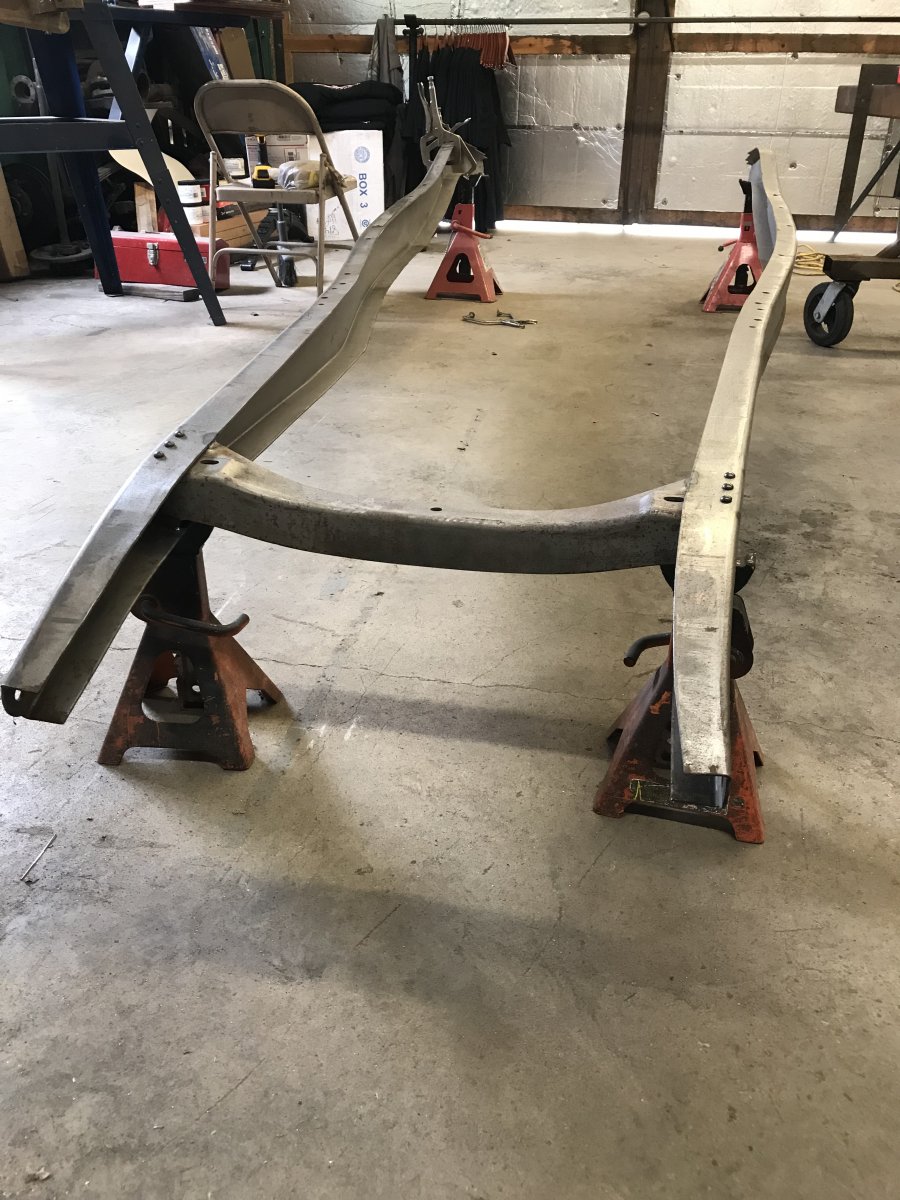

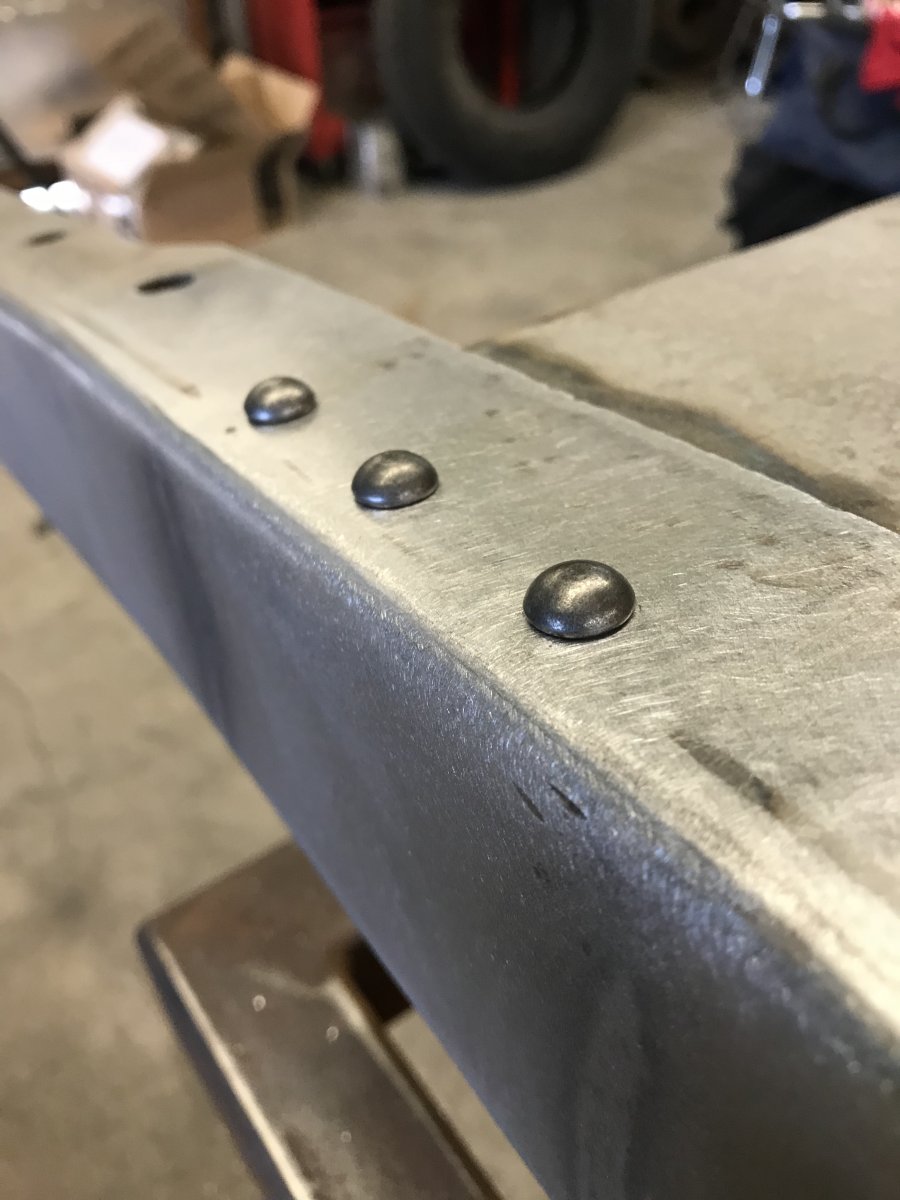

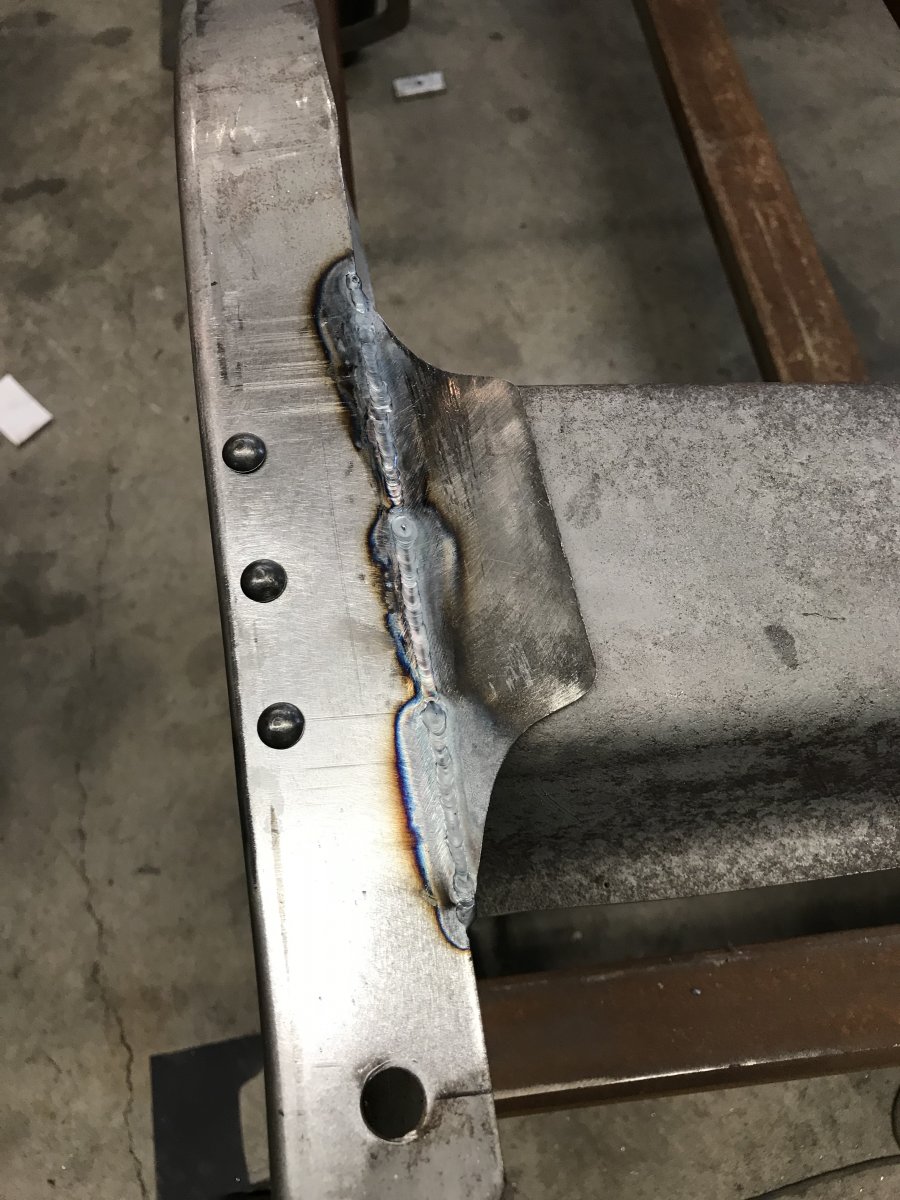

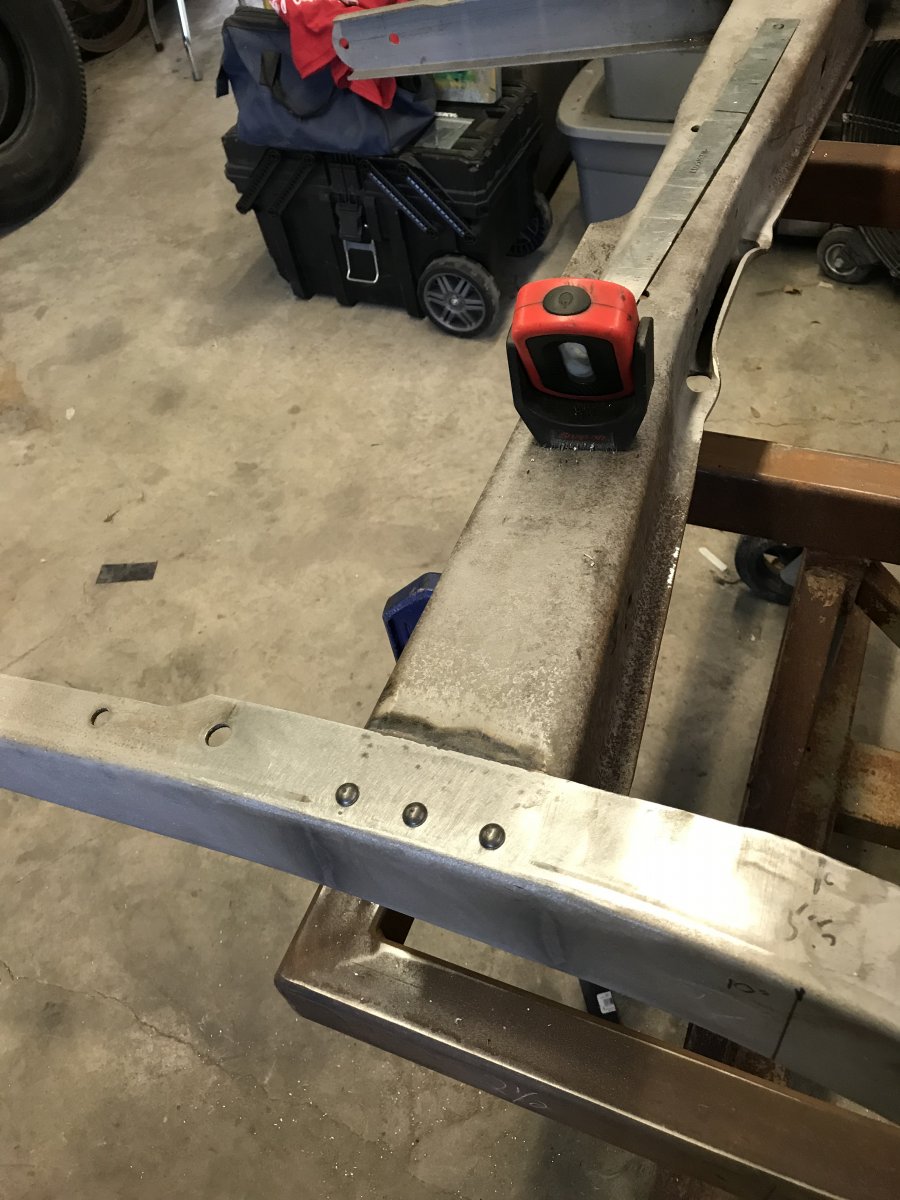

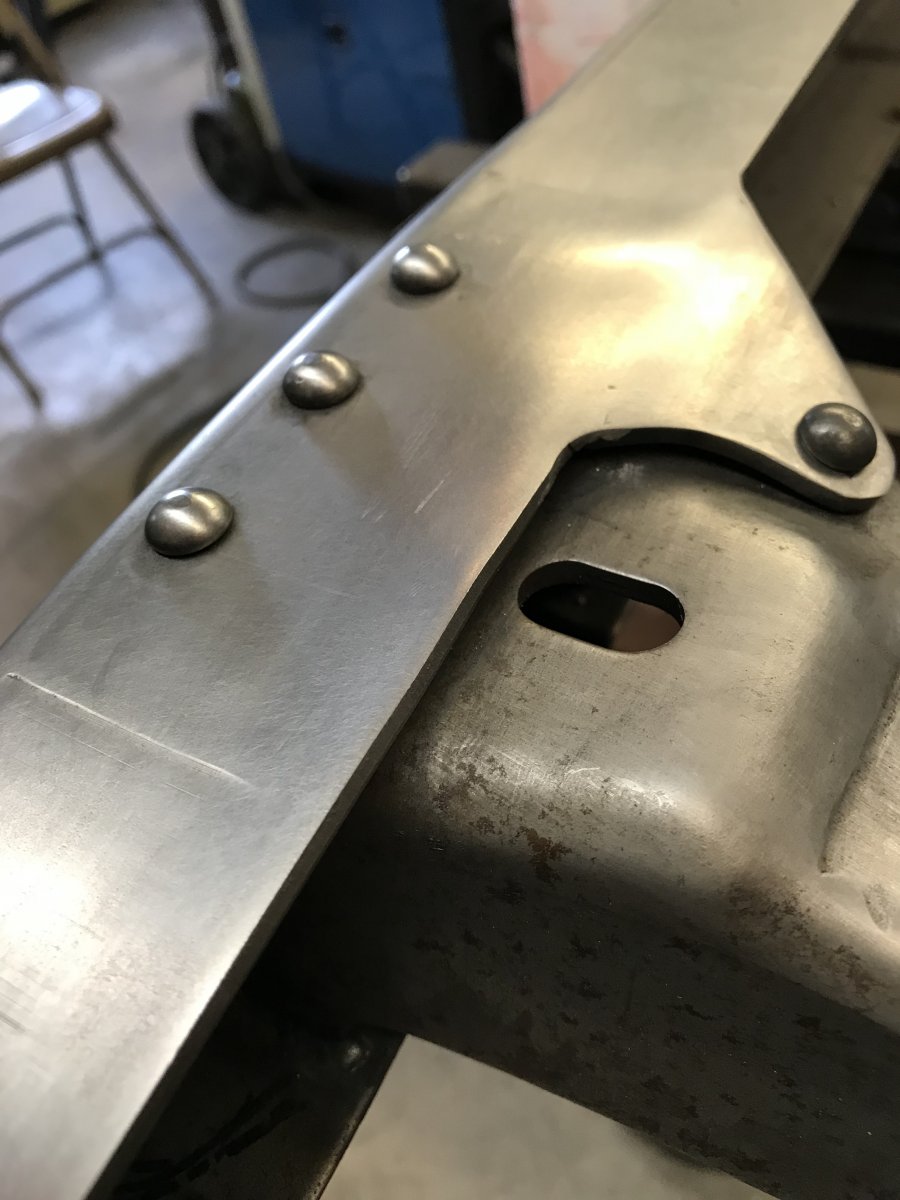

It looks like you first welded the crossmenbers to the frame rails. The rivets are mostly for detail correct. Very nice build



Yes, that is correct. The cross members have either been Tig or MiG welded in the inside.



Nice fab work and welding.

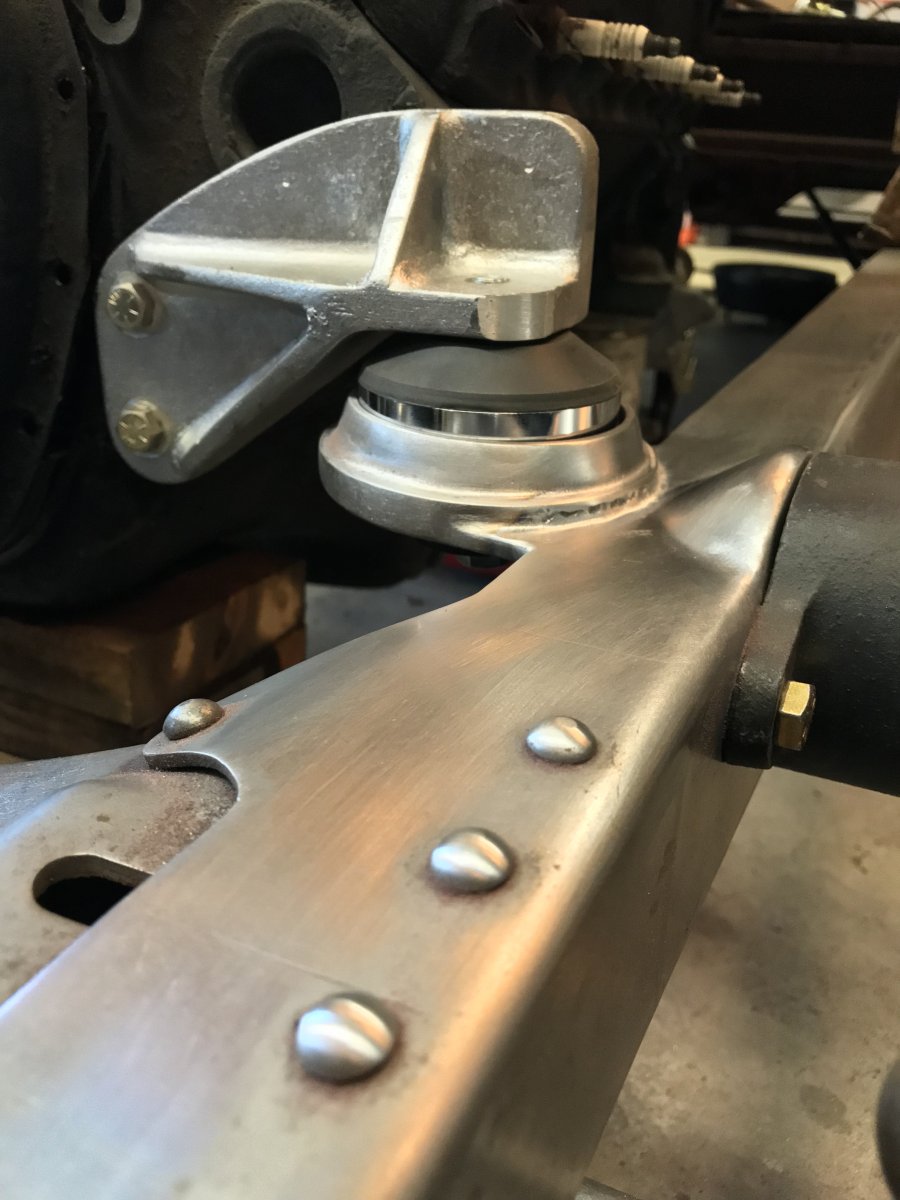

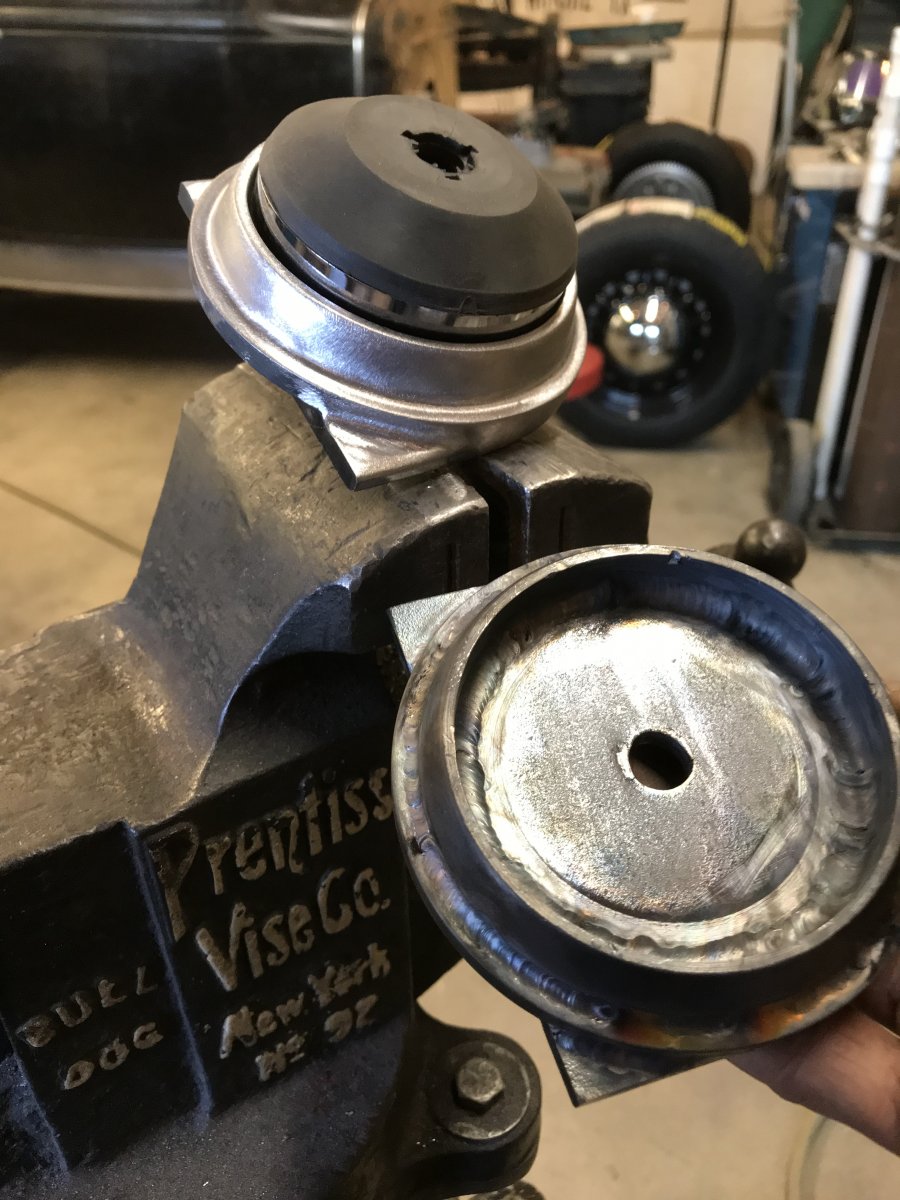

As a retired welder I have a question though.. Are you going to put a "cap"/final weld around the under-cut spot on the motor mounts where its welded to the frame? Nice 'row-of-dimes' cap around the mount would be purrrrfection IMHO!
You know how it is......being a welder I look at stuff most non-welders don't see.....not throwing stones.
6sally6



Frame mounts will have a cap around once they are finished.

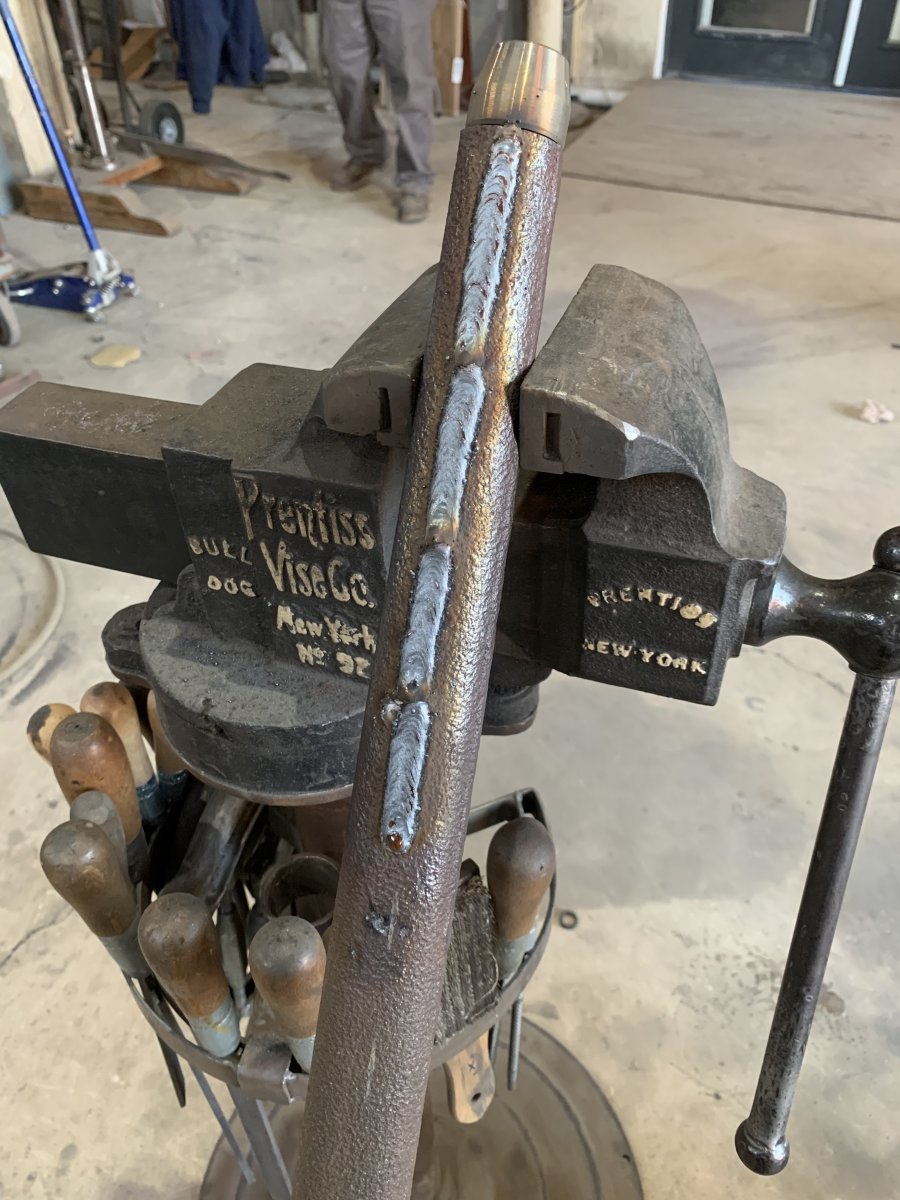

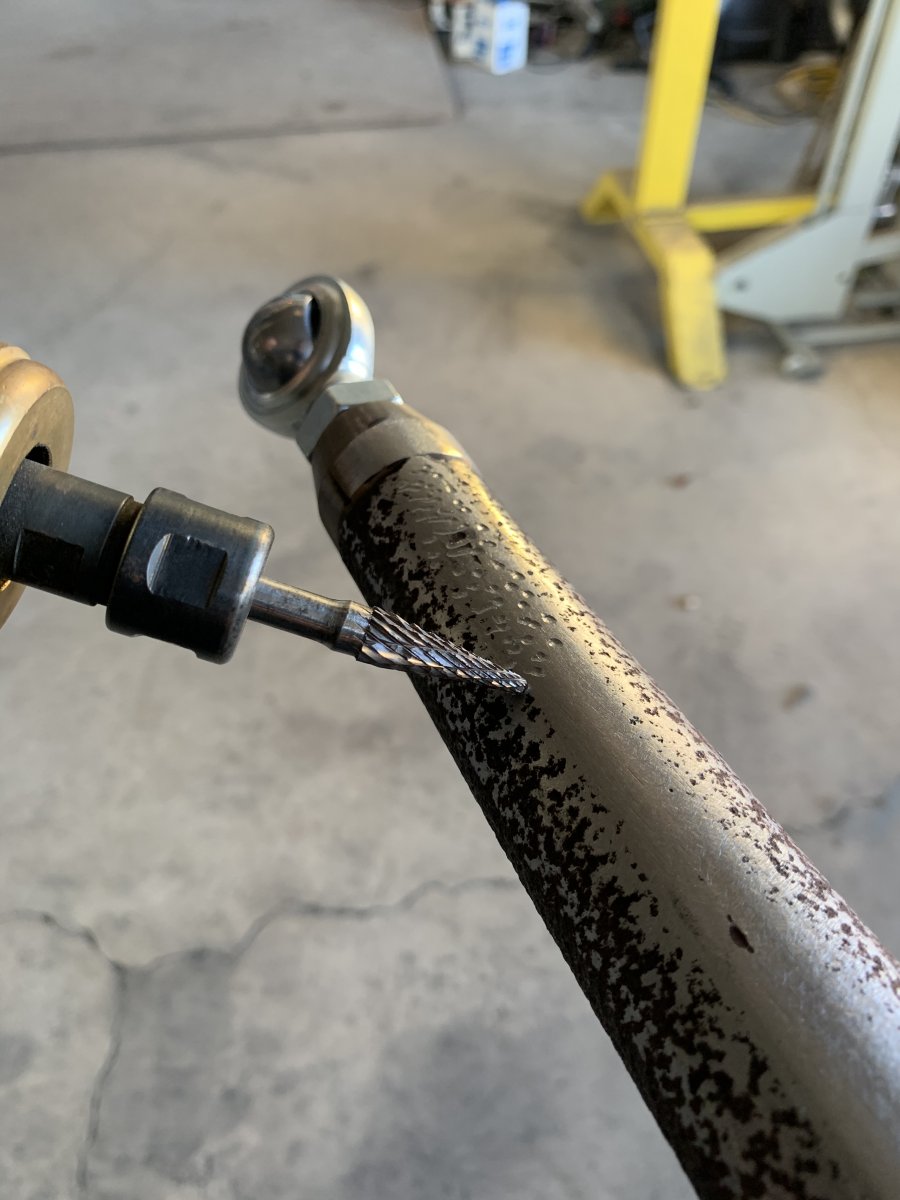

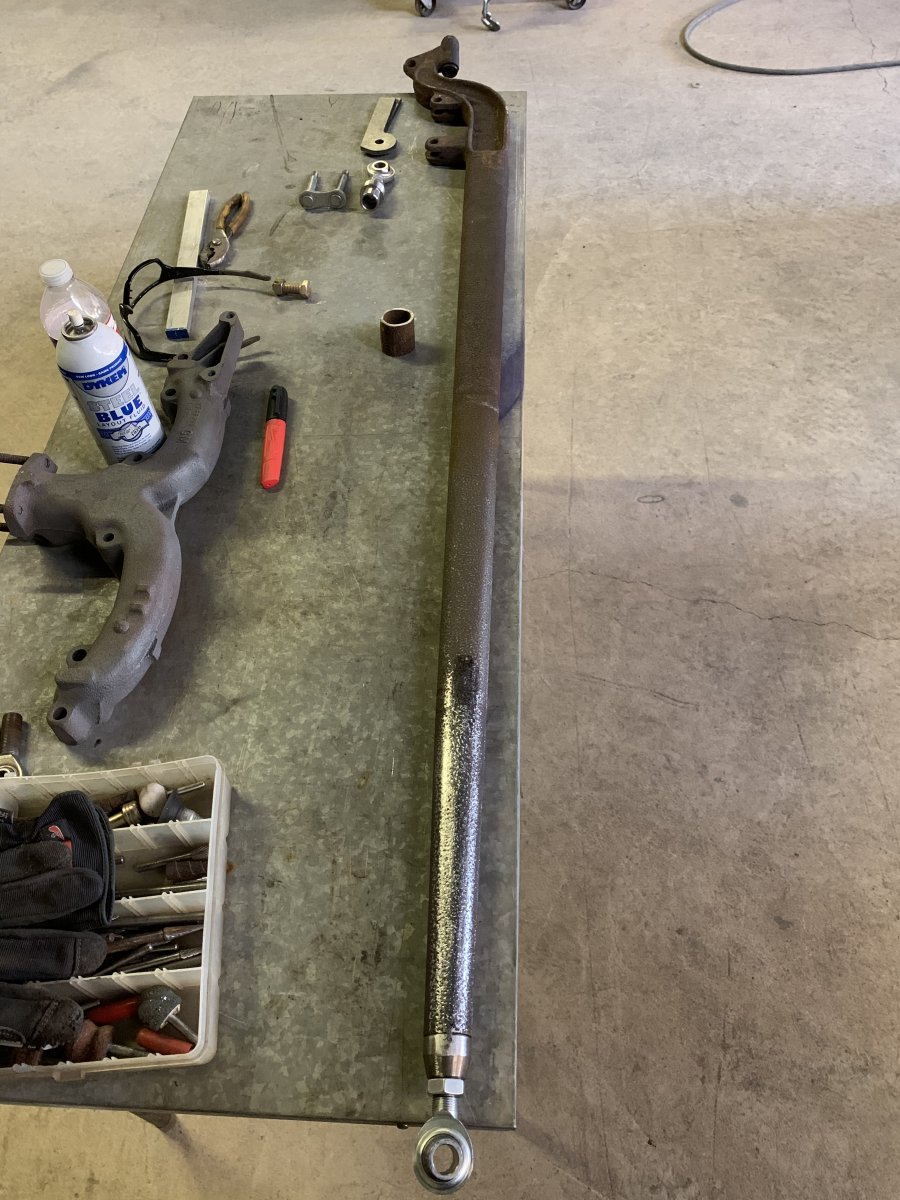

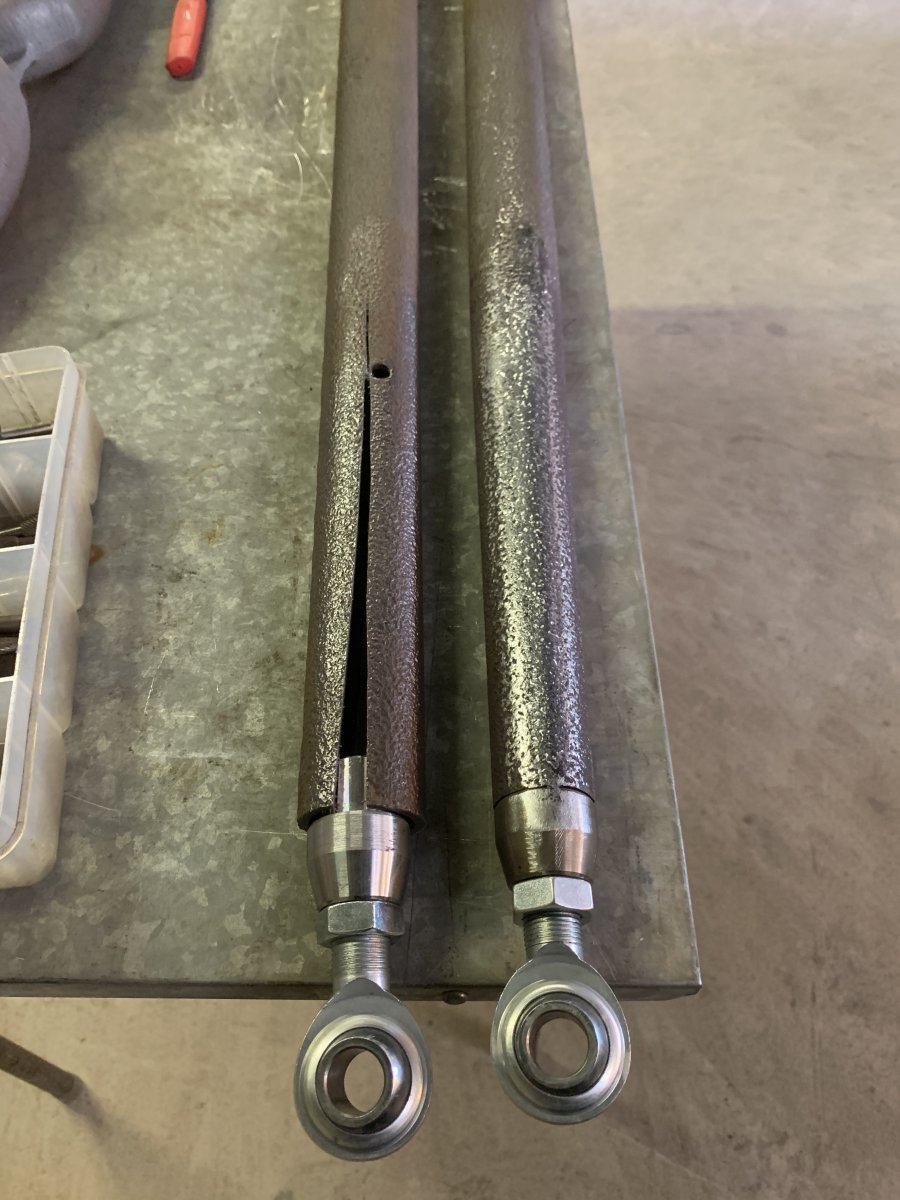

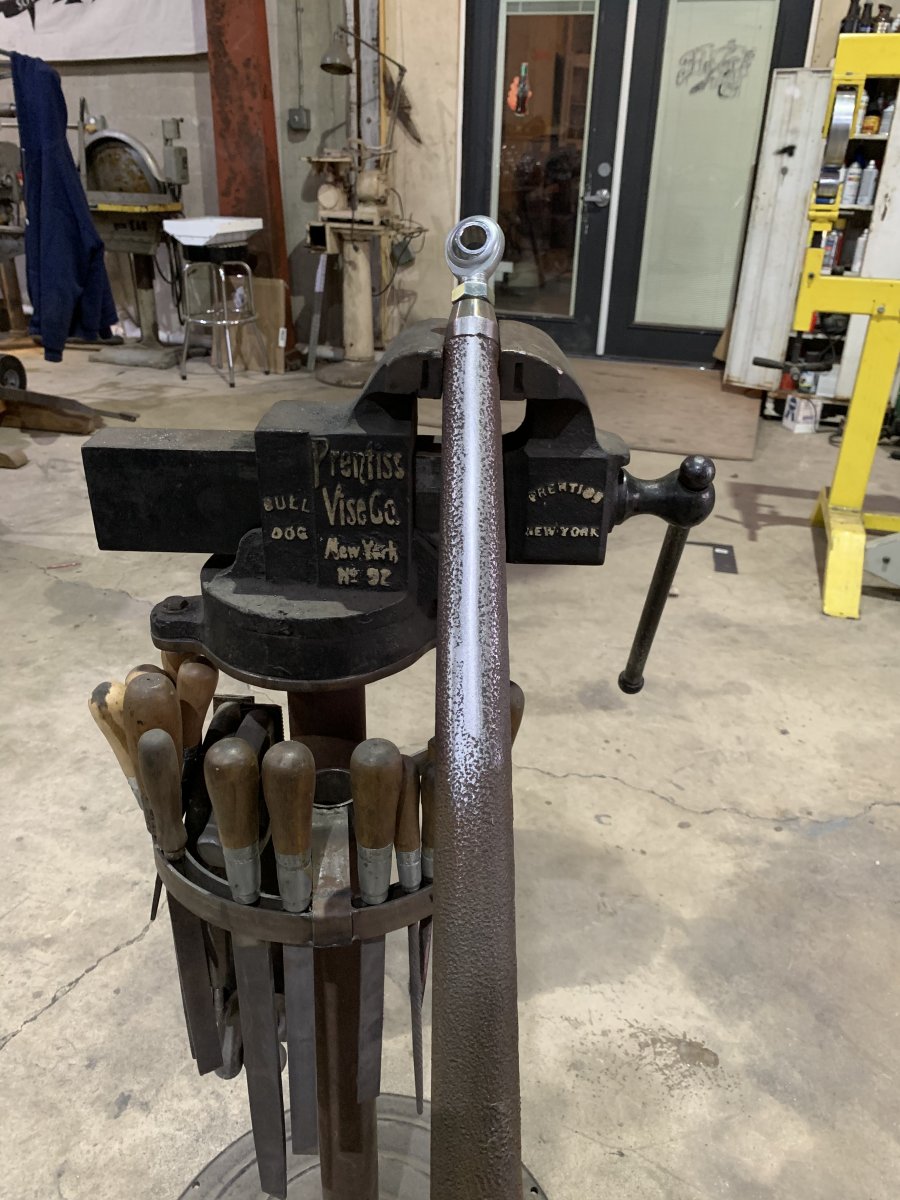

Ok guys just a update from my previous post. Originally I was running rear hairpins, but I just didn’t like to look of it so I removed them. After installing the xmember to the deuce frame 35-36 rear wish bones seem to be the perfect fit. Not only was little to no mods had to be done they look great and also give me that traditional look that I want to stick with. Of course I had to pie cut the rods to fit the heim joints and a bit of magic to recreate that pitted look that time has done to 80 year old parts. Thank you everyone for following this build. Not as close as we would like to be but she is coming along nicely. Chris and I are very proud of this little car!



Nice
I've seen a few set of those bones rusted out at that seam. You've just proved them usefull.



They were in decent shape.



Looking great. Nice work.

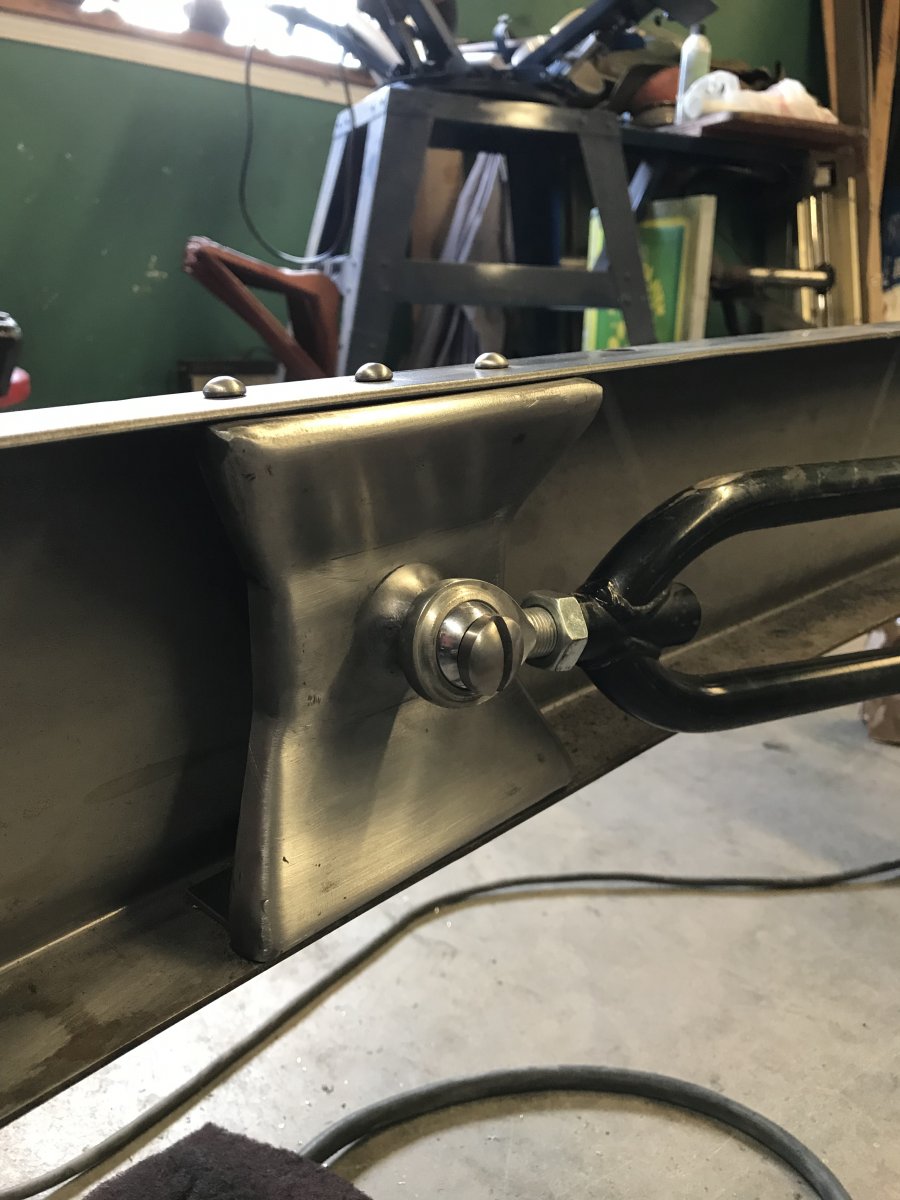

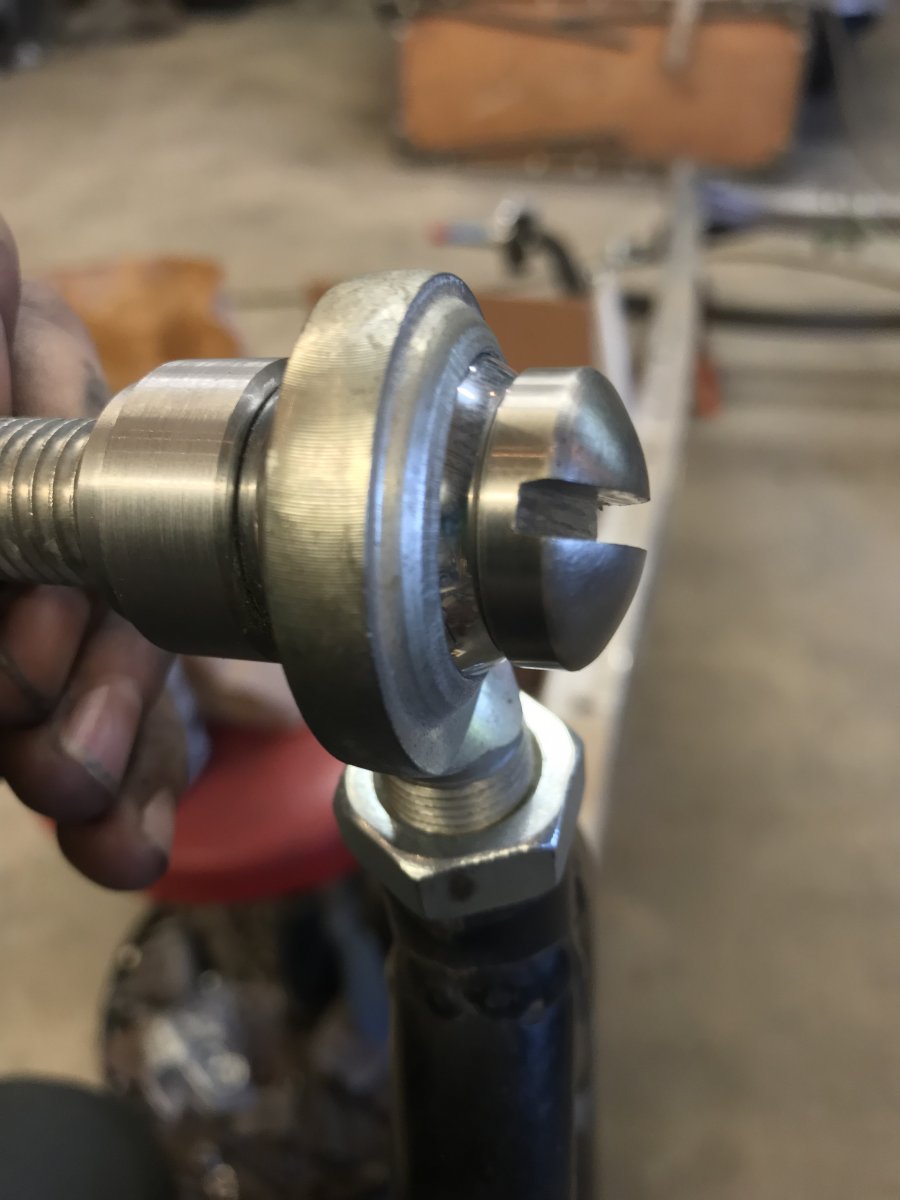

Only suggestion: safety washers between bolt head and spherical rod end ball should the ball pull out. Been known to happen.

Sent from my XT1710-02 using The H.A.M.B. mobile app

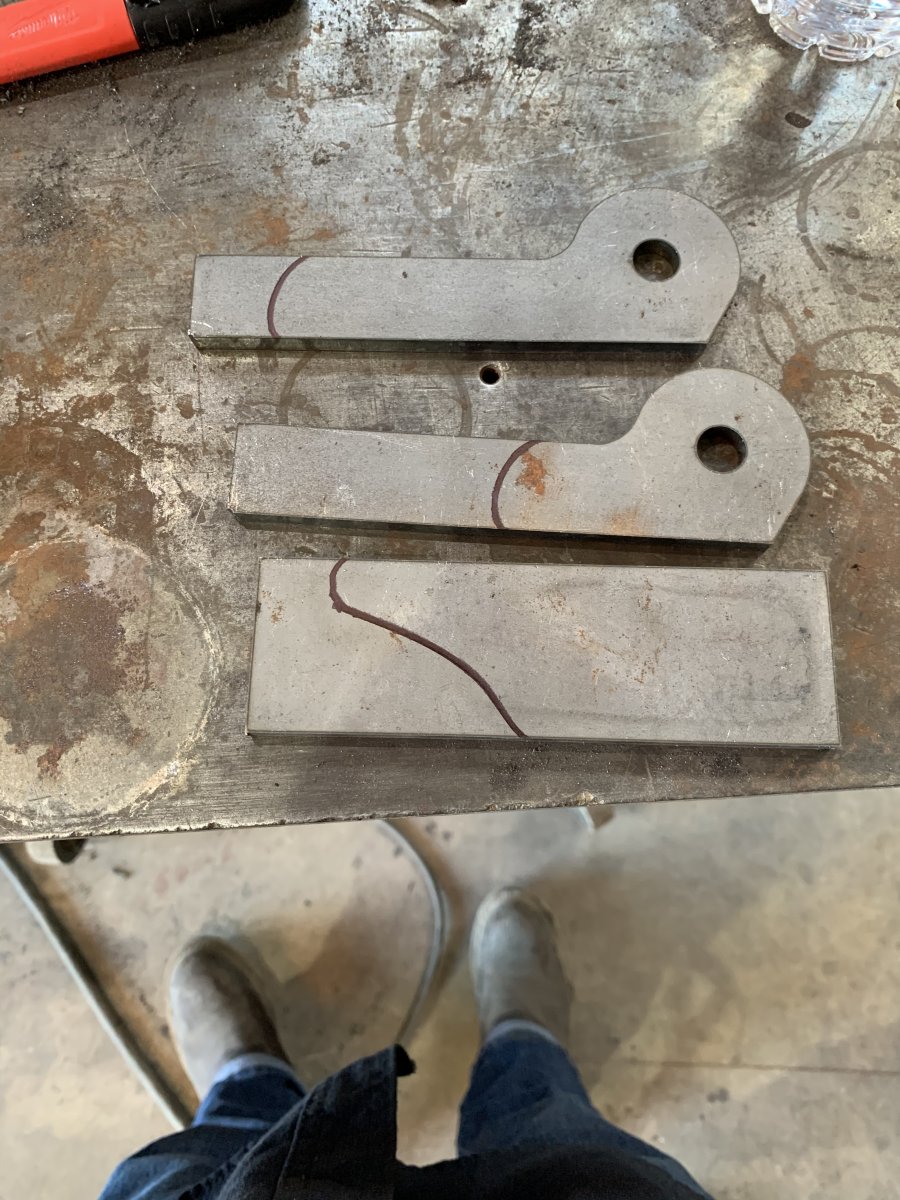

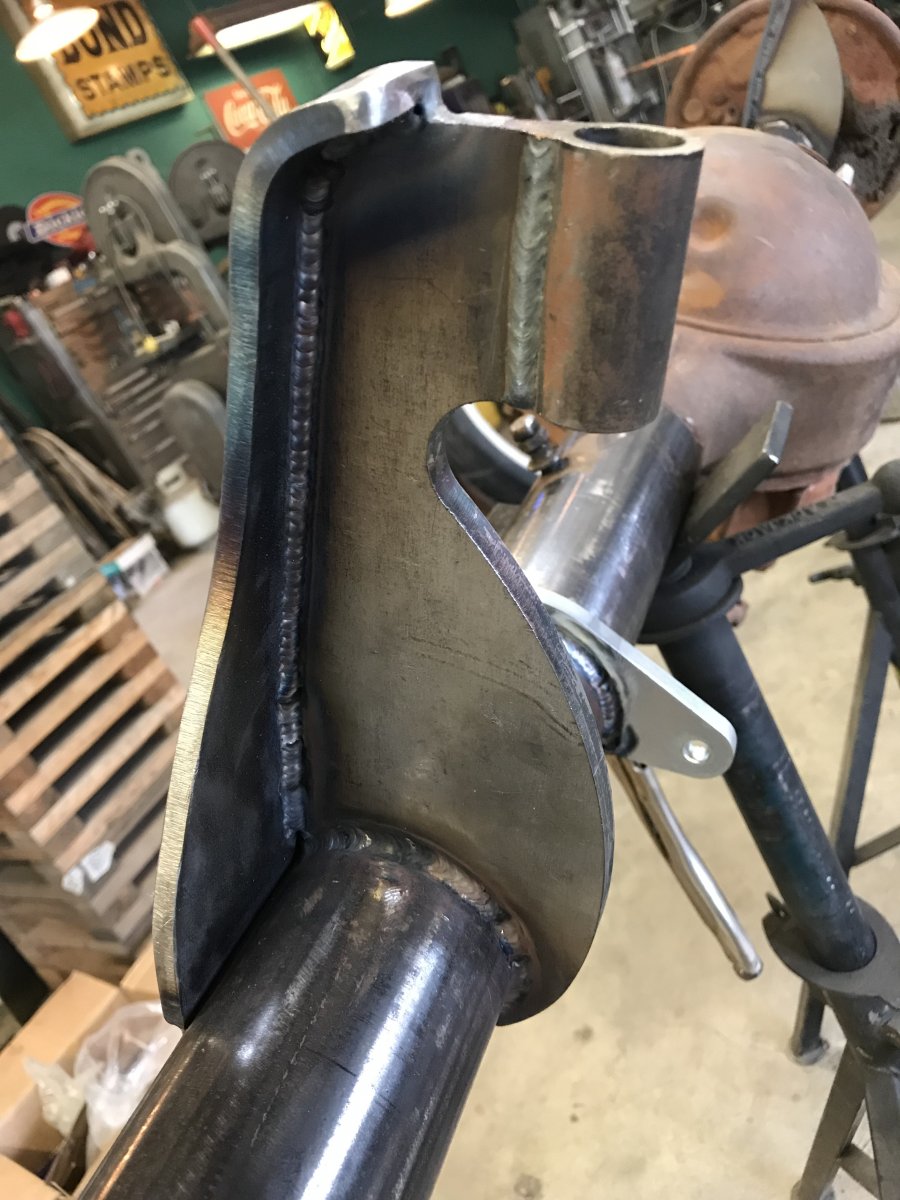

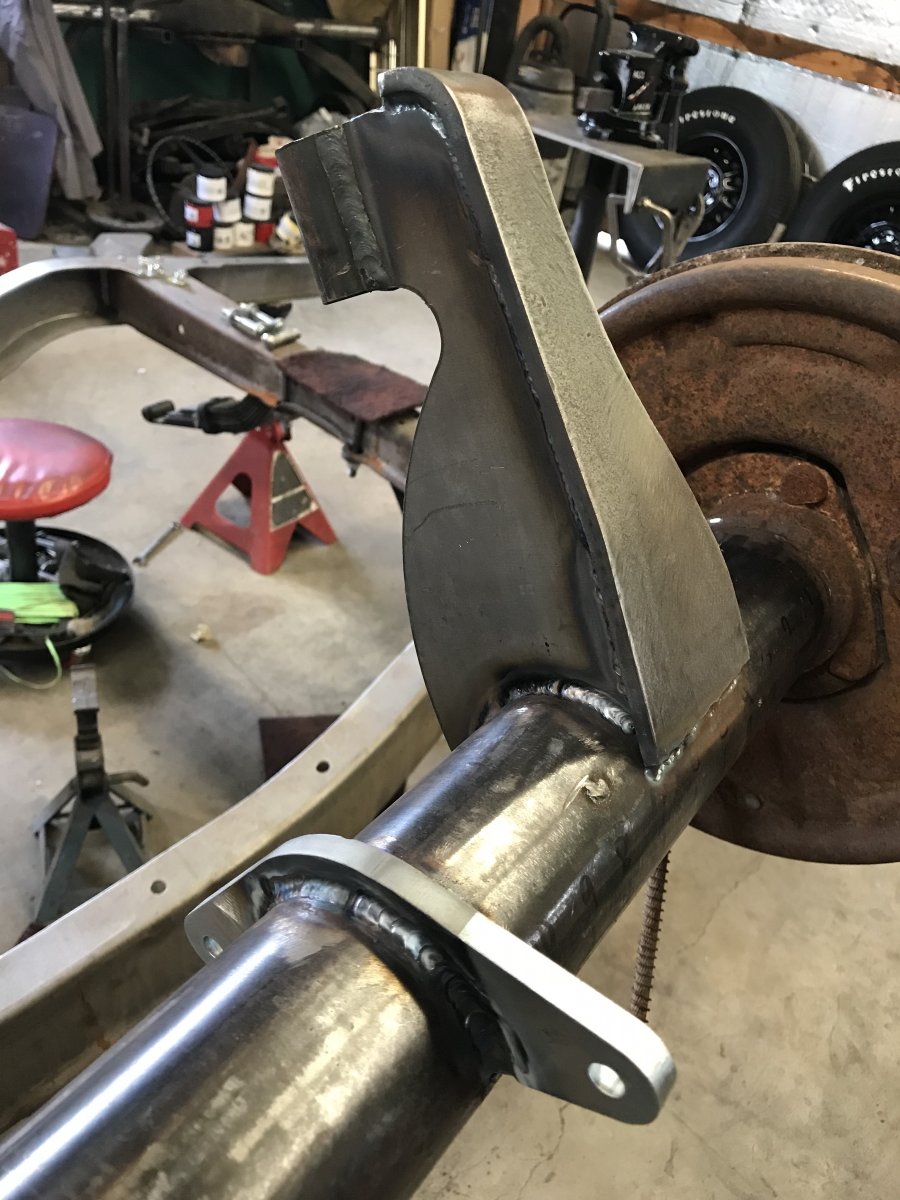

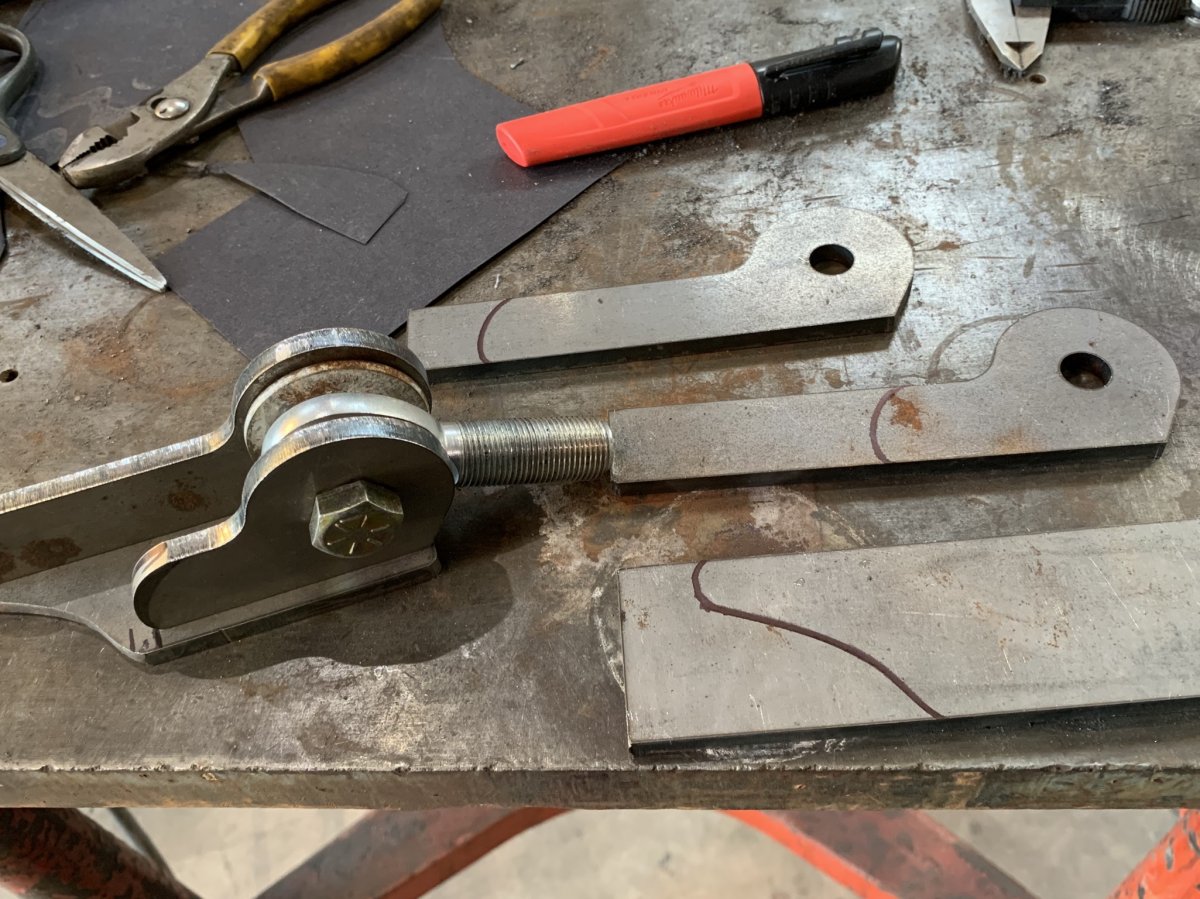

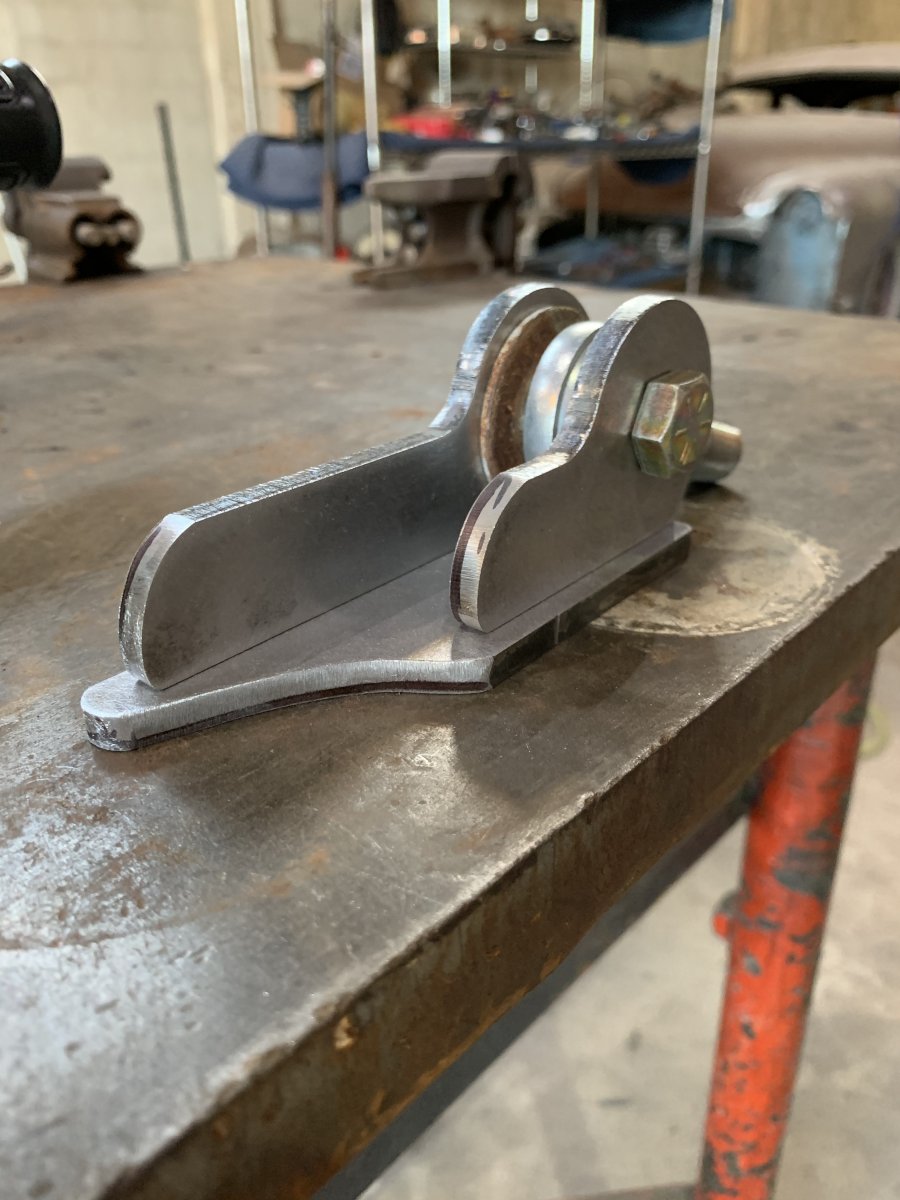

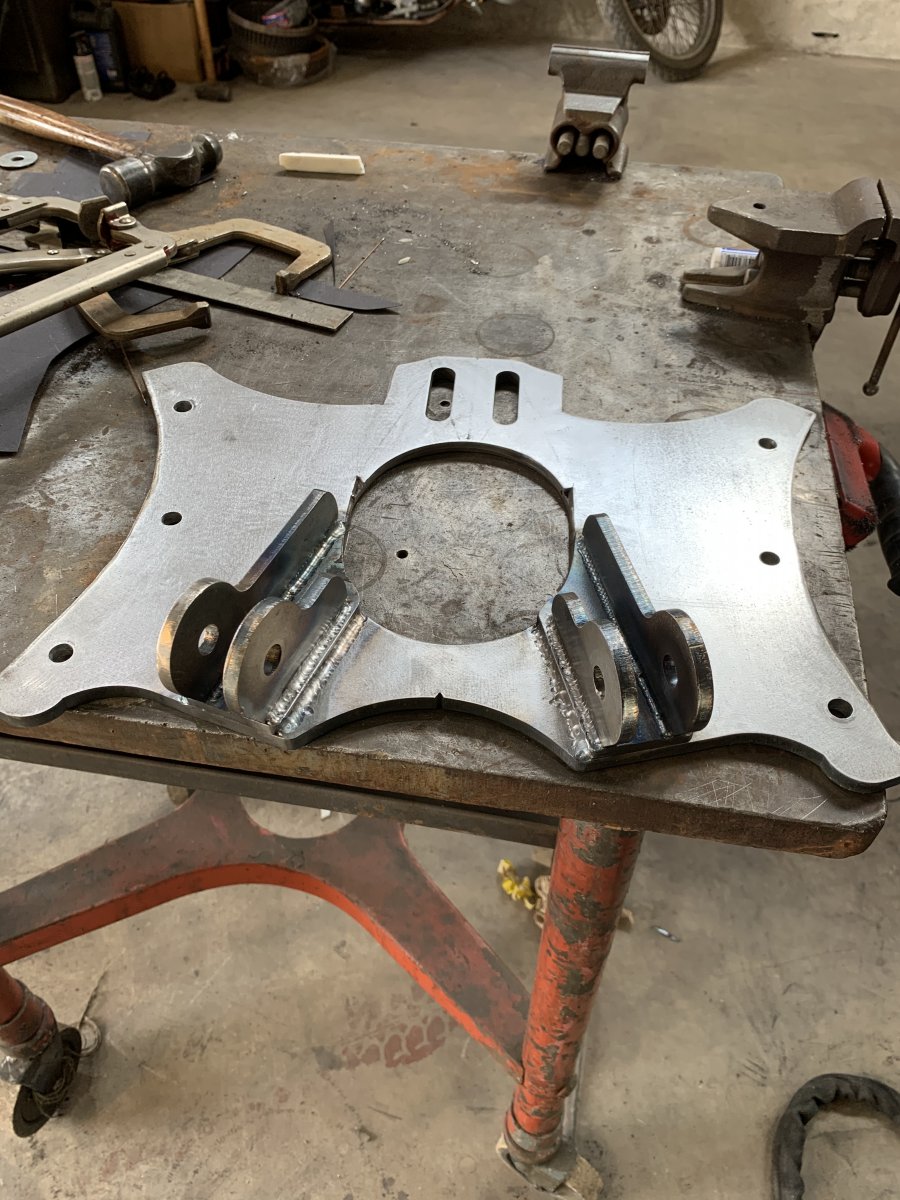

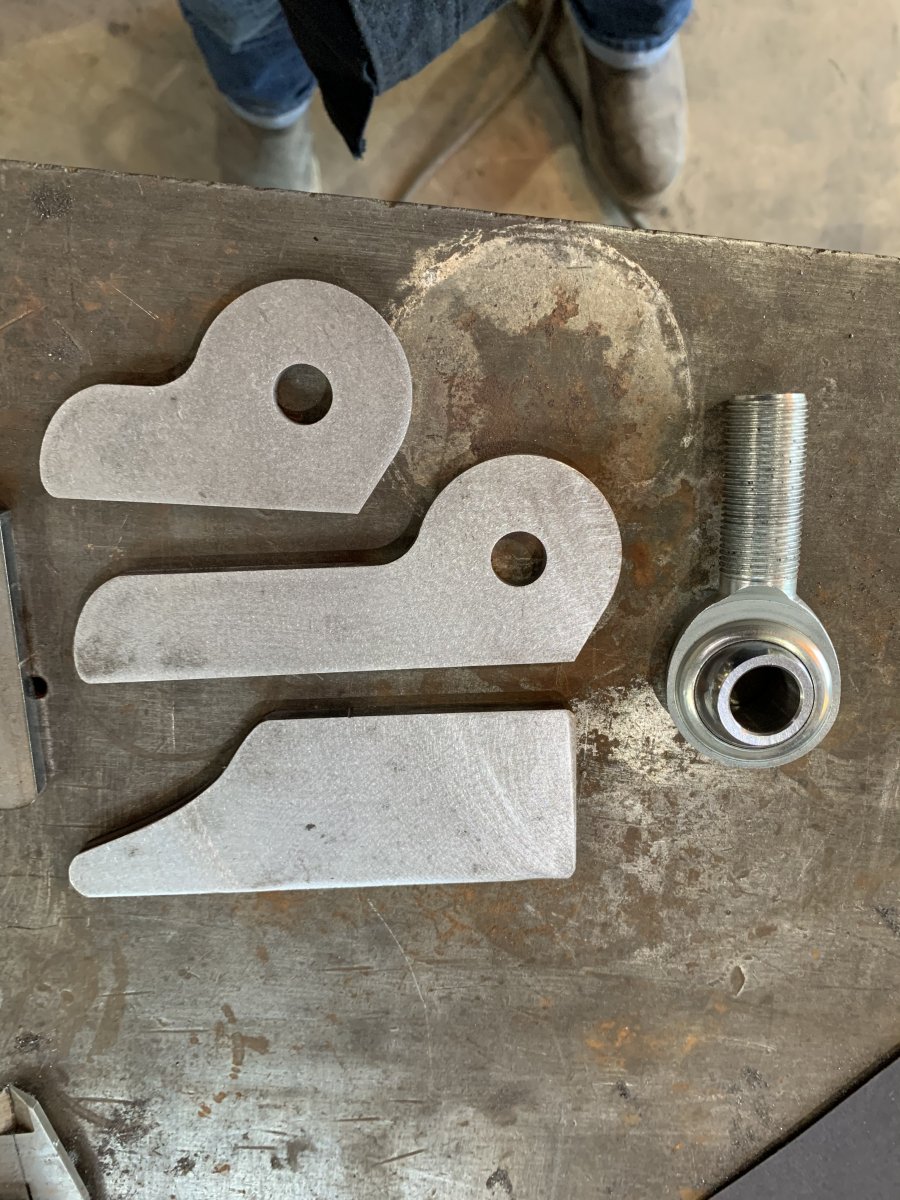

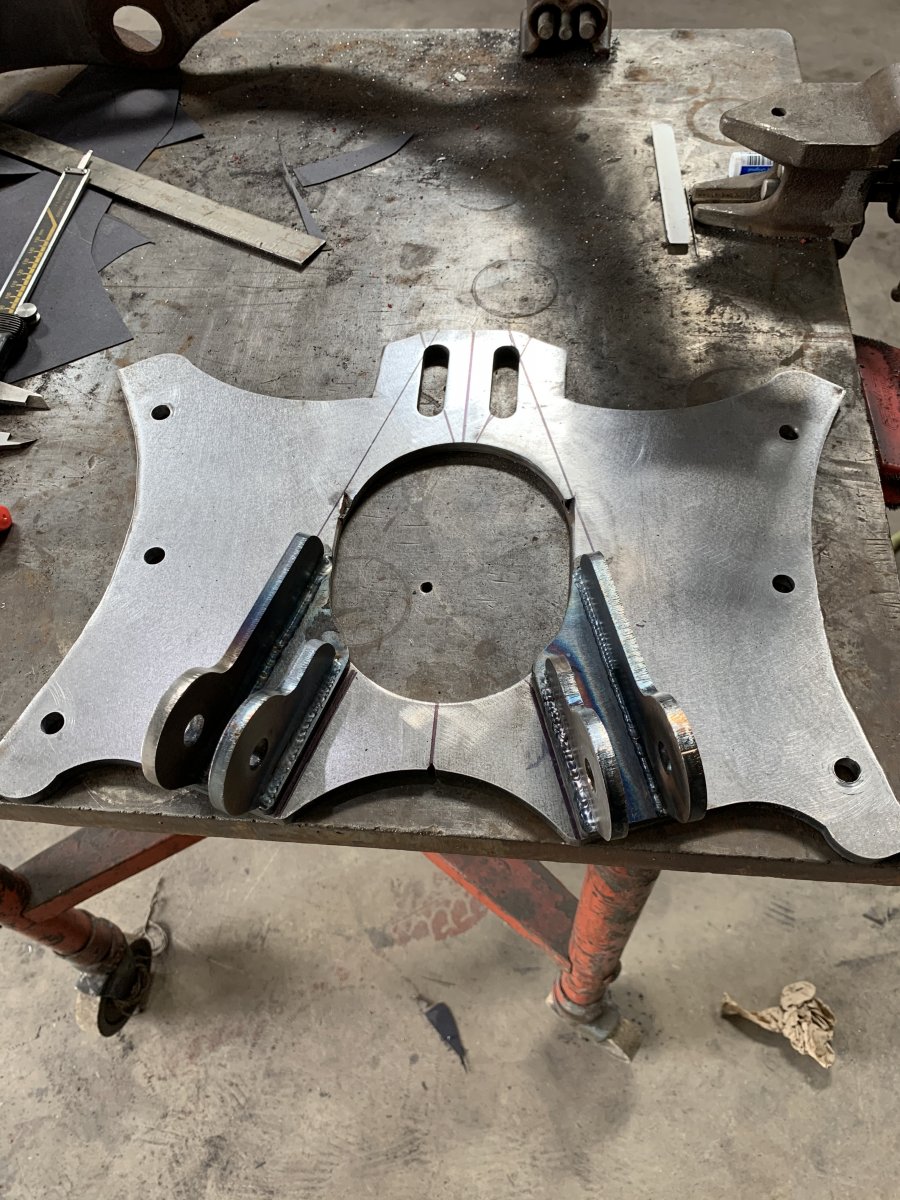

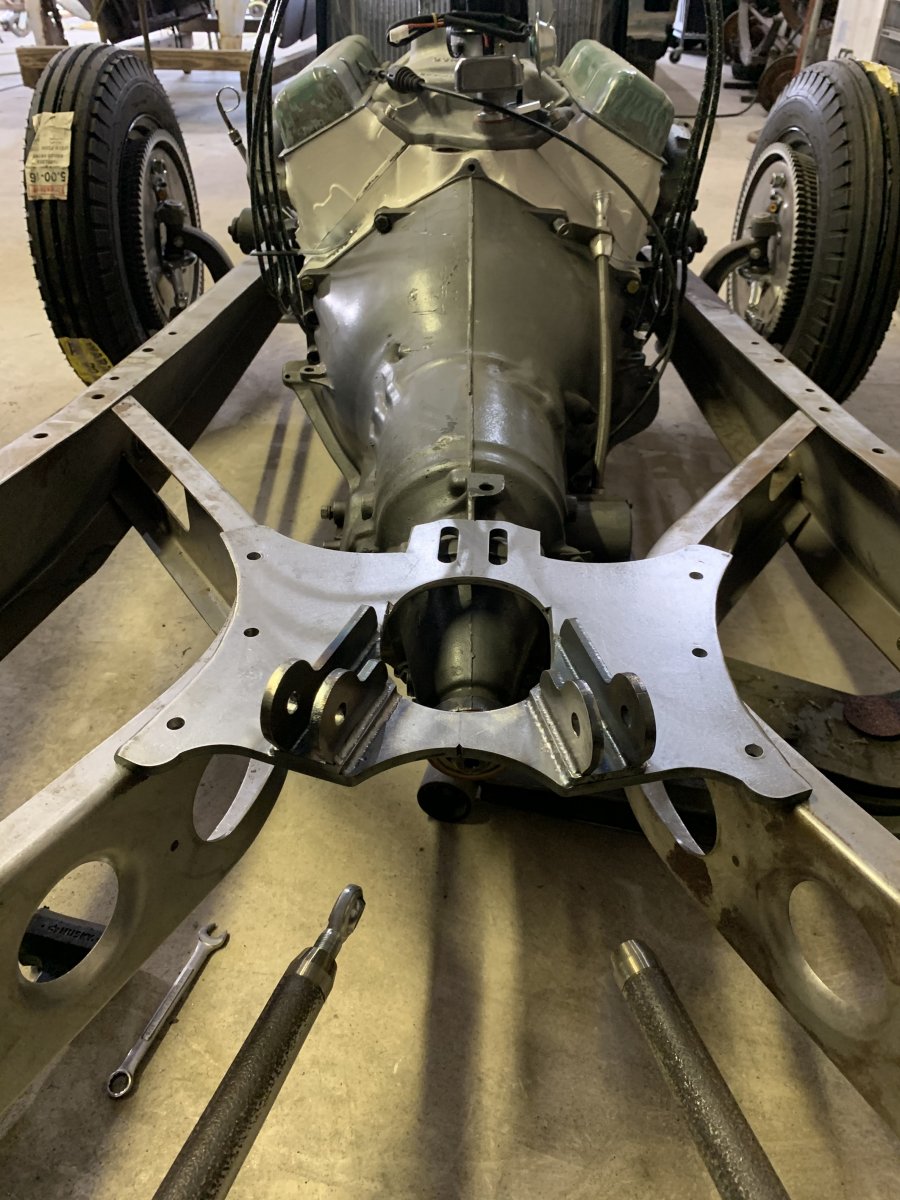

Some brackets for the rear wish bones that will be welded to the xmember transmission mount.



...Nice Layout in Bracketry...There is an Art Factor there absolutely

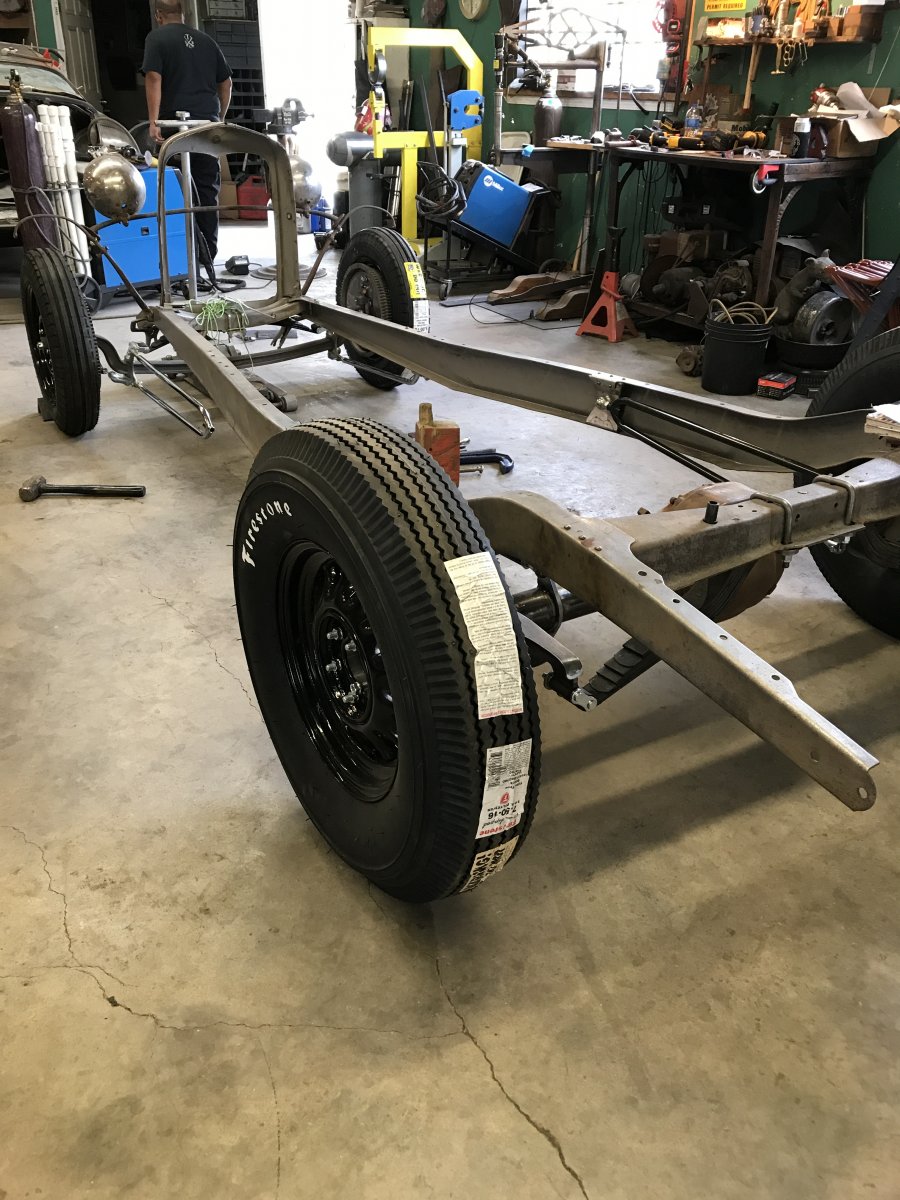

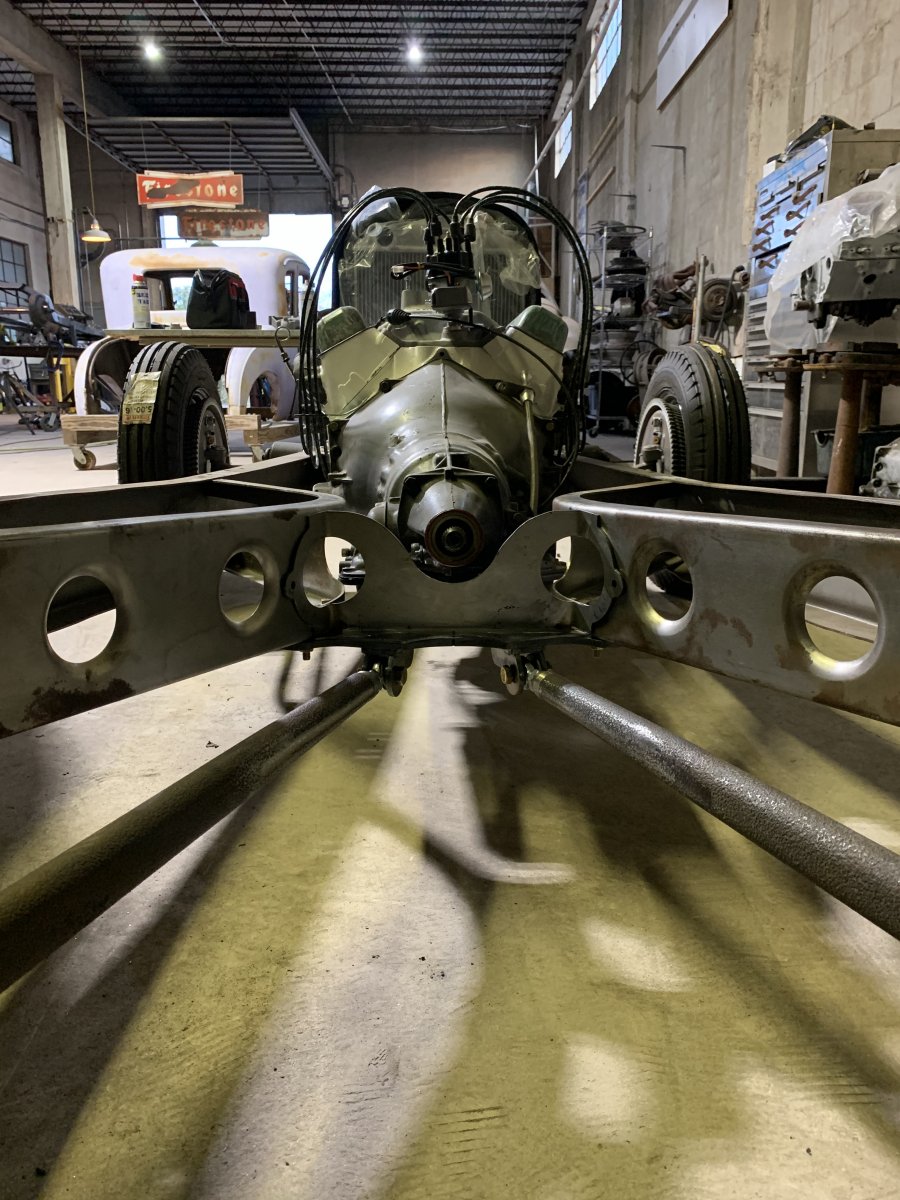

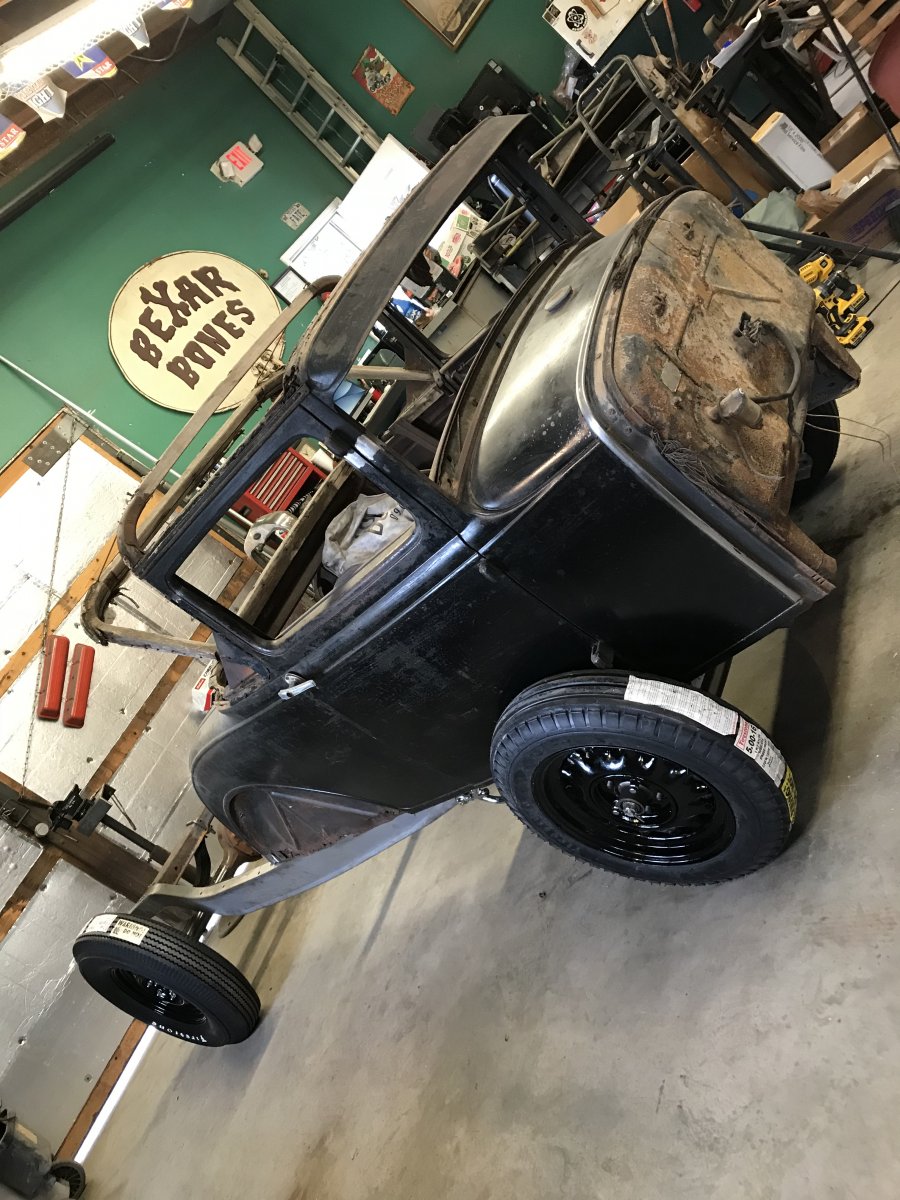

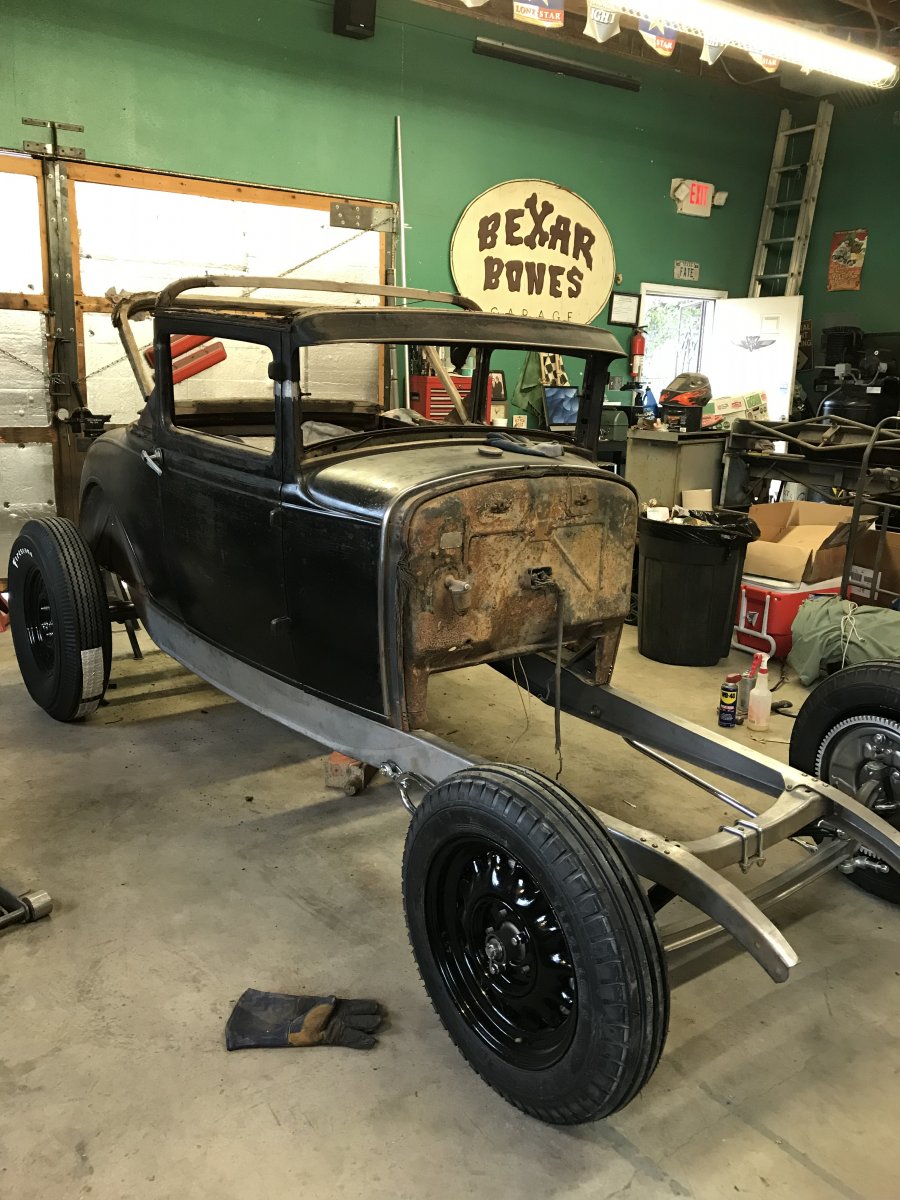

Finally got the rear end all back together and officially a roller again for the last time. Everything looks and fits great with the Xmember. A few final touches to frame rails and then on to the steering box. I thought building a car was supposed to be easy.



You started it
And I'm glad you did and shared it with us.



Me too



Just found your thread! Outstanding craftsmanship!! You should be very proud. I will be following along the rest of the way.



Thank you, more to come
