    I've seen a few in some older pictures. They are sometimes confused the Cadillacs or even Olds when they have Offenhauser valve covers. Sadly a lot of my pictures are disappearing from this computer.

    Stogy and Tim like this.
  2. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Fair point, from the right angle they look a lot like an early caddy from the front. Actually spent about twenty minutes trying to look for clues on a photo this morning to see if it was caddy or stude.

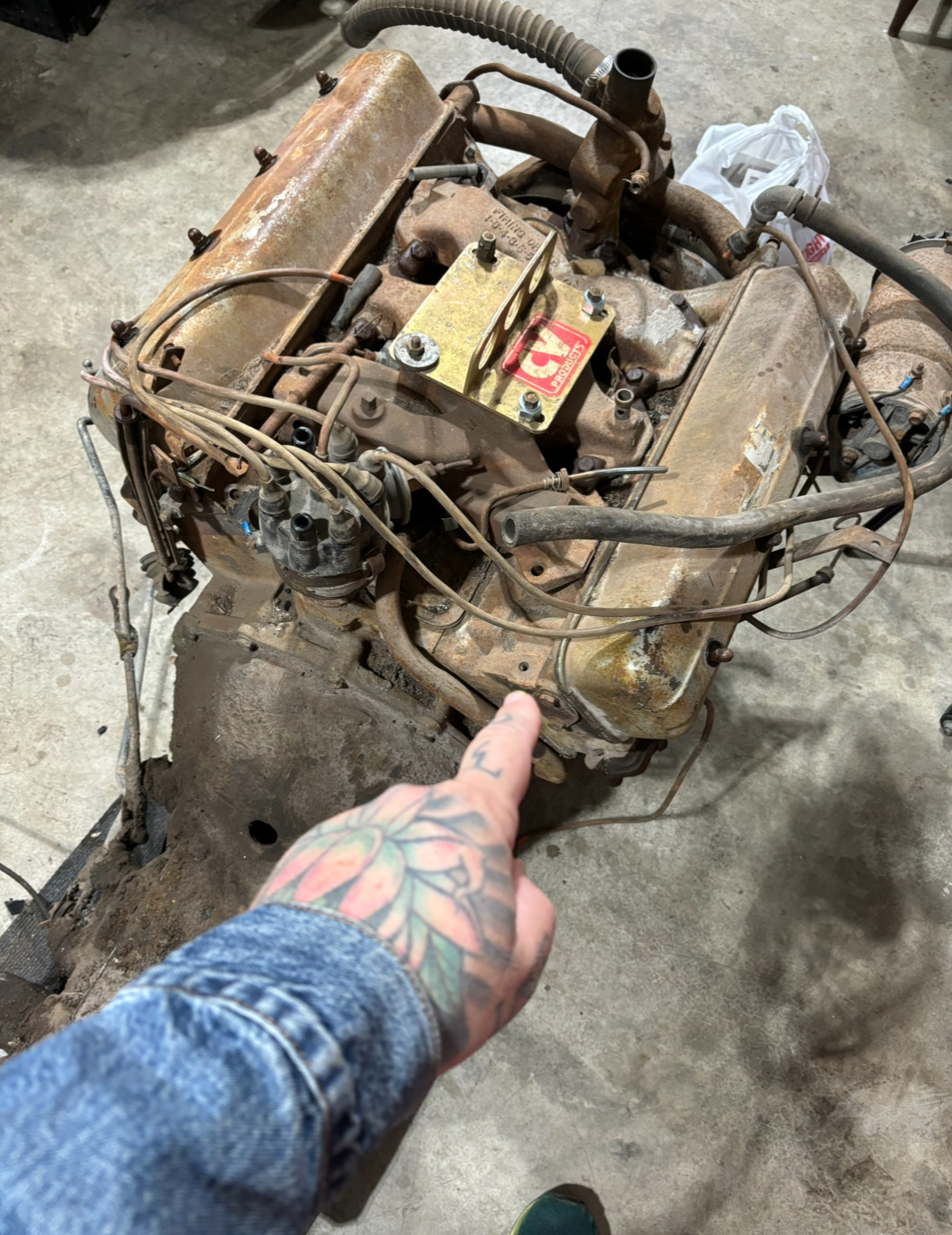

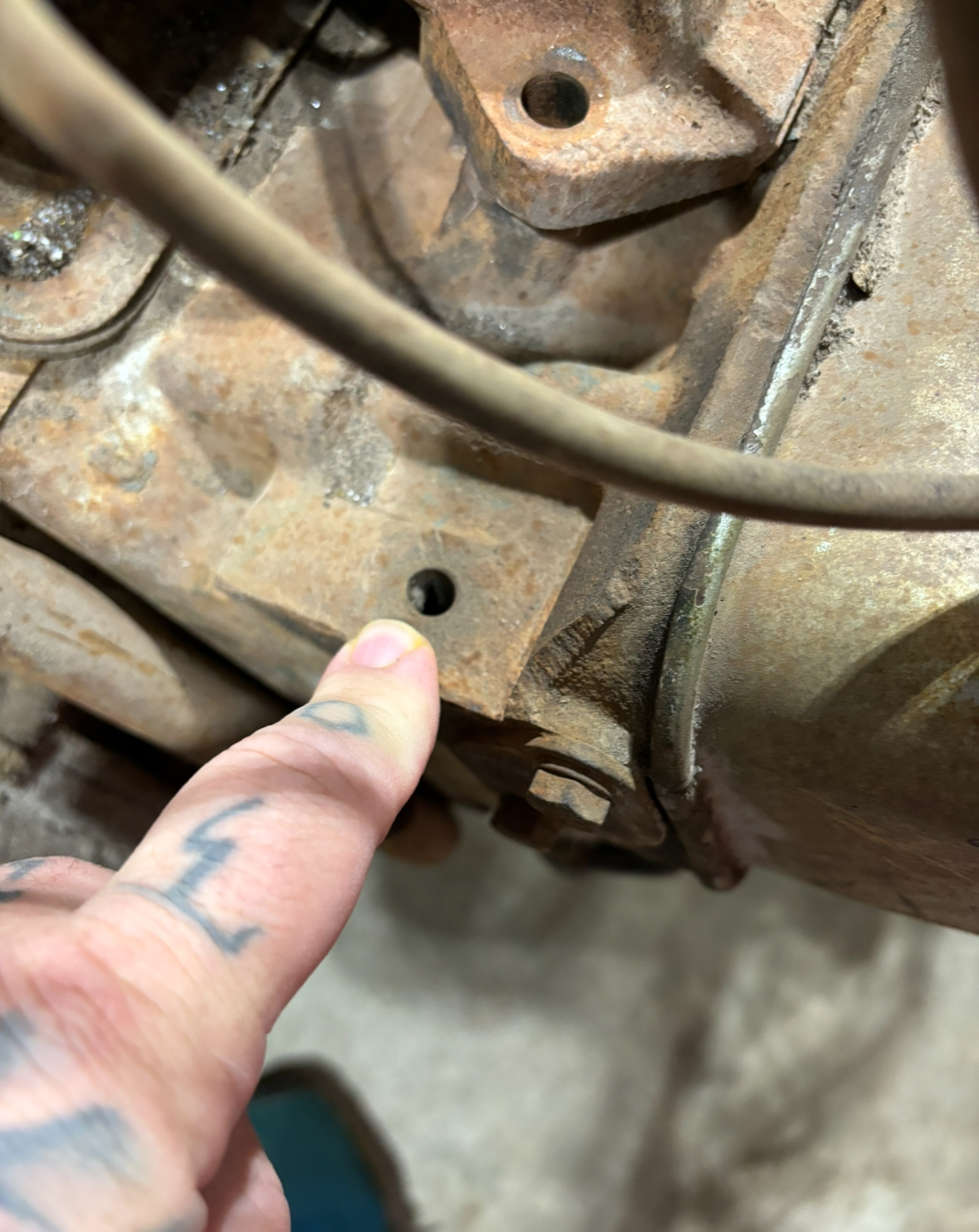

    IMG_0438.jpeg IMG_0439.jpeg Anybody know what this empty threaded hole in the back of the passenger side head is?

    I guess if the heads are the same side for side it’s an oil line and likely where the oil pressure gauge was plugged into. The same hole in the drivers side head is plugged and is where an oil filter would have been fed from as previously discussed.

    got some kroil on the exhaust and I take manifold bolts and the valve covers. Gonna get it cleaned up and then open it up before I try to turn it. Just want to make sure there’s no trash in there before it rolls over

    Last edited: Nov 5, 2023
    brEad, Stogy, Six Ball and 1 other person like this.
  3. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Stogy likes this.
  4. Six Ball
    Joined: Oct 8, 2007
    Posts: 6,745

    Six Ball
    Member
    from Nevada

    Yes the heads swap. The two plates with two bolts are where the water pump housing bolts on the other end. I think the temp sender may be in one of those plates. What ever uses that hole on the front of the other head is what it is for. Where is the oil pressure sender? It might be that. It has been over 20 years since I worked on one of these. Some of it is coming back. I need to take some pictures tomorrow.

    Stogy and Tim like this.

  5. On my girls 259 is pass head rear port is the oil sender, drivers head front is capped (no oil filter).

    Also the oil pressure relief valve and port needs to be serviced regularly.
    https://forum.studebakerdriversclub...re-relief-valve-setting?p=1150909#post1150909

    Stogy, Six Ball and Tim like this.
  6. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Good info guys thanks!

    Stogy and Six Ball like this.
  7. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

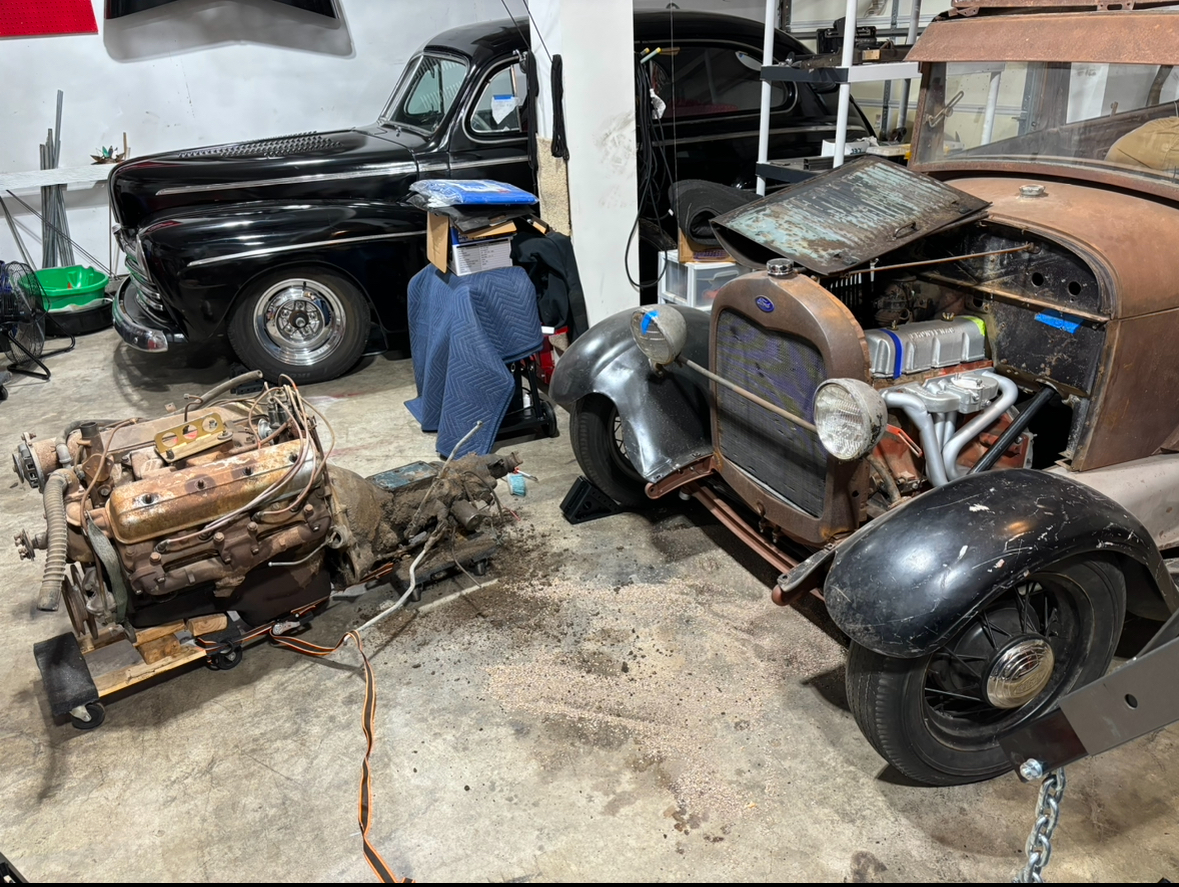

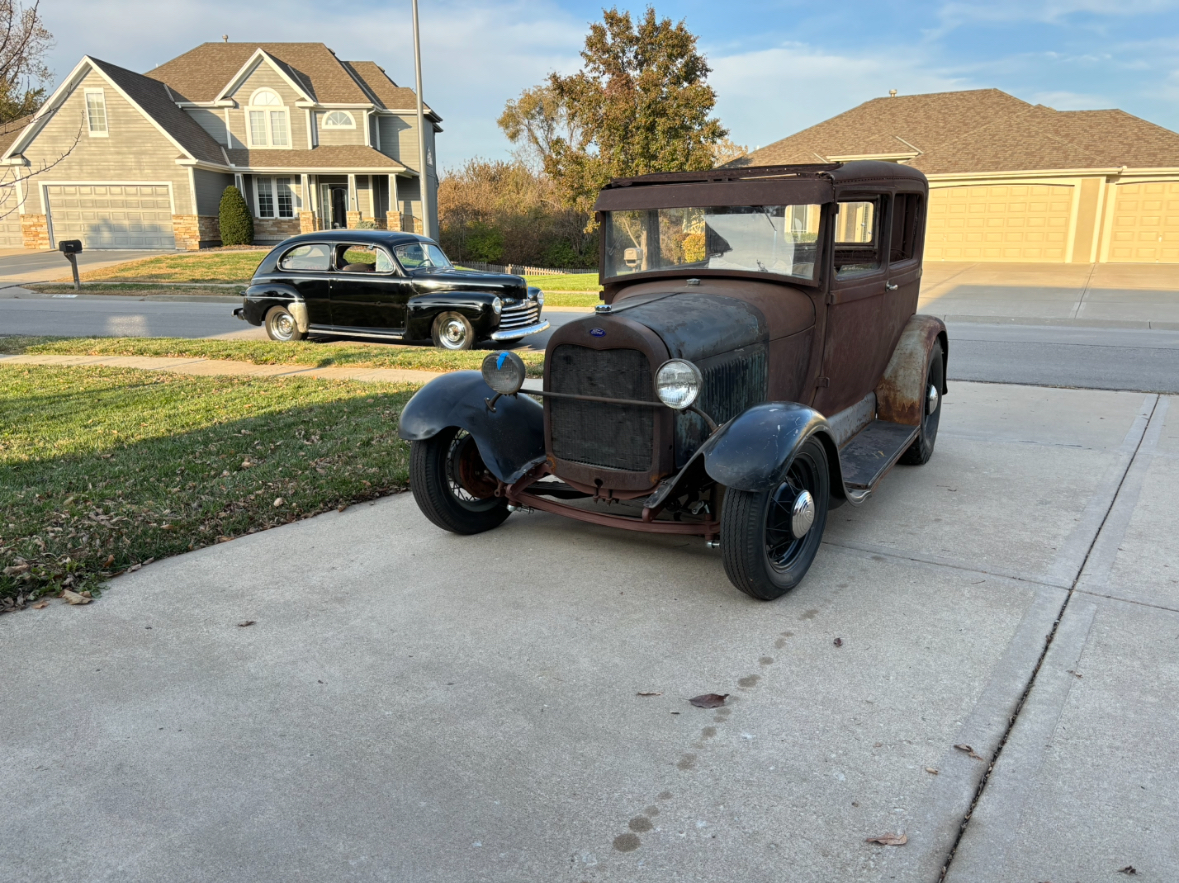

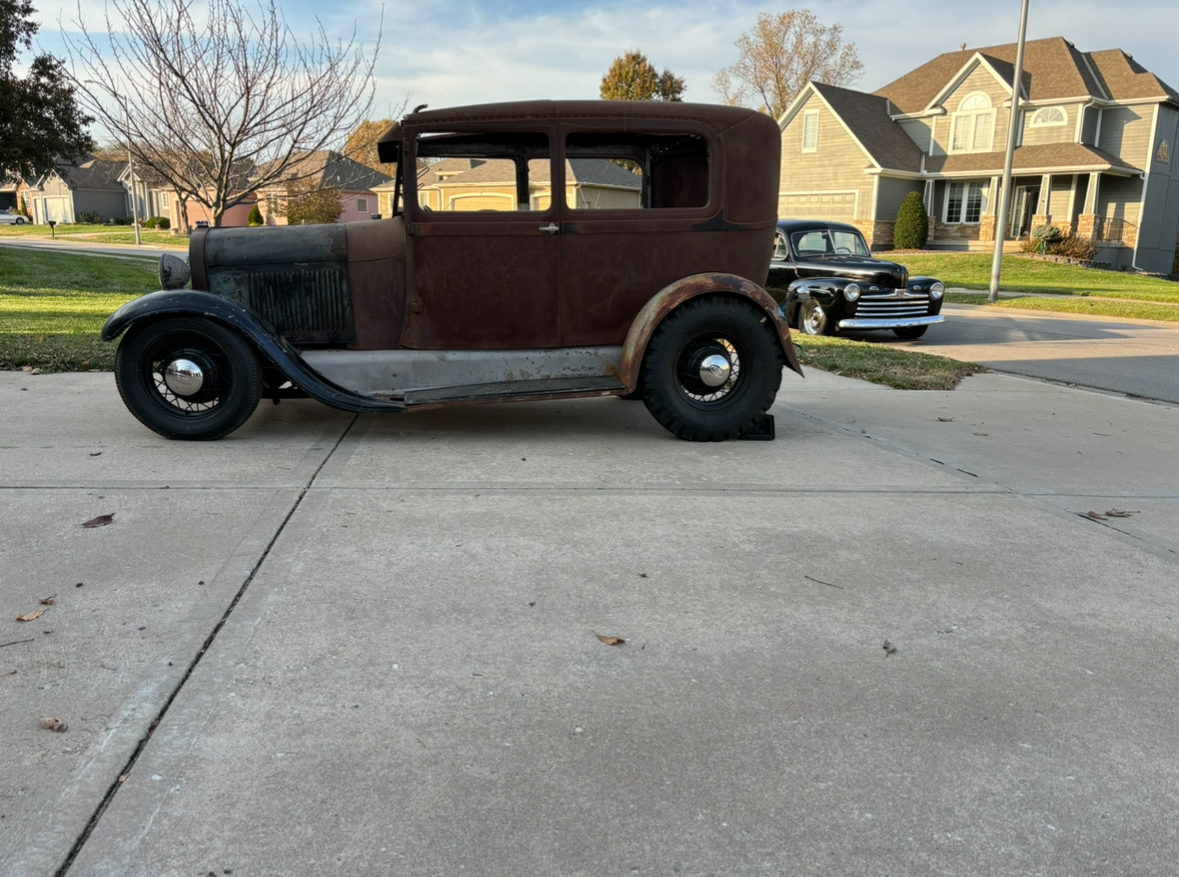

    Got the cars swapped around. First time the A has been moved in a year and a half or so. I can tell there’s no air pressure in the tires but the cars so light you can’t hardly see it. I only noticed when it took a full hand instead of a few fingers to push it lol. IMG_0462.jpeg IMG_0461.jpeg

    drdave, redzula, Kelly Burns and 9 others like this.
  8. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    @1oldtimer first I’m hearing of that valve. Seems straight forward enough

    Stogy and Six Ball like this.
  9. Six Ball
    Joined: Oct 8, 2007
    Posts: 6,745

    Six Ball
    Member
    from Nevada

    That relief valve can effect oil pressure.
    These engines can pump the oil into the valve covers faster than it can drain back into the pan at prolonged high rpm. There are a few tricks to help but shouldn't be an issue on the street. As far as making power the heads are the biggest issue. Our friend John Erb was working on a new design when he died. He said they were Studebaker on the outside and LS on the inside. Lionel Stone produced some Aluminum R3 heads but castings were slightly off Erb was working on that too. These are the R3s.
    tn_r3headc_jpg 2.jpg tn_r3headb_jpg.jpg tn_r3heada_jpg.jpg

    Thor1, Stogy and Tim like this.
  10. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Yeah I hear a lot about the crummy heads for studes, an “ls” head would have been a game changer I’m sure. Seems a lot of those guys passed the last few years.

    Six Ball and Stogy like this.
  11. Primered Forever
    Joined: Jul 7, 2008
    Posts: 990

    Primered Forever
    Member
    from Joplin,MO

    Looks good Tim! It has a good hotrod look!

    Six Ball, Tim and Stogy like this.
  12. guthriesmith
    Joined: Aug 17, 2006
    Posts: 11,416

    guthriesmith
    ALLIANCE MEMBER
    1. H.A.M.B. Chapel

    Looks good outside Tim! :cool:

    Stogy, Six Ball, Tim and 1 other person like this.
  13. nrgwizard
    Joined: Aug 18, 2006
    Posts: 3,011

    nrgwizard
    Member
    from Minn. uSA

    Mike VV knows a *lot* about Stude heads n porting them -correctly- .
    No idea what a set'd go for, but I myself would like a set. Gotta figure out how to afford them - if he'll cut another set.
    Another fellow, also on the hamb, offers, or did, decent ported Stude heads(think sorta hot-street). Price wasn't horrible. He also did the Al-welded manifolds(usually chrys->stude).
    & another did offer adapter-plates to us the early sb chev v8 manifolds.
    A (now-passed) friend did up a set of adaptors to use early sb chrys manifolds, but the angles were rather steep/abrupt.
    Racing Studebakers is a very nice site to burn a lot of time, following what others have done for the v8, in terms of hoppin-up/etc.
    Marcus...

    Stogy, Thor1 and Tim like this.
  14. Six Ball
    Joined: Oct 8, 2007
    Posts: 6,745

    Six Ball
    Member
    from Nevada

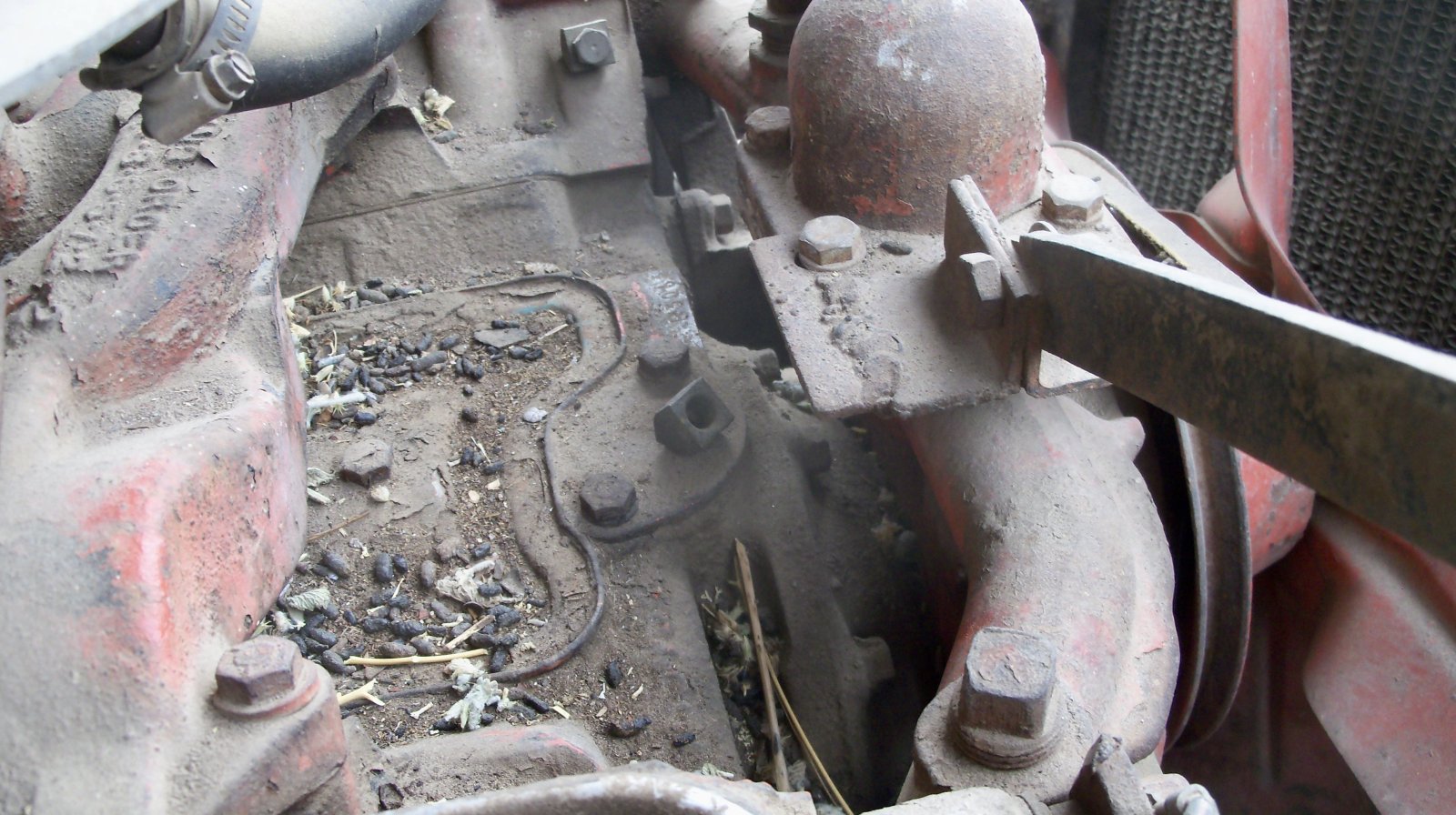

    Here are some pictures of a 289 in a '64 Lark in the yard. The number shows it is and R1 I think (10.25 to 1 CR) maybe R2 (9 to 1 CR because it was supercharged). It did not come in this Lark and there is a story behind it. I hauled it home from Chico several years ago along with some parts. I got it from a cool old former Stude mechanic. Excuse the packrat poop. There is a plate with a fitting for an oil line where the breather/fuel pump stand goes. Unlike the alternator bracket it looks stock. The valve covers have breathers/oil fill caps. The covers are stock chrome. No oil filter in sight. It might be one of the full flow screw on later blocks. I'm not crawling in the stickers to see. I need to see if it is savable. 100_0939 2.JPG 100_0940 2.JPG 100_0938 2.JPG

  15. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

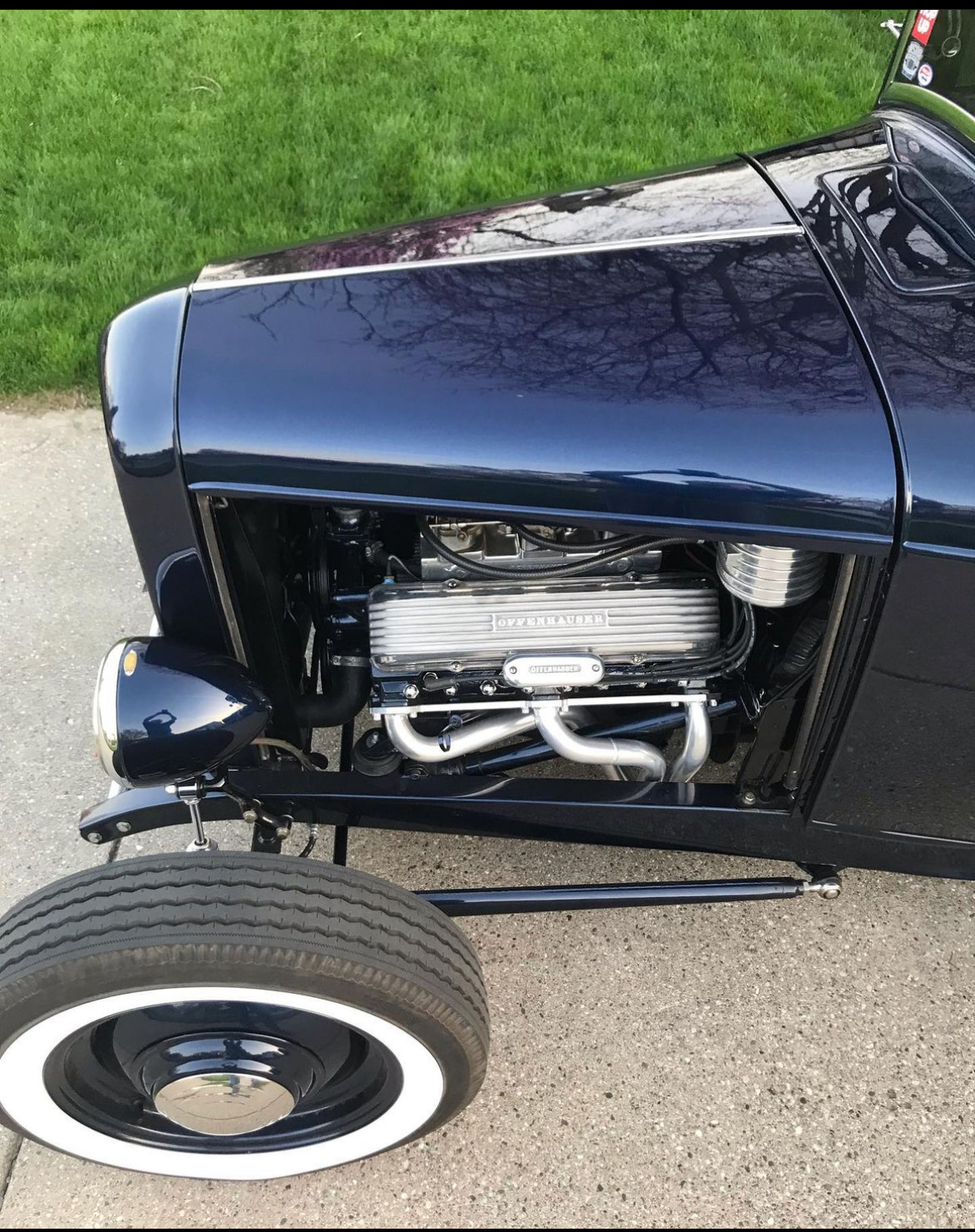

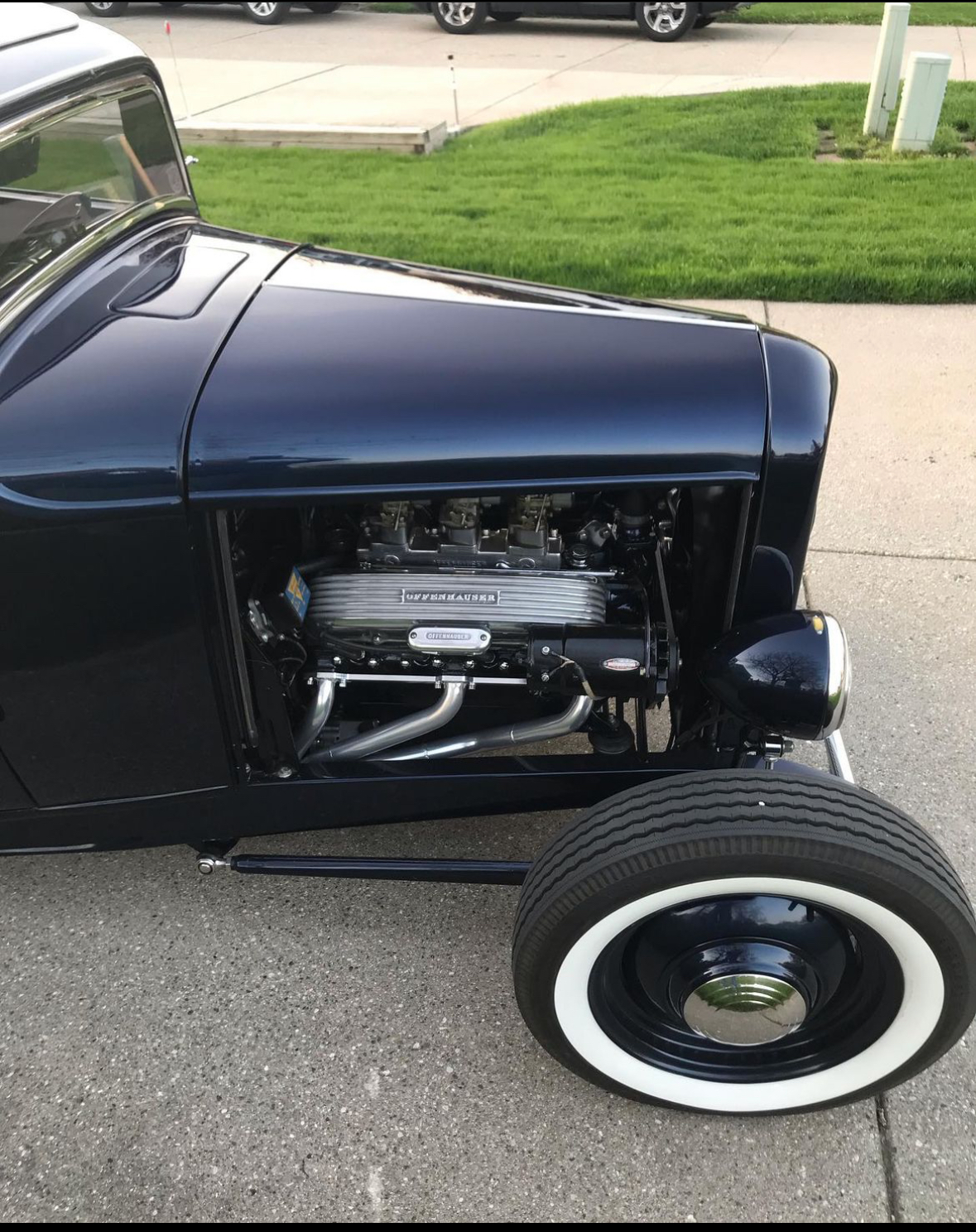

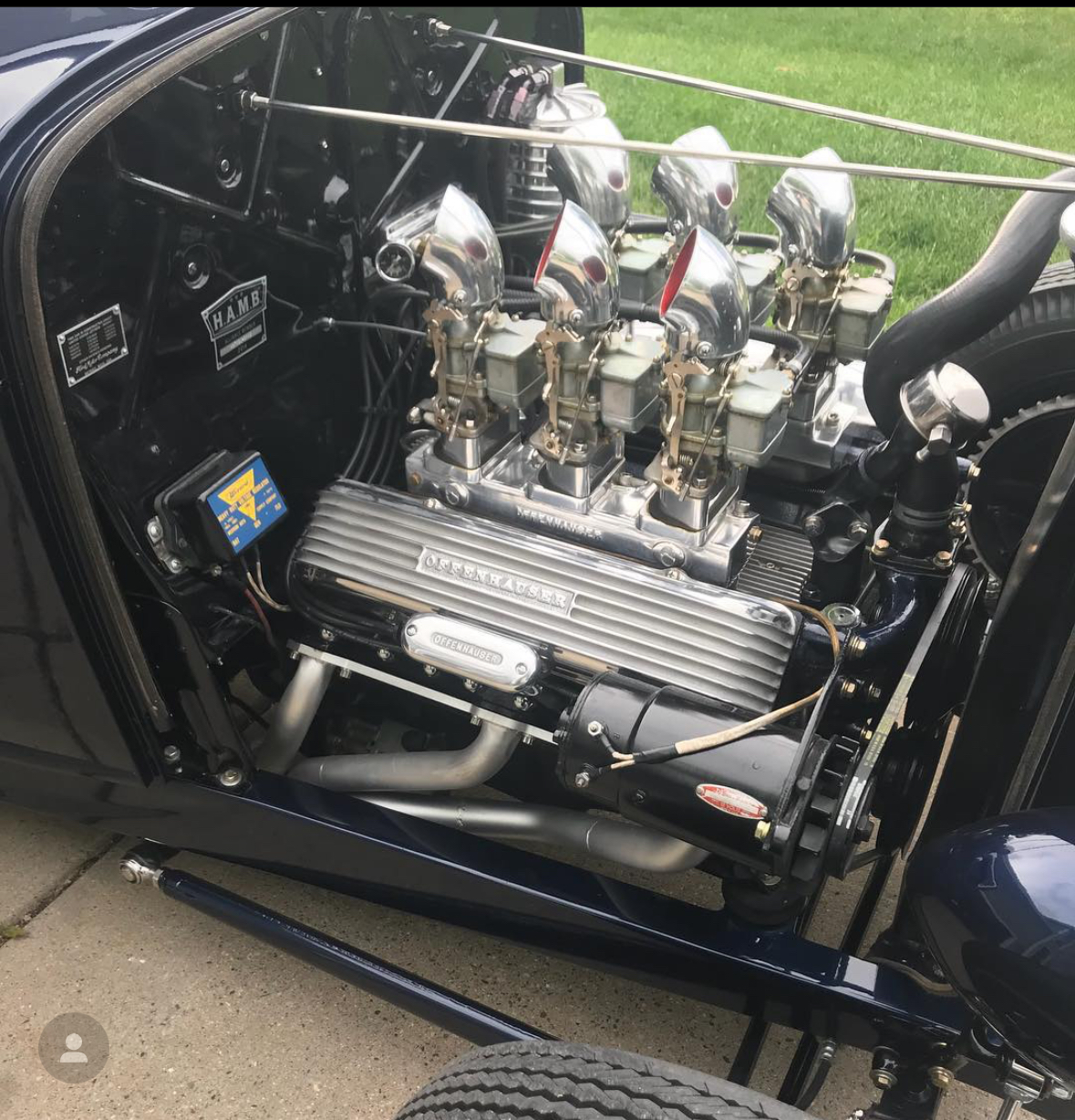

    Found this caddy powered 32 with a similar steering set up. I realize a 32 is likely to have the steering exit the firewall at a different height and a caddy isn’t a Stude but they are both close enough to steal photos of when it’s creeping up on mockup time so I’ll share them anyways.

    I tried to load them in order but if not at least one has the guys Instagram handle if you want to hunt for more. IMG_0512.jpeg IMG_0513.jpeg IMG_0514.jpeg IMG_0515.jpeg IMG_0516.jpeg

    a few of the passenger side because why not

    brEad, drdave, Thor1 and 3 others like this.
  16. Tuck
    Joined: May 14, 2001
    Posts: 5,869

    Tuck
    Tech Editor
    from MINNESOTA
    1. Early Hemi Tech

    Cross steer is where it’s at… less chance for bump steer. My pickup is setup this way. Moriarity has a dual point listed for a stude in the classifieds go nab it! Lookin good Tim

    Tuck

    Stogy, Thor1, Tim and 2 others like this.
  17. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Thanks @Tuck gotta see if this lump will fit before I get to far but I have been eye balling the classifieds. Need to get this big olds gone lol.

    IMG_0517.jpeg IMG_0518.jpeg IMG_0519.jpeg Been sick the last few days so why not start cleaning the 1/4 to 1/2 inch of oil clay off the trans? That’s not vomit inducing at all lol

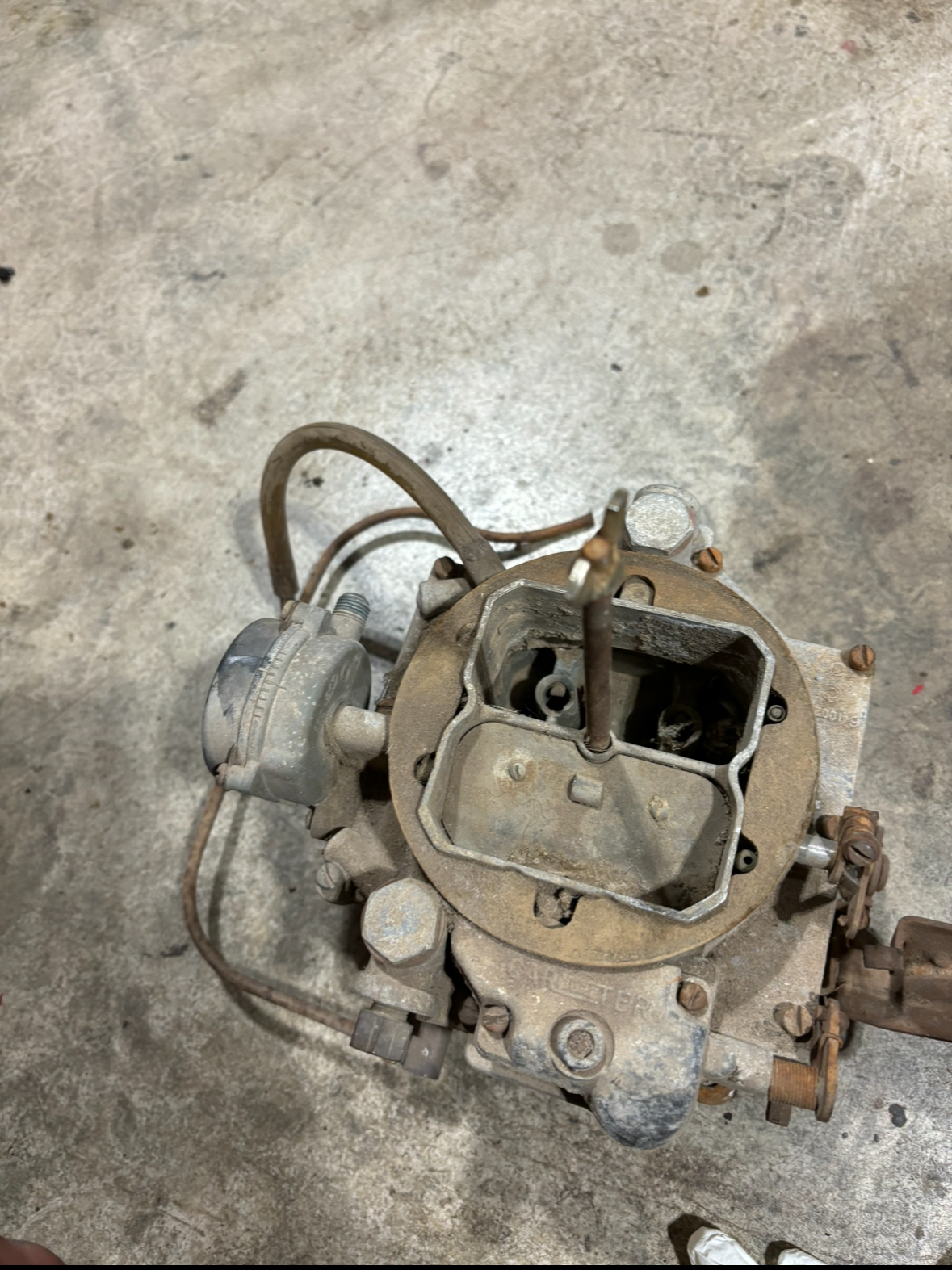

    IMG_0520.jpeg Got all this off just the intake, it’s been on the bottom of a storage rack for quite a while hiding under a bear skin so I’m sure much of it’s just stuff landing on it. Did vacuum a lot of dirt, sand and maybe white sand off it…. Which promptly blew out the back of the shop vac and all over my freshly washed 46 because I forgot I’d taken the filter out of it. Whoops. IMG_0524.jpeg carb primary was full of mud dauber nest but the bottom looks ok IMG_0521.jpeg IMG_0522.jpeg that’s about as far as we got today IMG_0523.jpeg was time to lay down and take a break get some fluids.
    IMG_0525.jpeg Still fun to walk by taking the trash out though.

    brEad, Stogy, Just Gary and 7 others like this.
  18. redzula
    Joined: Jul 6, 2011
    Posts: 1,275

    redzula
    Member

    Nothing witty or intelligent to add. Just sitting back and learning. The stude seems to have givin you some juice to this project Tim.

    Car sits great in the outside shots.

    Last edited: Dec 8, 2023
    Stogy, Six Ball and Tim like this.
  19. Just Tylers off the top of my head. But I know there are more I am forgetting

    Stogy, Six Ball and Tim like this.
  20. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Hey @Six Ball can you find out what jeep starter works on the later motor you buddy is using? I found it the other night but have miss placed the info and was thinking if I found the correct size gear that would fit the the jeep starter It should work on the earlier motor

    Stogy likes this.
  21. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

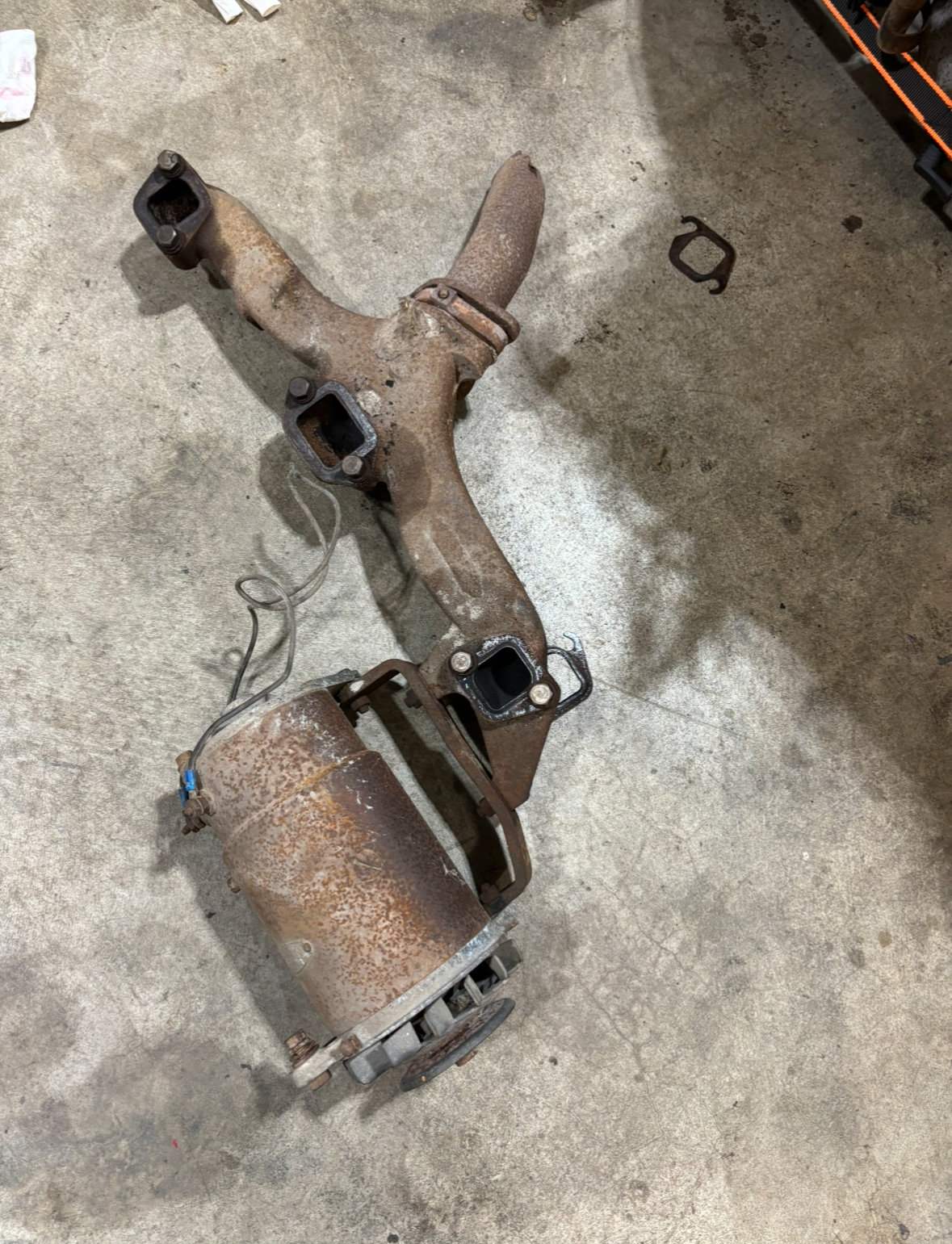

    Couple squirts of kroil a week and these exhaust manifold bolts damn turn finger turned out. I can’t believe how light they are. A sbc ram horn has to weight 3-5 times are much. These feel cast aluminum light. If they weren’t rusty I’d think they were. Must be thin castings? IMG_0539.jpeg IMG_0540.jpeg

    brEad, Tim_with_a_T, Stogy and 2 others like this.
  22. Six Ball
    Joined: Oct 8, 2007
    Posts: 6,745

    Six Ball
    Member
    from Nevada

    Did I say something about a Jeep starter? I'm farther gone than I thought. :(

    Stogy likes this.
  23. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    Yeah a friend uses a 87? Ish v8 jeep starter on his 56 or newer stuff v8? I found some things online the other night but the stude pages that come up today won’t load for me so the hunt died for the day.

    maybe it was somebody else lol

    Last edited: Nov 8, 2023
    Stogy likes this.
  24. nrgwizard
    Joined: Aug 18, 2006
    Posts: 3,011

    nrgwizard
    Member
    from Minn. uSA

    Exhaust manifolds were fairly light, flowed well for that engine size. Sadly, wait till you get to the water pump housing... ;( .

    Marcus...

    Stogy likes this.
  25. Six Ball
    Joined: Oct 8, 2007
    Posts: 6,745

    Six Ball
    Member
    from Nevada

    Man, I don't remember that. The only Jeep talk I remember is the T90 top plate.

    Stogy likes this.
  26. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    @Six Ball maybe it was someone else in the starter thread I’ll find it eventually.

    @nrgwizard man the intake weighed waaaaaay more then I expected!

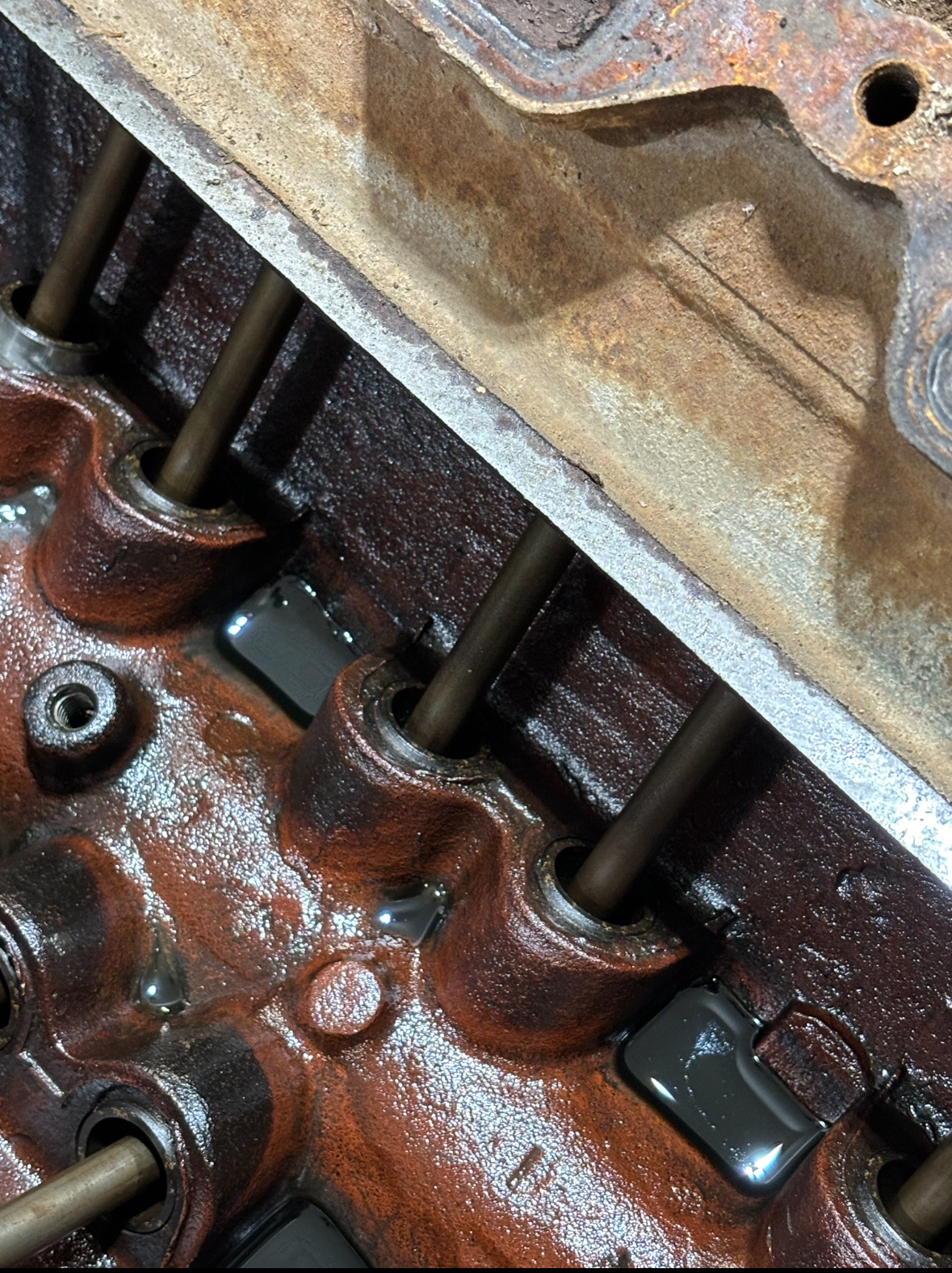

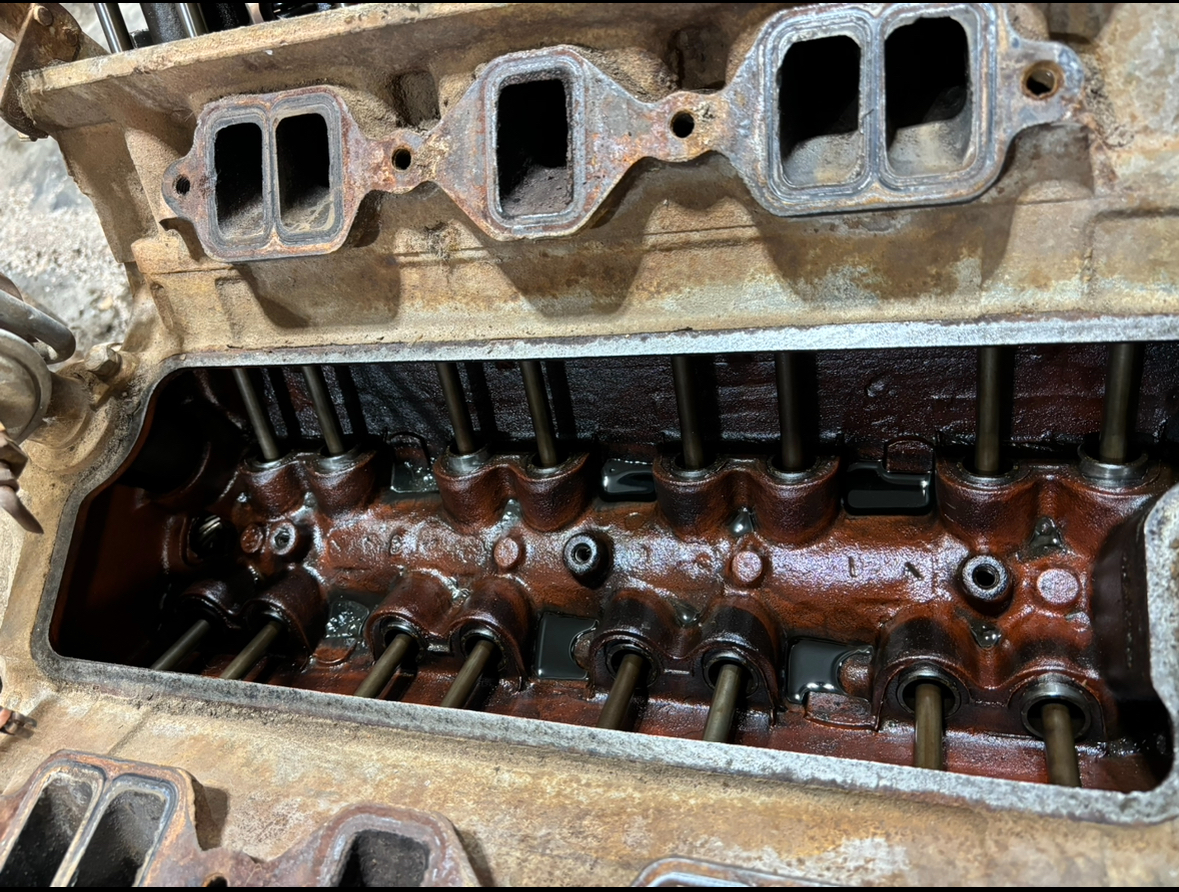

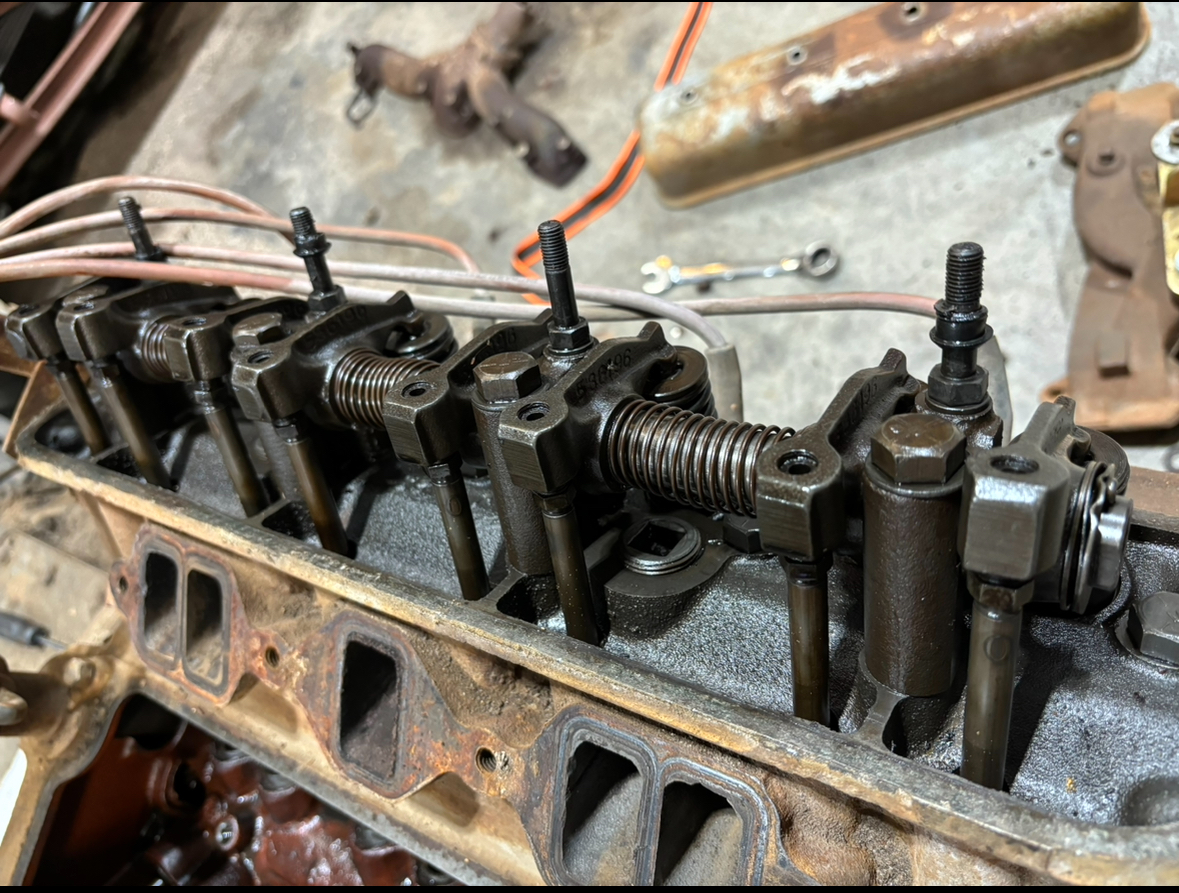

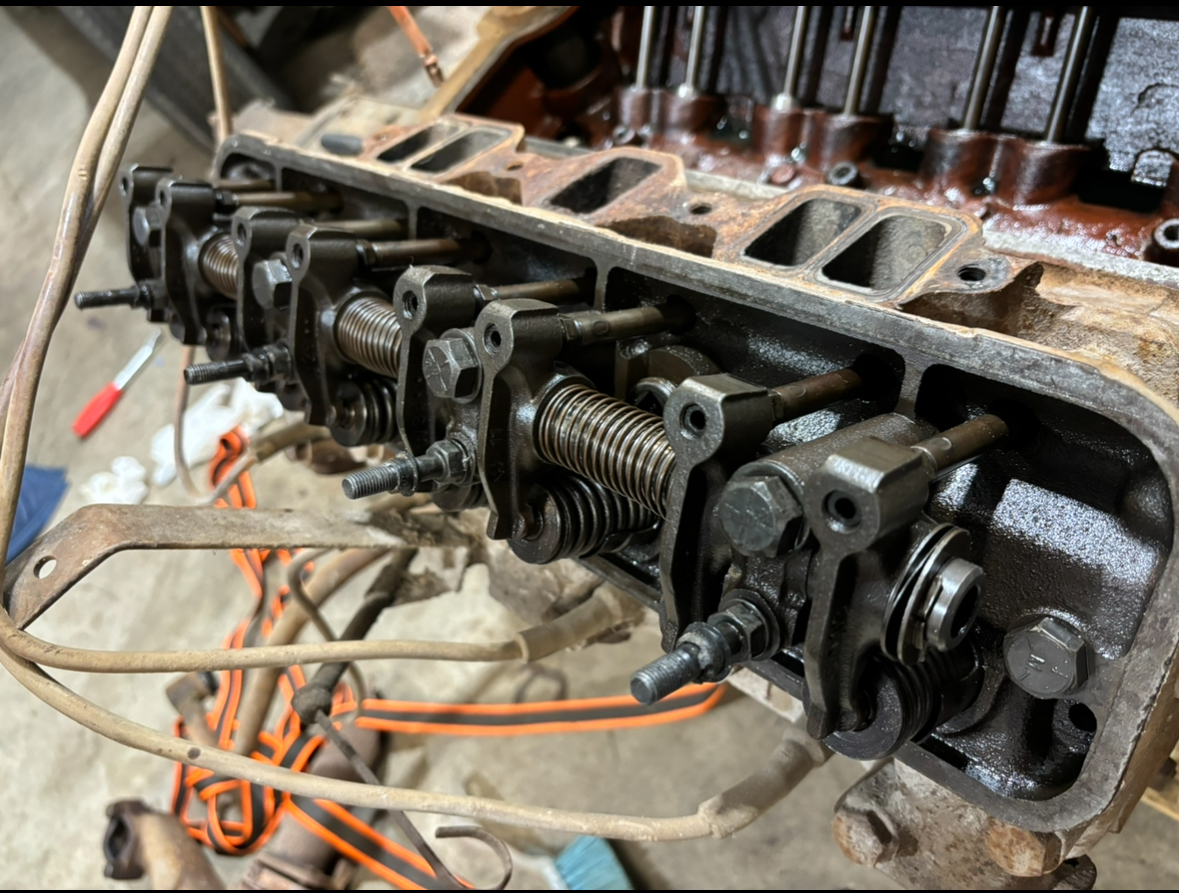

    decided to take the top off and see what’s in there! IMG_0563.jpeg IMG_0564.jpeg IMG_0565.jpeg IMG_0566.jpeg IMG_0567.jpeg Jack pot! Very clean! I notice in the photos some of the oil in the lifter valley looks grey. It’s not it’s nice and black it’s reflecting my white ceiling. I’m very happy to find this.

    brEad, Tim_with_a_T, Stogy and 3 others like this.
  27. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

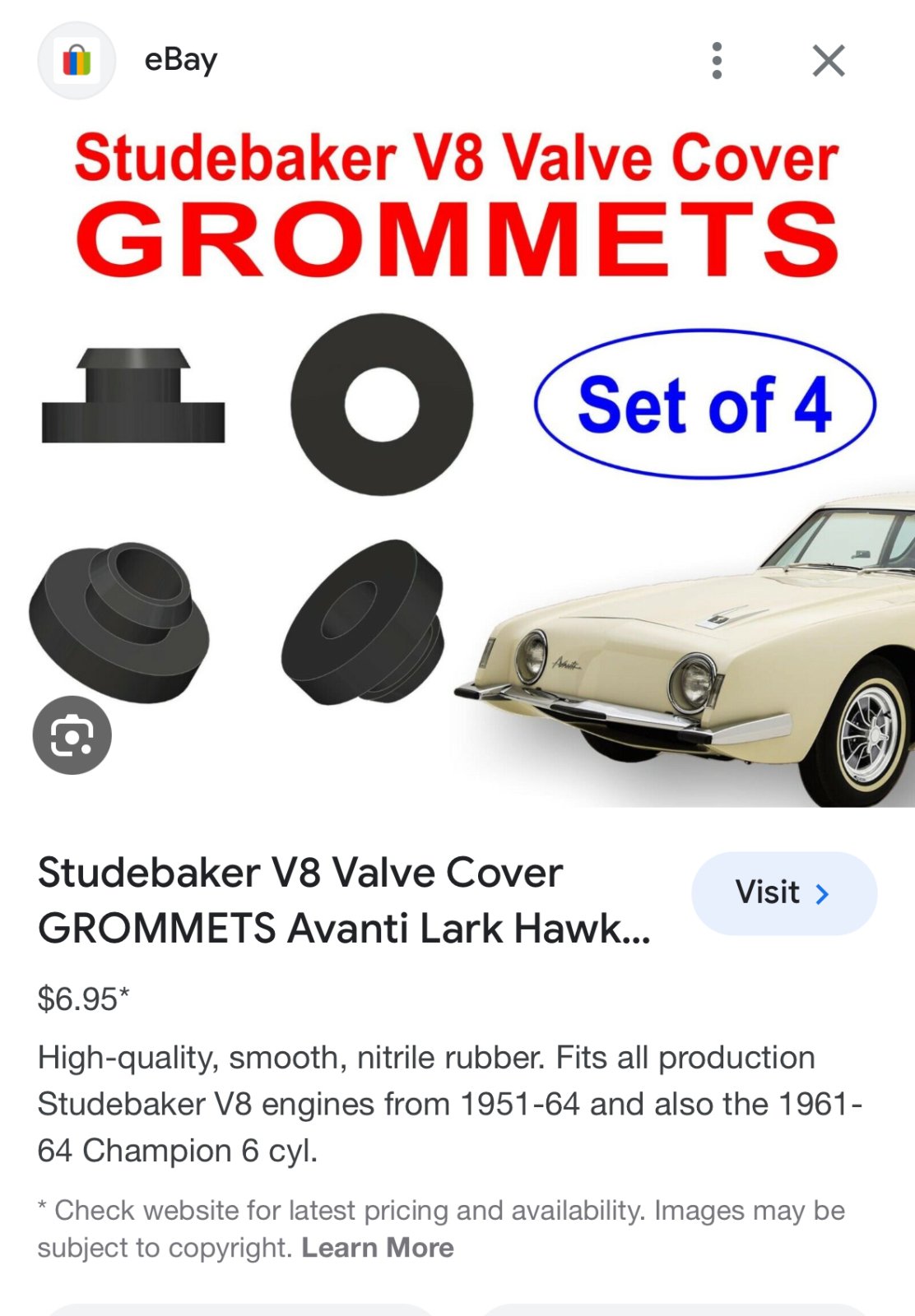

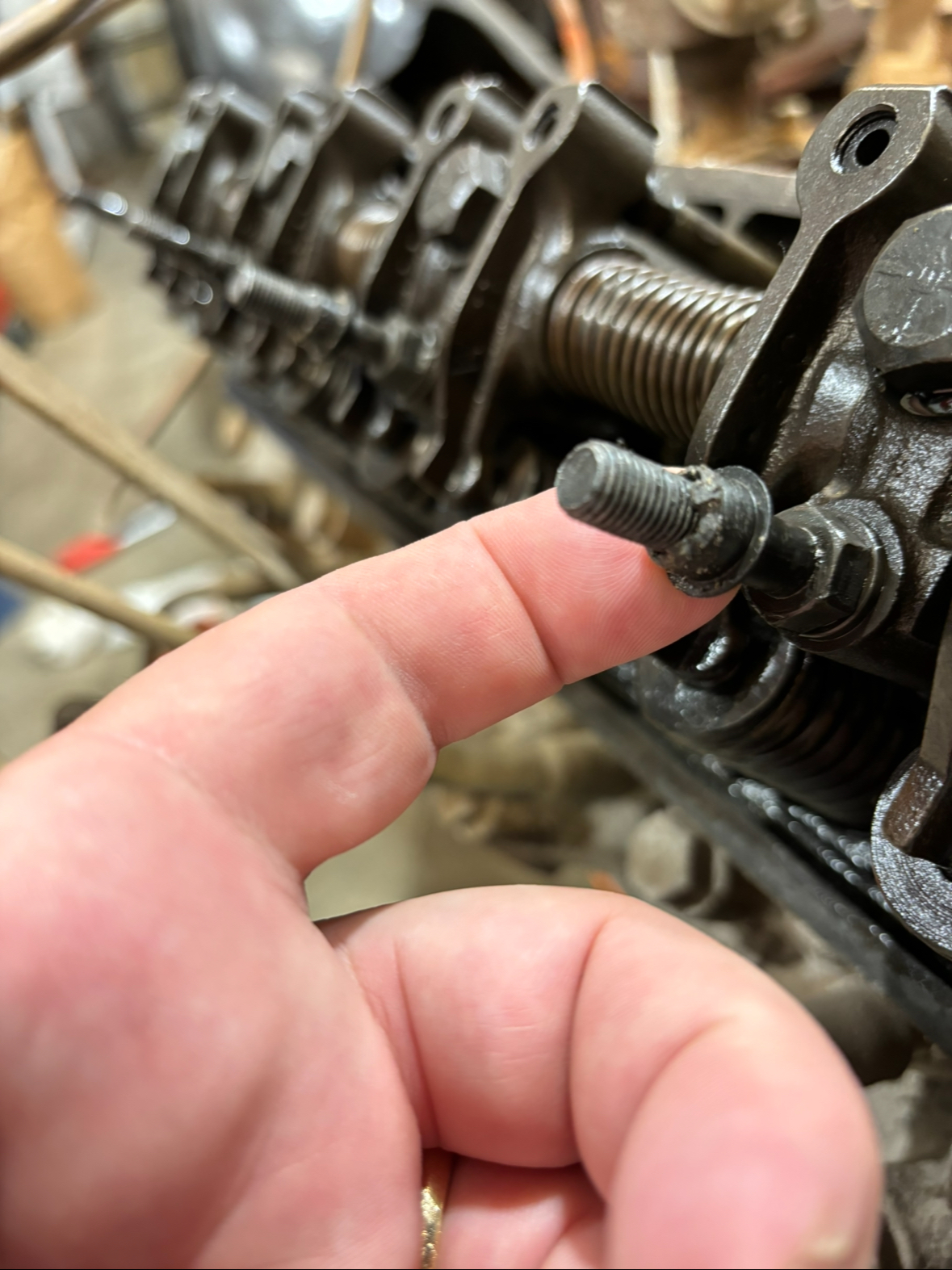

    I do need to find a source for these little valve cover grommets. Seems like some guys just go through a Dorman drawer til you find close enough.

    IMG_0568.jpeg IMG_0562.jpeg

    brEad, Stogy, Six Ball and 1 other person like this.
  28. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

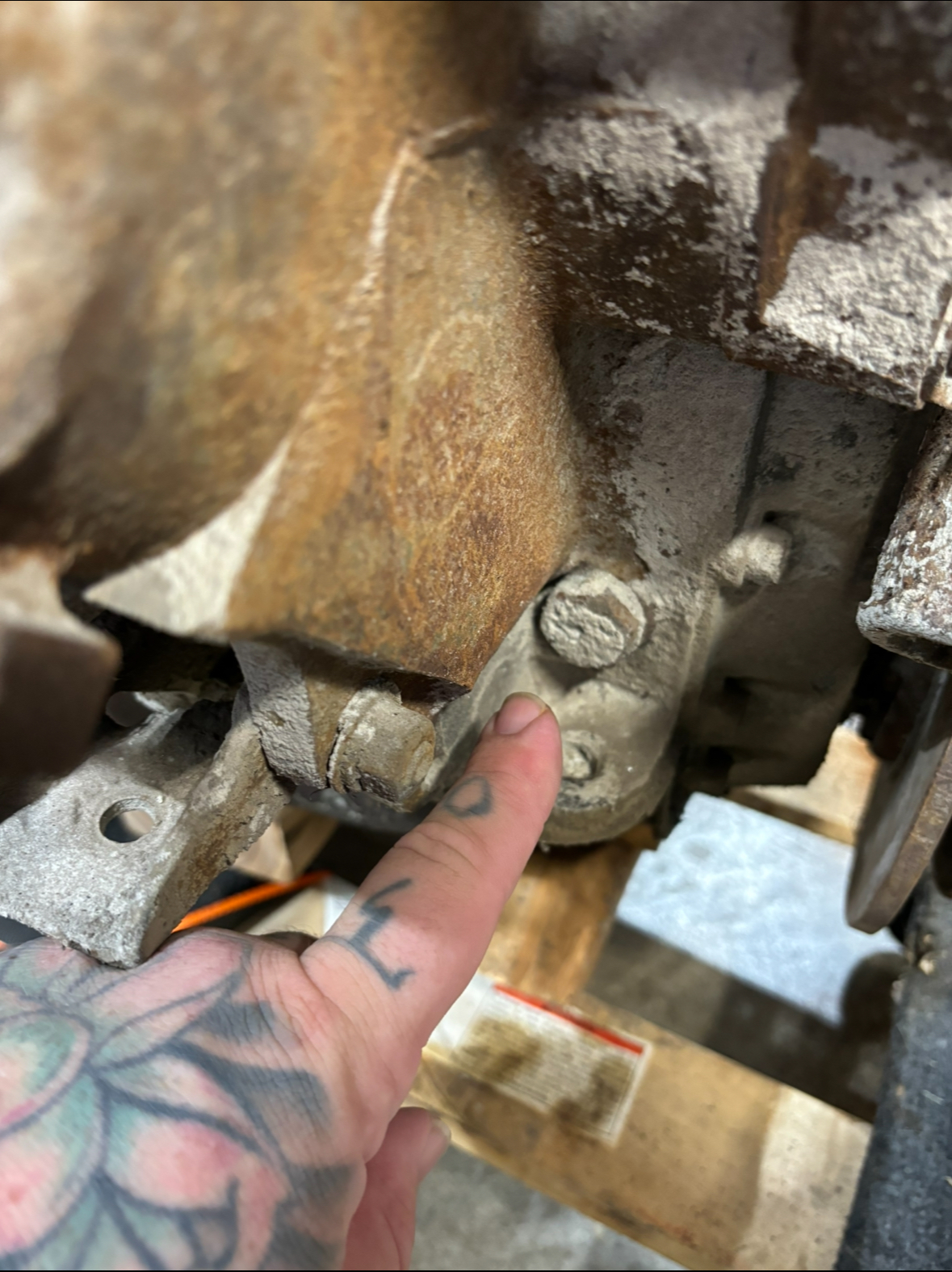

    IMG_0569.jpeg Assuming this is the oil pressure valve?

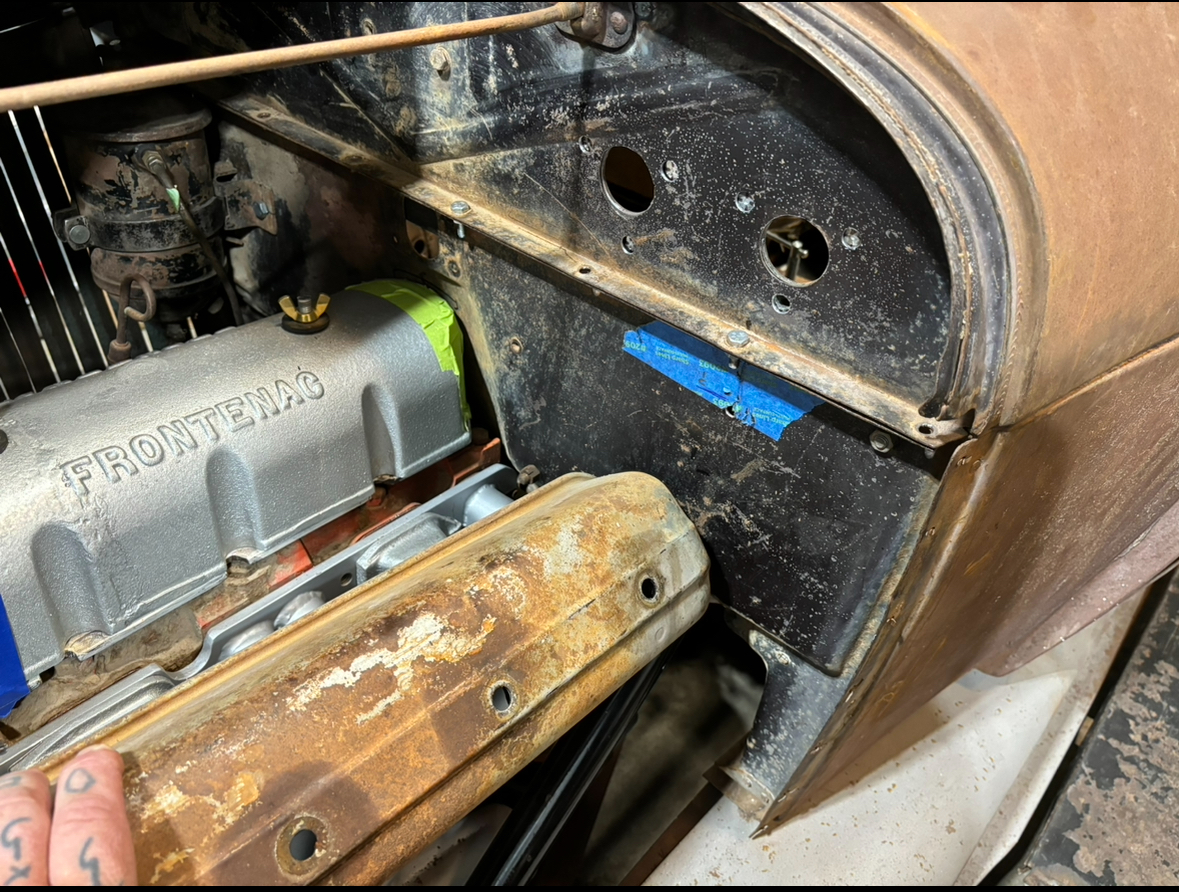

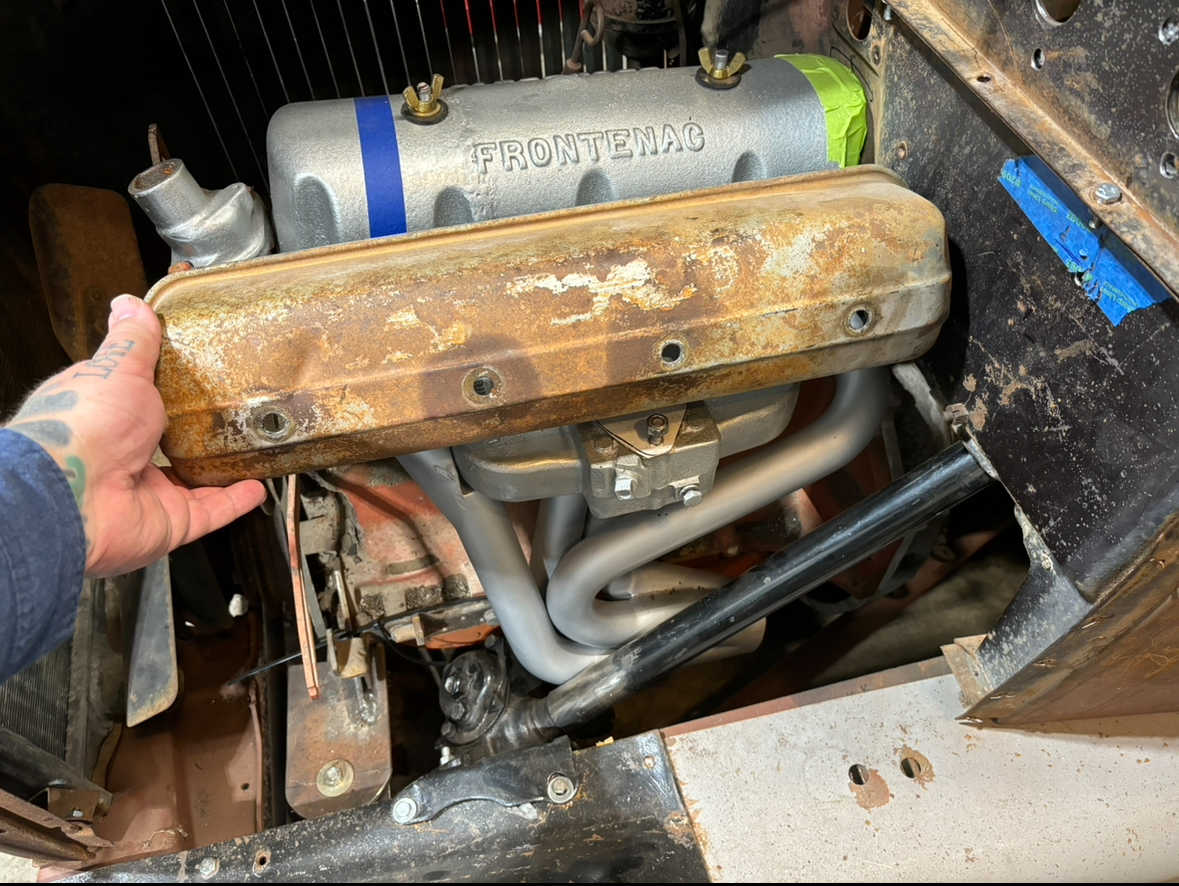

    IMG_0570.jpeg Big mess big success? IMG_0571.jpeg little bit longer lol IMG_0572.jpeg kinda sorta where that should land


    And that’s tonight’s updates :)

  29. Tim
    Joined: Mar 2, 2001
    Posts: 19,563

    Tim
    Member
    from KCMO

    @Six Ball


    “9000-15 Powermaster (V8 jeep to '87) works apparently but I'm not sure on specifics.”

    It was @Rynothealbino that had shared this not you. Knew I’d find it.

    Stogy and Six Ball like this.
  30. Six Ball
    Joined: Oct 8, 2007
    Posts: 6,745

    Six Ball
    Member
    from Nevada

    WOW, I never heard that before. I'll check it out. I may order one of those and compare it to the one I have. Then return it or keep it if it looks right.
    Engine looks good. Two tricks to get the oil back in the pan were to enlarge the hole in the back where it returns (looks like yours has some flashing) and to fill the valley with JB Weld and taper it down front to back toward the hole. There was also something about enlarging the drain holes in the heads. Neither of which you'd want to do without a complete tear down.
    I was trying to see, as you clean the transmission, if there is an OD kick out switch on the back of the tranny near where the OD bolts to it. It id a small unit that shorts out the solenoid when you shift into reverse. Otherwise you have to remember to shift the cable every time you back up. The OD does not like turning backwards.

    Last edited: Nov 8, 2023
    brEad, Stogy and Tim like this.
