Technical Tool Technical, help with a Sears Straight Line Sander

Discussion in 'The Hokey Ass Message Board' started by Hotrodjohn71, May 3, 2024.

  1. Hotrodjohn71
    Joined: Feb 25, 2018
    Posts: 130

    Hotrodjohn71

    I decided to disassemble my sander for cleaning and inspection.
    Can you instruct me on the propper orientation of the gears for re-assembly?


    Attached Files:

    Algoma56 and Tow Truck Tom like this.
  2. Johnny Gee
    Joined: Dec 3, 2009
    Posts: 14,027

    Johnny Gee
    Member
    from Downey, Ca

    Seeing that the gear in the center is offset to one side the pad will only drop into place one way. Think “go, no go”.

  3. You could probably take the Sears (R.I.P.) model number and google it and the owners and possibly the parts manual will come up. This might help you. Can I bitch for a minute about the death of Sears?? I need some new sockets and wish I could stop at Sears and buy good old Made in USA Craftsman’s. End of rant.

    Algoma56, vtx1800, reagen and 2 others like this.
  4. stuart in mn
    Joined: Nov 22, 2007
    Posts: 2,675

    stuart in mn
    Member

    It may not help much since it's kind of small and blurry, but there is an exploded parts diagram at the Sears Parts Direct website: https://www.searspartsdirect.com

  5. bill gruendeman
    Joined: Jun 18, 2019
    Posts: 937

    bill gruendeman
    Member

    You are right there is a lot of manuals on line for craftsman stuff. Not to long ago I got some craftsman tools replaced at Lowes, ace hardware sells craftsman tools also but I have not tried to replace any there. The quality not the same as old craftsman stuff.

  6. s55mercury66
    Joined: Jul 6, 2009
    Posts: 4,367

    s55mercury66
    Member
    from SW Wyoming

    Standard IR design, I'll try to remember to look at mine tomorrow, send me a PM if my response time gets too long. The dot on the gear has some relevance, but I haven't had mine apart for 2 or 3 years. I also just pull the top cap on mine and oil it there, which helps some if they have a lot of wear.

  7. If it is like the one I took apart a while back; center the drive gear in the middle of it's rotation and put the board back on in the center of it's travel. Hopefully it works the same as the one I had.

  8. larry k
    Joined: Feb 23, 2009
    Posts: 597

    larry k
    Member

    Looks a lot like a rebranded CP model , check the CP website !!!

    Algoma56 and Hotrodjohn71 like this.
  9. Hotrodjohn71
    Joined: Feb 25, 2018
    Posts: 130

    Hotrodjohn71

    I believe I have found a pdf file (although for Ingersol Rand models) that explains the process.
    Thank uou.

    Algoma56 likes this.
  10. KenC
    Joined: Sep 14, 2006
    Posts: 1,126

    KenC
    Member

    That 875 source code is Florida Pneumatic. I think they're still around and may have the info you need.

    edit: If it's like most, it is a knockoff of an older brand, but not necessarily identical.

    Algoma56 likes this.
  11. s55mercury66
    Joined: Jul 6, 2009
    Posts: 4,367

    s55mercury66
    Member
    from SW Wyoming

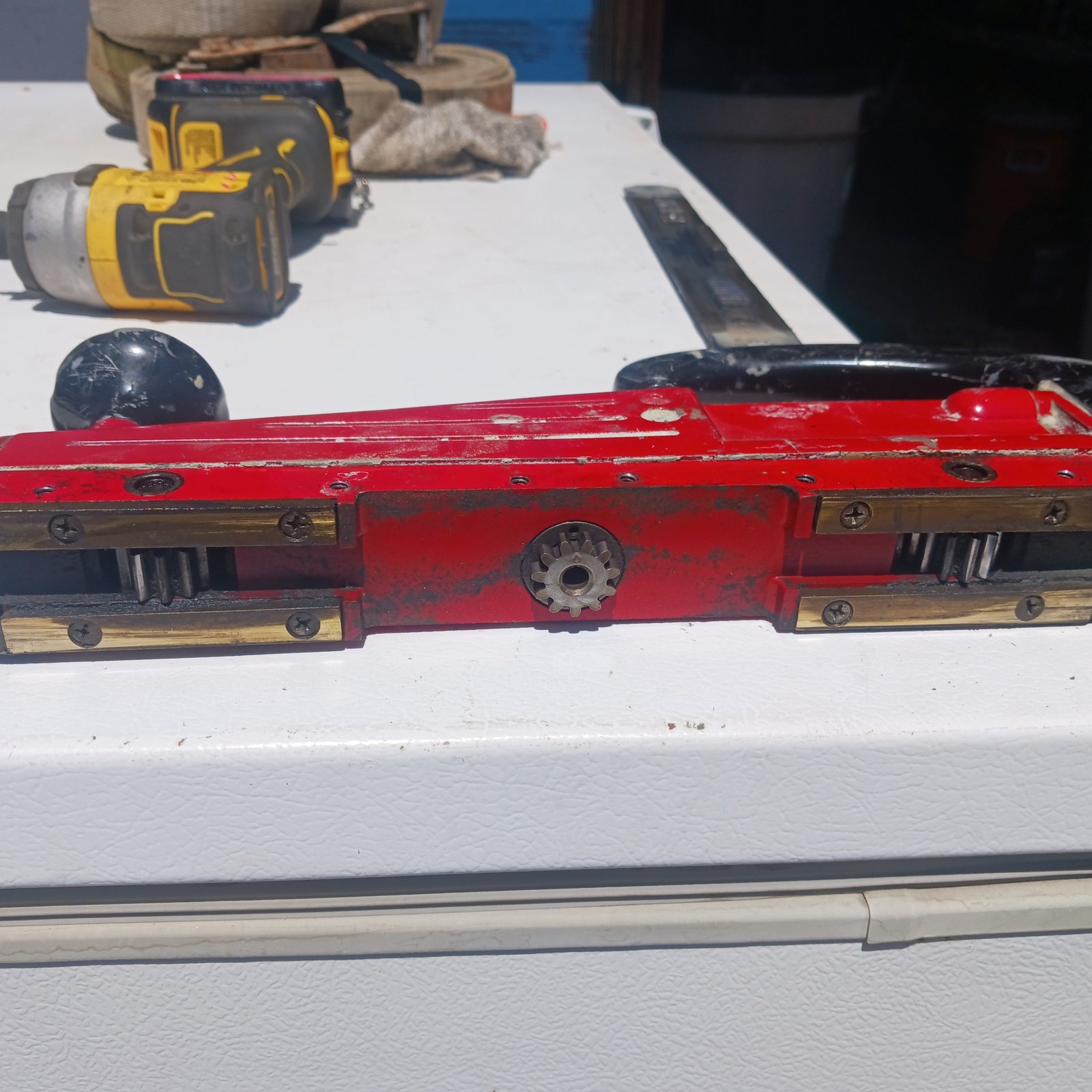

    First, before disassembly, center the slide. Pull the side plates off, but don't let the slide just drop off, carefully lift the body off the slide. Now, do not move the pistons, because they are actually offset, and don't need to be moved. If you pull the piston gears out, be careful on reassembly not to move the pistons, and those gears will have a tooth pointing straight down. The valve gear has timing marks, line those back up, reinstall the slide and you should be good to go. If you have moved the pistons, it will take some trial and error, at least it does here, to get them back in proper position. A pain in the ass, but not too big. Be careful with the screws, start them all before hand tightening, or break out the cordless and take your chances. Good Luck! 20240504_131318.jpg 20240504_131222.jpg

    alanp561 likes this.
