Do you have any photos where you drilled to install your shroud? I don't want to make a mistake and punch a hole in the wrong location.

Four hex head, slotted sheet metal screws with washers on each side.

The side frame on the Walker radiator is about 3/8" or 1/2" wide. Those core tube's behind the frame can't pass air, so they are made to not hold coolant, which provides area to mount a shroud.



Thank you pprather... I will start making my template now I know how to properly install it.



PM’d you with a couple pics.



Started the fan shroud. Gotta cut the fan hole and split it in half to make installation easier...

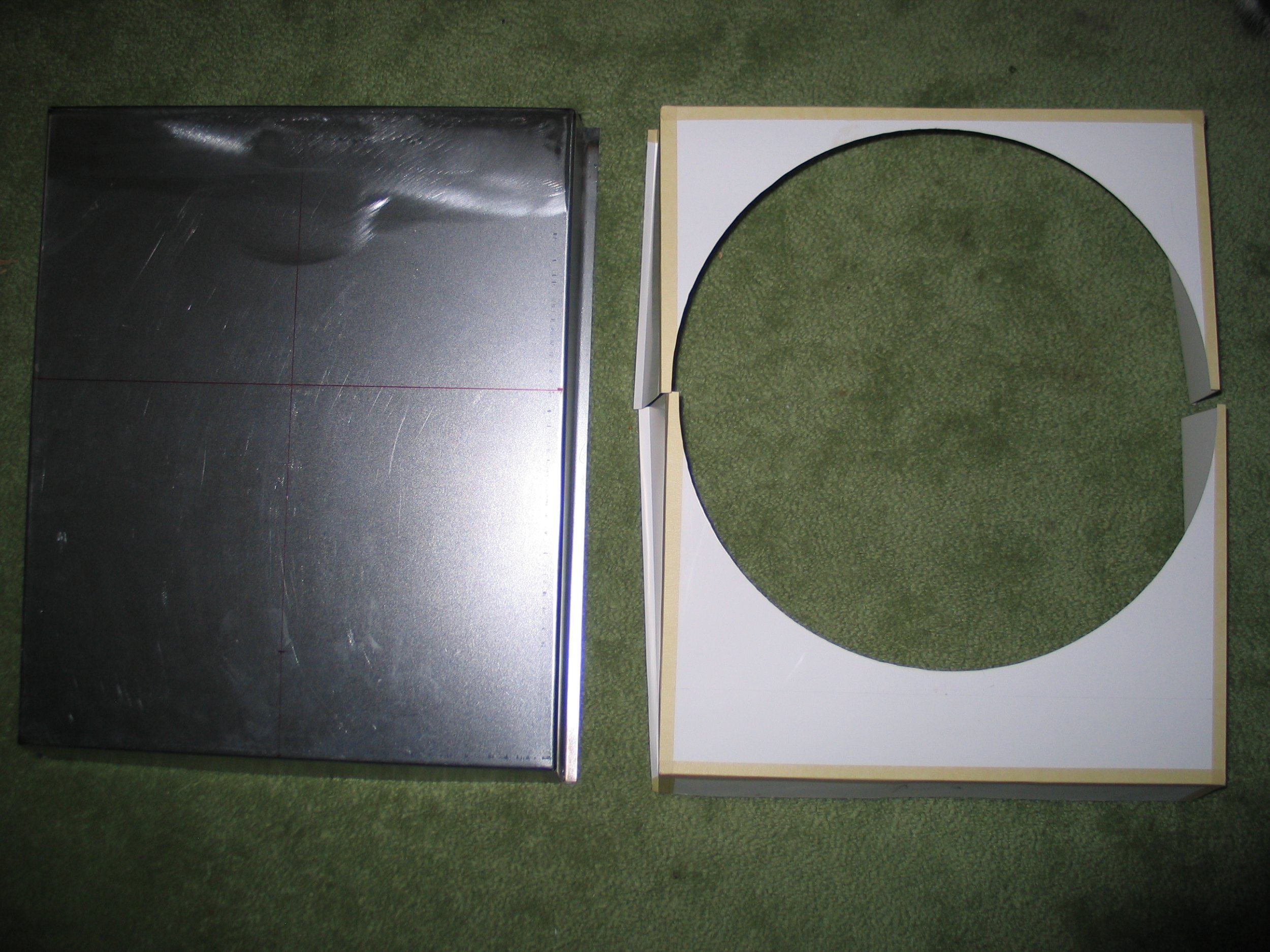

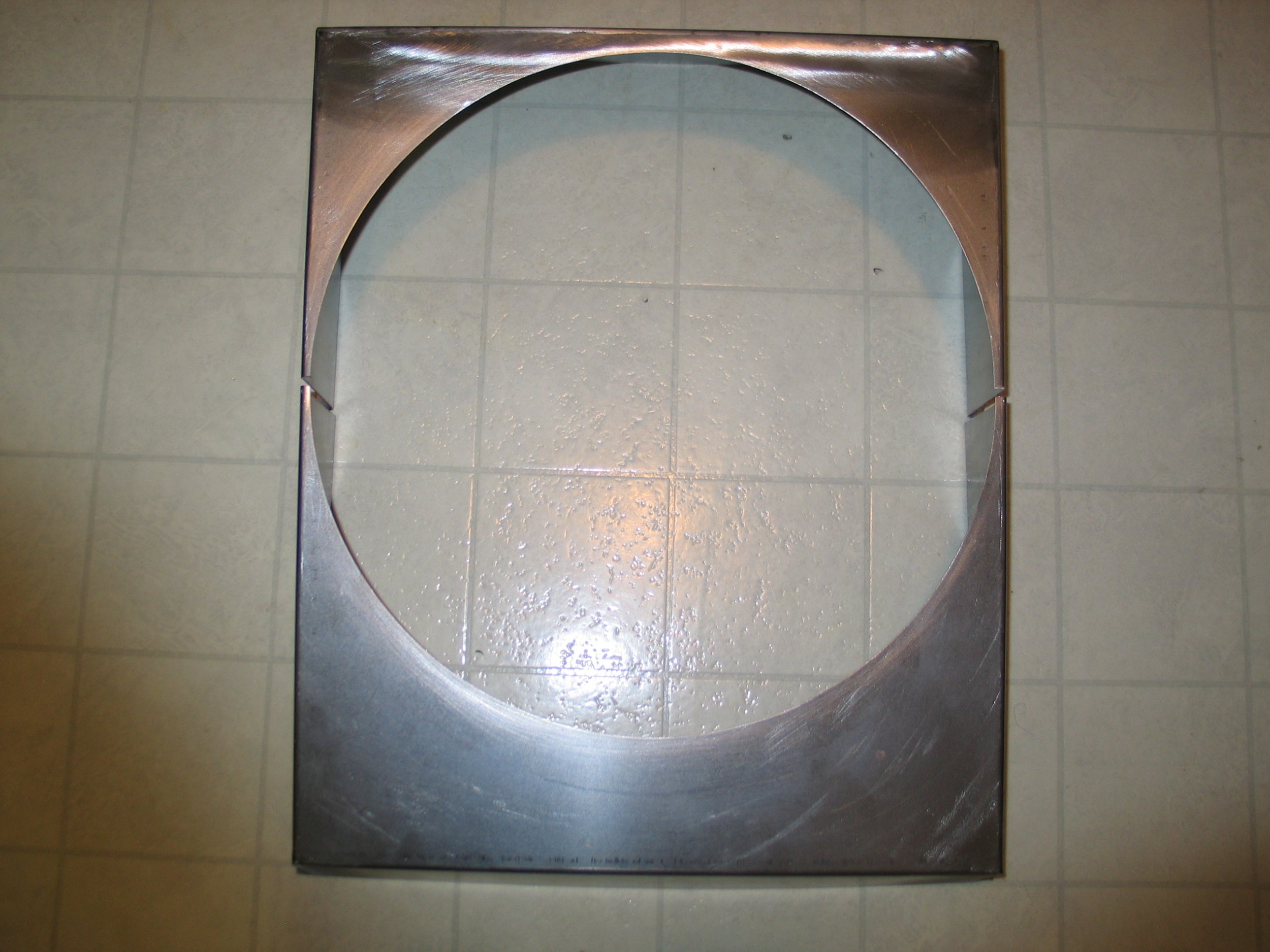

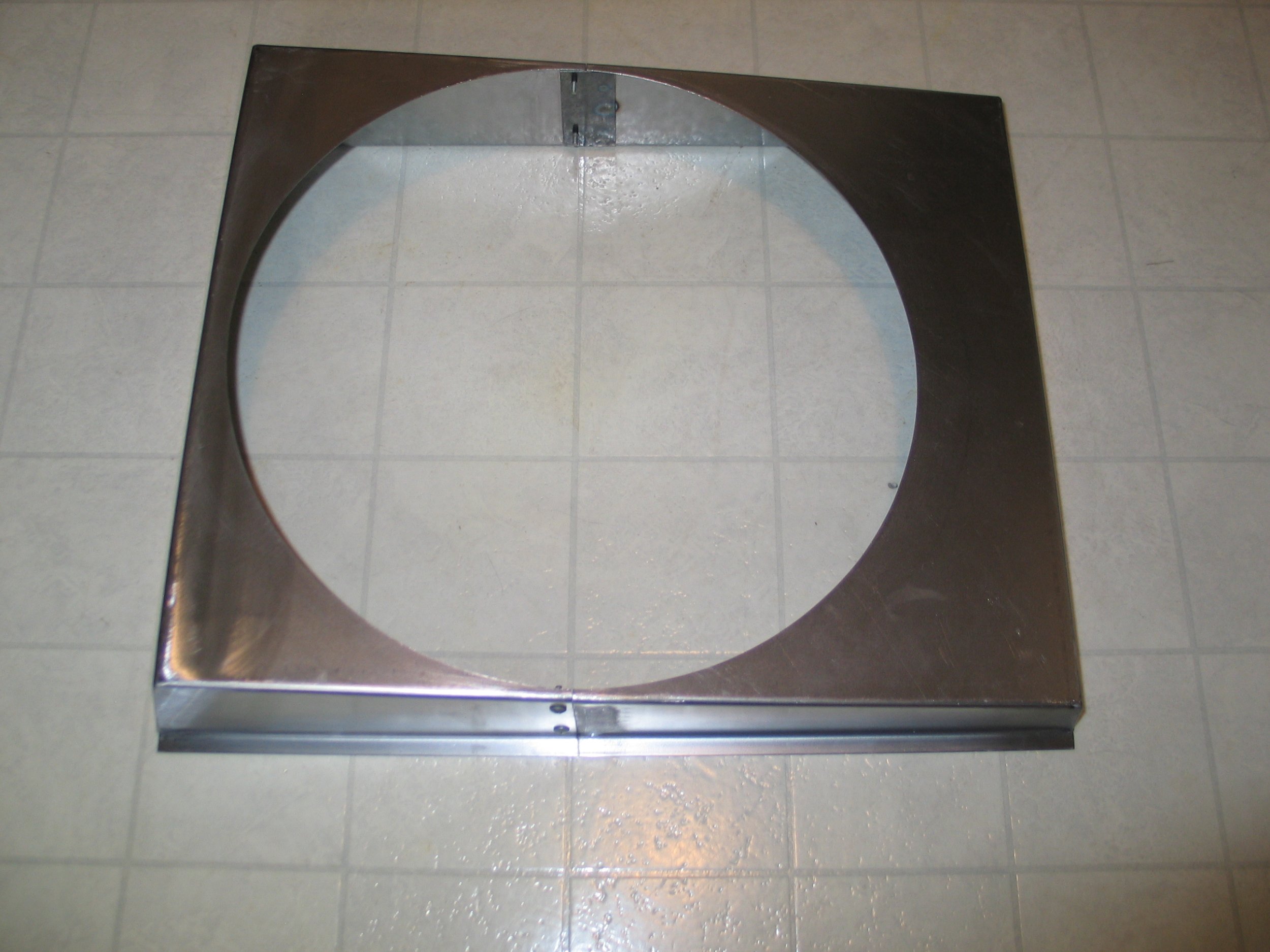

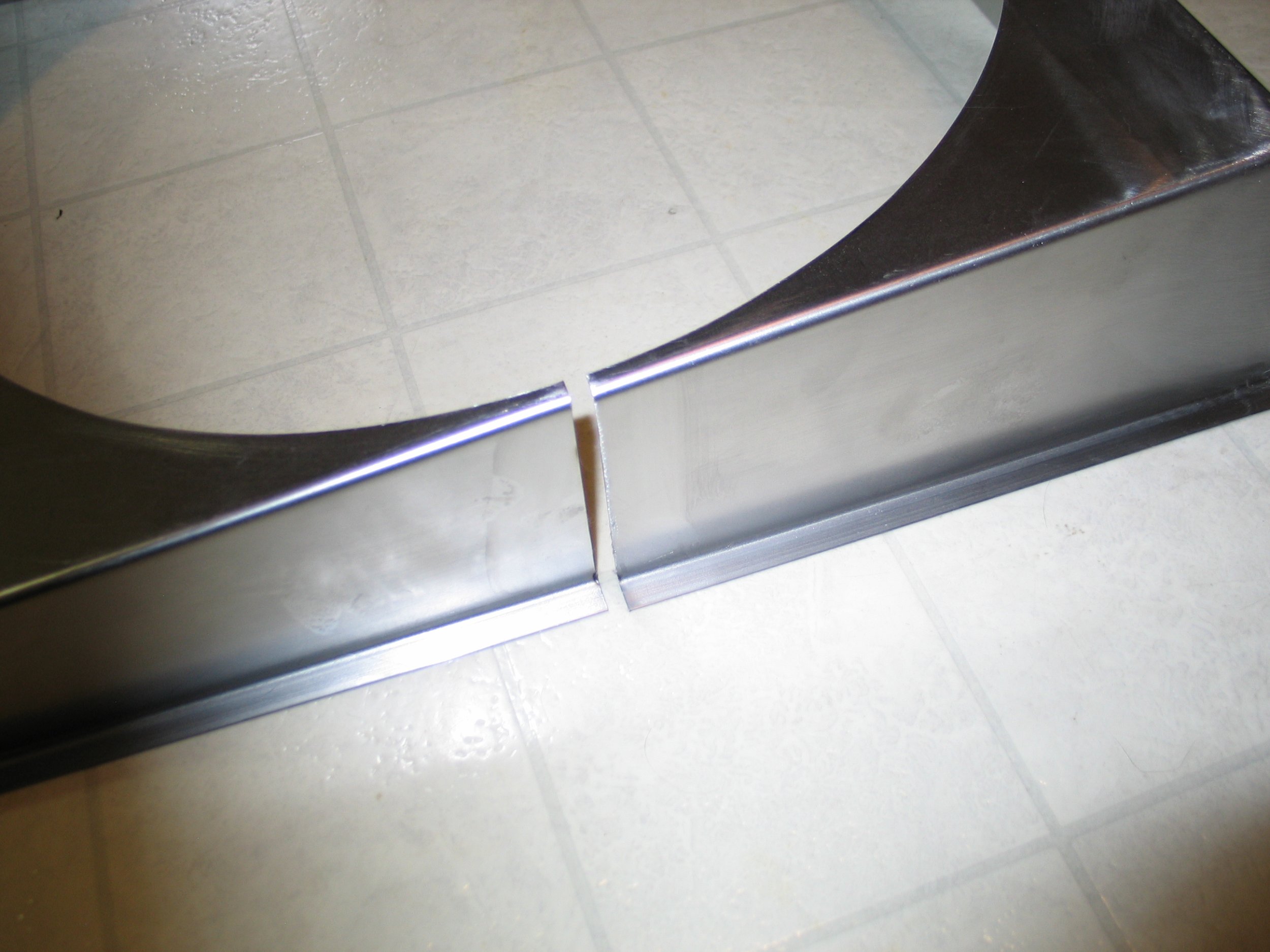

Fan hole is cut and shroud cut in half to make installation easier...



Nice work!



Curious, are you going to attach the 2 pieces of the shroud to each other after installing ?



Don’t know how I missed this thread over the years. Gorgeous work. Thanks for taking the time to post so many pics. Not enough build threads like this anymore

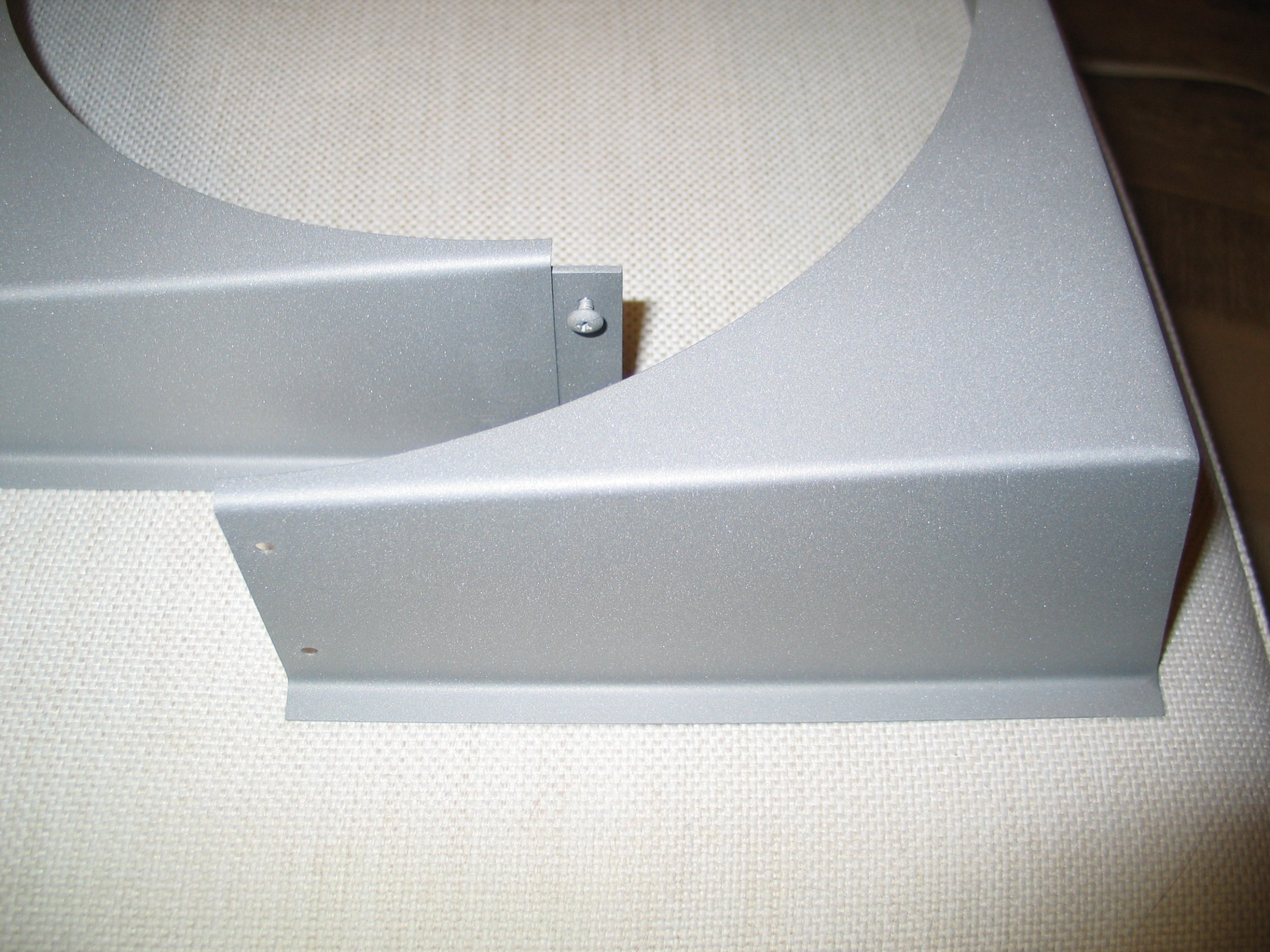

I plug welded two pieces of 3/32" thick metal and tapped the holes for 8-32 machine screws...



I know our garages aren’t that warm yet, but how goes the battle?
Really enjoying this build thread.



Sand blasted and body filler applied...



That’s the most beautiful shroud I have ever seen!

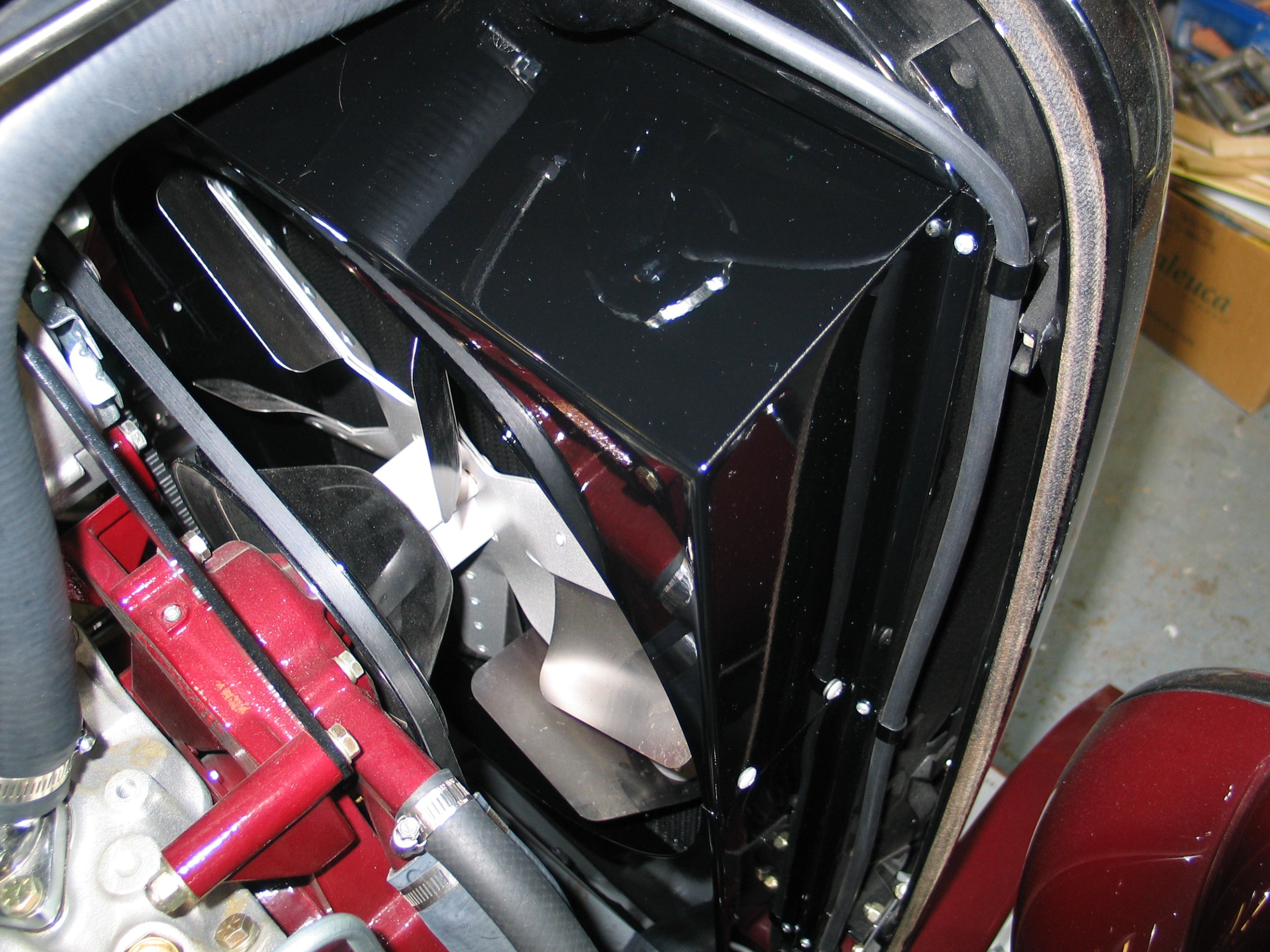

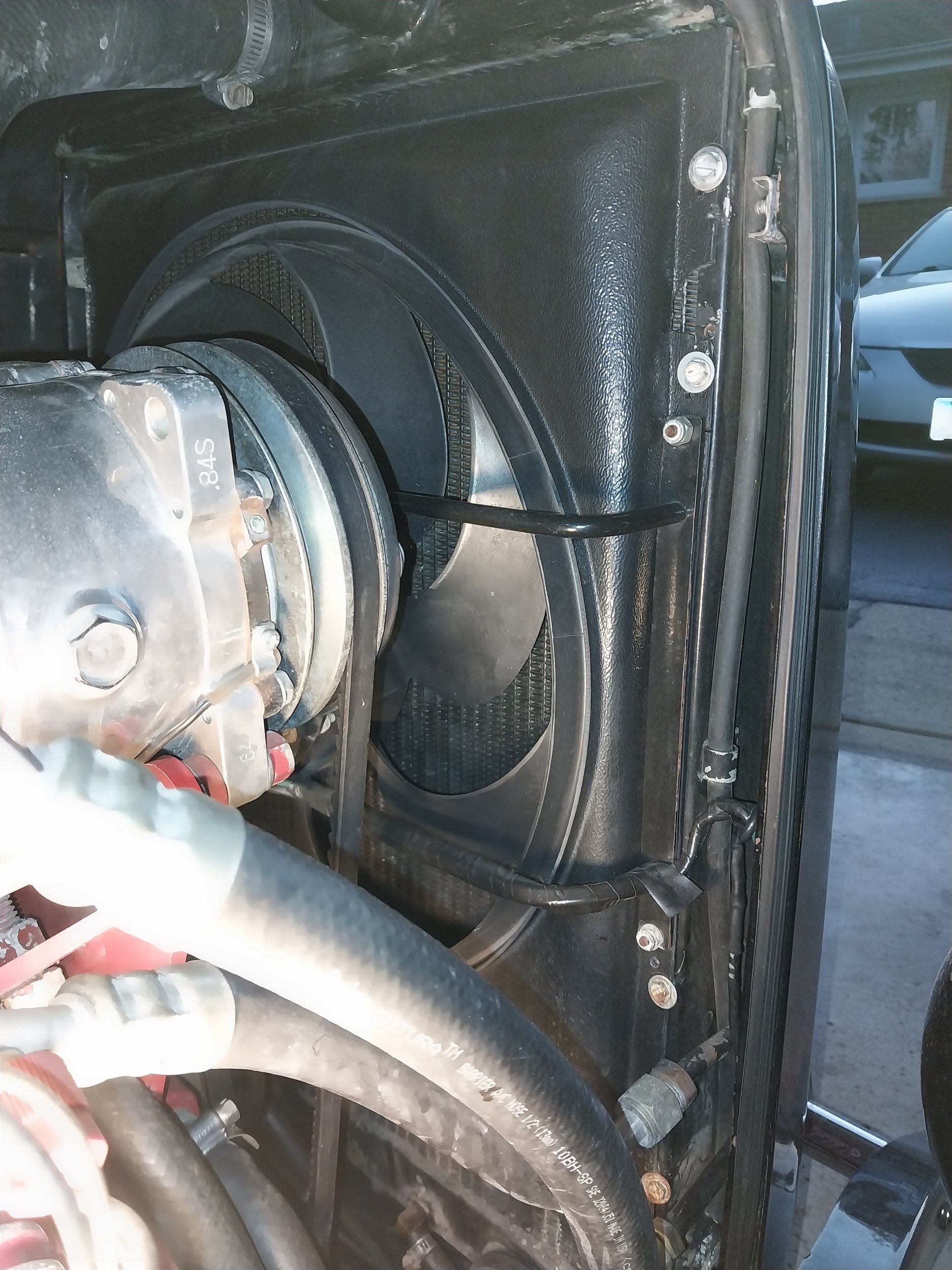

Fan shroud is painted and installed...
