Features Vintage Multiple Carb Intake Pictures

I really like this setup. I though my AFB's were close. All carb. Daaaammmm.

Got yer Smokey Yunick breathers & just dirty enough for that all business, mil-spec look.



in a '30 pickup



My model A



my model A Andy



I just posted this pic somewhere else. edlebrock sbc modified to a desoto.



The FE intake is for sale.

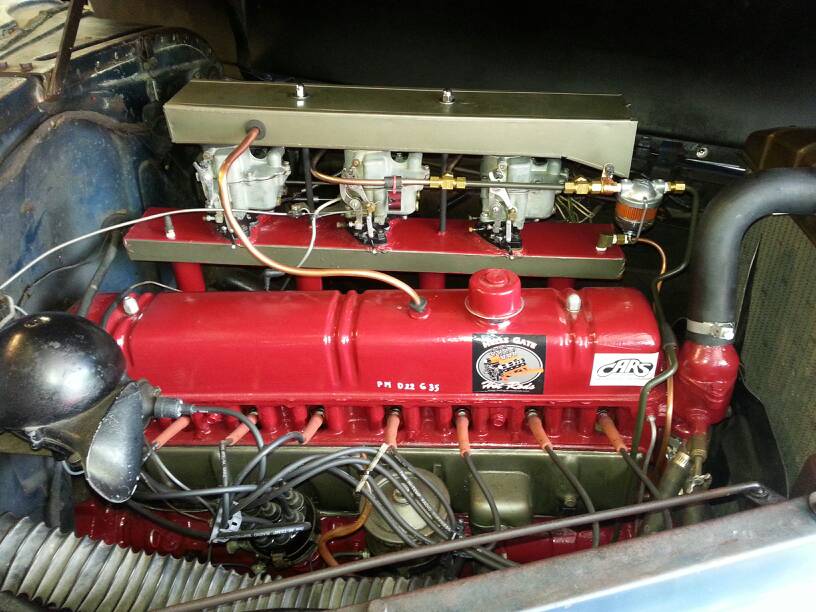

Hope mine is H.A.M.B worthy this my 35 chevy with triple dueces



Posted using the Full Custom H.A.M.B. App!



I really like your truck, and the intake makes the engine bay work overall


Posted using the Full Custom H.A.M.B. App!



Here's the FENTON on my 283.



I really like this thread, and it has been awhile, so I am bringing it back up.



Arnold Birner's Riley 4-port A motor w/4 Strombergs, circa 1940/41

Another view;


Jimmy Bean's dual-Winfield equipped A - 1939;



v8 screens



none of my pictures linked from albums in previous version are working..

so here's a couple... again..



....update

.



Slant six intake
6 tillotson HD carbs. Ran it successfully for two years.
don



That is something you don't see everyday. Cool.


Posted using the Full Custom H.A.M.B. App!

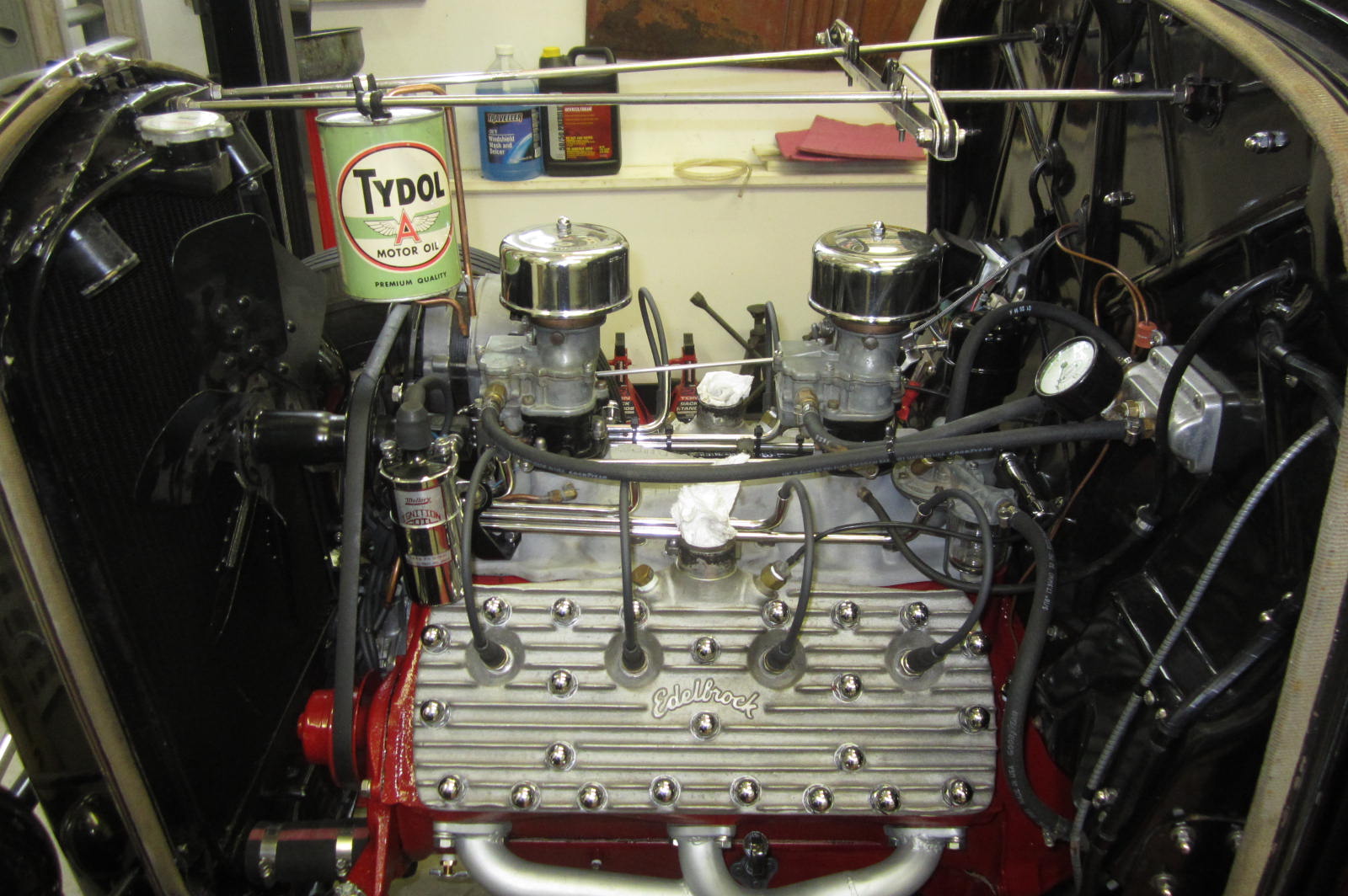

The two flatheads are 97's and 48's and mine. The six I took the photo years back.



248 buick straight eight tri power . I built it all over the winter .

Posted using the Full Custom H.A.M.B. App!



Thanks for posting. All of these are so cool!


Posted using the Full Custom H.A.M.B. App!



This is a great thread and it has been awhile, so to the top!



These log ram 413 and 426 wedges are BAD ***...not to sure how much performance gains, if any, but damn these things would scare the **** outta most guys, just on looks alone.



I'm rockin these dual Rochester's these days.



Chrysler hemi 2x1

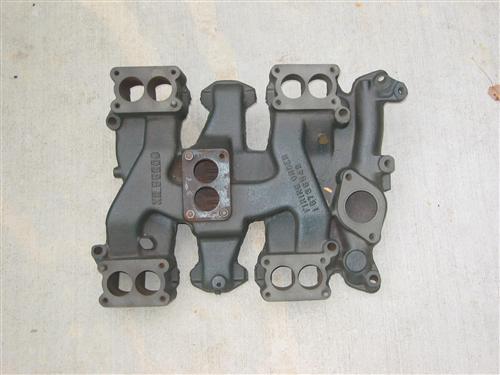

Anyone ever see one of these, I believe it was a Olds factory experimental intake. May be some one on the HAMB can shed more light on this.



Very cool, never seen one like it



That looks awesome, don't remember ever seeing one like it. I'm trying to picture a linkage that would work with that centre mounted carb. I could envision a progressive linkage with a larger cruising single and 8 barrels of fun when you nail it



Yes PKap that would be a challenge and fun at the same time, I am picturing a bell crank set up, wish I had one to experiment with LOL
