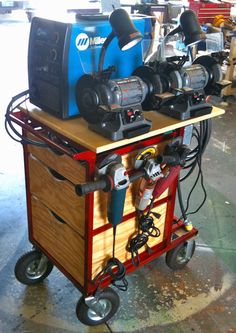

    I am looking to build a cart for my new TIG welder and want to do something fun and cool looking with it.

    Show me the coolest welder carts you have built or seen plain but functional to wild.


    Attached Files:

    ace5043 and Larry W like this.
  2. Paul
    Joined: Aug 29, 2002
    Posts: 16,936

    Paul
    Editor

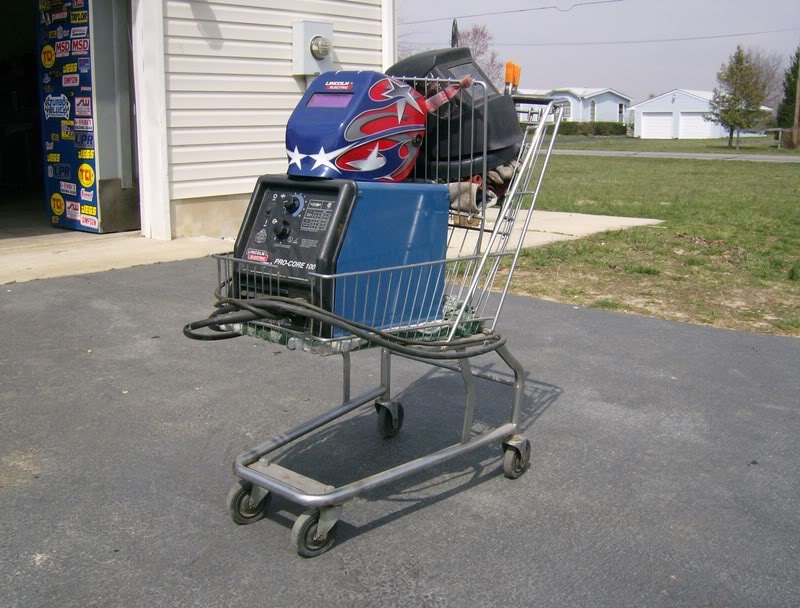

    my mig is on a simple cart made from a surplus shopping cart, the tig is stationary and parked under the bench.

  3. X38
    Joined: Feb 27, 2005
    Posts: 17,498

    X38
    Member

    Ditto. But once I modified everything there wasn't much left of it other than the base frame and castors!

  4. oj
    Joined: Jul 27, 2008
    Posts: 6,578

    oj
    Member

    Welder cart for TIG? Here'ys go the Daddy of them all:
    The Miller 330A/BP sitting on industrial 30gal watertank/cart with a 220v water pump. It's a tussle to get that big rig movin but once in motion it handles easily. I probably have about a 30' supply cable and the outlet is near the middle of the shop.


    Attached Files:

    Just Gary and Larry W like this.
  5. Just Gary
    Joined: Oct 9, 2002
    Posts: 5,774

    Just Gary
    ALLIANCE MEMBER

    And at the opposite end of the spectrum is the fly-weight cart I made when learning to MIG. It uses lawnmower wheels & handle. The "lightening holes" lower ETs and improve gas milage. ;):rolleyes:
    HR10.jpg HR11.jpg

  6. iwanaflattie
    Joined: May 14, 2011
    Posts: 4,154

    iwanaflattie
    Member

    Weird I also used Castors (us)..just gotta keep them away from the poles.
    2015-10-11 15.49.32.png

    gimpyshotrods and falcongeorge like this.
  7. Mr48chev
    Joined: Dec 28, 2007
    Posts: 35,807

    Mr48chev
    ALLIANCE MEMBER

    The one that you (Vonmoldy) showed is nifty looking but personally I don't want a bench grinder anywhere close to my welder and it's magnetic field. I can see the bench grinder with a tig where you need to sharpen the Tungsten on a regular basis though.
    Mine is built on the frame of one of Those little convertible hand truck/cart things that I picked up at a yard sale years ago. It isn't fancy enough to show a photo of but it holds the welder, tank and my angle grinders. I still need to rig a drawer for the expendables and small tools that go with it.

    38 mopar_fan likes this.
  8. V8 Bob
    Joined: Feb 6, 2007
    Posts: 3,140

    V8 Bob
    ALLIANCE MEMBER

    I built this mig/stick/gas cart back when garage space was premium many years ago. The piggy back oxy cart "steers", but can be removed with one bolt, and a 50' cable allows stick welding outside the shop.

    [​IMG]
    [​IMG]

    36 ROKIT, Perk74 and VonMoldy like this.
  9. blue 49
    Joined: Dec 24, 2006
    Posts: 2,112

    blue 49
    Member
    from Iowa

  10. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

  11. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

    Hey check this out! Really cool.
    [​IMG]

  12. Mr48chev
    Joined: Dec 28, 2007
    Posts: 35,807

    Mr48chev
    ALLIANCE MEMBER

    Someone good with a tube bender put that one together.

  13. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

    I got a tube bender and never used it yet. This might be a good project for it.

  14. nmpontiac
    Joined: Apr 24, 2007
    Posts: 1,235

    nmpontiac
    Member
    from Taos, NM

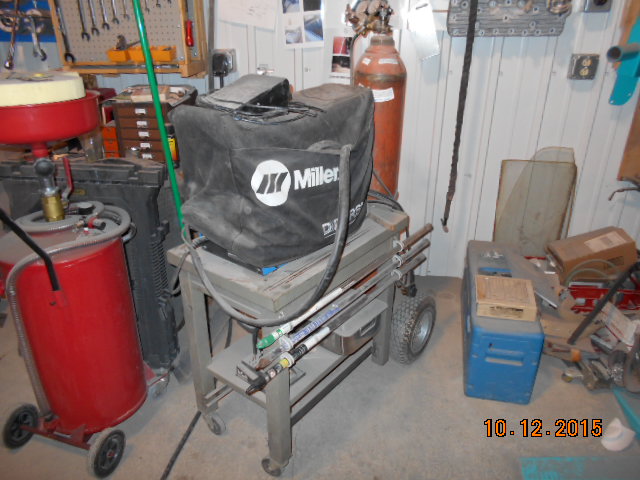

    I made mine from a little cart / table I got at a yard sale................ DSCN1443.JPG

  15. aaggie
    Joined: Nov 21, 2009
    Posts: 2,530

    aaggie
    Member

    I have the factory accessory cart that was included when I bought my Lincoln MIG and my Lincoln Precision TIG 225 has casters on it from the factory. If you go to WWW.WELDINGTIPSANDTRICKS.COM, Jody Collier did a multi part video on building a slick cart and the video is in the archive.

    VonMoldy likes this.
  16. shopdawg
    Joined: Sep 22, 2012
    Posts: 137

    shopdawg
    Member
    from alberta

    Made a mig cart from a old Honda 55 8177253828_f897c62902_z[1].jpg


    Attached Files:

  17. MP&C
    Joined: Jan 11, 2008
    Posts: 2,513

    MP&C
    Member

    In my shop floor space is such a premium that I need a real good reason for any machinery that is taking up space.. So when it came time to make a welder cart, it was made vertical to save that floor space. Tig, Mig, dent puller, and spot welder with timer..

    [​IMG]


    Build thread....


    http://www.garagejournal.com/forum/showthread.php?t=268777




    .

  18. 36 ROKIT
    Joined: Oct 3, 2008
    Posts: 1,568

    36 ROKIT
    Member

    Yeah, I'd say that cart has a Vertical theme going....!

  19. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

    Cool I will check this out I love that guy.

  20. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

    Holy crap. aWesome.

  21. rooman
    Joined: Sep 20, 2006
    Posts: 4,045

    rooman
    Member

    I am about to build one that I can take to the nostalgia drags. At the big events I have been borrowing to one owned and built by Steve and Ernie McClain when I have been asked to do repairs but I want to put something together for the NDRL series and other races that run in the midwest. I am going to follow their example and put a nice thick top on the cart to clamp to and it will also have a vise. 10" o.d. pneumatic tires on one end and casters on the other along with handles on the castor end to get it over rough spots in the pits. I have an AHP inverter welder that will run on both 220 and 110 so I should be able to plug it into just about anyone's power source. The McClain's unit has a Miller Dynasty which is great but it needs 220 volts and at times I have had to borrow their generator as well. I have most of the pieces and will post photos once I get it together.

    Roo

  22. 340HilbornDuster
    Joined: Nov 14, 2011
    Posts: 2,018

    340HilbornDuster
    ALLIANCE MEMBER

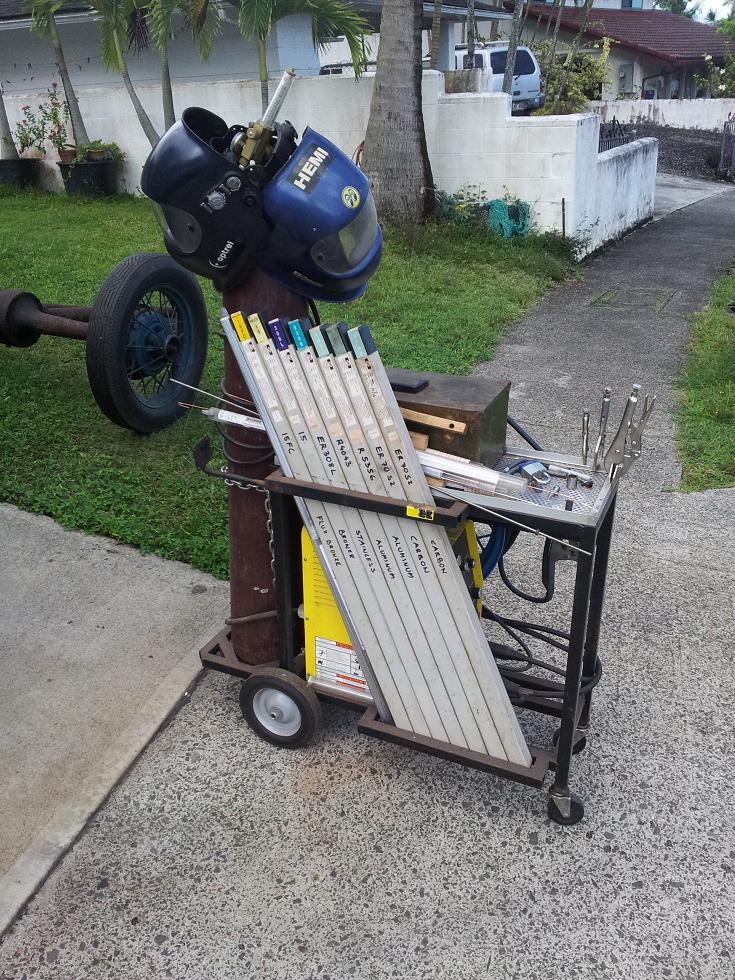

    The wire wheel was a later addition - I copied someone here at HAMB...works awesome!
    WC1.JPG WC2.JPG

  23. 56sedandelivery
    Joined: Nov 21, 2006
    Posts: 6,694

    56sedandelivery
    Member Emeritus

    No photos, but , my cart is a repurposed audio/visual department cart tossed out by a hospital I used to work at, so it was free. It has three shelves, all slanted towards the front, with a lip all around the shelves so things can't just slide off. It holds my 220 buzz box Craftsman arc welder, 220 mig, 110 mig, and since my oxy/acet is just a small setup, that fits too with the bottles lying flat. There's still room for electrodes/rods, wire, cables, helmet, and a box of tools. Only downside is it's kinda too big, but is on casters. A sheet covers everything up to keep dust off. I am Butch/56sedandelivery.

  24. RidgeRunner
    Joined: Feb 9, 2007
    Posts: 906

    RidgeRunner
    Member
    from Western MA

    Storing the bottles flat is very bad practice. The acetylene bottle should only be used vertical after being vertical for considerable time for the acetone to settle and remain in the bottom.

    Yes, I've transported, stored, and used 'em horizontal and gotten away with it but that was when I was still young enough to think I knew everything.... May be a cynical old fart now but I realize just how lucky I was to make it this far.

    Transport, store, and use 'em vertical!

    Ed

  25. Beanscoot
    Joined: May 14, 2008
    Posts: 3,571

    Beanscoot
    Member

    Large wheels or casters so that it's easier when rolling it outside over lawn or rough pavement.

    VonMoldy likes this.
  26. 56sedandelivery
    Joined: Nov 21, 2006
    Posts: 6,694

    56sedandelivery
    Member Emeritus


  27. Stumbled on this
    Down and dirty.


    Bandit Billy and VonMoldy like this.
  28. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

  29. VonMoldy
    Joined: May 23, 2005
    Posts: 1,562

    VonMoldy
    Member
    from UTARRGH!

    Awesome! The wheel is a great idea for keeping cables tidy. Also bonus points for the cat.

  30. iwanaflattie
    Joined: May 14, 2011
    Posts: 4,154

    iwanaflattie
    Member

    I know i know old thread.
    Just made this.

    hrm2k, 37 Millrat, saltflats and 6 others like this.
