What do these bell housings and this adapter fit?

Discussion in 'The Hokey Ass Message Board' started by Charlie DeLong, Nov 28, 2008.

  1. Charlie DeLong
    Joined: Apr 30, 2007
    Posts: 50

    Charlie DeLong
    Member

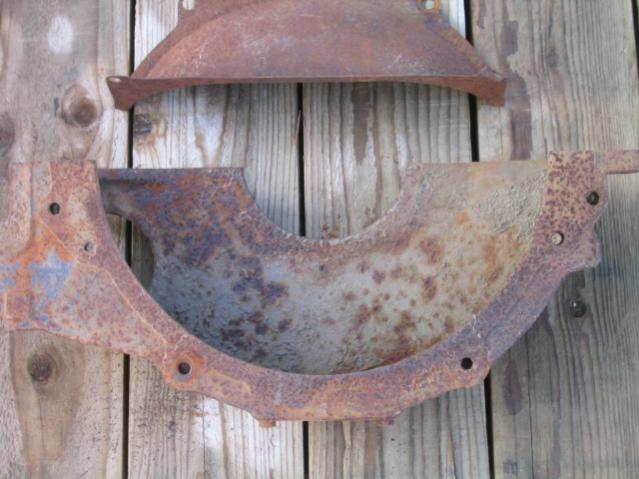

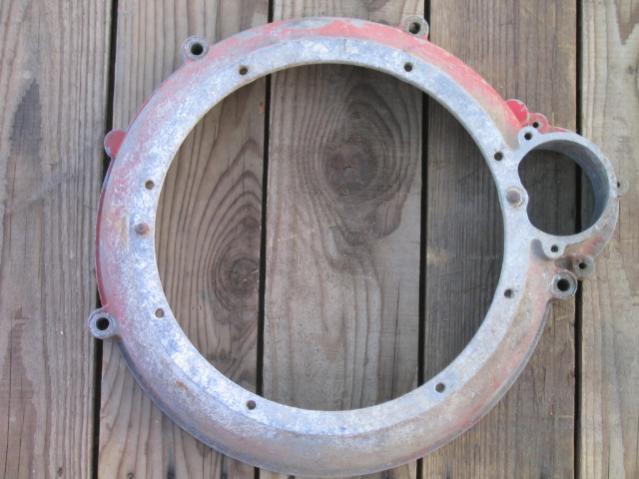

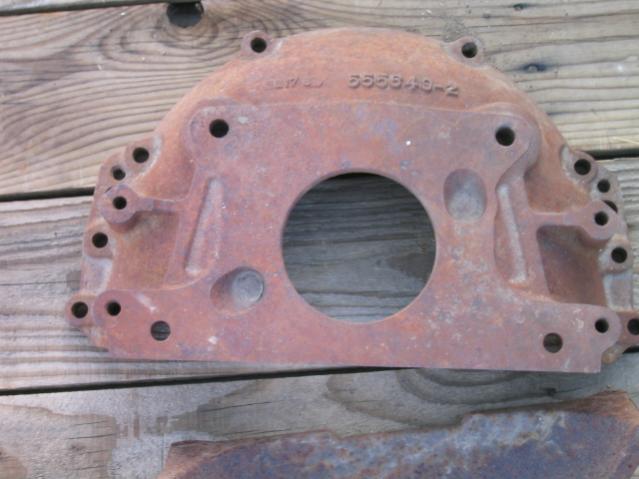

    I have been helping my buddy clean out his father-in-law's old shop. Among all my new treasures is this engine/trans. adapter, a lower half of a bell housing, and another bell housing. I recognize the aluminum adapter as early Ford on the trans. side, but I'm not sure of the engine side. It has no markings on it. It is 4 3/8" deep. I dont recognize the other 2 iron housings either. The lower half housing has 558709 cast on it. The complete iron bell has 555649-2 cast on it. I know that you guys can tell what these fit. If any of you need one of these, P.M. me.

    Thanks, Charlie


    Attached Files:

  2. That cast iron looks kind of Oldsmobile-ish. The alum one appears to adapt something to a Ford trans. Does the alum one match the bellhousing bolt pattern of the cast iron one?

  3. Charlie DeLong
    Joined: Apr 30, 2007
    Posts: 50

    Charlie DeLong
    Member



    No, it's different.

  4. jonnycola
    Joined: Oct 12, 2003
    Posts: 2,061

    jonnycola
    Member

    Cast iron crossover looks to be for a 303-324 olds.

  5. von Dyck
    Joined: Apr 12, 2007
    Posts: 678

    von Dyck
    Member

    Cast iron: '49 to '53 Olds 303cid Hydro bellhousing and starter housing.

  6. Charlie DeLong
    Joined: Apr 30, 2007
    Posts: 50

    Charlie DeLong
    Member

    Thanks guys. Anybody else recognize this adapter?

    Thanks in advance!

    Charlie

  7. Little Wing
    Joined: Nov 25, 2005
    Posts: 7,515

    Little Wing
    Member
    from Northeast

    Y block to flathead

    Last edited: Nov 29, 2008
